Electric Line Trimmer

Model # 17274545 Official Craftsman line trimmer

Here are the diagrams and repair parts for Official Craftsman 17274545 line trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |
Line Trimmer Throttle Trigger Spring GGT4501U-7
#7

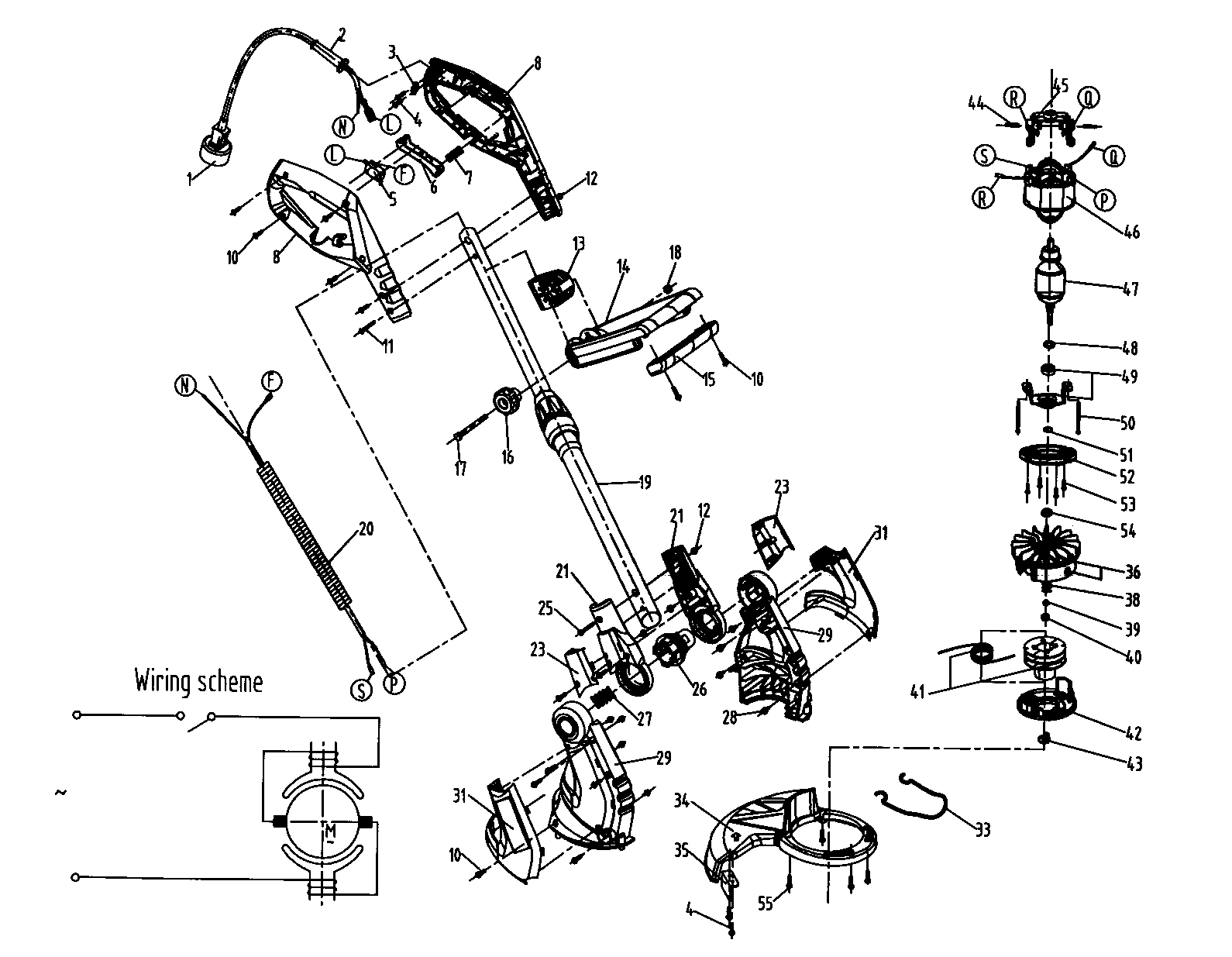

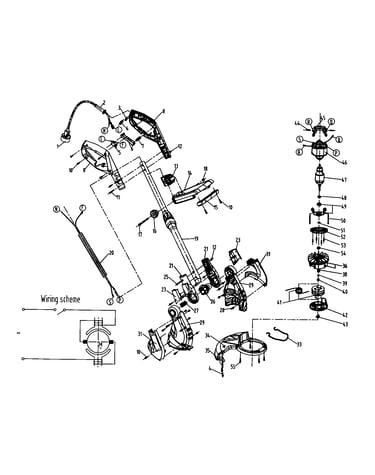

Cabinet parts diagram

Line trimmer throttle trigger spring

Part #GGT4501U-7

The manufacturer no longer makes this part, and there's no substitute part

Springline GGT4501U-20
#20

Cabinet parts diagram

Springline

Part #GGT4501U-20

The manufacturer no longer makes this part, and there's no substitute part

Washer GGT4501U-53
#54

Cabinet parts diagram

Washer

Part #GGT4501U-53

The manufacturer no longer makes this part, and there's no substitute part

Washer GGT4501U-47
#48

Cabinet parts diagram

Washer

Part #GGT4501U-47

The manufacturer no longer makes this part, and there's no substitute part

Line Trimmer String Cut-off Blade GGT4501U-34
#35

Cabinet parts diagram

Line trimmer string cut-off blade

Part #GGT4501U-34

The manufacturer no longer makes this part, and there's no substitute part

Line Trimmer Shaft Handle Cover GGT4501U-15
#15

Cabinet parts diagram

Line trimmer shaft handle cover

Part #GGT4501U-15

The manufacturer no longer makes this part, and there's no substitute part

Line Trimmer Edge Guide GGT4502U-33
#33

Cabinet parts diagram

Line trimmer edge guide

Part #GGT4502U-33

The manufacturer no longer makes this part, and there's no substitute part

Line Trimmer Self-tapping Screw GGT4501U-10
#10

Cabinet parts diagram

Line trimmer self-tapping screw

Part #GGT4501U-10

The manufacturer no longer makes this part, and there's no substitute part

Line Trimmer Bump Feed Knob GGT4501U-42
#43

Cabinet parts diagram

Line trimmer bump feed knob

Part #GGT4501U-42

The manufacturer no longer makes this part, and there's no substitute part

Line Trimmer Armature Insulator Cap GGT4501U-39
#40

Cabinet parts diagram

Line trimmer armature insulator cap

Part #GGT4501U-39

The manufacturer no longer makes this part, and there's no substitute part
