Frigidaire GCRG3060AFC gas range Parts

For your Frigidaire gas range model GCRG3060AFC, the model and serial number are printed on the serial plate; on many Frigidaire ranges it’s located behind the lower oven drawer or storage drawer. Use the exact model number from that plate when ordering parts or checking instructions in the GCRG3060AFC owner's manual.

Where to look for the model number

Check these common locations on Frigidaire ranges:

• Behind the lower oven drawer or storage drawer (open the drawer and look on the frame area)
• On the frame around the oven opening (check the front edge when the oven door is open)
• On a label inside the drawer cavity (use a flashlight and look along the side walls)

How to read the tag correctly

Model numbers are a mix of letters and numbers, so accuracy matters.

• Write it down exactly as shown (including any suffix letters)
• Watch for look-alikes like 0 (zero) vs O (letter O)
• Record the serial number too; it helps match the correct revision of parts
• Take a clear photo of the plate before you start a repair

What you need	What it’s used for	Example format
Model number	Matching parts and diagrams	GCRG3060AFC
Serial number	Identifying production run/version	Letters and numbers
Purchase date	Warranty and service history	Month/day/year

Why it matters

Using the exact model number ensures you get the right Frigidaire range parts (like an igniter, oven temperature sensor, or oven rack) and the correct procedures for installation, baking, and care.

Last updated: February 2026

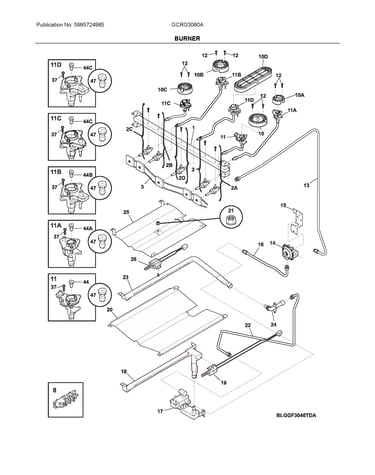

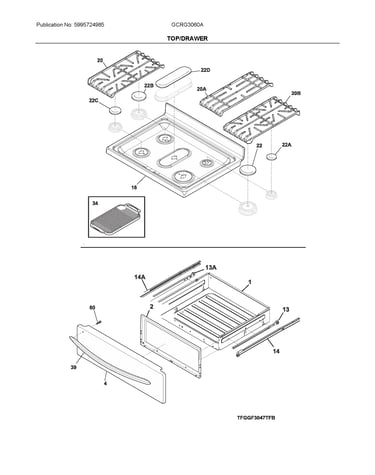

To remove the main top on a Frigidaire GCRG3060AFC gas range, we start by shutting off the gas supply and disconnecting power, then remove the surface components (grates, burner caps, and burner bases) so the cooktop fasteners and lift points are accessible. Use the GCRG3060AFC installation guide for the correct shutoff and reconnection steps.

Safety first (gas and power)

• Turn all burner knobs to OFF.
• Shut off the manual gas shut-off valve.
• Unplug the range (or switch off the breaker).
• If you must pull the range out, pull it out only as far as needed to disconnect utilities.
• After any reconnection, check all joints with a liquid leak detector (never use a flame).

Main-top removal: common steps

1. Remove all burner grates.
2. Lift off burner caps.
3. Remove the burner bases/heads (how they release varies by burner style).
4. Look for screws at the front lip, under burner heads, or under trim; remove any you find.
5. Lift the main top from the front edge, then slide or prop it as designed.
6. If wiring or igniter harnesses limit movement, support the top and disconnect only the connectors needed.

What you may need

Item	Why it helps
Phillips or Torx driver	Removes cooktop and burner-area screws
Small container	Keeps screws and brackets organized
Work gloves	Protects hands from sharp sheet metal
Liquid leak detector	Confirms safe gas reconnection

Why it matters

Removing the main top gives access to surface burner ignition parts, wiring, and the manifold area. Doing the shutoff and leak-check steps correctly prevents gas leaks and ignition problems after reassembly.

Last updated: February 2026

If your Frigidaire GCRG3060AFC gas range smells like gas, treat it as a safety issue first: stop using the range and follow the “What to do if you smell gas” steps in the installation guide. After it’s safe, common causes include incomplete ignition, clogged burner ports, or a failing igniter or gas valve.

What to do right now (safety first)

• Turn all burner knobs to OFF.
• Do not try to light any appliance.
• Do not touch electrical switches or use a phone inside the building.
• Call your gas supplier from a neighbor’s phone and follow their instructions.
• If you can’t reach the gas supplier, call the fire department.

Common causes when the range is operating

A brief “gas” odor at startup can happen if ignition is delayed, but a persistent smell points to a problem that needs attention.

• Delayed ignition: gas flows before the burner lights, so unburned gas is noticeable.
• Dirty or clogged burner ports: uneven flame and incomplete combustion.
• Weak oven igniter: the oven may take longer to light, causing odor; for bake, check the bake igniter 316489403.
• Gas valve or regulator issue: improper gas flow can affect ignition and flame quality.
• Flame set too high: flames extending beyond the pan edge are hazardous and can worsen combustion.

Quick checks you can do (after the area is safe)

• Look for normal flame: steady blue flame is typical; large yellow tips and soot suggest combustion issues.
• Clean and dry burner caps and ports (spills and moisture commonly cause ignition delay).
• Confirm the oven lights promptly in Bake and Broil; slow lighting often points to an igniter problem.
• Make sure you are not using the range to heat the room; prolonged use without ventilation is dangerous.

Symptom-to-likely-cause guide

Symptom	Most likely cause	What we recommend
Smell is strongest right before ignition	Delayed ignition	Clean burner ports; inspect igniters
Oven takes long to light, then whoosh	Weak igniter	Replace the igniter (bake or broil)
Smell even when everything is OFF	Possible gas leak	Follow the safety steps in the installation guide

Why it matters

Unburned gas and incomplete combustion increase fire risk and can indicate a leak or failing ignition system. Addressing ignition and airflow issues quickly helps keep your GCRG3060AFC operating safely and efficiently.

Last updated: February 2026
