Model # 315273980 Official Craftsman drill/driver

Here are the diagrams and repair parts for Official Craftsman 315273980 drill/driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

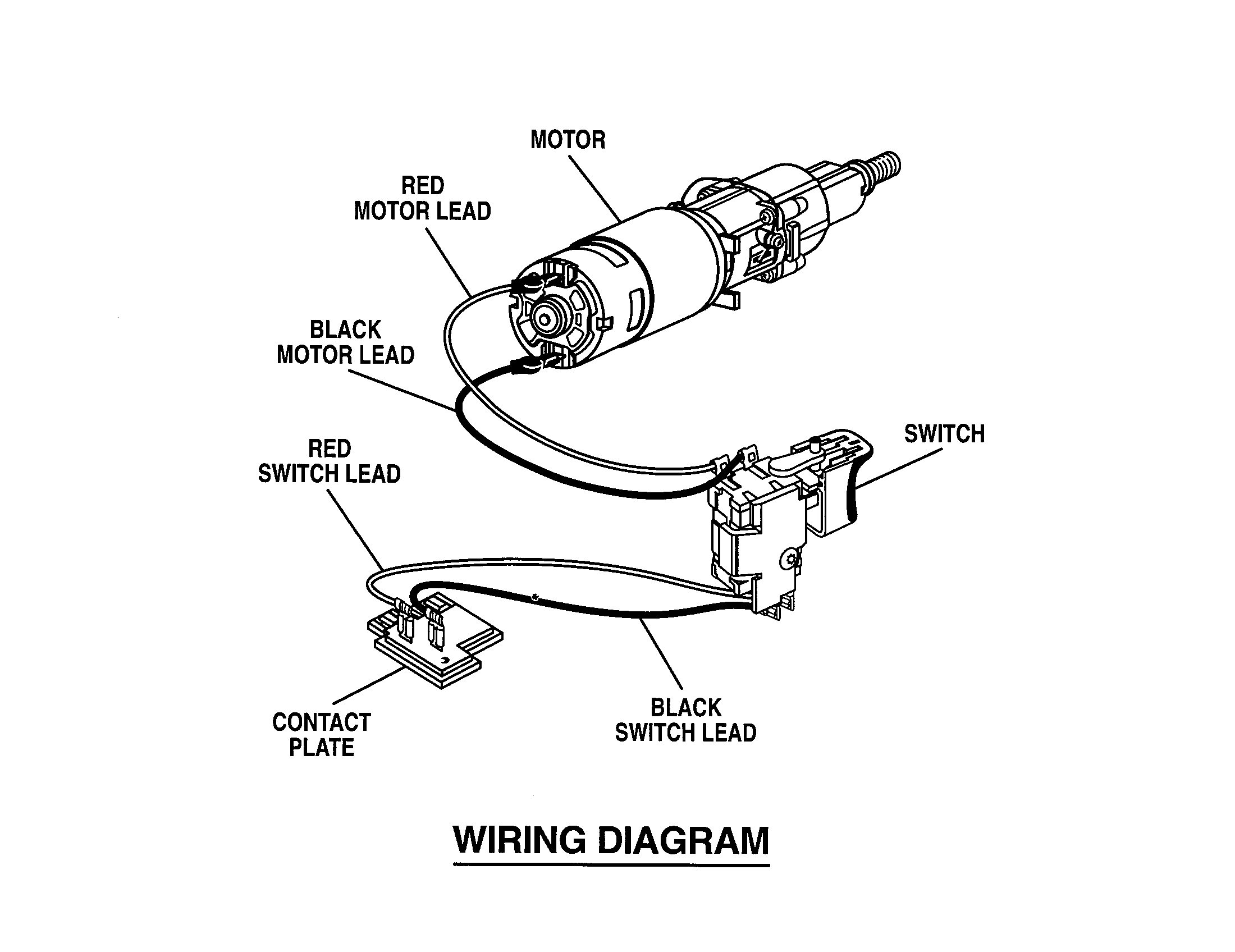

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 27 parts  |
Plate 981939-001
#19

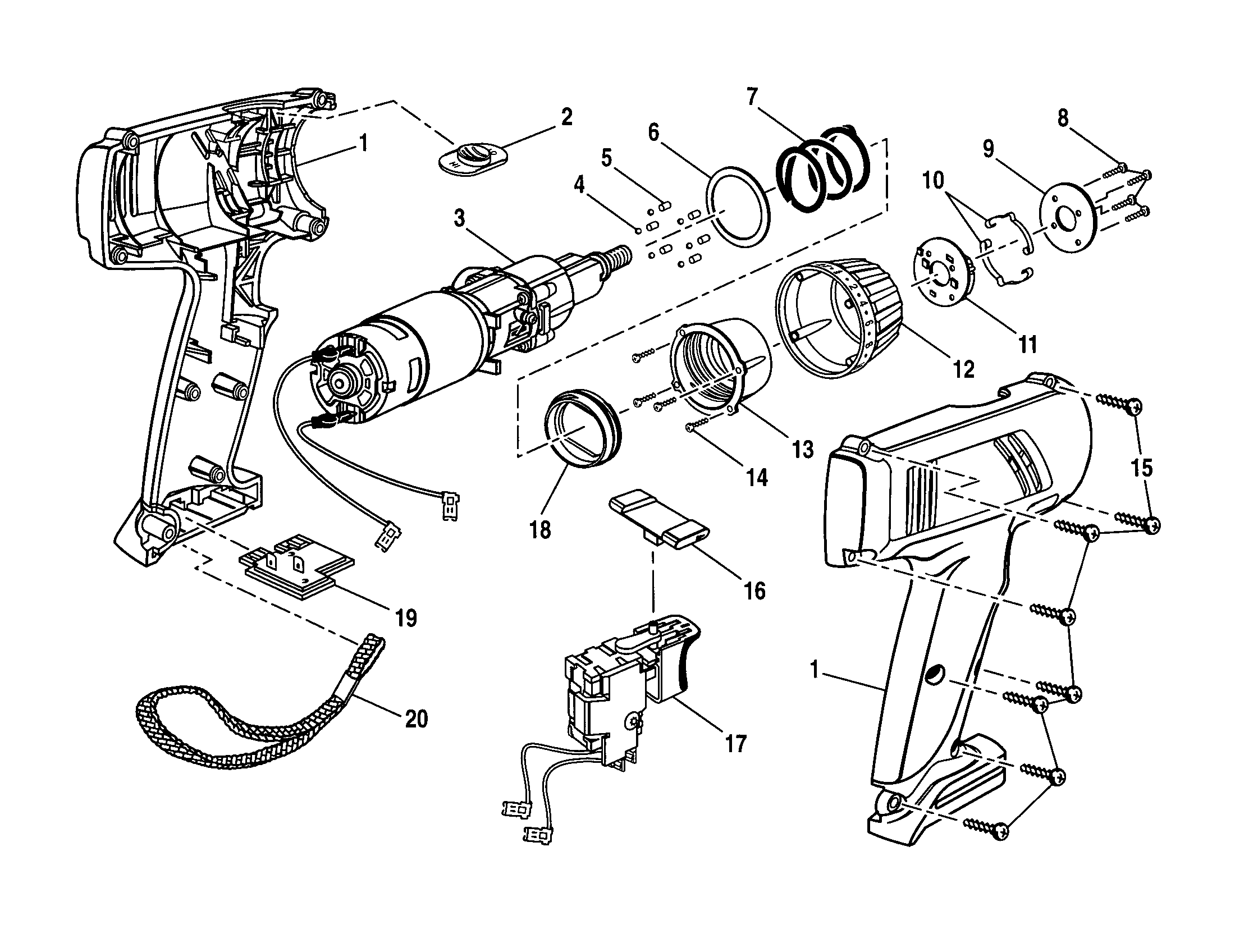

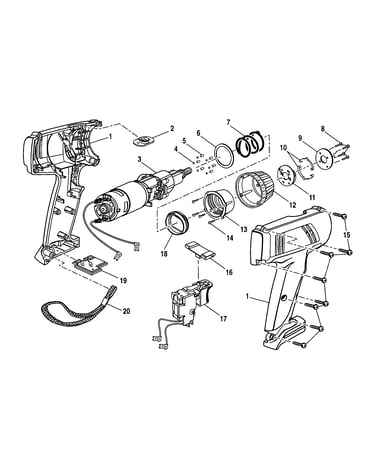

Housing diagram

Plate

Part #981939-001

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Steel Ball 6721901
#4

Housing diagram

Power tool steel ball

Part #6721901

The manufacturer no longer makes this part, and there's no substitute part

Housing 982520-001
#1

Housing diagram

Housing

Part #982520-001

The manufacturer no longer makes this part, and there's no substitute part

Lock Pin 6833302
#5

Housing diagram

Lock pin

Part #6833302

The manufacturer no longer makes this part, and there's no substitute part

Clutch Cap 6447702
#12

Housing diagram

Clutch cap

Part #6447702

The manufacturer no longer makes this part, and there's no substitute part

Drill Chuck Screw 616478-003
#1

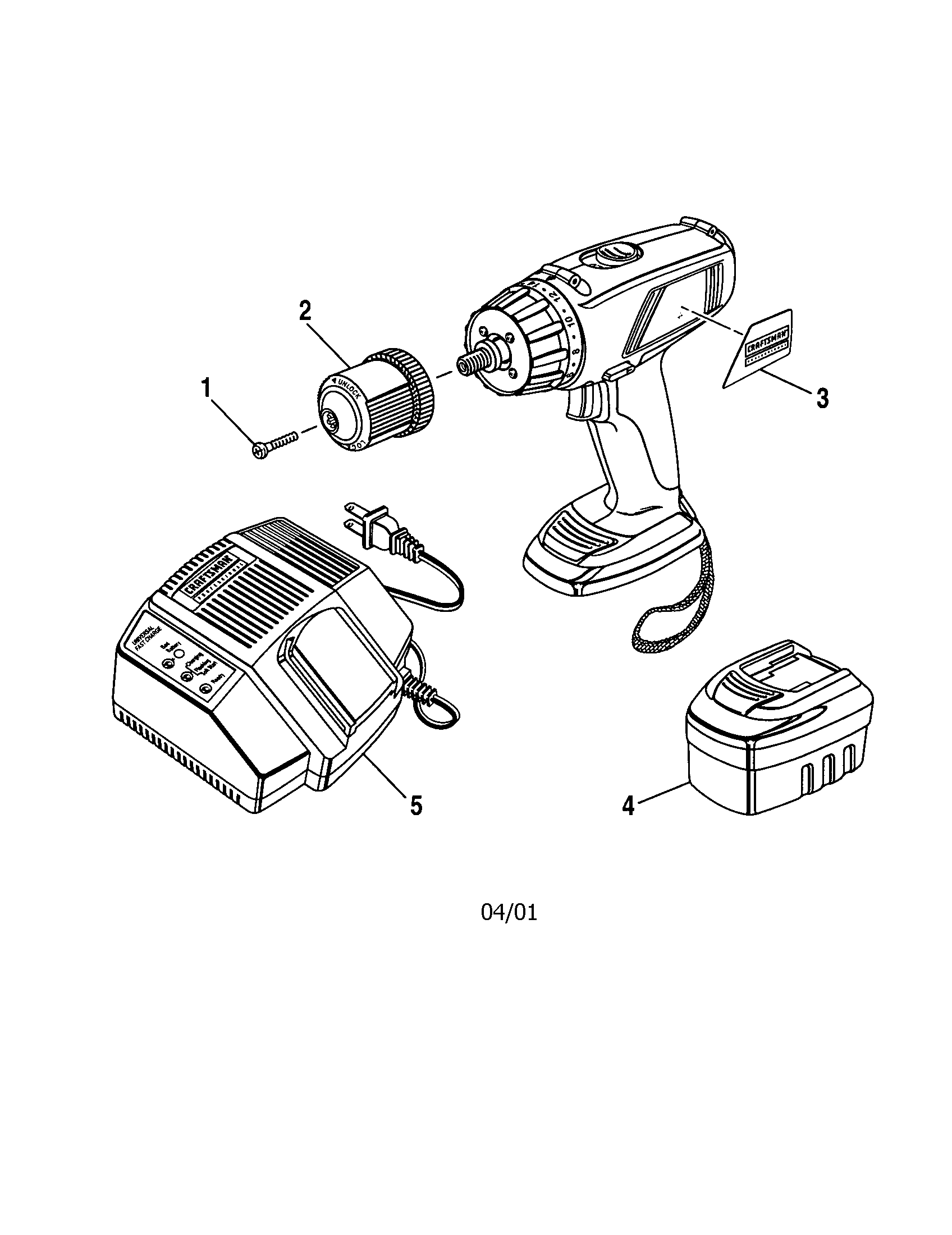

3/8" - 9.6 volts drill-driver diagram

Drill chuck screw

Part #616478-003

The manufacturer no longer makes this part, and there's no substitute part

Actuator 3801301
#16

Housing diagram

Actuator

Part #3801301

The manufacturer no longer makes this part, and there's no substitute part

Clutch Hub 5434603
#11

Housing diagram

Clutch hub

Part #5434603

The manufacturer no longer makes this part, and there's no substitute part

Spring 6843401
#7

Housing diagram

Spring

Part #6843401

The manufacturer no longer makes this part, and there's no substitute part

Screw 6620805
#15

Housing diagram

Screw

Part #6620805

The manufacturer no longer makes this part, and there's no substitute part
