Craftsman
Walk-Behind Mower

Model # 13197661 Official Craftsman 22" self-propelled rotary lawn mower

Here are the diagrams and repair parts for Official Craftsman 13197661 22" self-propelled rotary lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |

Washer 54005
#69

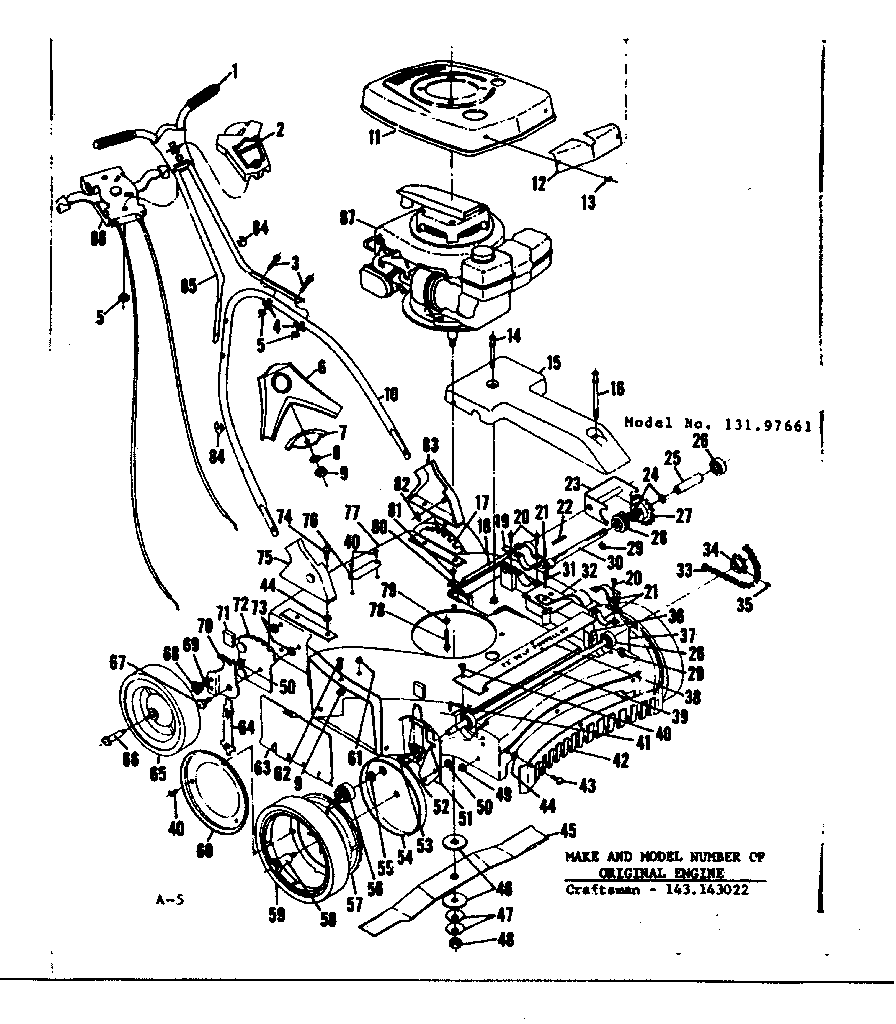

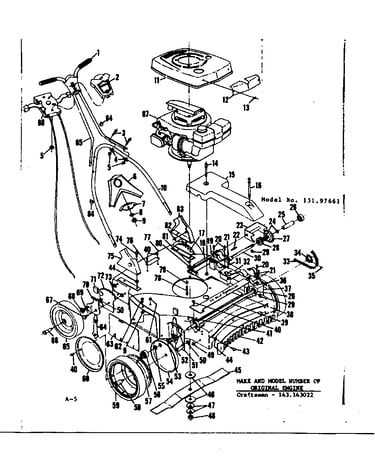

Replacement parts diagram

Washer

Part #54005

The manufacturer no longer makes this part, and there's no substitute part

Nut 55615
#73

Replacement parts diagram

Nut

Part #55615

Replaced by #873510600

?
Manufacturer substitution
This part replaces 55615. Substitute parts can look different from the original.
This item is not returnable
In Stock
Nut 53490
#5

Replacement parts diagram

Nut

Part #53490

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut 56284
#44

Replacement parts diagram

Hex nut

Part #56284

The manufacturer no longer makes this part, and there's no substitute part

Blade 56401
#45

Replacement parts diagram

Blade

Part #56401

Replaced by #532406713

?
Manufacturer substitution
This part replaces 56401. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$28.29
17% OFF Phone Price : $34.29
In Stock
Wheel Tire 54785
#65

Replacement parts diagram

Wheel tire

Part #54785

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 54767
#49

Replacement parts diagram

Lock nut

Part #54767

The manufacturer no longer makes this part, and there's no substitute part

Stop Nut 54509
#9

Replacement parts diagram

Stop nut

Part #54509

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 13257
#79

Replacement parts diagram

Lock washer

Part #13257

The manufacturer no longer makes this part, and there's no substitute part

Lawn & Garden Equipment Washer 52784
#8

Replacement parts diagram

Lawn & garden equipment washer

Part #52784

The manufacturer no longer makes this part, and there's no substitute part
