Model # SH40055 Official Hoover vacuum

Here are the diagrams and repair parts for Official Hoover SH40055 vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 44 parts  |

Nozzle Cover 302066010
#1

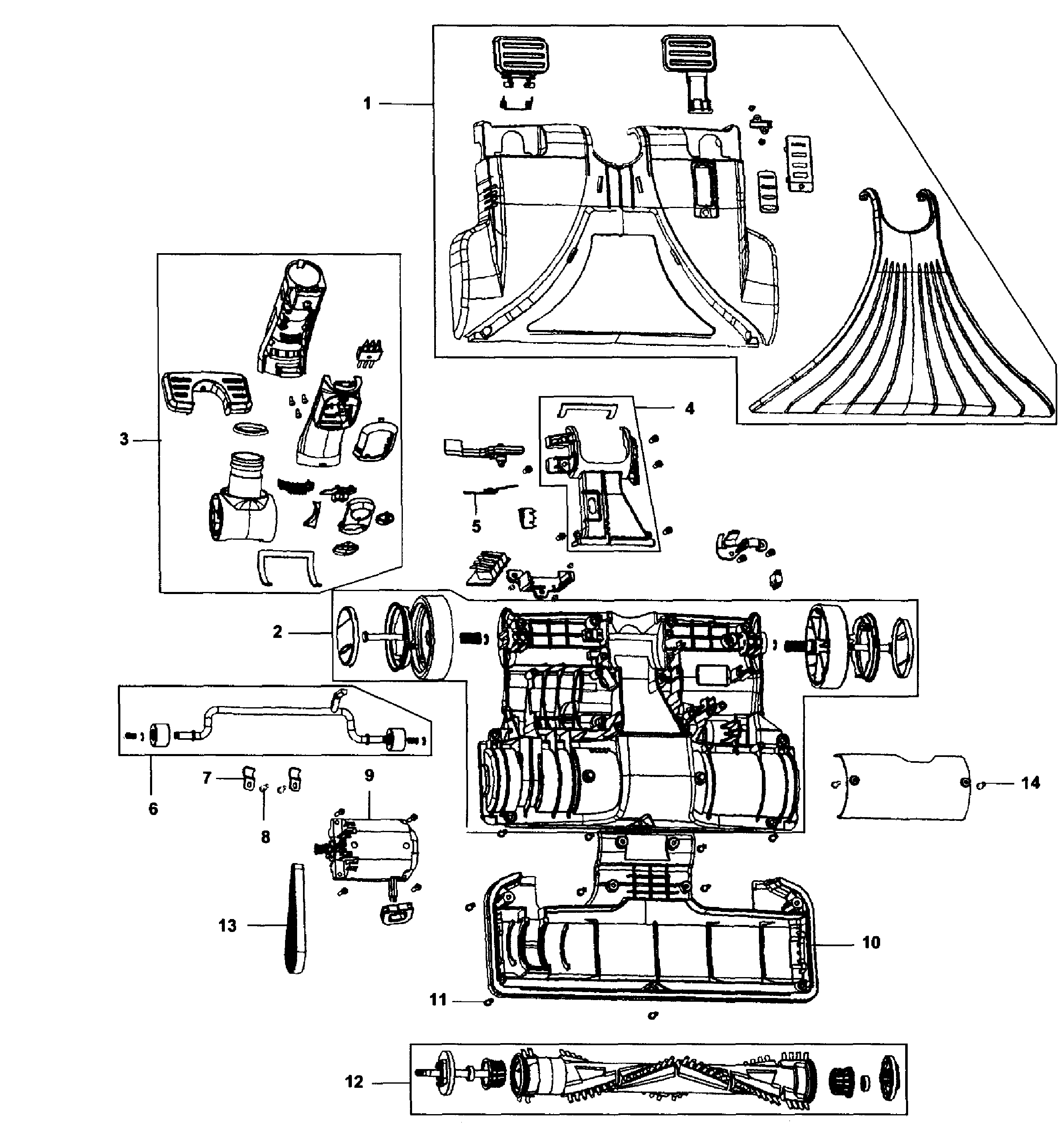

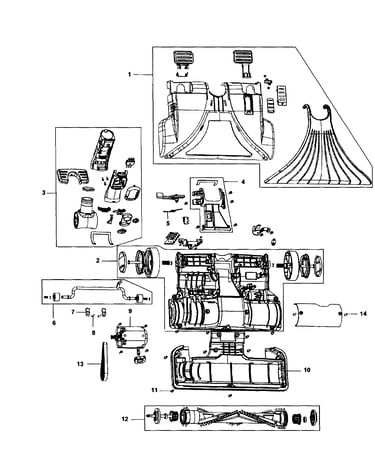

Motor assy diagram

Nozzle cover

Part #302066010

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Exhaust Filter 303017001
#25

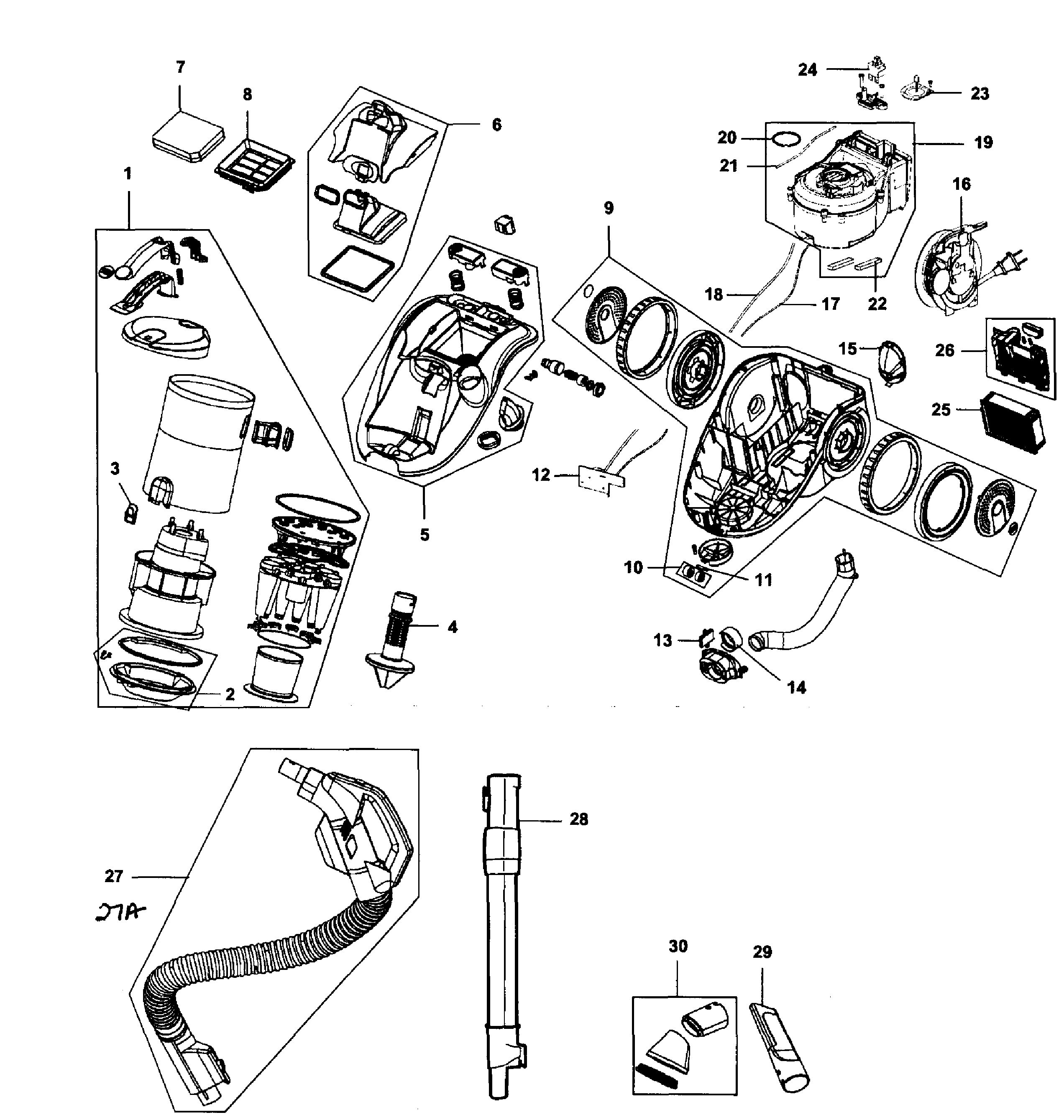

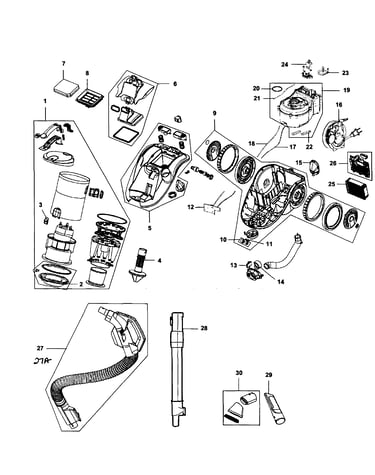

Canister assy diagram

Vacuum exhaust filter

Part #303017001

The manufacturer no longer makes this part, and there's no substitute part

Housing 410105001
#5

Canister assy diagram

Housing

Part #410105001

The manufacturer no longer makes this part, and there's no substitute part

Grip Hose 303013004
#27

Canister assy diagram

Grip hose

Part #303013004

The manufacturer no longer makes this part, and there's no substitute part

Release Spring 672893001
#5

Motor assy diagram

Release spring

Part #672893001

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Motor Safety Filter 303090001
#7

Canister assy diagram

Vacuum motor safety filter

Part #303090001

The manufacturer no longer makes this part, and there's no substitute part

Dirt Cup 410107001
#1

Canister assy diagram

Dirt cup

Part #410107001

The manufacturer no longer makes this part, and there's no substitute part

Telescoping Wand 303016001
#28

Canister assy diagram

Telescoping wand

Part #303016001

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Cord Reel Assembly 302458006
#16

Canister assy diagram

Vacuum cord reel assembly

Part #302458006

The manufacturer no longer makes this part, and there's no substitute part

Pcb Pwr In 280535002
#23

Canister assy diagram

Pcb pwr in

Part #280535002

The manufacturer no longer makes this part, and there's no substitute part
