York
Central Air Conditioner

Model # B3CH036A46 Official York heat pump

Here are the diagrams and repair parts for Official York B3CH036A46 heat pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 136 parts  |
Cap Run 024-20045-000
Cap run

Part #024-20045-000

Replaced by #12907

?
Manufacturer substitution
This part replaces 024-20045-000. Substitute parts can look different from the original.
This item is not returnable
$4.87 |
17% OFF Phone Price : $5.87
In Stock
Belt 028-09573-000
#7A

Belt drive option diagram

Belt

Part #028-09573-000

The manufacturer no longer makes this part, and there's no substitute part

Belt 028-09571-000
#7

Belt drive option diagram

Belt

Part #028-09571-000

The manufacturer no longer makes this part, and there's no substitute part

Blower Wheel 026-33326-700
#6A

Belt drive option diagram

Blower wheel

Part #026-33326-700

The manufacturer no longer makes this part, and there's no substitute part

Valve, Distr. (3-tube, #68 Orifice Cond.) (contains Body, Distr. Tubes And Orifice.) 022-06844-022
#63

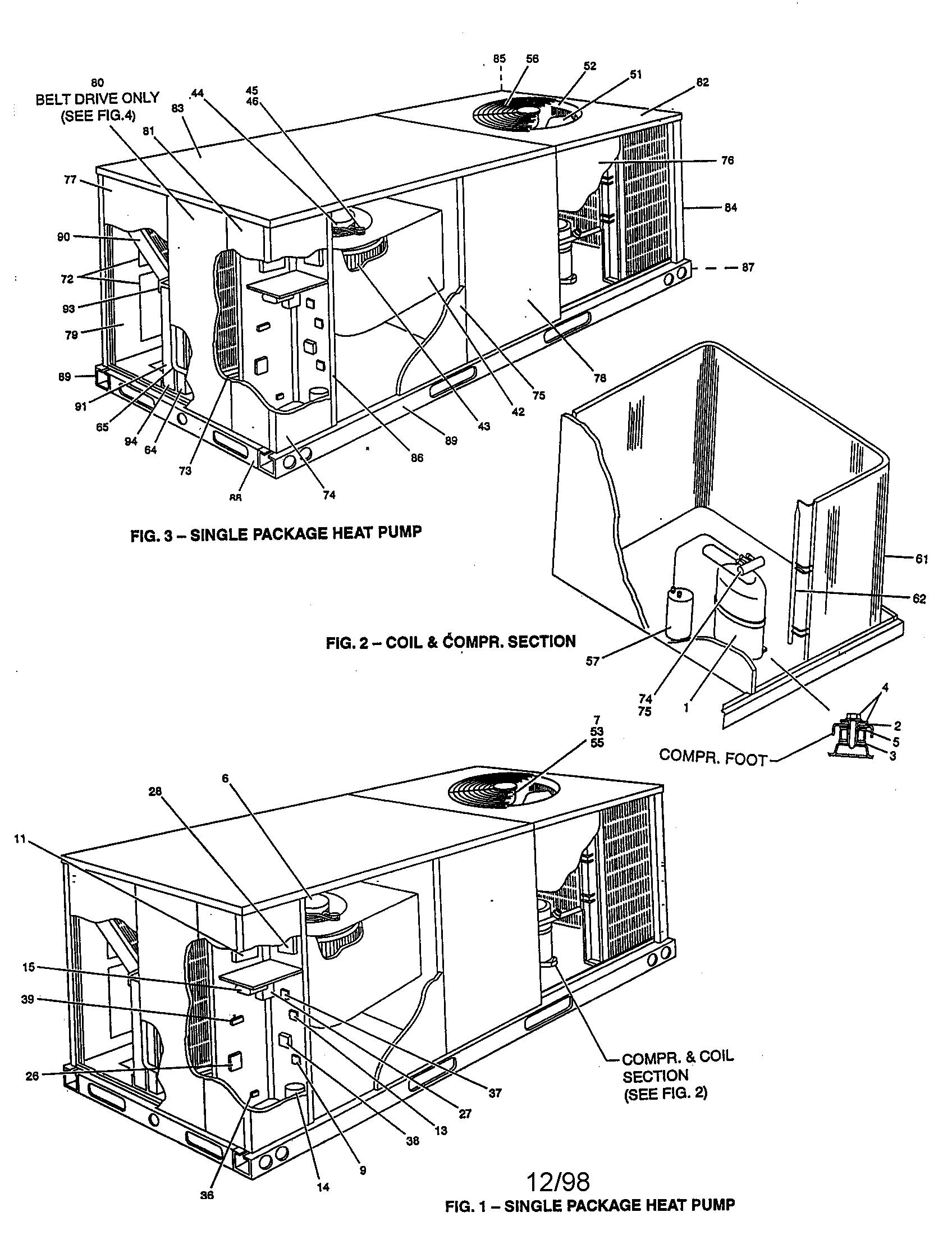

Replacement parts diagram

Valve, distr. (3-tube, #68 orifice cond.) (contains body, distr. tubes and orifice.)

Part #022-06844-022

The manufacturer no longer makes this part, and there's no substitute part

Cap Connector 025-21191-000
#21

Replacement parts diagram

Cap connector

Part #025-21191-000

The manufacturer no longer makes this part, and there's no substitute part

Accessories - Electrical Electric Heater (240v) 29.6kw (208/230-1-60) 2CE04503006

#NI

All parts diagram

Accessories - electrical electric heater (240v) 29.6kw (208/230-1-60)

Part #2CE04503006

The manufacturer no longer makes this part, and there's no substitute part

Fan Blade 026-25515-000
#51

Replacement parts diagram

Fan blade

Part #026-25515-000

The manufacturer no longer makes this part, and there's no substitute part

Accessories - Electrical (cont) Electric Heater (480v) 28.8kw (460-3-60) 2CE04503046

#NI

All parts diagram

Accessories - electrical (cont) electric heater (480v) 28.8kw (460-3-60)

Part #2CE04503046

The manufacturer no longer makes this part, and there's no substitute part

Relay 024-24102-000
#37

Replacement parts diagram

Relay

Part #024-24102-000

The manufacturer no longer makes this part, and there's no substitute part
