Model # WRT518SZFB04 Official Whirlpool top-mount refrigerator
Here are the diagrams and repair parts for Official Whirlpool WRT518SZFB04 top-mount refrigerator, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts forWRT518SZFB04 Refrigerators
- #10

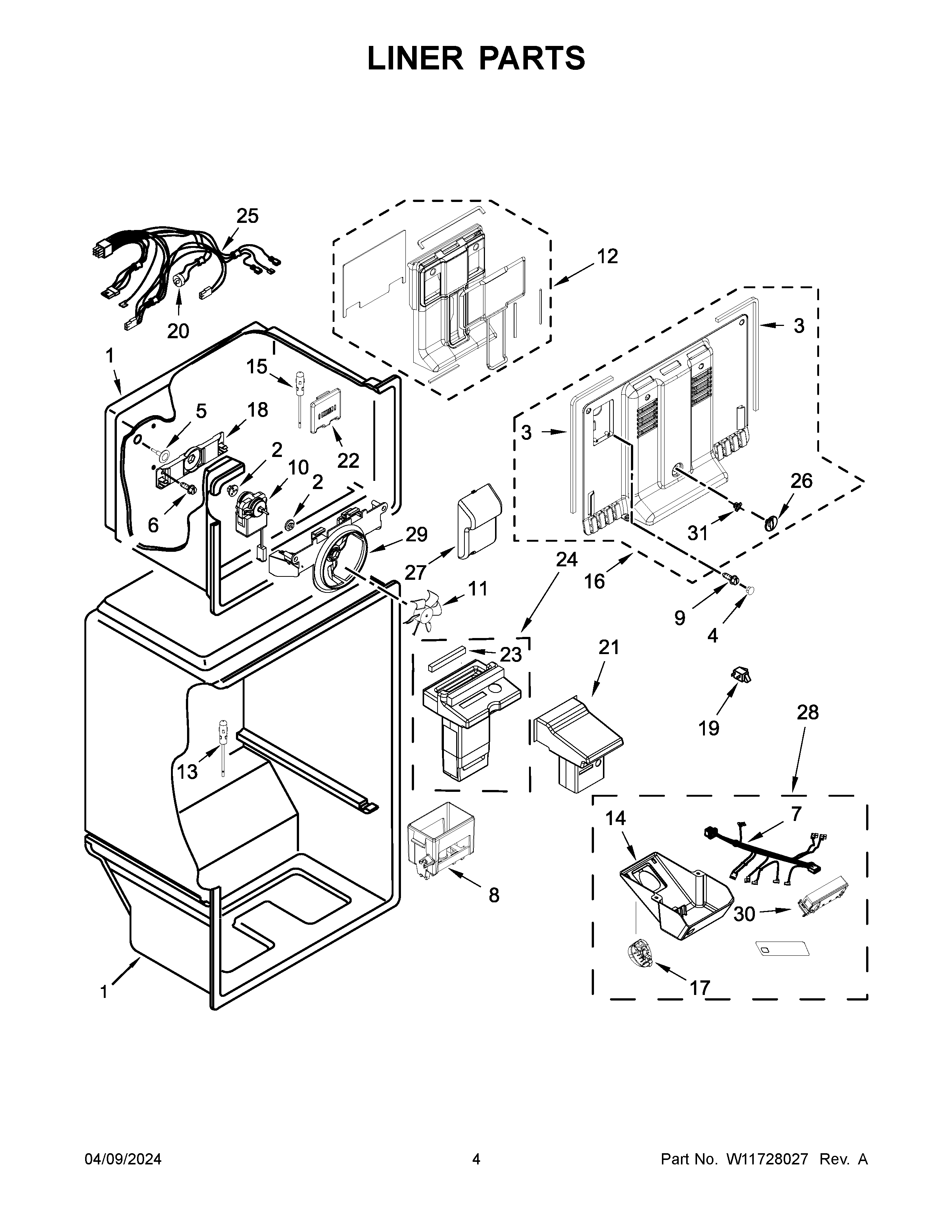

Liner parts diagram
Refrigerator evaporator fan motorPart #2315539
Replaced by #WP2315539
?Manufacturer substitutionThis part replaces 2315539. Substitute parts can look different from the original.$47.54 |11% OFF Phone Price : $53.54In Stock - #11
Liner parts diagram
Fan bladePart #2200509
Replaced by #WP2163777
?Manufacturer substitutionThis part replaces 2200509. Substitute parts can look different from the original.$38.19 |14% OFF Phone Price : $44.19In Stock - #24
Unit parts diagram
Drier tubePart #W10805035
Replaced by #W11109499
?Manufacturer substitutionThis part replaces W10805035. Substitute parts can look different from the original.$28.73 |17% OFF Phone Price : $34.73In Stock - #18

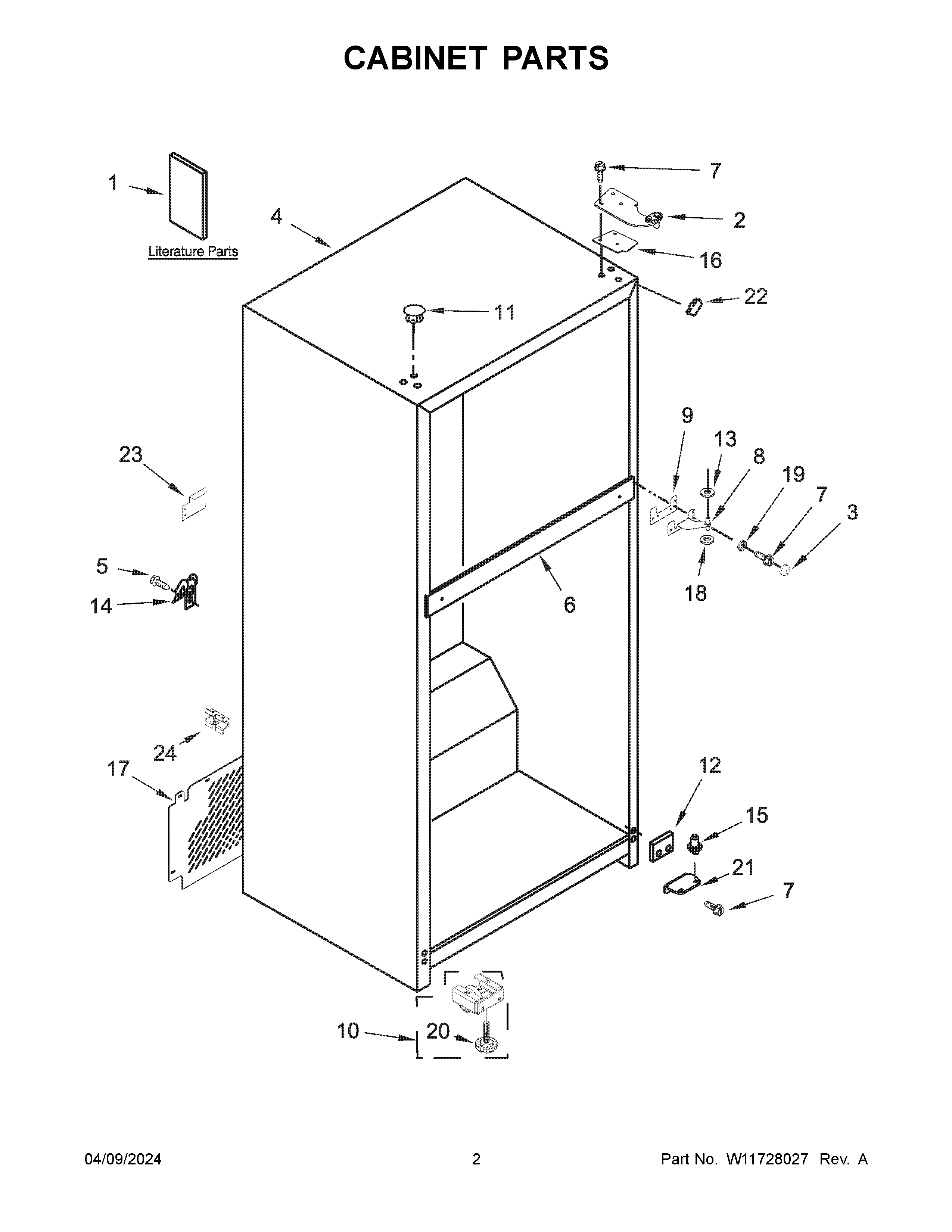

Cabinet parts diagram
Refrigerator washerPart #487576
Replaced by #WP487576
?Manufacturer substitutionThis part replaces 487576. Substitute parts can look different from the original.$6.73 |13% OFF Phone Price : $7.73In Stock - #1

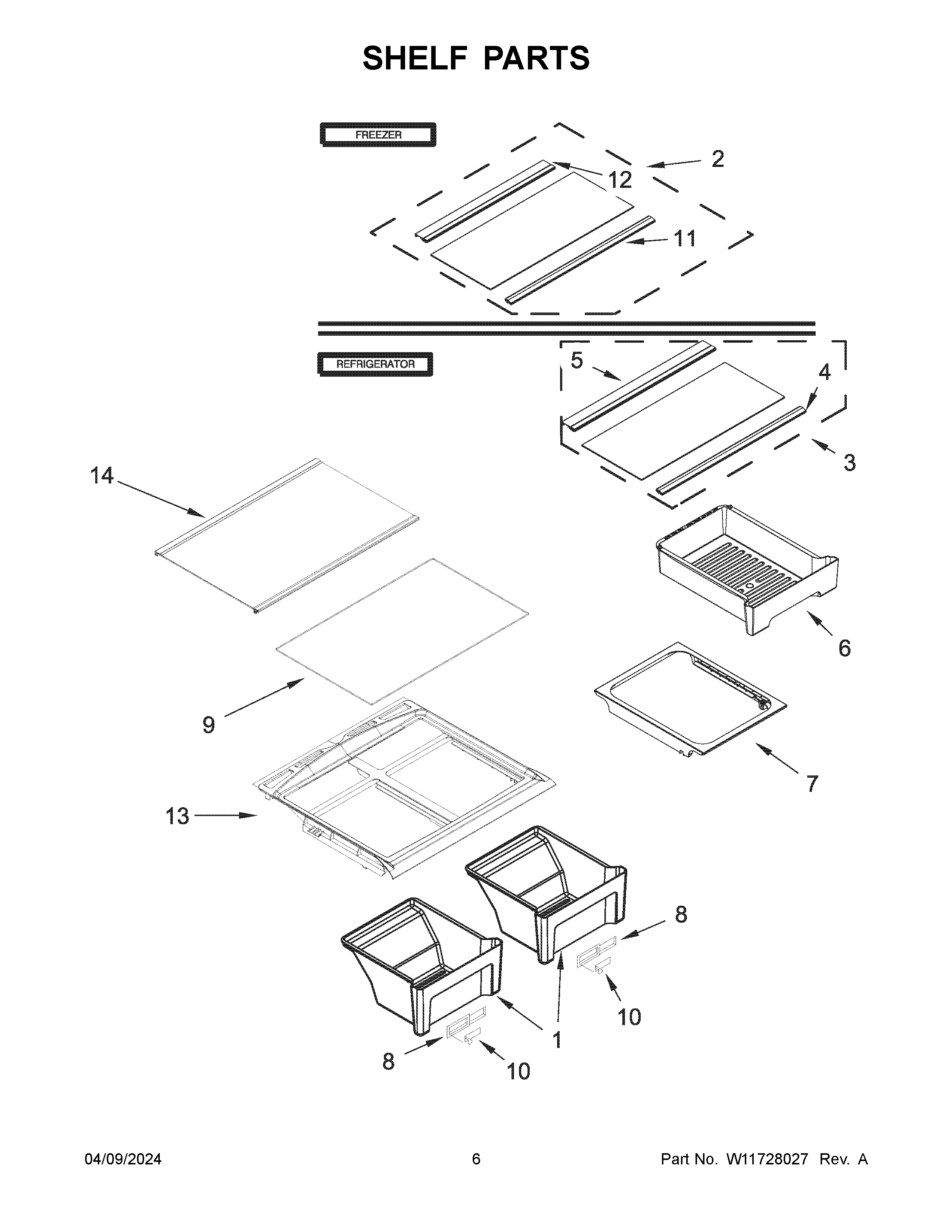

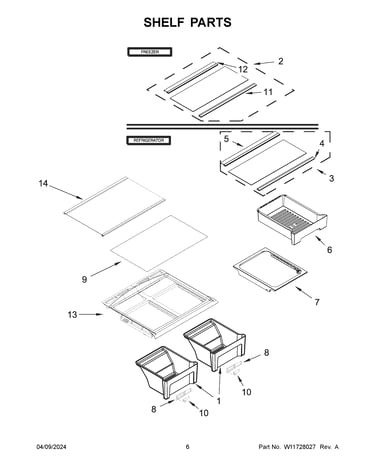

Shelf parts diagram
Refrigerator crisper drawerPart #2256704
Replaced by #WP2256704
?Manufacturer substitutionThis part replaces 2256704. Substitute parts can look different from the original.$83.37 |7% OFF Phone Price : $89.37In Stock - #23
Unit parts diagram
Cond fan,mlaPart #W10909387
Replaced by #W11127829
?Manufacturer substitutionThis part replaces W10909387. Substitute parts can look different from the original.$99.10 |11% OFF Phone Price : $111.10In Stock - #7
Cabinet parts diagram
Refrigerator screwPart #489497
Replaced by #WP489497
?Manufacturer substitutionThis part replaces 489497. Substitute parts can look different from the original.$8.12 |11% OFF Phone Price : $9.12In Stock - #15
Unit parts diagram
CombinationPart #W11359381
Replaced by #W11547180
?Manufacturer substitutionThis part replaces W11359381. Substitute parts can look different from the original.$63.51In Stock - #13
Shelf parts diagram
Refrigerator crisper drawer coverPart #2222031
Replaced by #WP2222031
?Manufacturer substitutionThis part replaces 2222031. Substitute parts can look different from the original.$102.67 |10% OFF Phone Price : $114.67In Stock - #7

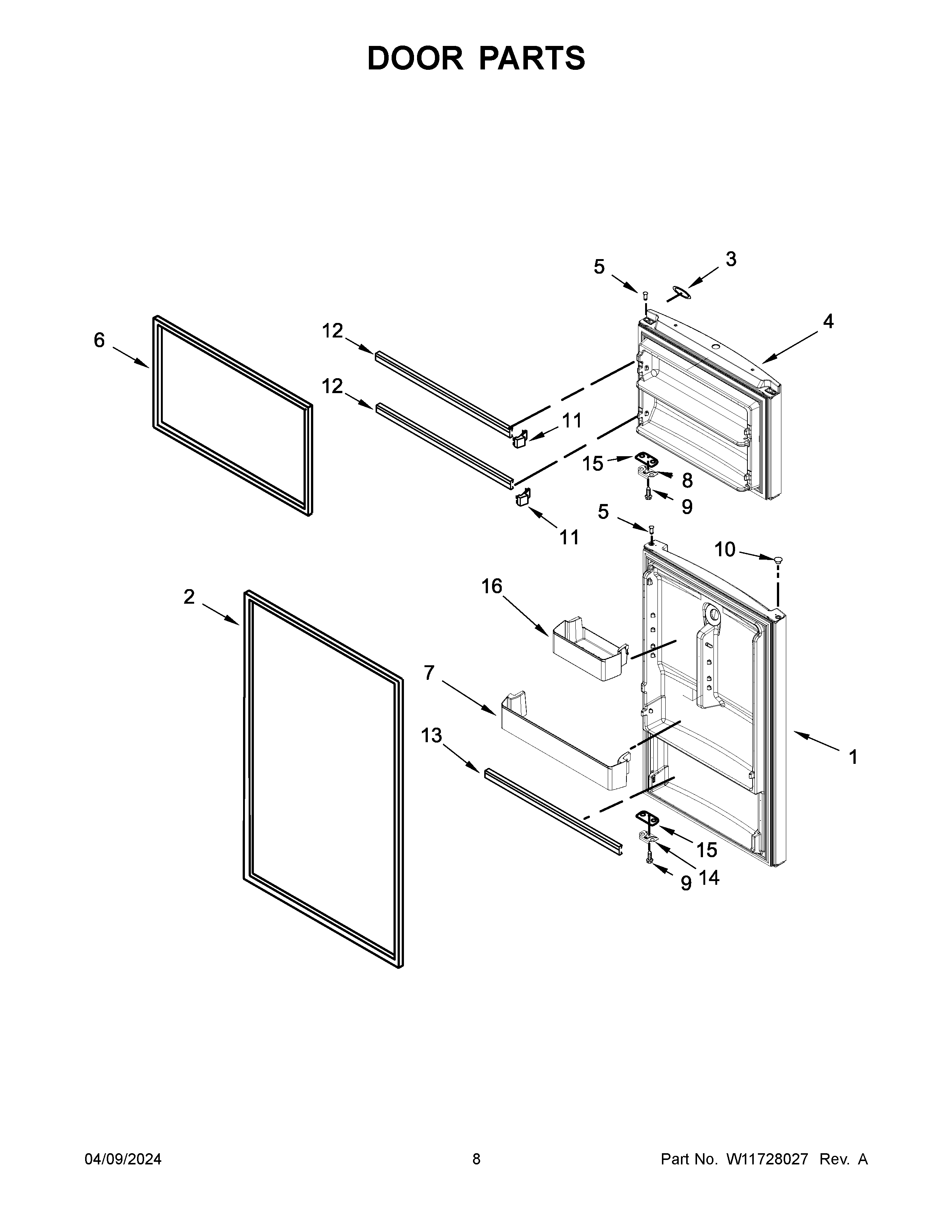

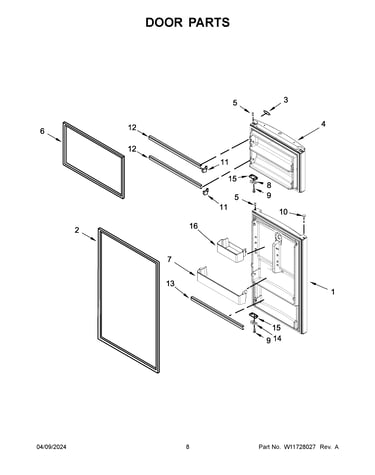

Door parts diagram
Refrigerator trivetPart #W10805892
Replaced by #W11230940
?Manufacturer substitutionThis part replaces W10805892. Substitute parts can look different from the original.$67.57 |8% OFF Phone Price : $73.57In Stock
