Model #020727 Official Briggs & Stratton gas power washer
Here are the diagrams and repair parts for Briggs & Stratton 020727 gas power washer, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:
- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.

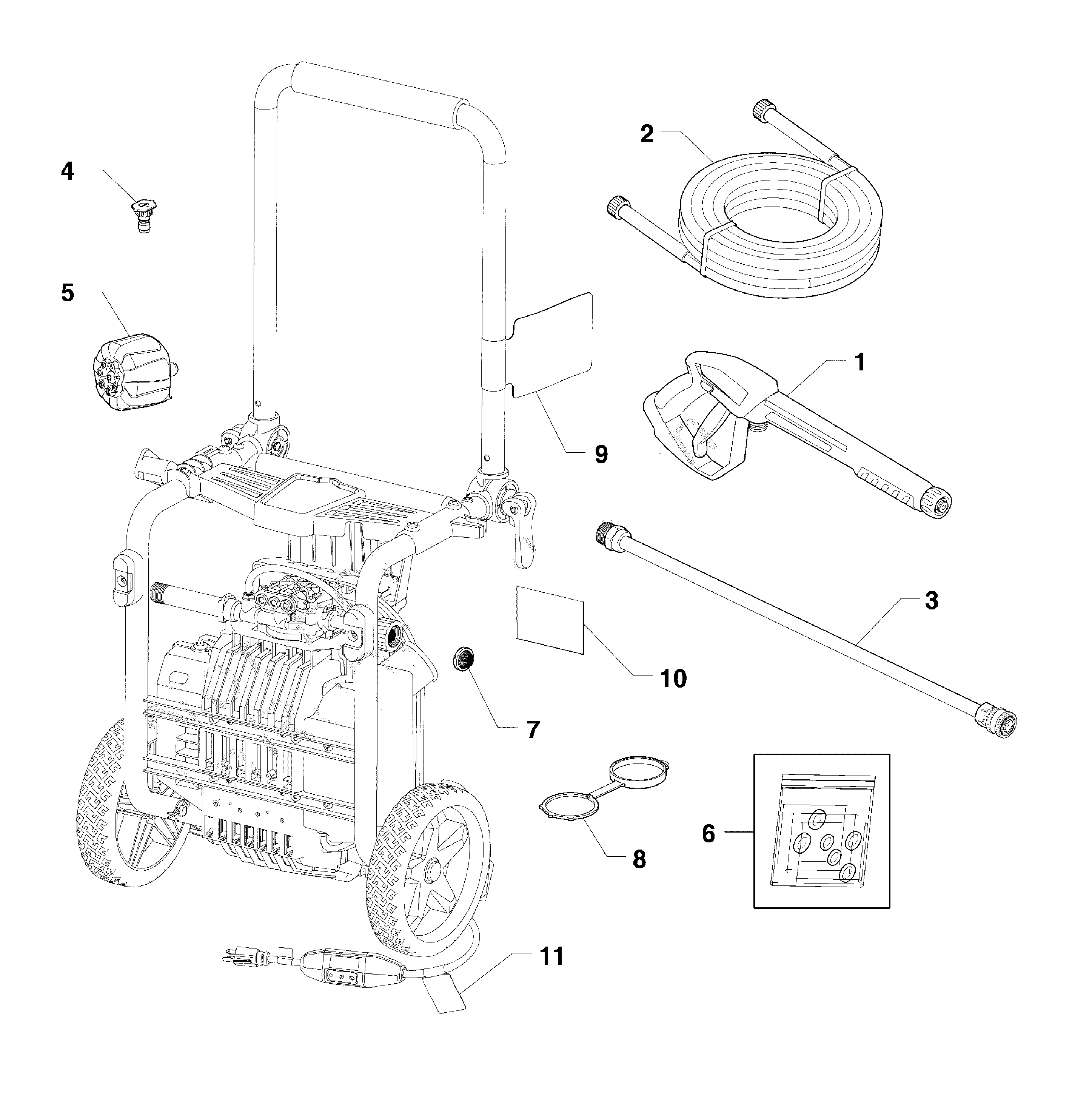

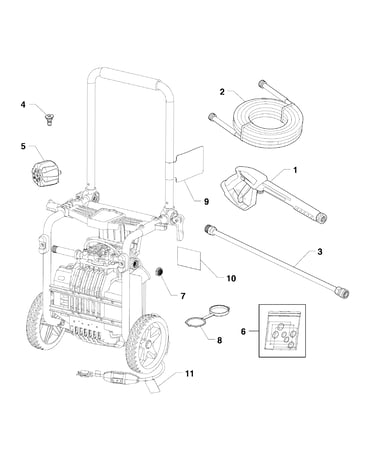

Model Diagram and Schematics
Search within this model
?
This is the number corresponding to the part on the diagram / schematic
Parts List
Showing 10 of 14 parts
Pressure washer wand (replaces 207784gs, 705373)
Part #706595
In Stock
$43.87 |
35% OFF
MSRP: $68.00
Pressure washer o-ring kit (replaces 196002gs)
Part #705001
In Stock
$18.16 |
30% OFF
MSRP: $26.00
Cap-chemical
Part #706583
In Stock
$10.79 |
16% OFF
Phone Price: $12.79
Lawn mower decal
Part #316394GS
In Stock
$20.73
Nozzle (replaces 317349gs)
Part #771692
In Stock
$116.39 |
10% OFF
MSRP: $130.00
Recommended maintenance parts and accessories
Symptoms for gas pressure washers
Things to do: tune up the engine, inject pump saver into the water pump when storing the pressure washer for the winter
Main causes: overfilling engine with oil, improper fuel/air mixture, choke system problems, dirty carburetor, engine needs tune up
Main causes: pump running for more than 5 minutes when the spray wand isn't being used, faulty pressure relief valve, bad unloader valve
Main causes: insufficient water supply, clogged water inlet screen, clogged pressure hose, faulty pump check valves, stuck unloader valve
Main causes: using a high-pressure spray tip when applying detergent, clogged siphon tube, chemical injection system failure
Main causes: damaged recoil starter, oil inside cylinder, locked up engine piston
Main causes: dirty air filter, stale fuel, clogged or dirty carburetor, bad unloader valve
Main causes: stale fuel, gummed up carburetor, engine needs tune up, throttle and choke controls need adjustment, bad recoil starter
Main causes: faulty unloader valve, bad pressure regulator
Repair guides for gas pressure washers
The chemical injection valve draws detergent into the pump. If it’s not drawing detergent, use a repair kit to replace the chemical injection valve.
Repair difficulty
Time required
15 minutes or less
O-rings seal fittings on the pressure washer pump. Damaged seals allow water to leak from the pump. Follow these steps to replace the O-rings in a leaking pressure washer pump.
Repair difficulty
Time required
45 minutes or less
The pump can be damaged by air in the inlet water supply or by chemicals that remain in the pump body after using the chemical injection system. Follow these steps to replace a damaged pump.
Repair difficulty
Time required
15 minutes or less
Articles and videos common to all pressure washers
Learn about all the convenient features on our Sears PartsDirect website that make your parts purchases easier.
Learn about a new feature added to the Search Bar on Sears PartsDirect
Get answers to frequently asked questions about Sears and Sears PartsDirect.
