Model # WAS24460UC/20 Official Bosch washer

Here are the diagrams and repair parts for Official Bosch WAS24460UC-20 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 89 parts  |

Washer Door Boot Kit 680768
#324

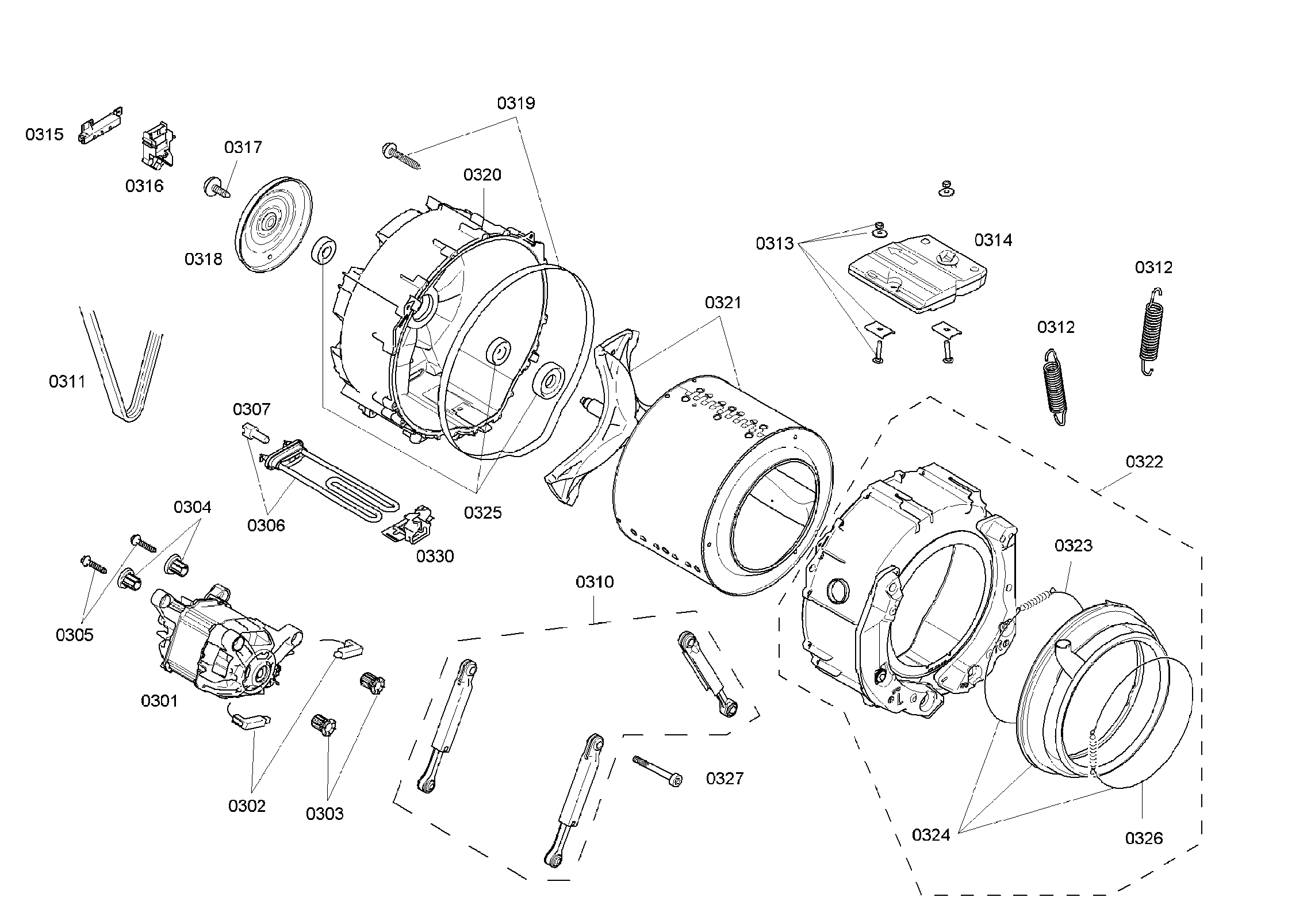

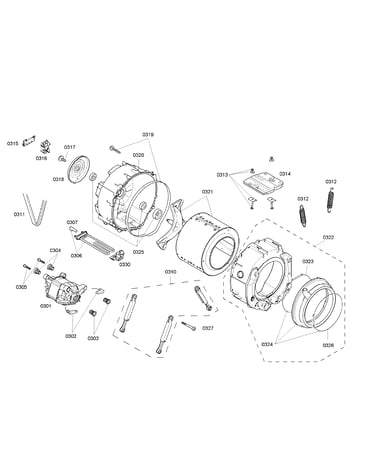

Drum assy diagram

Washer door boot kit

Part #680768

Replaced by #00772658

?
Manufacturer substitution
This part replaces 680768. Substitute parts can look different from the original.
$77.49
6% OFF Phone Price : $82.49
In Stock
Washer Drain Pump 144977
#422

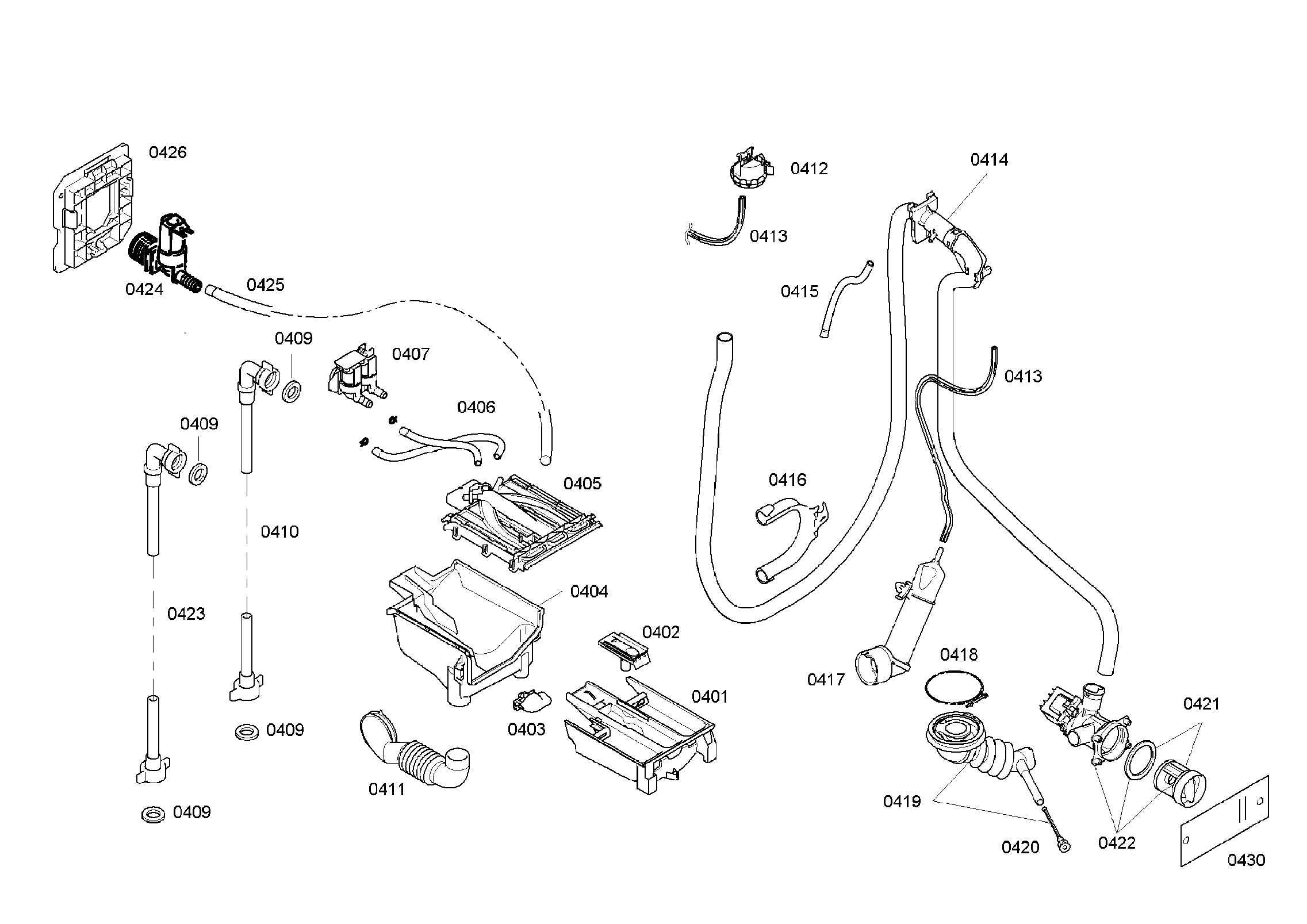

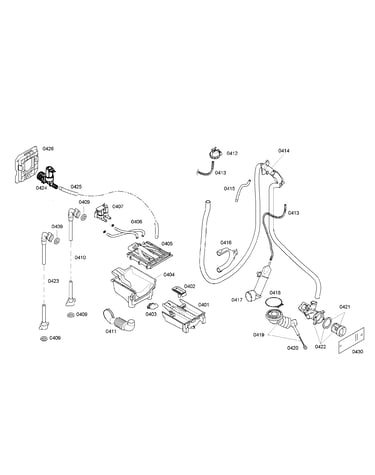

Pump assy diagram

Washer drain pump

Part #144977

The manufacturer no longer makes this part, and there's no substitute part

Window 675797
#216

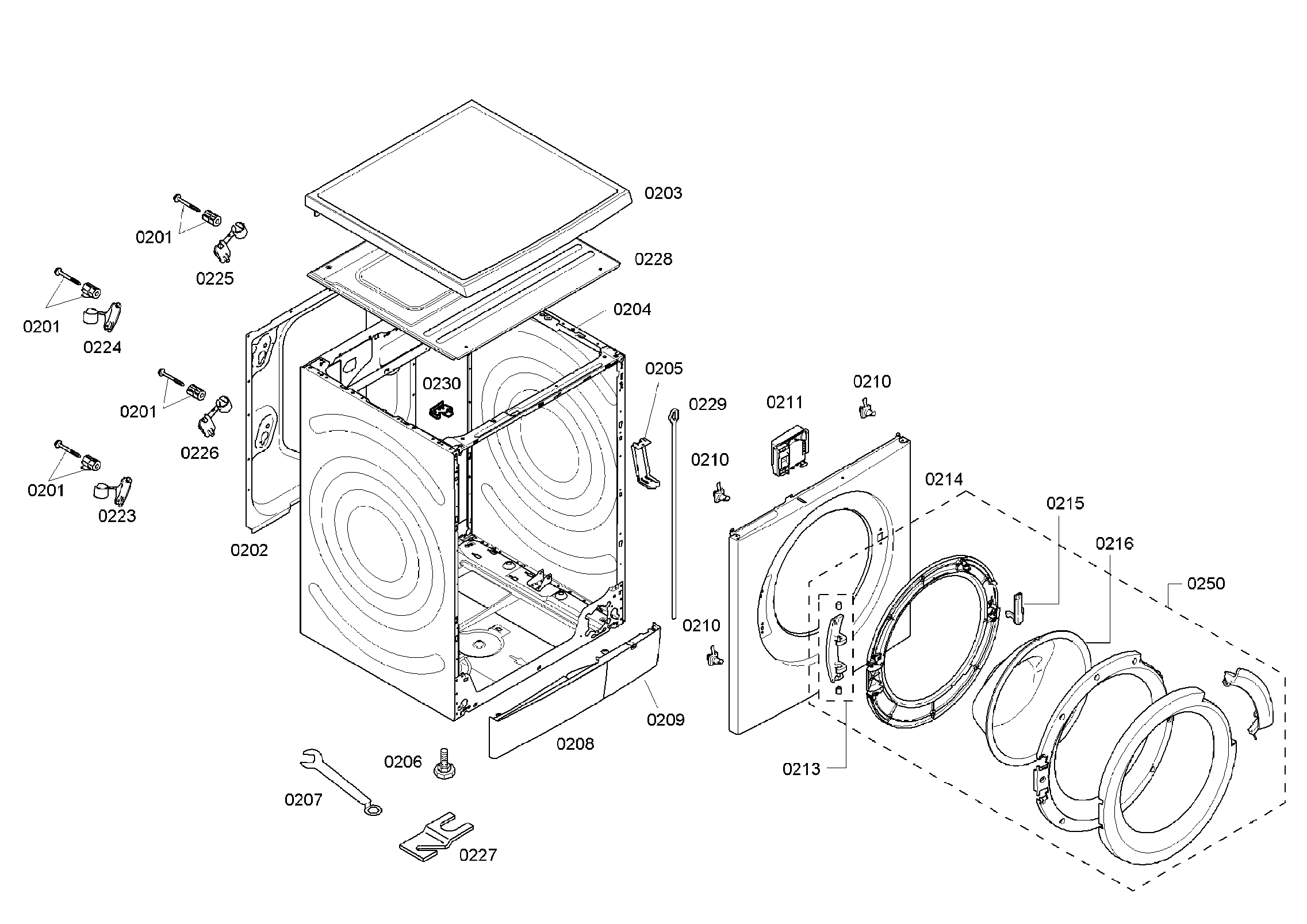

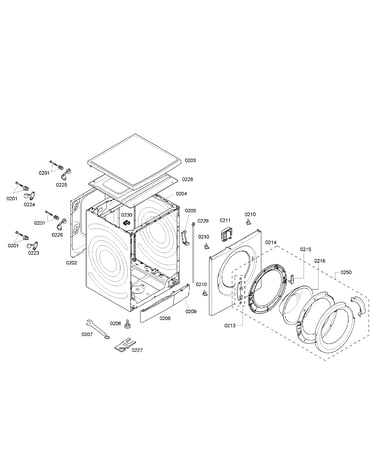

Cabinet diagram

Window

Part #675797

Replaced by #00742712

?
Manufacturer substitution
This part replaces 675797. Substitute parts can look different from the original.
$75.19
6% OFF Phone Price : $80.19
In Stock
Washer Door Assembly 704287
#250

Cabinet diagram

Washer door assembly

Part #704287

Replaced by #00704287

?
Manufacturer substitution
This part replaces 704287. Substitute parts can look different from the original.
$299.80
$10.00 OFF Phone Price : $309.80
In Stock
Hinge Washer 655117
#213

Cabinet diagram

Hinge washer

Part #655117

Replaced by #00655117

?
Manufacturer substitution
This part replaces 655117. Substitute parts can look different from the original.
$32.59
13% OFF Phone Price : $37.59
In Stock
Foot 610643
#206

Cabinet diagram

Foot

Part #610643

Replaced by #00610643

?
Manufacturer substitution
This part replaces 610643. Substitute parts can look different from the original.
This item is not returnable
In Stock
Ac Power Cord 648023
#135

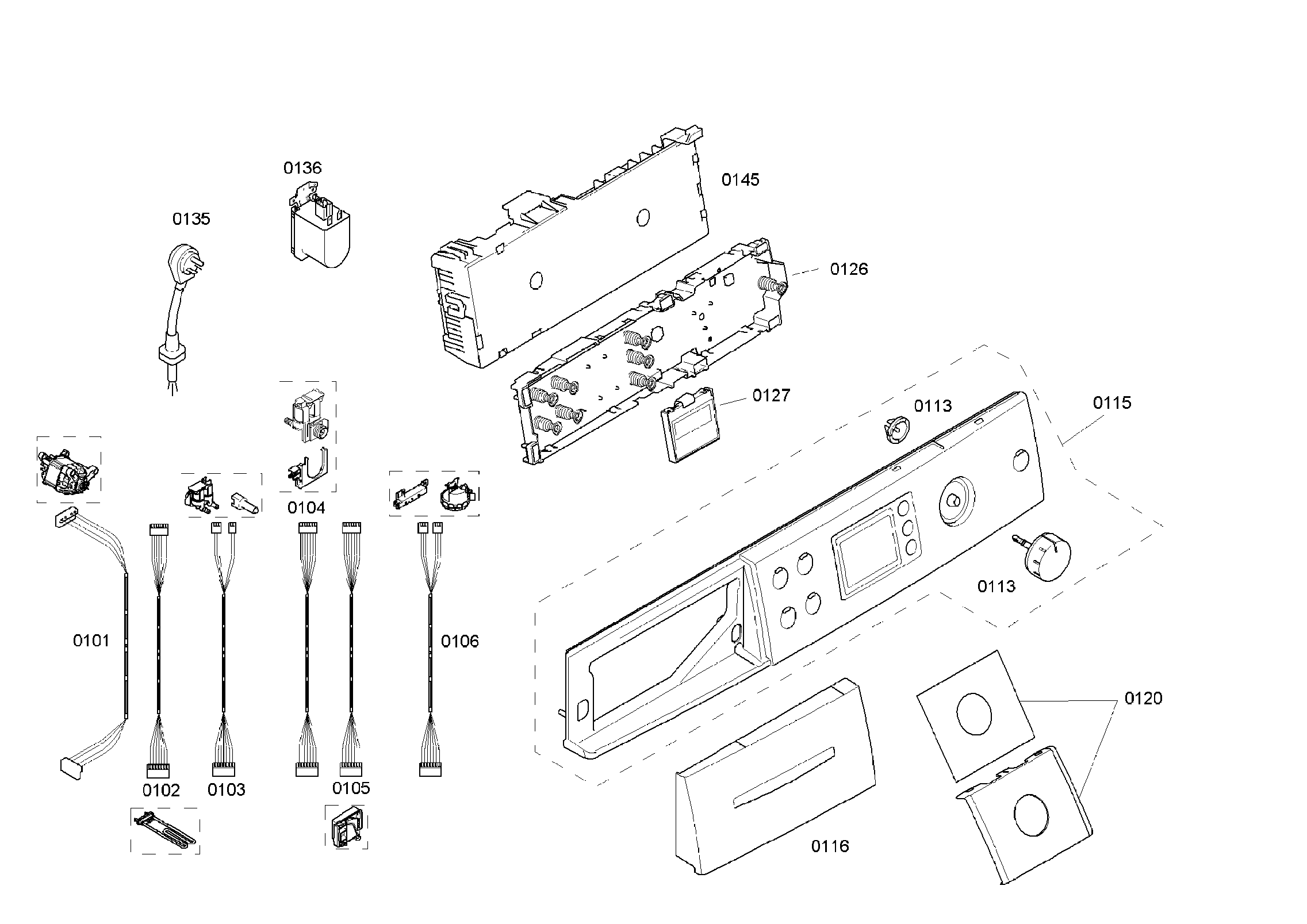

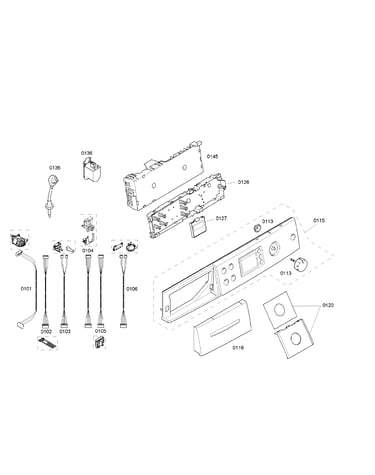

Control panel diagram

Ac power cord

Part #648023

Replaced by #00648023

?
Manufacturer substitution
This part replaces 648023. Substitute parts can look different from the original.
$101.22
9% OFF Phone Price : $111.22
In Stock
Tray 667823
#405

Pump assy diagram

Tray

Part #667823

Replaced by #00667823

?
Manufacturer substitution
This part replaces 667823. Substitute parts can look different from the original.
In Stock
Washer Inlet Hose 493766
#410

Pump assy diagram

Washer inlet hose

Part #493766

Replaced by #00493766

?
Manufacturer substitution
This part replaces 493766. Substitute parts can look different from the original.
In Stock
Washer Water Inlet Filter 027780
#409

Pump assy diagram

Washer water inlet filter

Part #027780

Replaced by #00027780

?
Manufacturer substitution
This part replaces 027780. Substitute parts can look different from the original.
$10.07
17% OFF Phone Price : $12.07
In Stock
