Kelvinator UFP160DM2W upright freezer - lk30887030 Parts
Here are the diagrams and repair parts for Kelvinator UFP160DM2W upright freezer - lk30887030, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
SELECT DIAGRAM
Browse Parts for UFP160DM2W Freestanding Freezers

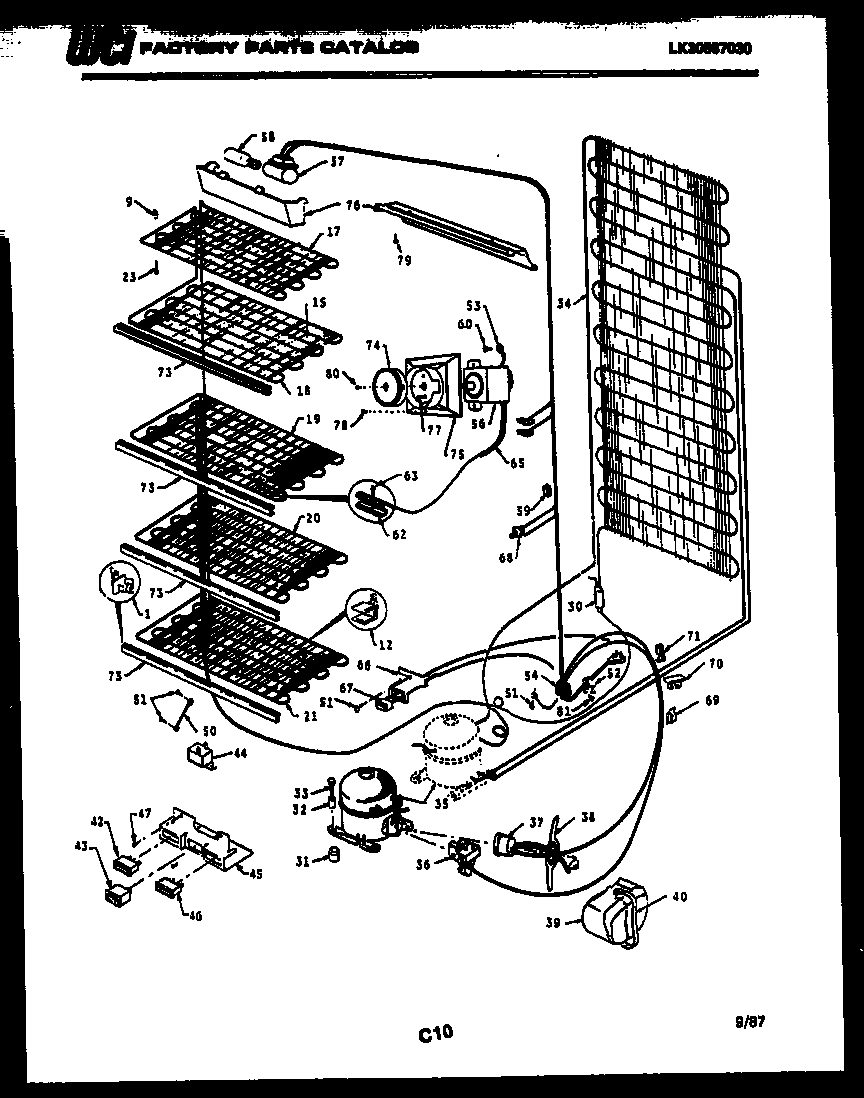

System and electrical parts diagram
Filter Drier
Part #F114259Replaced by #5303305677
Manufacturer substitutionThis part replaces F114259. Substitute parts can look different from the original.In Stock$25.3619% OFF Phone Price : $31.36
Qty

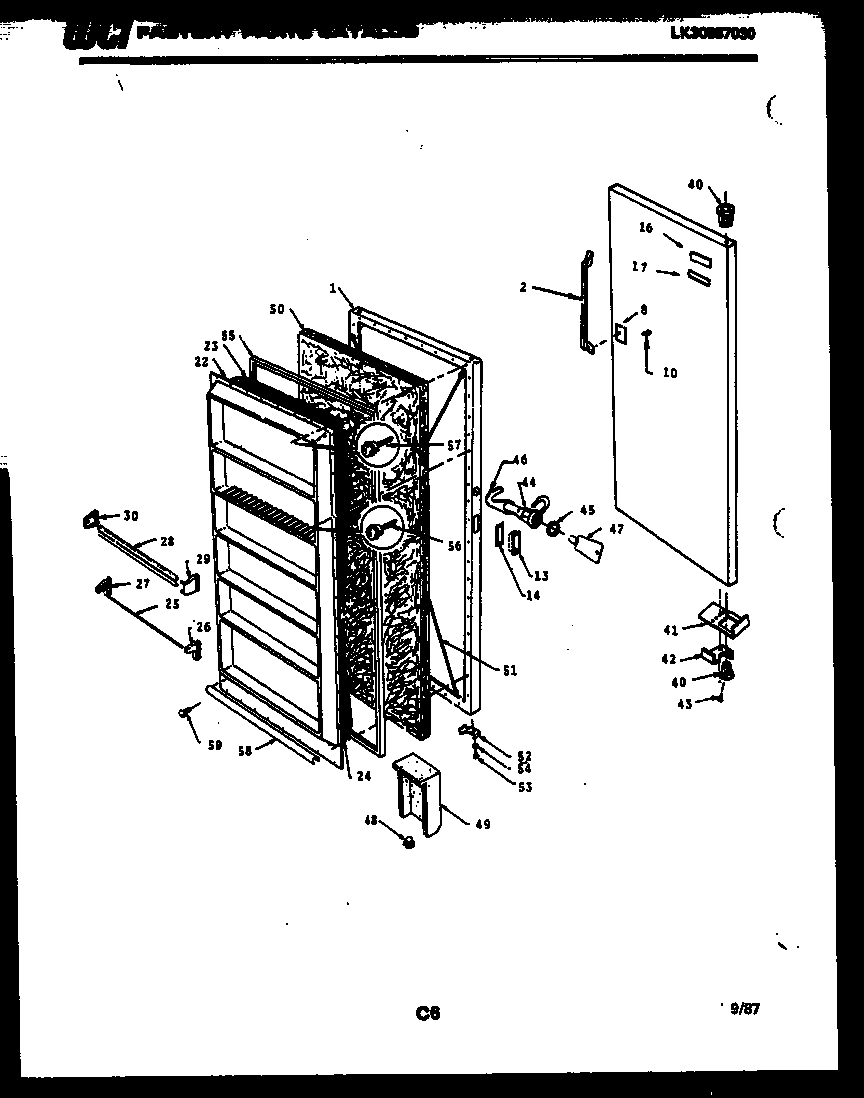

Door parts diagram
Key
Part #F115646Replaced by #297147700
Manufacturer substitutionThis part replaces F115646. Substitute parts can look different from the original.In Stock$9.3110% OFF Phone Price : $10.31QtyDoor parts diagram
Fkl Clip
Part #F114681Replaced by #5304406520
Manufacturer substitutionThis part replaces F114681. Substitute parts can look different from the original.In Stock$74.607% OFF Phone Price : $80.60QtySystem and electrical parts diagram
Shelf Support
Part #F300590Replaced by #297001500

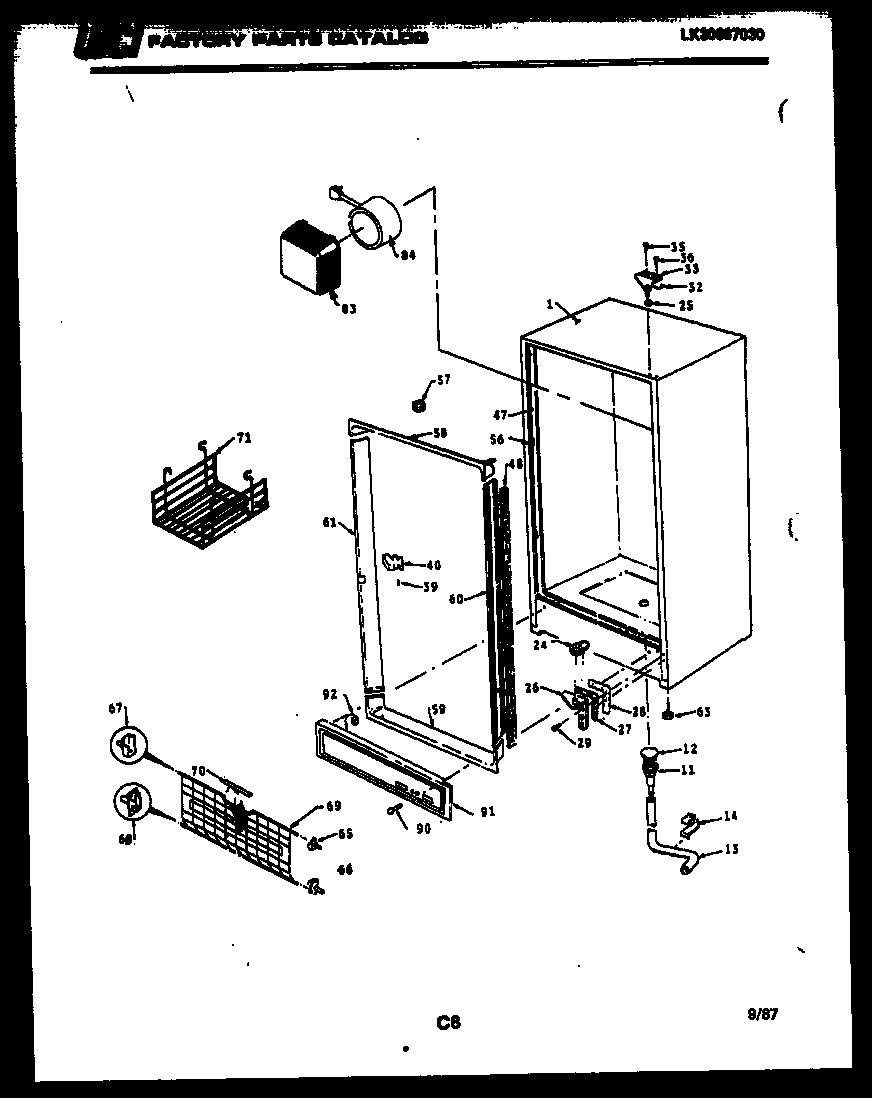

Manufacturer substitutionThis part replaces F300590. Substitute parts can look different from the original.This item is not returnableIn Stock$10.2949% OFF Was : $20.13QtyCabinet parts diagram
Drain Hose
Part #F129678Replaced by #5304512272
Manufacturer substitutionThis part replaces F129678. Substitute parts can look different from the original.This item is not returnableIn Stock$17.9010% OFF Phone Price : $19.90QtyDoor parts diagram
End Cap Set
Part #F112628Replaced by #5303925377
Manufacturer substitutionThis part replaces F112628. Substitute parts can look different from the original.In Stock$41.3213% OFF Phone Price : $47.32QtyDoor parts diagram
End Cap Set
Part #F112629Replaced by #5303925377
Manufacturer substitutionThis part replaces F112629. Substitute parts can look different from the original.In Stock$41.3213% OFF Phone Price : $47.32QtySystem and electrical parts diagram
Tube
Part #F129728Replaced by #5303916855
Manufacturer substitutionThis part replaces F129728. Substitute parts can look different from the original.In Stock$40.1625% OFF Was : $53.56QtyDoor parts diagram
Insulation
Part #F58187Replaced by #5303925098
Manufacturer substitutionThis part replaces F58187. Substitute parts can look different from the original.In Stock$70.4342% OFF Was : $120.52QtyCabinet parts diagram
Insulation
Part #F116171-50Replaced by #5303925098
Manufacturer substitutionThis part replaces F116171-50. Substitute parts can look different from the original.In Stock$70.4342% OFF Was : $120.52Qty
