Model # FA4CNB060000AAAA Official Carrier air handler

Here are the diagrams and repair parts for Official Carrier FA4CNB060000AAAA air handler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 168 parts  |

Furnace Air Filter, 19-3/4 X 21-1/2 X 1-in (replaces 317659-403) KFAFK0312LRG
#NI

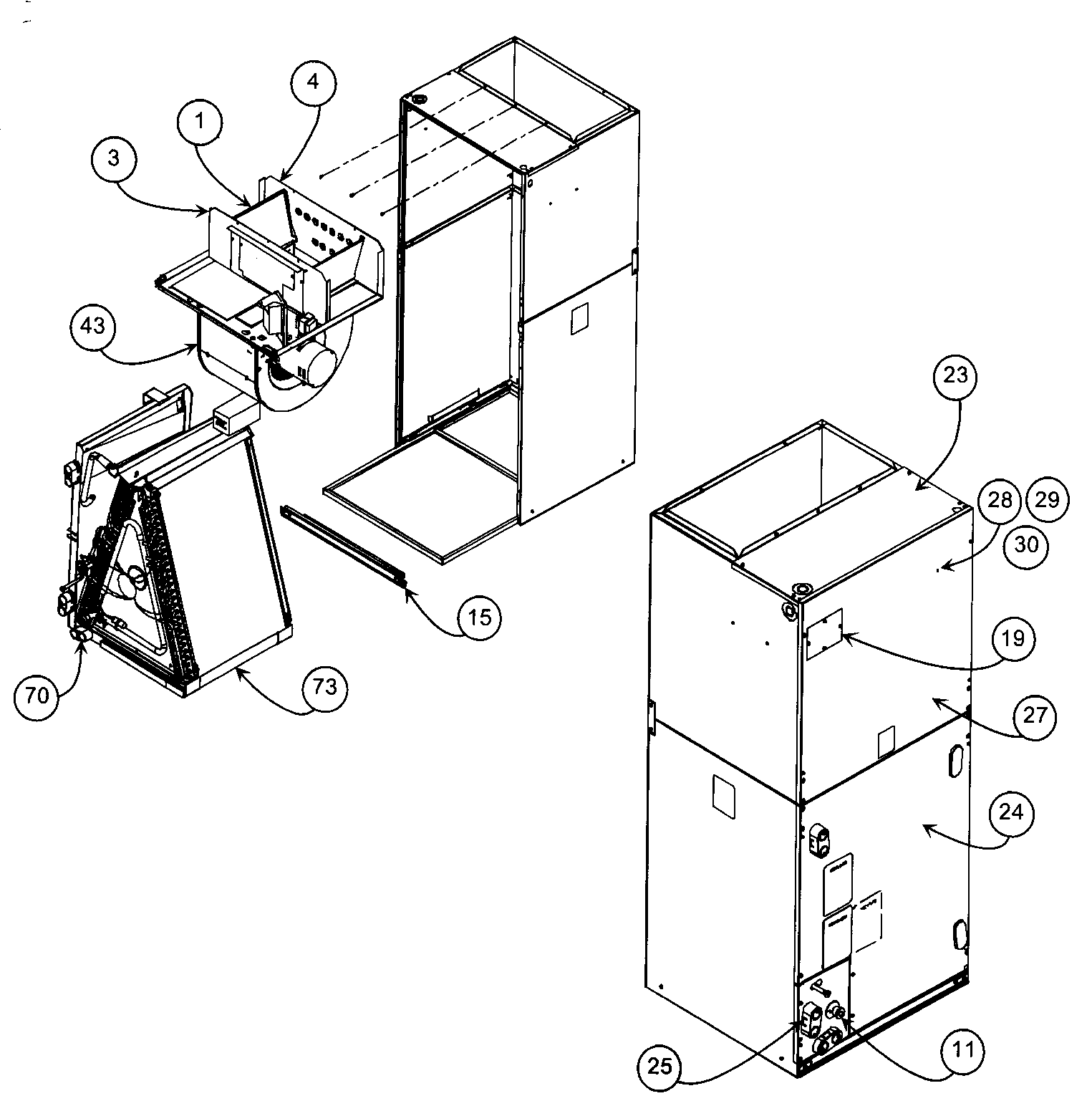

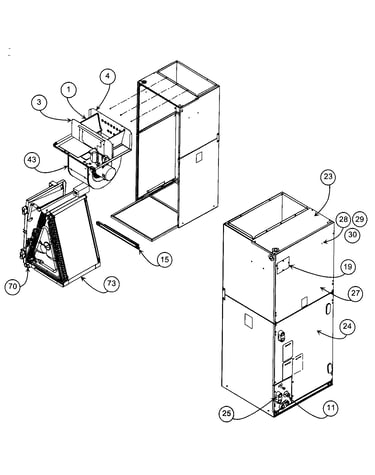

Cabinet parts diagram

Furnace air filter, 19-3/4 x 21-1/2 x 1-in (replaces 317659-403)

Part #KFAFK0312LRG

$65.79
7% OFF Phone Price : $70.79
In Stock
Central Air Conditioner Air Handler Blower Motor Relay (replaces Hn61pc003) HN61PC002
#NI

Cabinet parts diagram

Central air conditioner air handler blower motor relay (replaces hn61pc003)

Part #HN61PC002

The manufacturer no longer makes this part, and there's no substitute part

Fitting 314999-201
#NI

Cabinet parts diagram

Fitting

Part #314999-201

This item is not returnable
In Stock
Central Air Conditioner Air Handler Heating Element KFCEH2901N09
#NI

Cabinet parts diagram

Central air conditioner air handler heating element

Part #KFCEH2901N09

In Stock
Carrier 8kw1ph Non-fused Electric Htr KFCEH0801N08
#NI

Cabinet parts diagram

Carrier 8kw1ph non-fused electric htr

Part #KFCEH0801N08

In Stock
Sw Temp Act HH19ZA930
#NI

Cabinet parts diagram

Sw temp act

Part #HH19ZA930

In Stock
Central Air Conditioner Air Handler Transformer (replaces Ht01bd208) HT01CN241
#34

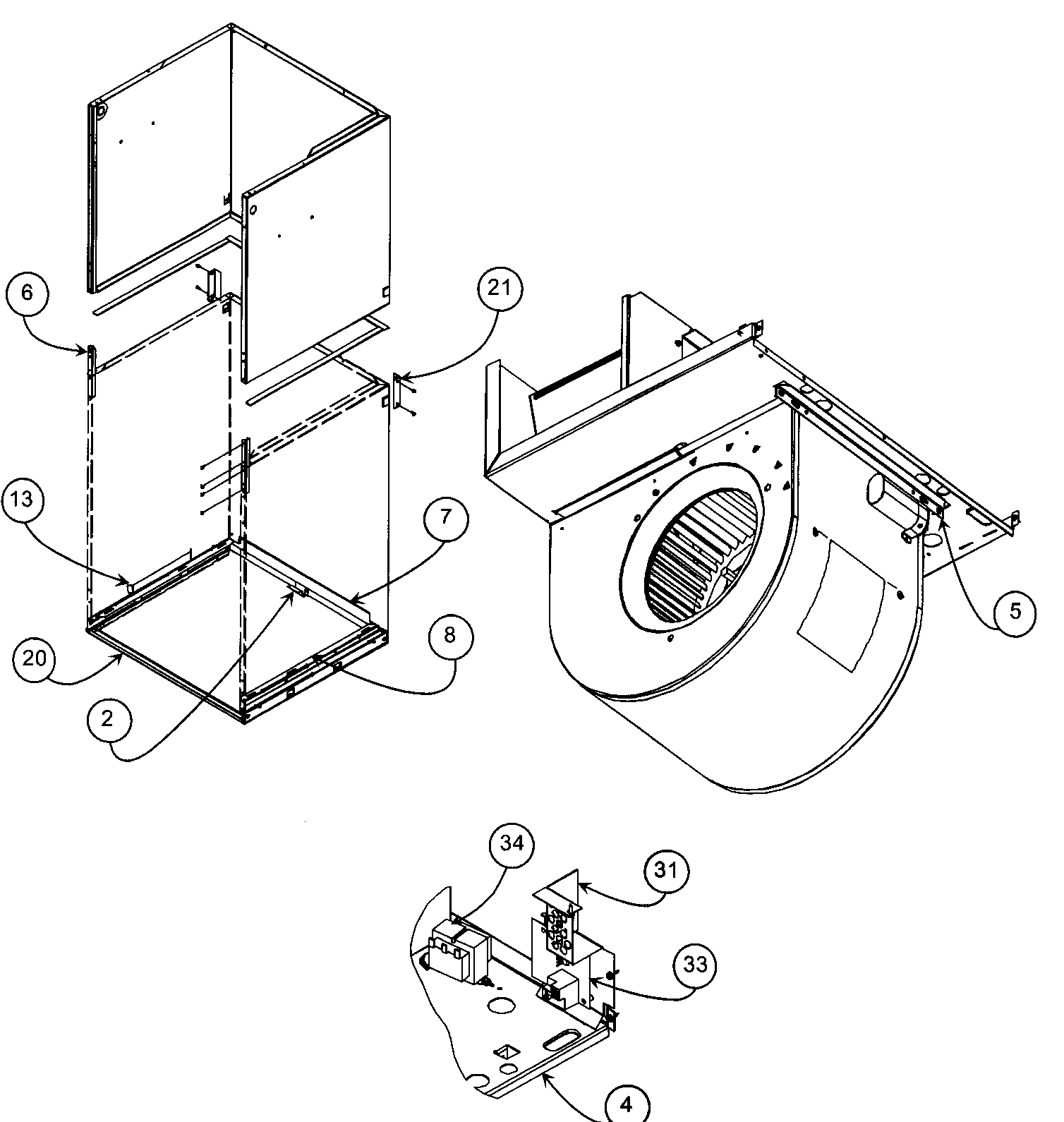

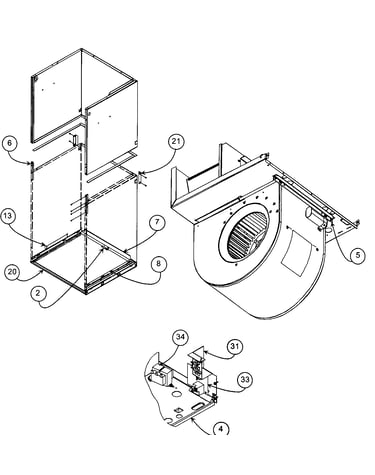

Blower assy diagram

Central air conditioner air handler transformer (replaces ht01bd208)

Part #HT01CN241

In Stock
Carrier 10kw1ph Fused Electric Htr KFCEH2601C10
#NI

Cabinet parts diagram

Carrier 10kw1ph fused electric htr

Part #KFCEH2601C10

In Stock
Carrier 15kw3ph Non-fused Electric Htr KFCEH1601315
#NI

Cabinet parts diagram

Carrier 15kw3ph non-fused electric htr

Part #KFCEH1601315

In Stock
Support 329709-401
#NI

Cabinet parts diagram

Support

Part #329709-401

In Stock
