Kenmore
Coffee Maker

Model # 16548060 Official Kenmore 12-cup poly perk coffee maker

Here are the diagrams and repair parts for Official Kenmore 16548060 12-cup poly perk coffee maker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

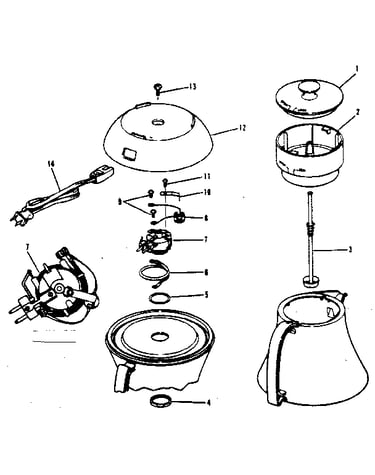

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 12 parts  |
Screw P13MB179
#9

Replacement parts diagram

Screw

Part #P13MB179

The manufacturer no longer makes this part, and there's no substitute part

Nut P13NT120
#4

Replacement parts diagram

Nut

Part #P13NT120

The manufacturer no longer makes this part, and there's no substitute part

Pump M11P8086
#3

Replacement parts diagram

Pump

Part #M11P8086

The manufacturer no longer makes this part, and there's no substitute part

Base (brown) P44P8134BR
#12

Replacement parts diagram

Base (brown)

Part #P44P8134BR

The manufacturer no longer makes this part, and there's no substitute part

Spring Thermostat P23ST046
#10

Replacement parts diagram

Spring thermostat

Part #P23ST046

The manufacturer no longer makes this part, and there's no substitute part

Cover P53PC029BR
#1

Replacement parts diagram

Cover

Part #P53PC029BR

The manufacturer no longer makes this part, and there's no substitute part

Heat Element P27HE061
#6

Replacement parts diagram

Heat element

Part #P27HE061

The manufacturer no longer makes this part, and there's no substitute part

Screw P13TC010
#11

Replacement parts diagram

Screw

Part #P13TC010

The manufacturer no longer makes this part, and there's no substitute part

Thermostat P28TS027
#8

Replacement parts diagram

Thermostat

Part #P28TS027

The manufacturer no longer makes this part, and there's no substitute part

Cord P30HC021
#14

Replacement parts diagram

Cord

Part #P30HC021

The manufacturer no longer makes this part, and there's no substitute part
