Model # RCK882 Official Whirlpool grille module

Here are the diagrams and repair parts for Official Whirlpool RCK882 grille module, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 12 parts  |
Basket 868457
#4

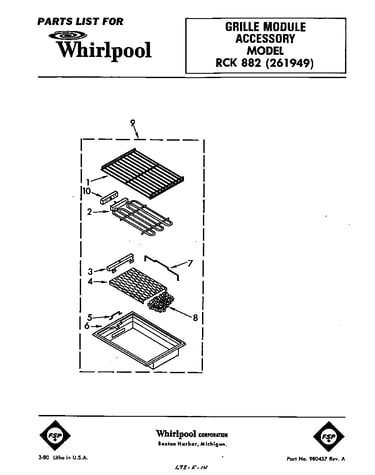

Replacement parts diagram

Basket

Part #868457

The manufacturer no longer makes this part, and there's no substitute part

Endcap-bsk 868458
#3

Replacement parts diagram

Endcap-bsk

Part #868458

The manufacturer no longer makes this part, and there's no substitute part

Module Pan 868853
#6

Replacement parts diagram

Module pan

Part #868853

The manufacturer no longer makes this part, and there's no substitute part

Nut 241547
#3A

Replacement parts diagram

Nut

Part #241547

The manufacturer no longer makes this part, and there's no substitute part

Grille 261949
#9

Replacement parts diagram

Grille

Part #261949

The manufacturer no longer makes this part, and there's no substitute part

Hndle-grid 248568
#5

Replacement parts diagram

Hndle-grid

Part #248568

The manufacturer no longer makes this part, and there's no substitute part

Nut 868878
#10A

Replacement parts diagram

Nut

Part #868878

The manufacturer no longer makes this part, and there's no substitute part

Hndle-bskt 868459
#7

Replacement parts diagram

Hndle-bskt

Part #868459

The manufacturer no longer makes this part, and there's no substitute part

Rocker 868460
#8

Replacement parts diagram

Rocker

Part #868460

The manufacturer no longer makes this part, and there's no substitute part

Receptacle Module 868437
#10

Replacement parts diagram

Receptacle module

Part #868437

The manufacturer no longer makes this part, and there's no substitute part
