KitchenAid KFGS530SPS0 free standing gas range Parts

Common problems on a KitchenAid KFGS530SPS0 gas range include the oven not heating, slow or uneven heating, a burner that will not ignite, or a weak flame. These issues usually trace back to ignition, gas flow, airflow, or heat sealing problems.

Most common symptoms and what they usually mean

• No bake or broil heat: ignition failure, gas valve not opening, or control issue
• Clicks but will not light: dirty or misaligned electrode, poor grounding, or weak spark
• Lights late with a “whoosh”: delayed ignition from a weak spark or restricted burner ports
• Uneven baking: heat loss at the door, airflow problems, or convection fan issue (if equipped)
• Gas smell: shut off the oven and ventilate; a leak or incomplete ignition needs immediate attention

Quick checks we recommend (safe, no disassembly)

• Confirm the range has power (spark ignition and controls need electricity even though it is gas).
• Look for food soil or grease around the igniter area and burner ports; buildup can block ignition.
• Watch the ignition sequence: you should hear clicking and see a steady flame within a few seconds.
• Check the oven door seal for gaps, tears, or areas that are flattened.
• If the oven is not level, heat can cook unevenly; inspect the feet and leveling.

Parts that commonly solve these problems on KFGS530SPS0

Symptom	Common part to check/replace	What it affects
No ignition or delayed ignition	Electrode, bake W11524031	Creates the spark to light the bake burner

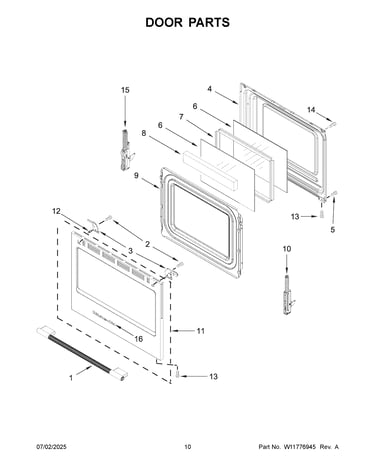

Door heat leaking, uneven temps	Seal, door W11542153	Keeps heat in the oven cavity
Oven will not start self-clean or stays locked	Range oven door lock assembly WPW10107820	Controls door locking and related safety switches
Range rocks or bakes unevenly	Range leveling leg WPW10058460	Helps level the cabinet for consistent cooking

Why it matters

Gas ovens rely on fast, consistent ignition and stable airflow. When ignition is weak or heat escapes at the door, you get longer preheat times, temperature swings, and uneven results. Fixing the root cause also helps prevent repeated ignition attempts that can stress components.

Last updated: February 2026

On the KitchenAid KFGS530SPS0 gas range, “530” is not a normal range fault code format. In most cases, it is either a time display (5:30), a misread/partial code, or a control display issue. Start by confirming exactly what characters appear on the display.

Confirm what you are actually seeing

Check these common look-alikes first:

• 5:30 (clock or cook timer) rather than an error
• S30, E30, F30, or 5E0 (letters can look like numbers)
• A code that flashes briefly, then returns to the clock
• A code that only appears during self-clean (often tied to the door lock circuit)

Quick check steps

• Press Cancel/Off once; if it returns to the clock, it was likely a timer/setting.
• Power reset the range: turn off the breaker for 1 minute, then restore power.
• If the code returns, write down the exact code and when it appears (bake, broil, self-clean, idle).

What to troubleshoot if the display keeps showing “530”

A repeating, non-standard code points to the control system (keypad/user interface), wiring, or the door lock circuit.

When it happens	Most likely area	What to do next
Randomly, with beeps	User interface or stuck key	Try Cancel/Off; power reset; check for a physically stuck button
During self-clean	Door lock circuit	Verify the door locks/unlocks; inspect lock mechanism and wiring
After moving/cleaning range	Loose connection	Check harness connections (power off)

Parts commonly involved

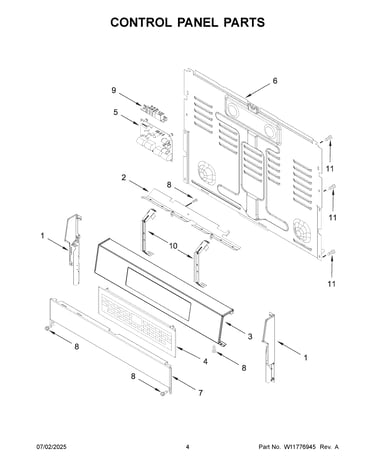

• User interface W11784060 (keypad/display that can trigger false inputs)
• Range oven door lock assembly WPW10107820 (self-clean lock feedback)
• Harness, main W11730263 (wiring between controls and components)

Why it matters

If “530” is actually a misread fault code or a control glitch, the range can interrupt heating, self-clean locking, or normal operation. Confirming the exact characters prevents replacing the wrong part.

Last updated: February 2026

A KitchenAid free standing gas range like model KFGS530SPS0 typically lasts 15 years with normal household use. Regular cleaning, correct flame performance, and fixing small issues early (ignition, door seal, leveling) are what most often determine whether you reach or exceed that lifespan.

Typical lifespan and what to expect

Most gas ranges fall into a predictable service-life window.

Condition	What you’ll usually see	Typical outcome
Normal use + basic care	Even burner flames, stable oven temps	Around 15 years
Heavy use (daily cooking, high heat)	Faster wear on igniters, door seal, knobs	10 to 12 years
Great care + prompt repairs	Fewer heat-loss and ignition problems	15 to 20 years

What shortens the life of a gas range

These are the most common range-killers we see in the field:

• Weak or delayed ignition (burners clicking, oven slow to light)
• Heat loss at the oven door from a worn gasket, which forces longer bake times
• Poor leveling, which can stress the door alignment and affect cooking results
• Spills and grease buildup that clog burner ports and cause uneven flames
• Electrical issues (loose connections, damaged wiring) that interrupt spark and controls

Parts that often help extend life on KFGS530SPS0

If performance is slipping, replacing a worn part is often the difference between “replace the range” and “keep it running.” Common examples for this model include:

• Electrode, bake W11524031 (helps the oven ignite reliably)
• Seal, door W11542153 (reduces heat loss and improves temperature stability)
• Range leveling leg WPW10058460 (keeps the range stable and the door aligned)
• Module-spk W10898291 (supports consistent burner sparking)

Why it matters

A gas range can run for years while slowly losing efficiency. Fixing ignition and sealing problems early helps your KFGS530SPS0 heat faster, bake more evenly, and avoid secondary damage from overheating or extended run times.

Last updated: February 2026

On a KitchenAid free standing gas range like model KFGS530SPS0, we typically find the model number on the oven frame behind the storage drawer or on the frame around the oven door opening. Check the rating label for both the model and serial number.

Most common places to check

• Behind the storage drawer: Pull the drawer out and look on the frame or side panel area.
• Oven door opening: Open the oven door and look along the front frame (often on the left or right side).
• Lower front frame: Look near the bottom edge of the front frame where the drawer slides.
• Back panel: If accessible, check the rear of the range for a rating label.

What the label looks like

The rating label is usually a small sticker or metal plate. It often includes:

• Model number (example: KFGS530SPS0)
• Serial number
• Gas type and electrical ratings

What you need	Why it matters	Example
Model number	Ensures parts fit your exact range	KFGS530SPS0
Serial number	Helps match production changes	Varies

Why it matters

KitchenAid ranges can have multiple versions that look similar, and the model number is what we use to match the correct parts list and diagrams so you get the right fit the first time.

If the label is hard to read

• Wipe gently with a damp cloth and mild soap; dry completely.
• Take a close-up photo and zoom in.
• If the label is damaged, use our guide: how to find your appliance model number (and what it means for parts).

Last updated: February 2026
