Model # HVTS18DTBB Official Haier wine cooler

Here are the diagrams and repair parts for Official Haier HVTS18DTBB wine cooler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 28 parts  |

Cover Dispenser RF-1950-516
#26

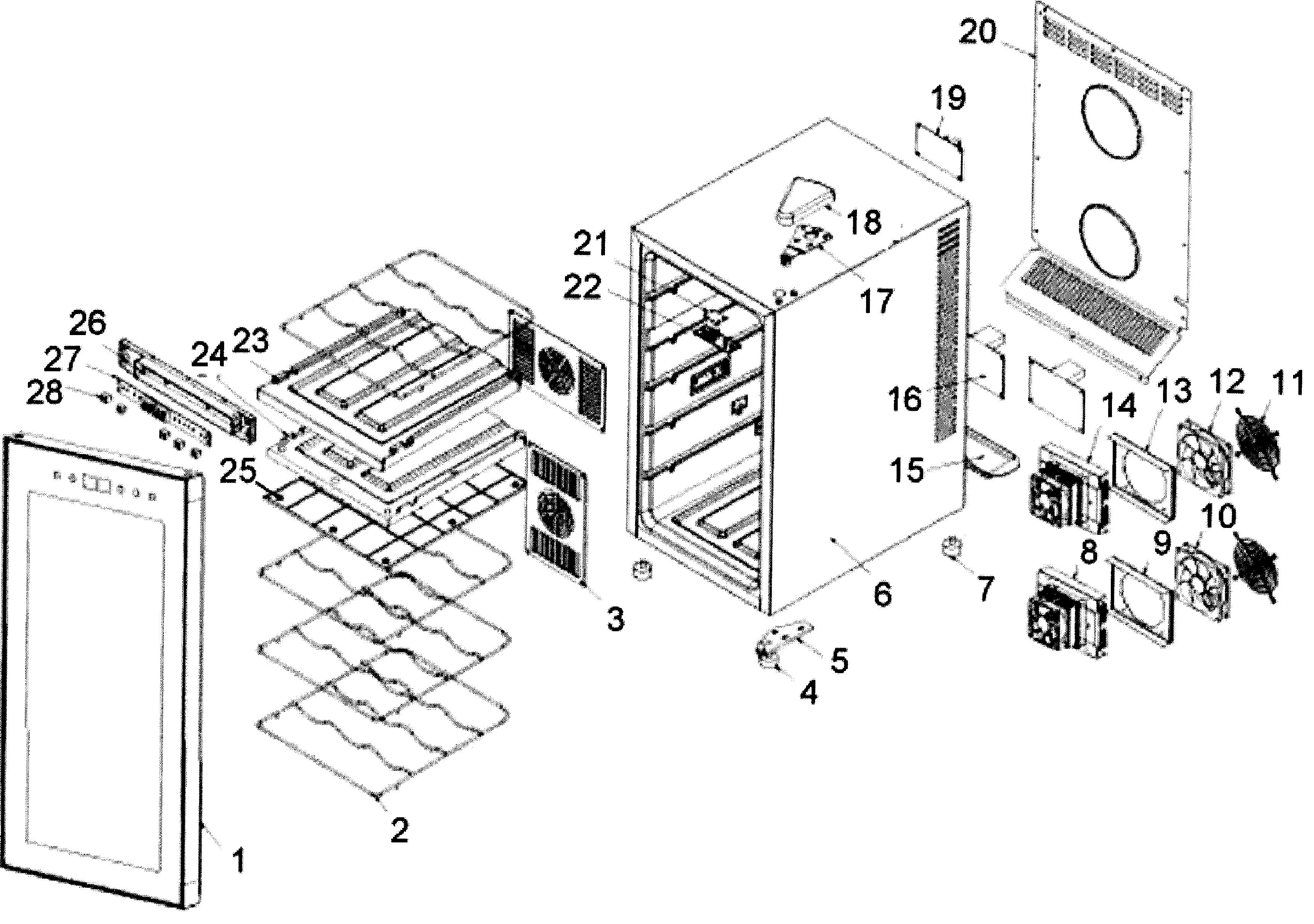

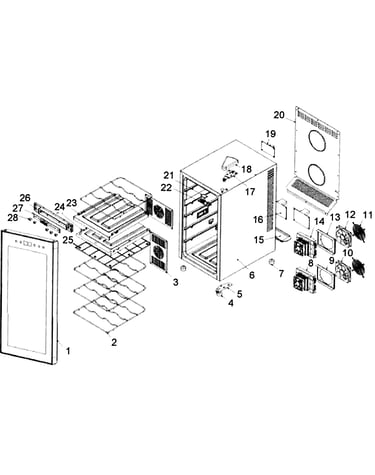

Cabinet parts diagram

Cover dispenser

Part #RF-1950-516

In Stock
Cover RF-1950-515
#18

Cabinet parts diagram

Cover

Part #RF-1950-515

In Stock
Cover RF-1950-512
#20

Cabinet parts diagram

Cover

Part #RF-1950-512

In Stock
Button RF-1200-14
#28

Cabinet parts diagram

Button

Part #RF-1200-14

This item is not returnable
In Stock
Fan RF-2750-45
#10

Cabinet parts diagram

Fan

Part #RF-2750-45

$29.59
14% OFF Phone Price : $34.59
In Stock
Fan Cover RF-1950-517
#3

Cabinet parts diagram

Fan cover

Part #RF-1950-517

In Stock
Light Cover RF-1950-513
#22

Cabinet parts diagram

Light cover

Part #RF-1950-513

In Stock
Drip Tray RF-7600-176
#15

Cabinet parts diagram

Drip tray

Part #RF-7600-176

In Stock
Grille Vent RF-3150-25
#11

Cabinet parts diagram

Grille vent

Part #RF-3150-25

In Stock
Tray Cover RF-1950-514
#25

Cabinet parts diagram

Tray cover

Part #RF-1950-514

In Stock
