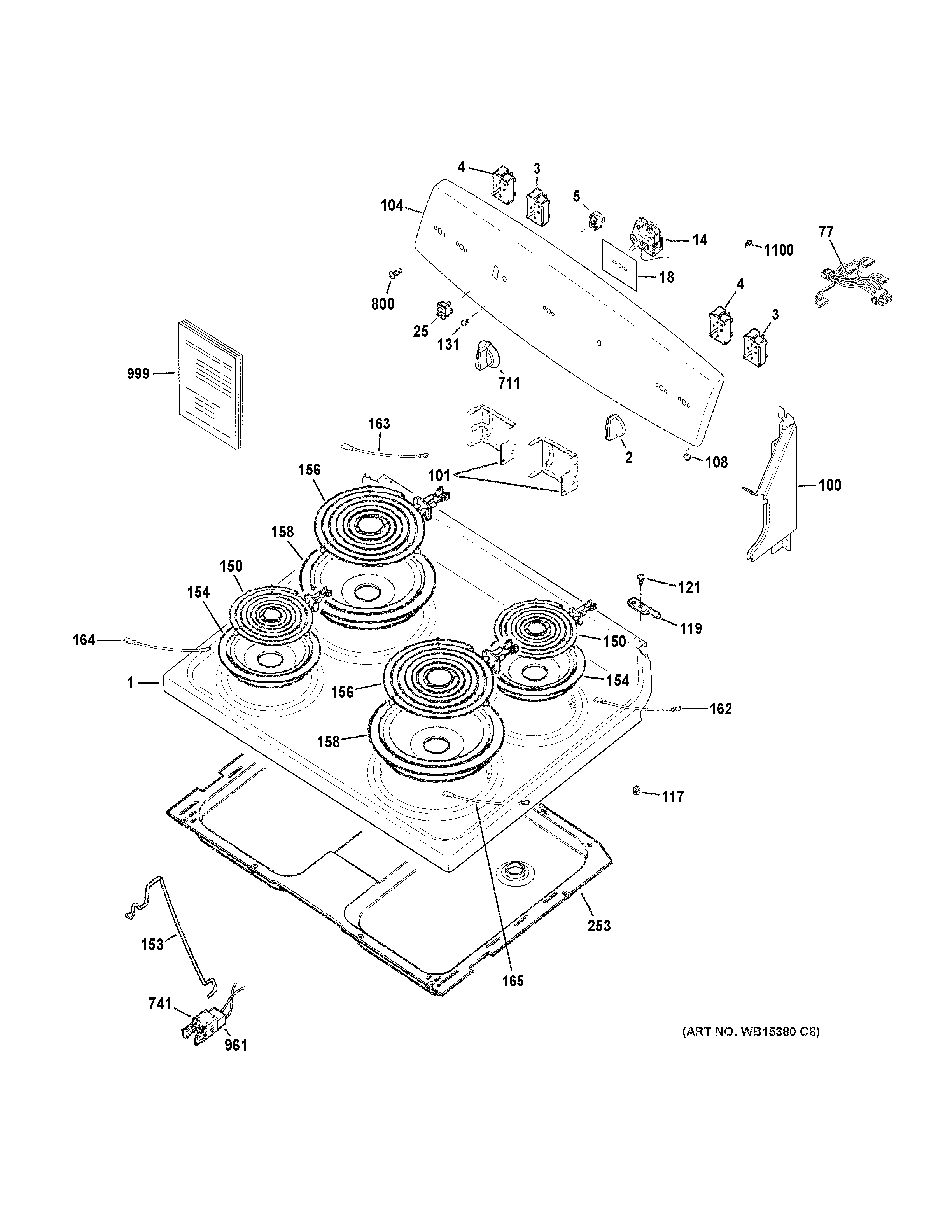

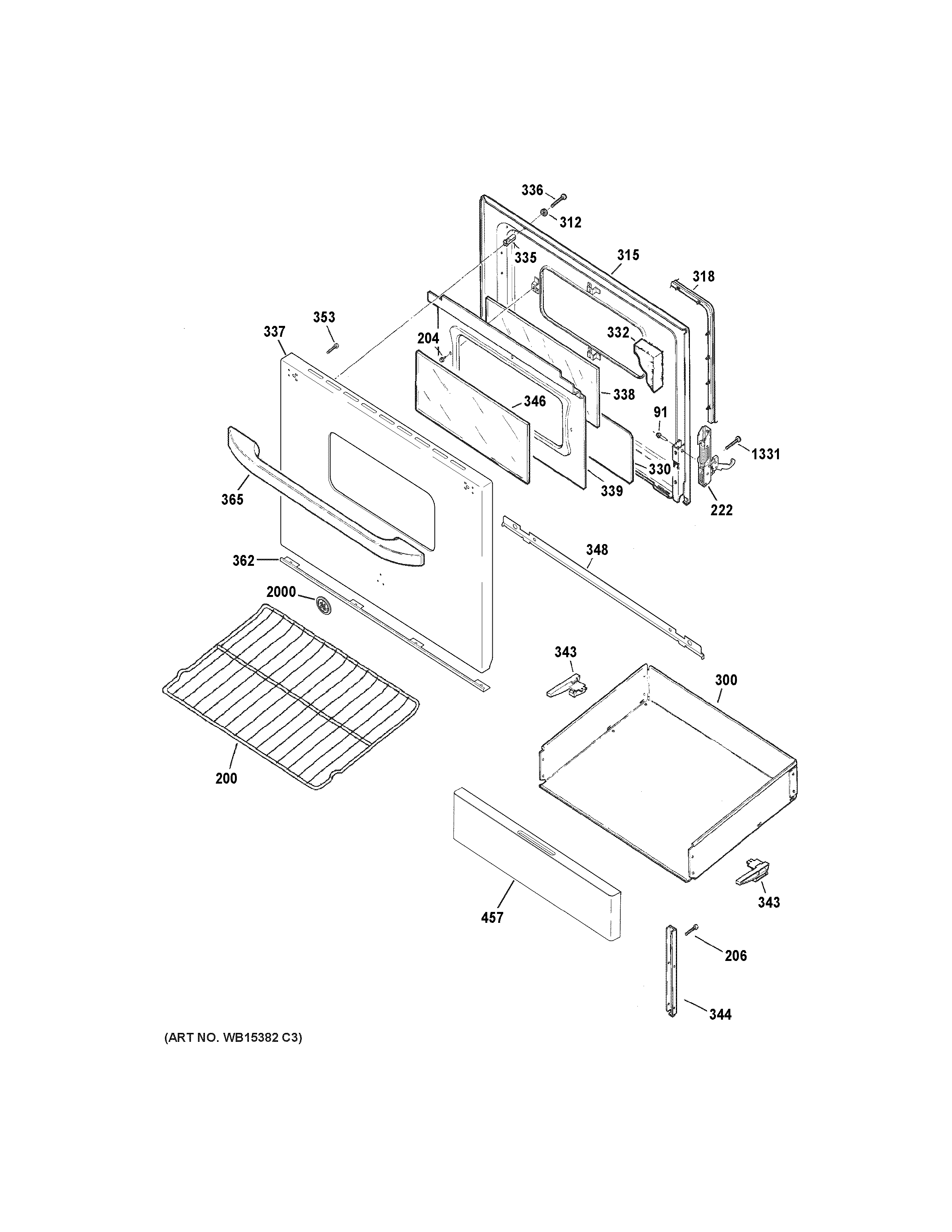

GE JBS160DM3BB free standing electric range Parts

For a GE JBS160DM3BB electric range, replacing the oven control board typically costs $150 to $400 for the part and $300 to $700 total with professional labor. The exact price depends on the correct board for your serial range, service rates, and whether any wiring or terminals are heat-damaged.

Typical cost breakdown

• Control board (part only): $150 to $400
• Service call and labor: $150 to $300
• Possible add-ons: $0 to $150 (wire repair, terminal block, connectors)
• DIY tools/supplies: $10 to $40 (labels, tape, gloves)

Scenario	What you pay for	Typical total
DIY replacement	Board only (plus basic supplies)	$150 to $440
Pro replacement	Board + labor/service call	$300 to $700
Pro plus wiring repair	Board + labor + wiring/terminal work	$400 to $850

What changes the price the most

1. Correct part match: GE ranges can use different boards by revision; we match by model and serial.
2. Diagnosis time: If symptoms overlap (no bake, no broil, dead display), a tech may test power and components first.
3. Electrical damage: A loose or overheated power connection can require additional parts such as a block terminal asm WB27X31509.

Before you buy a board (quick checks)

• Confirm the model and serial from the rating label (front, behind the range drawer) in the JBS160DM3BB owner's manual.
• Reset the circuit breaker (a tripped breaker can mimic a failed control).
• If the oven is dead but cooktop works, inspect the power cord connection area for discoloration or burning (power off first).

Why it matters

The control board is one of the highest-cost electrical parts on a range. Verifying the model/serial and checking for power or terminal damage helps prevent ordering the wrong board and avoids repeat failures after installation.

Last updated: February 2026

On the GE JBS160DM3BB free standing electric range, replacing the control panel starts with shutting off power at the breaker, removing the control knobs, then removing the panel mounting screws so you can pull the panel forward and transfer any wiring and components to the new panel.

Safety first

• Turn off the range circuit breaker (240V); confirm the cooktop and oven are off.
• Let all surfaces cool completely.
• Pull the range forward only as needed; avoid stressing the power cord.
• If you move the range, re-engage the anti-tip bracket when you slide it back.

Step-by-step: control panel replacement

1. Disconnect power at the main breaker.
2. Remove the knobs: with all knobs in OFF, pull them straight off the stems.
3. Access the panel fasteners: look for screws along the back edge of the control panel (and sometimes underneath the front lip, depending on the revision).
4. Remove the screws, then pull the bottom of the panel outward and lift up to release the top tabs.
5. Label and transfer wiring: move one wire at a time from the old control to the new one (take a photo first).
6. Reinstall the panel: hook the top tabs, swing the bottom in, and reinstall screws.
7. Reinstall knobs, restore power, and test each surface element and the oven controls.

What you may need

Item	Why it helps	Notes
#2 Phillips screwdriver	Removes panel screws	Common on GE ranges
Masking tape/marker	Labels wires	Prevents miswiring
Work gloves	Protects hands	Helpful around sheet metal
Multimeter	Confirms power is off	Use before touching wiring

Quick checks after installation

• Verify the oven control responds correctly and all controls return to OFF.
• If a burner stays on high or will not heat, recheck wiring at the switch and terminal connections.
• If the range was moved, confirm the rear leveling leg is engaged in the anti-tip bracket.

Why it matters

The control panel houses the user interface and often shares wiring with surface element control switches and indicator lights. Correct wire placement and secure mounting prevents erratic heating, dead controls, and nuisance tripping.

For diagrams, fastener locations, and control features specific to this model, use the JBS160DM3BB owner’s manual and the JBS160DM3BB installation guide.

Last updated: February 2026

For the GE JBS160DM3BB electric range, we reset the oven control by canceling the current cycle first, then doing a power reset at the breaker to clear a locked-up keypad or a flashing display after a power interruption. Use the steps below and confirm any special key sequences in the JBS160DM3BB owner’s manual.

Quick reset steps (most common)

• Press Cancel/Off to stop any active cooking cycle (Cancel/Off stays active even if controls are locked).
• If the controls are locked, press and hold the + / - pads for 3 seconds to unlock.
• Turn OFF the range circuit breaker (or unplug if accessible).
• Wait 60 seconds.
• Restore power, then set the clock if the display is flashing.

If the display is flashing or acting odd

A flashing display is commonly tied to a power failure; resetting power and then resetting the clock typically restores normal operation.

What to check next

• Make sure the oven is not in a timed feature you forgot to finish (for example, a cook time without a temperature).
• Confirm you are pressing the correct pad combination for special features (some functions require two pads held together).
• If a single burner control is the issue (burner stuck on, won’t heat, or cycles incorrectly), inspect the surface control and wiring at the receptacle.

Parts that are commonly involved (when it is not a “reset” issue)

If resetting power does not help and the problem is isolated to the cooktop, these parts are frequent suspects:

• Surface element switch (infinite switch)
• Surface element receptacle/terminal block
• Coil surface element

Symptom	Reset likely fixes it?	More likely a part issue
Display flashing after outage	Yes	No
Keypad won’t respond but power is good	Sometimes	Sometimes
One surface element won’t heat	No	Yes
One surface element stuck on high	No	Yes

Why it matters

A proper reset clears temporary control logic glitches and restores normal keypad behavior; it also helps you separate a control issue from a failed heating component or wiring problem.

Last updated: February 2026

If you can’t find a part for your GE JBS160DM3BB free standing electric range, start by confirming the full model number and then search by the part name or part ID. If it still doesn’t show up, we recommend contacting our parts specialists with your model and serial information.

Quick checks that usually solve it

• Match the model number exactly: JBS160DM3BB (letters and numbers matter)
• Use the appliance’s serial number too; it helps confirm the correct revision
• Search by the part’s part ID (example: WB30X46987) instead of a description
• Try alternate terms (example: “bake element” vs. “oven element”)
• Check whether you are looking at a surface unit part vs. an oven part
• Verify the part is installed on your exact configuration (coil-top vs. other styles)

Best ways to search (part ID vs. part name)

If you have…	Search using…	Example for this model
A part number/ID	The exact ID	WB30X46987
A description	The most specific name	“Range bake element”
A symptom	The system involved	“burner won’t heat”, “oven won’t bake”

Common “missing part” situations (and what to do)

• The part is listed under a different name: use the exploded-view naming from the JBS160DM3BB owner’s manual.
• You need a related sub-part: for example, a burner issue may involve the element, receptacle, or switch.
• You’re shopping by appearance: confirm size and terminal style before ordering.
• The part is an accessory/consumable: light bulbs and drip pans are often easier to match by ID.

Why it matters

Using the exact model number and the correct part ID prevents ordering a look-alike part that does not fit or wire up correctly. That is especially important on electric ranges where incorrect parts can create overheating or shock hazards.

Last updated: February 2026

If your GE JBS160DM3BB electric range has power (lights or display work) but the cooktop and oven do not heat, the most common causes are a lost 240V supply (tripped breaker or blown fuse), a failed surface element or receptacle, or a failed oven heating element. Start with the power supply checks.

Step 1: Confirm the range is getting full power

Electric ranges need 120/240 VAC (or 120/208 VAC) to heat properly; it can look “on” with only 120V.

• Reset the double-pole range breaker fully (OFF, then ON).
• Check for a blown house fuse if your home uses fuses.
• If the clock/timer is dead too, that strongly points to a power supply issue.
• If you recently installed or moved the range, verify the cord and terminal connections match the wiring method in the installation guide.

Quick symptom guide

Symptom	Most likely cause	What to check first
Display/lights work, no heat anywhere	One leg of 240V missing	Breaker/fuses, terminal block wiring
One burner not heating	Bad coil element or receptacle	Swap element; inspect receptacle
Oven not heating but burners work	Failed bake/broil element or control issue	Inspect elements for damage

Step 2: Isolate cooktop burner problems

For coil burners, a single dead burner is usually the element, receptacle, or the control switch.

• Swap the non-heating coil with a known-good coil (same size) to confirm the element.
• Inspect the receptacle for heat damage, arcing marks, or looseness; replace if damaged.
• If the element and receptacle look good, suspect the burner control switch.

Helpful model-matched parts to consider:

• Range surface element, 8-in WB31X46066
• Kit surface terminal WB17T10006
• Range surface element control switch, 1,250-watt WB24T10022

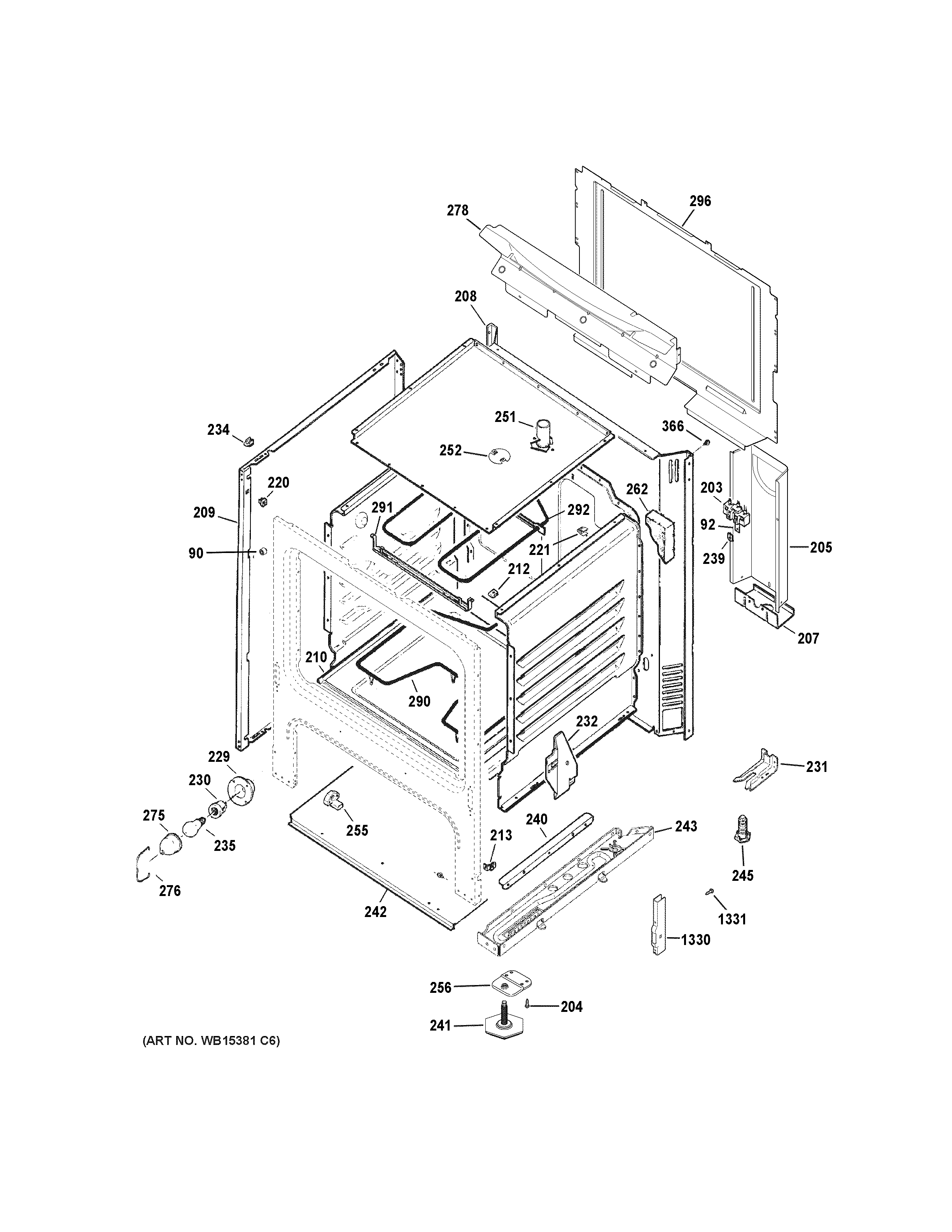

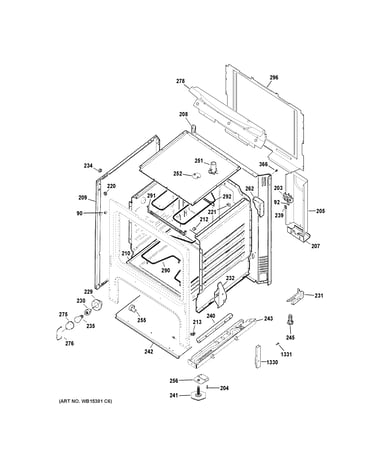

Step 3: Check the oven heating system

If the oven will not heat, look for visible breaks, blisters, or burn spots on the elements.

• Test Bake and Broil separately; if one works and the other does not, the failed element is the first fix.
• If neither works and the cooktop also does not heat, return to the 240V supply checks.

Why it matters

A partial power loss (only one hot leg) is the number one reason an electric range “turns on” but will not heat; confirming the correct 120/240 VAC supply prevents unnecessary parts replacement.

Last updated: February 2026
