Model # H4H360GKA100 Official ICP split-system air conditioner

Here are the diagrams and repair parts for Official ICP H4H360GKA100 split-system air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |
Central Air Conditioner Condenser Electronic Control Board (replaces 1086071) 1088977
#21

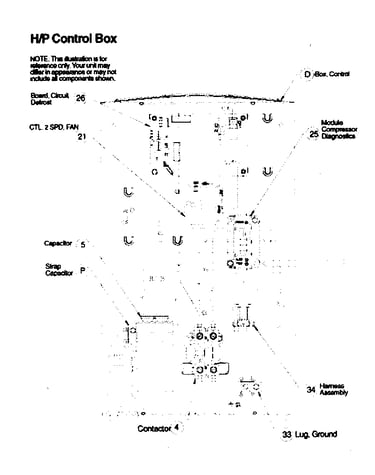

Control box diagram

Central air conditioner condenser electronic control board (replaces 1086071)

Part #1088977

$85.61 |
6% OFF Phone Price : $90.61
In Stock
Condensing Unit Defrost Control Board 1173636
#26

Control box diagram

Condensing unit defrost control board

Part #1173636

$179.69 |
5% OFF Phone Price : $189.69
In Stock
Central Air Conditioner Heat Pump Defrost Control 1173637
#22

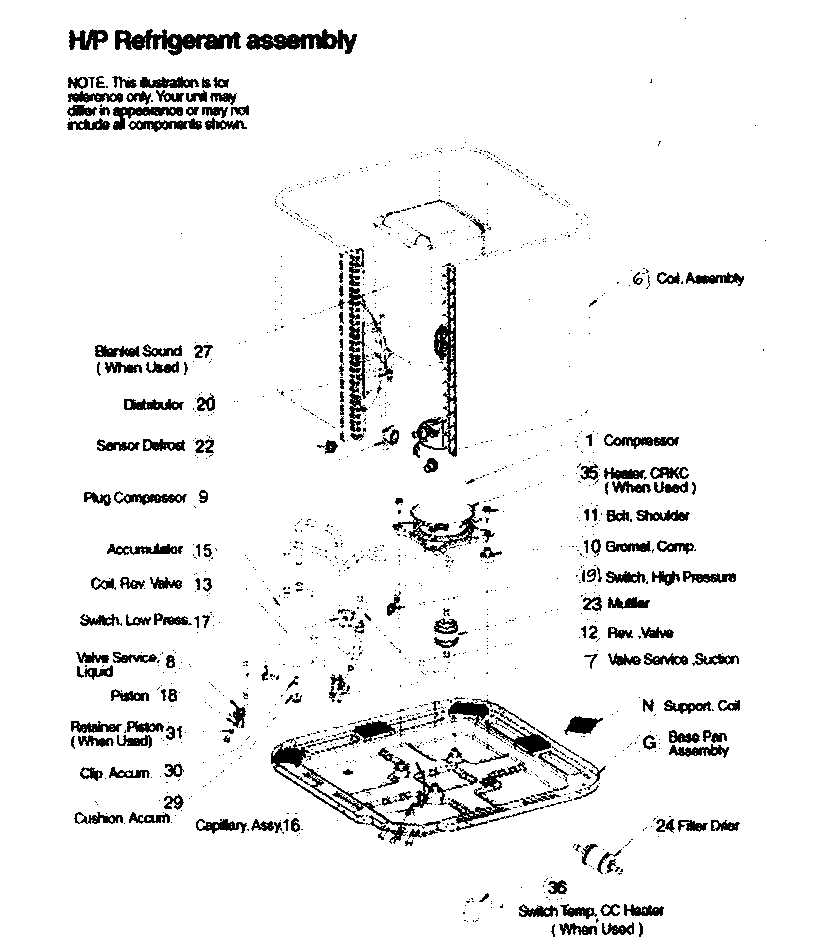

Refrigeration components diagram

Central air conditioner heat pump defrost control

Part #1173637

$34.73
In Stock
Central Air Conditioner Condenser Fan Blade 1172716
#3

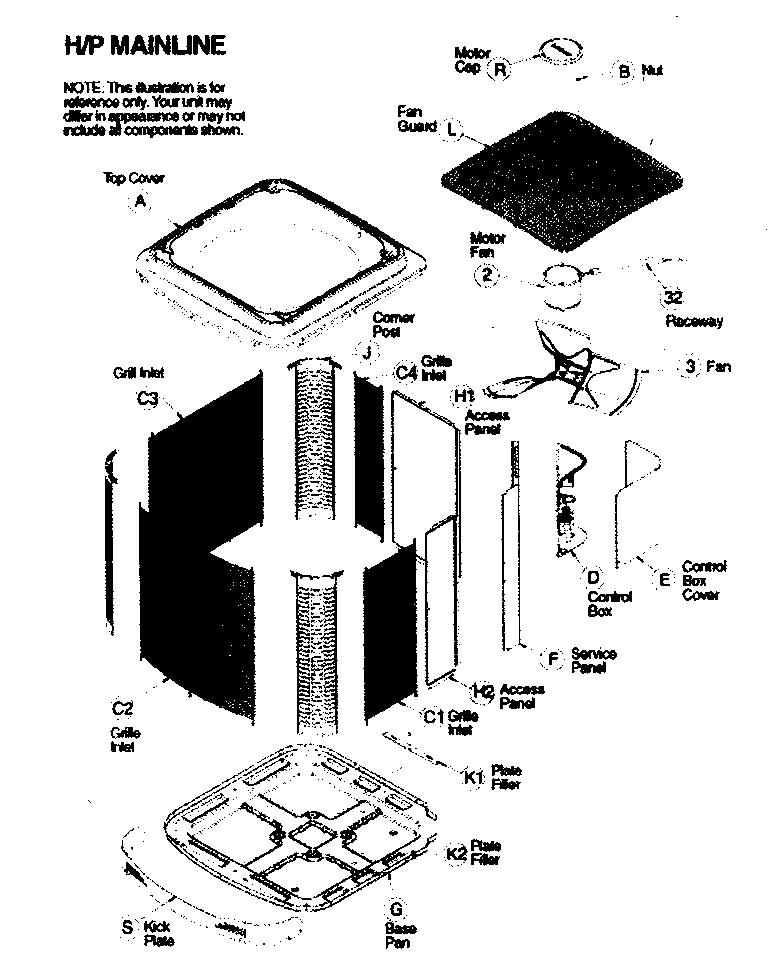

Cabinet parts/fan/motor diagram

Central air conditioner condenser fan blade

Part #1172716

$197.11
In Stock
Service Valve 1172727
#7

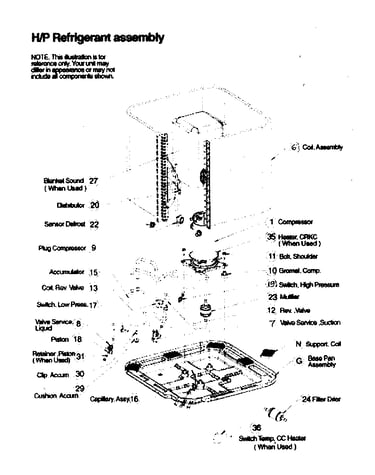

Refrigeration components diagram

Service valve

Part #1172727

Replaced by #1185863

?
Manufacturer substitution
This part replaces 1172727. Substitute parts can look different from the original.
$93.09
In Stock
Contactor 1172786
#4

Control box diagram

Contactor

Part #1172786

$113.00
In Stock
Switch 1173669
#36

Refrigeration components diagram

Switch

Part #1173669

$22.24
In Stock
Retainer 1173641
#31

Refrigeration components diagram

Retainer

Part #1173641

$9.06
In Stock
Heater 1173944
#35

Refrigeration components diagram

Heater

Part #1173944

$67.11
In Stock
Switch-hi 1173635
#19

Refrigeration components diagram

Switch-hi

Part #1173635

$58.51
In Stock
