A “4 ton” air handler refers to cooling capacity (about 48,000 BTU/hr), not a single standard cabinet size. For the Carrier FV4BNF002000 fan coil, the exact physical dimensions depend on the specific cabinet configuration and installation orientation; use the installation guide for the model-specific layout and setup details.

A 4 ton system is sized by airflow and capacity, so two 4 ton air handlers can be different sizes.

• Capacity: 4 ton equals 48,000 BTU/hr nominal cooling
• Typical target airflow: about 350 CFM per ton in cooling (around 1,400 CFM at 4 ton)
• Cabinet size varies by brand, series, and whether the unit is modular
• Orientation matters: upflow, horizontal, and downflow setups can change clearance needs

Your FV4B-series fan coil is designed to cover a wide airflow range and match multiple outdoor unit sizes. In the installation information, FV4B size “006” is described as a 2-piece modular unit (coil box and blower box), which can affect how you plan space for moving and setting the unit.

For FV4B size 006 at 048 (4 ton), the guide shows a nominal airflow of about 880 CFM with a higher setting up to about 1,400 CFM (depending on mode and jumper settings).

Getting the right “big enough” air handler is mostly about airflow delivery and fit. If the cabinet fits but airflow is wrong, you can end up with poor comfort, humidity issues, or noisy ductwork.

• Measure the closet/mechanical space height, width, and depth
• Confirm service clearance for the blower section and electrical access
• Verify duct connection locations (return and supply)
• Plan for condensate drain routing (especially in horizontal installs)
• Match the airflow settings to your outdoor unit and duct design

If you need replacement parts while you’re planning the install, we list model-matched parts on this page, and you can also search by model number on Sears PartsDirect.

Last updated: February 2026

For the Carrier FV4BNF002000 fan coil (air handler), plan for at least 24 inches of clearance in front of the access panels for service, plus enough space to remove the filter and open the full face of the unit. Confirm your exact installation layout in the installation guide.

These clearances help ensure safe service access, proper airflow, and easier filter changes.

• Front (service side): minimum 24 in. from access panels
• Front face access: keep the full face of the unit accessible for service
• Filter access: leave room to slide the filter in and out without bending it
• Duct and plenum: keep required spacing where ductwork connects (especially if electric heat is installed)
• Around the cabinet: avoid tight enclosures that block panels, wiring entry, or drain connections

Clearance is not just convenience. On the FV4BNF002000, service access affects routine maintenance like filter changes and seasonal coil and drain inspections. Proper spacing also reduces the chance of air leaks, vibration noise, and difficult future repairs.

• Keep the condensate drain connections accessible for cleaning and inspection.
• Leave room for electrical disconnect access and safe wiring entry.
• If the unit is in a closet or tight mechanical space, prioritize the service-panel side.
• If you are ordering repair parts for this model, use the parts list for FV4BNF002000 on this page, or search by model at Sears PartsDirect.

Last updated: February 2026

An air handler is commonly called an air handling unit (AHU). For your Carrier FV4BNF002000 fan coil, it is the indoor unit that moves air through the ductwork and typically houses the blower and the evaporator coil that supports heating and cooling.

These terms are often used interchangeably, depending on the HVAC setup:

• AHU (air handling unit)
• Fan coil (common when the unit is paired with a heat pump or AC coil)
• Indoor unit (paired with an outdoor condenser or heat pump)
• Blower unit or blower section (when someone is referring mainly to the air-moving side)
• Coil box (when someone is referring mainly to the coil section)

In the installation information for FV4B-series fan coils, the unit is described as having sections such as a coil box and blower box (some sizes are modular for easier installation). That is why you may hear techs refer to the same “air handler” by the section they are working on. Use the installation guide terminology when matching parts and wiring.

Using the right name helps you pull the correct diagrams, wiring info, and parts list. For example, airflow and electrical setup details are handled at the fan coil control board level, while condensate drainage issues relate more to the coil and trap configuration.

If you are ordering parts for this Carrier FV4BNF002000, start with the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

Yes. For the Carrier FV4BNF002000, “air handler” and “fan coil” are commonly used to describe the same indoor unit: it uses a blower (fan) to move air across an indoor coil for heating and cooling, and it can also support options like electric heat.

In most residential split systems, these terms overlap:

• Air handler: the indoor cabinet that contains the blower and often the evaporator coil.
• Fan coil: an air handler specifically described by its fan + coil function.
• Fan coil unit (FCU): another common way to say fan coil.
• Blower section: the part of the air handler that actually moves air.

Carrier’s installation literature for FV4B fan coil units describes flexible installation positions (upflow, horizontal, downflow with kits) and pairing with Puron (R-410A) systems. For setup details, use the installation guide.

Knowing the naming helps you pick the right parts list and avoid ordering the wrong component (for example, a furnace part instead of an air handler part).

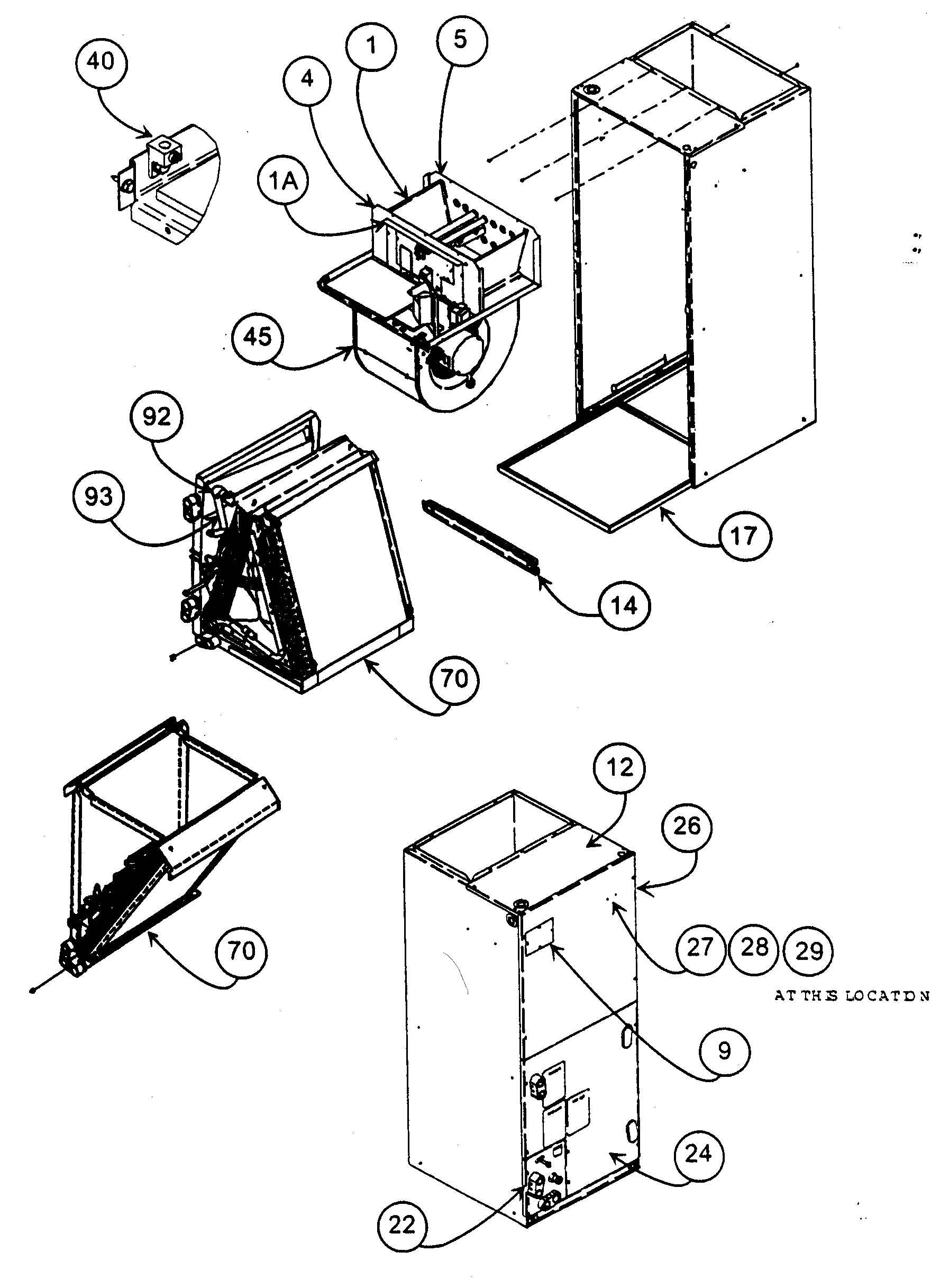

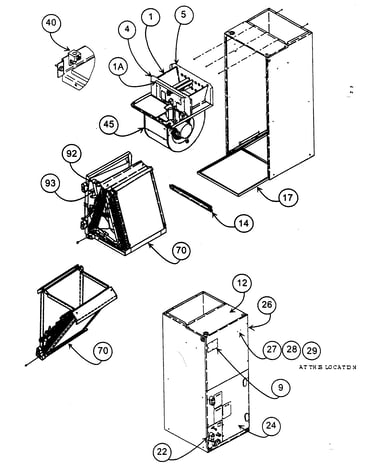

Common air handler or fan coil parts you may see for FV4BNF002000 include:

• Blower wheel (moves air through the ductwork)

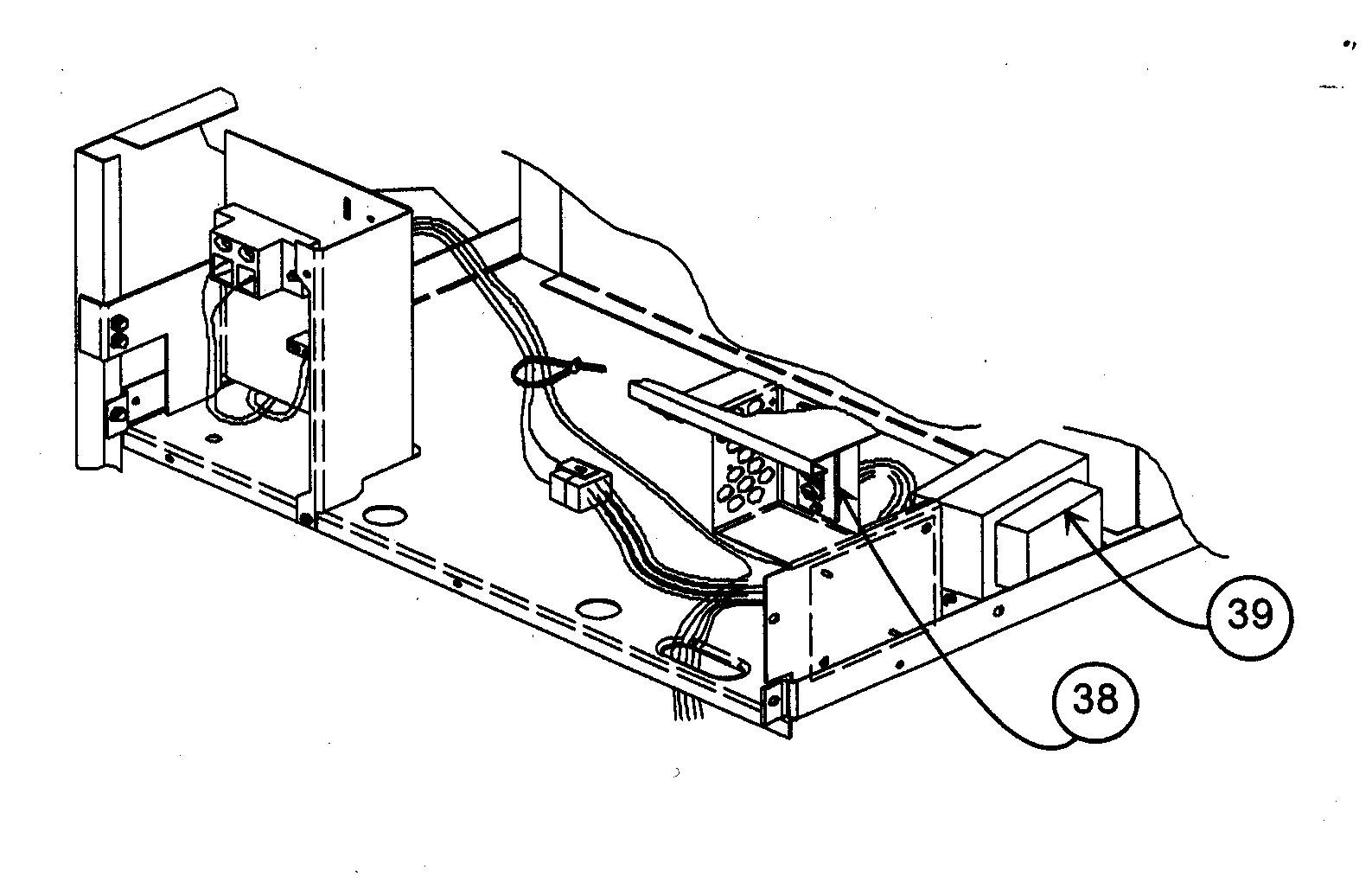

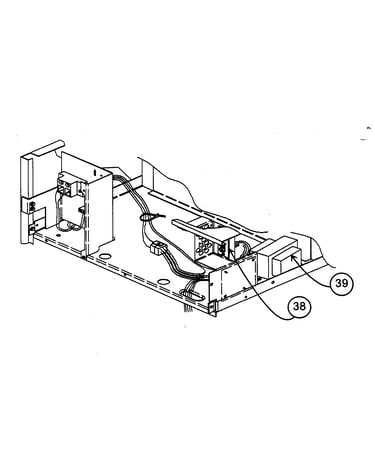

• Control board (manages blower speeds and comfort modes)
• Brackets and housings (mounting and support hardware)

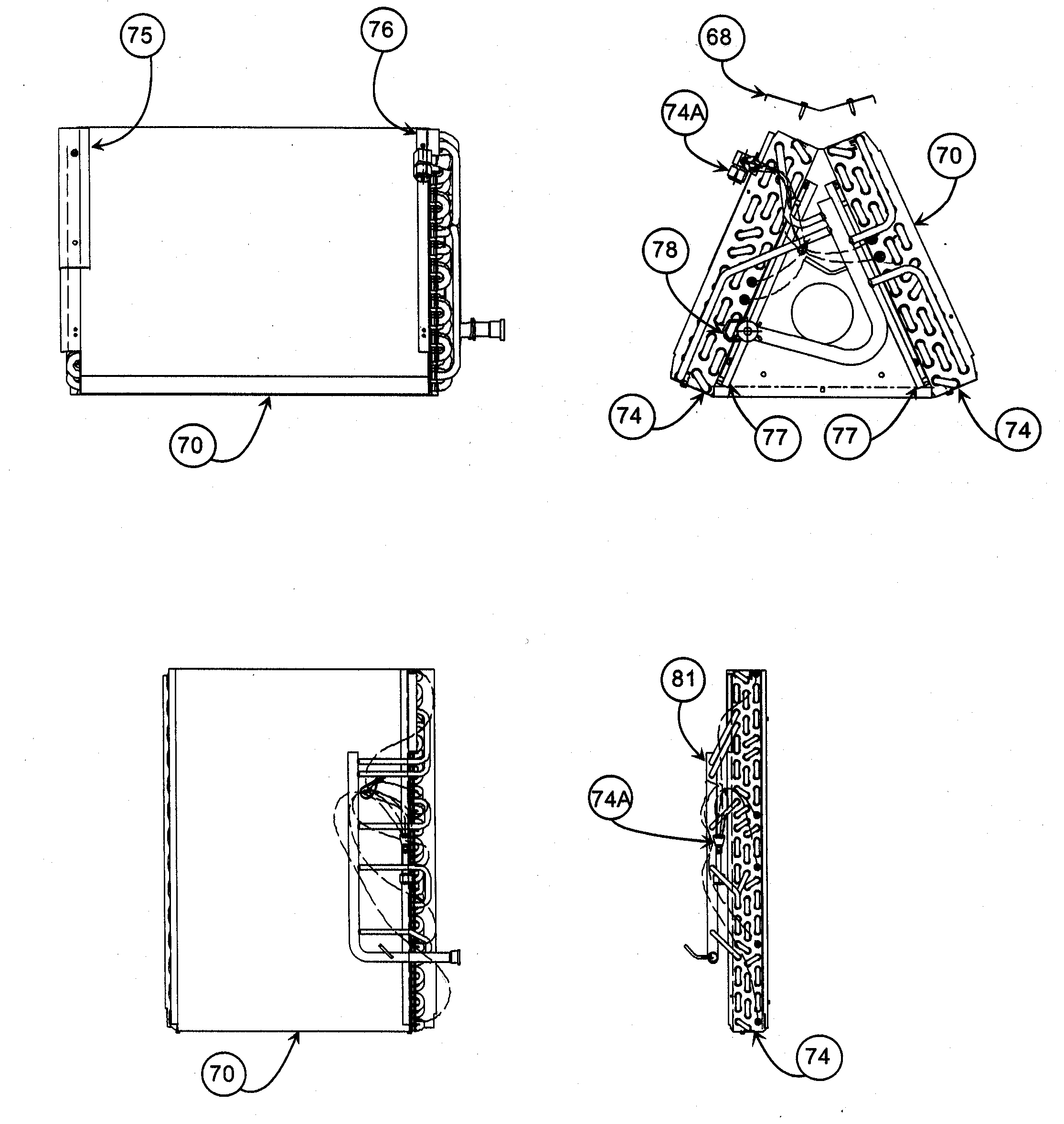

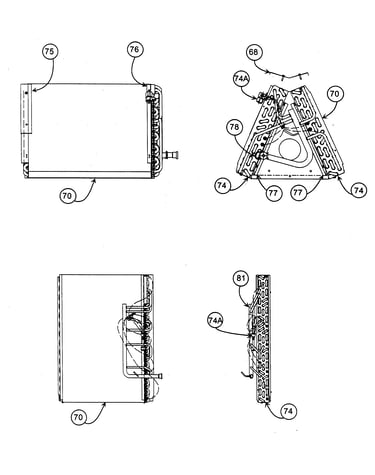

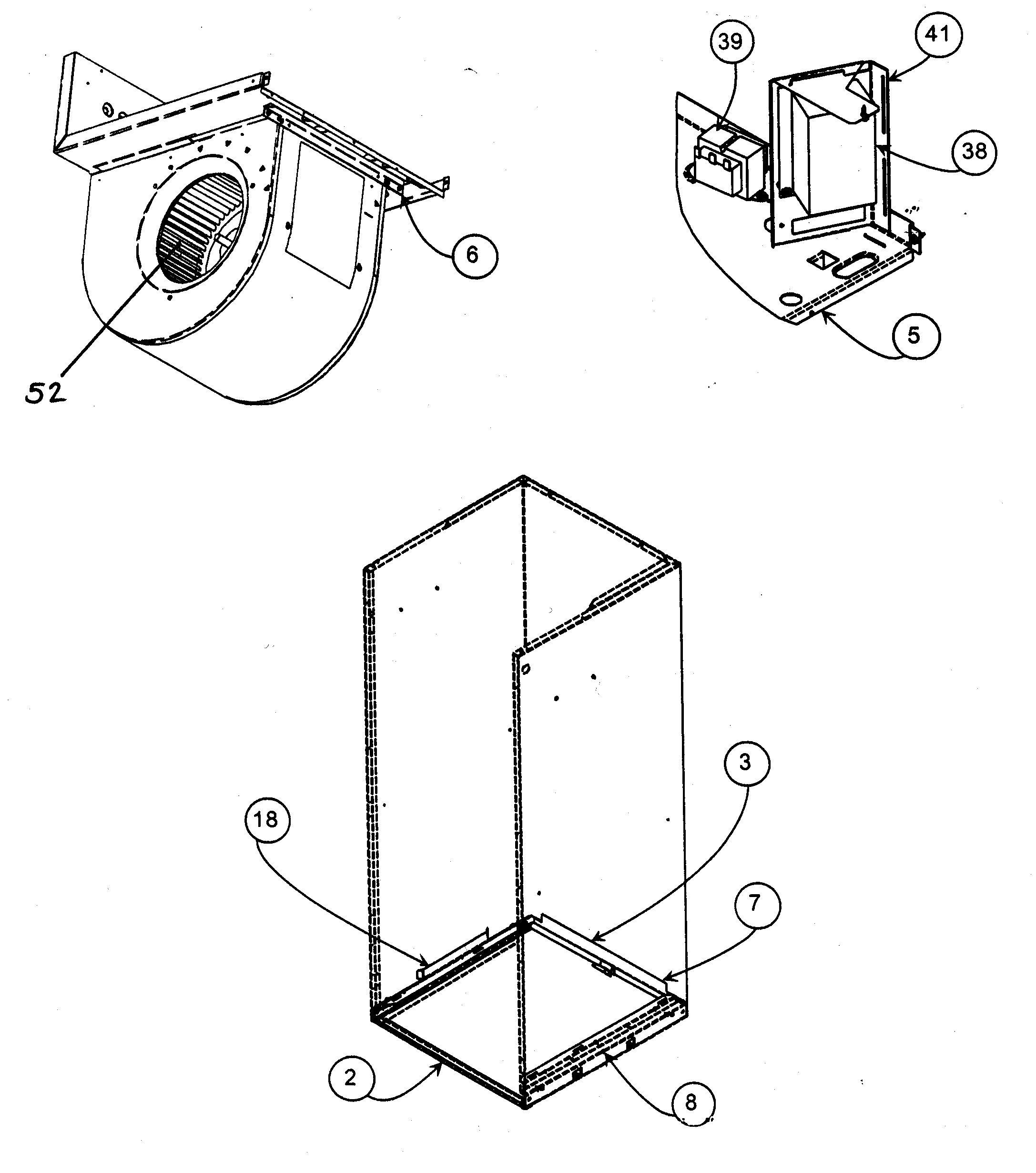

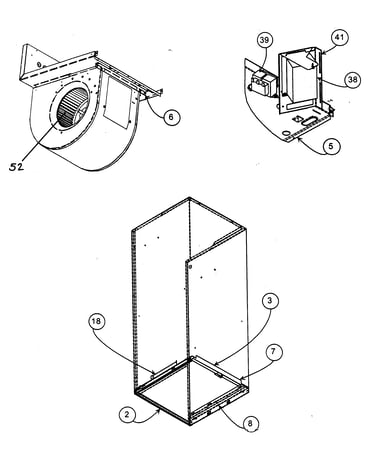

If you are replacing a blower wheel, match by model and part ID; for this model, see the fan wheel LA22LA095.

Before servicing an air handler or fan coil, shut off power at all disconnects; many systems have more than one disconnect.

You can order FV4BNF002000 replacement parts from the parts list for this model, or search by model number on Sears PartsDirect.
