Snapper 1694591 snow thrower Parts
Here are the diagrams and repair parts for Snapper 1694591 snow thrower, as well as links to manuals and error code tables, if available.
Owner’s manualBy Schematic
By Part

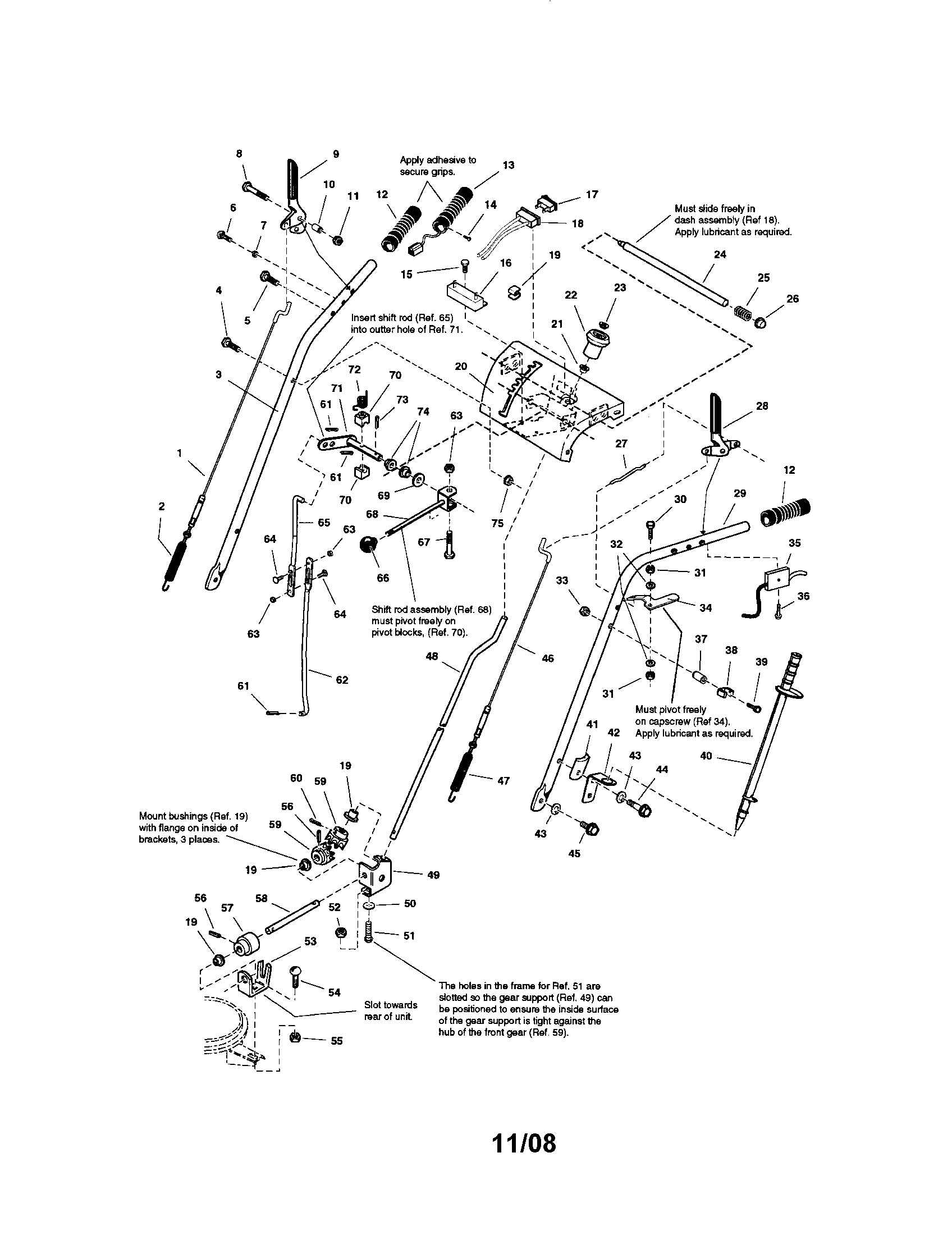

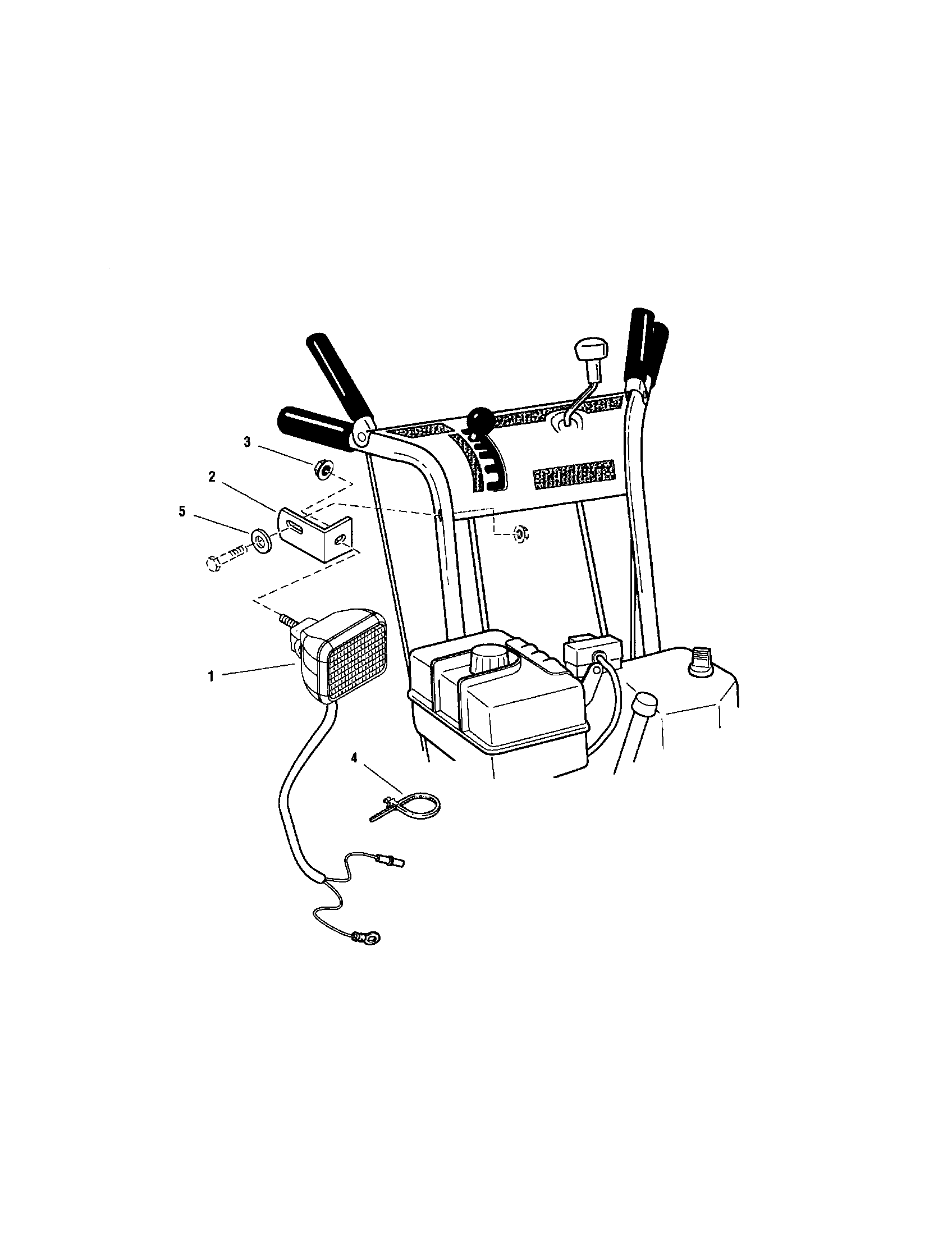

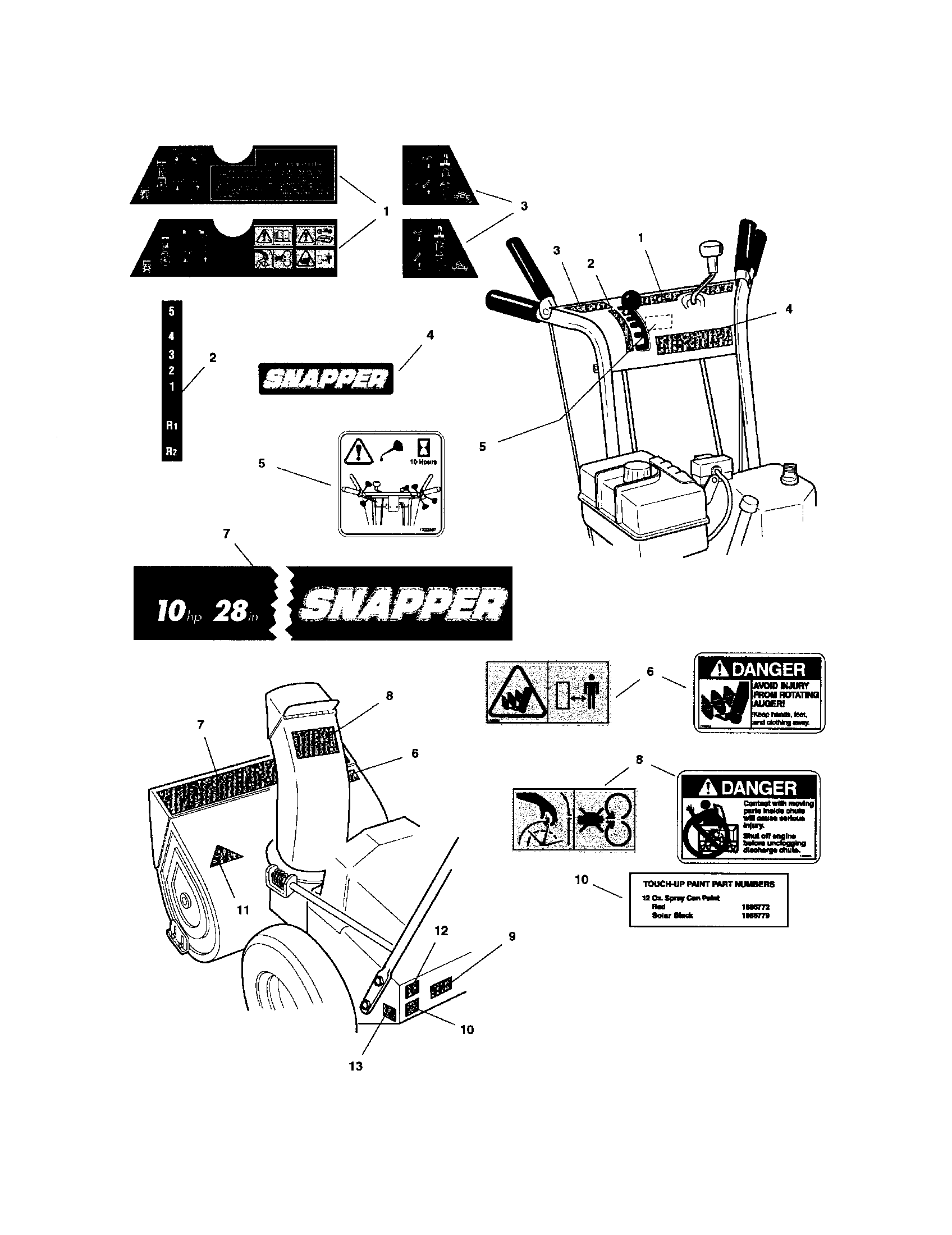

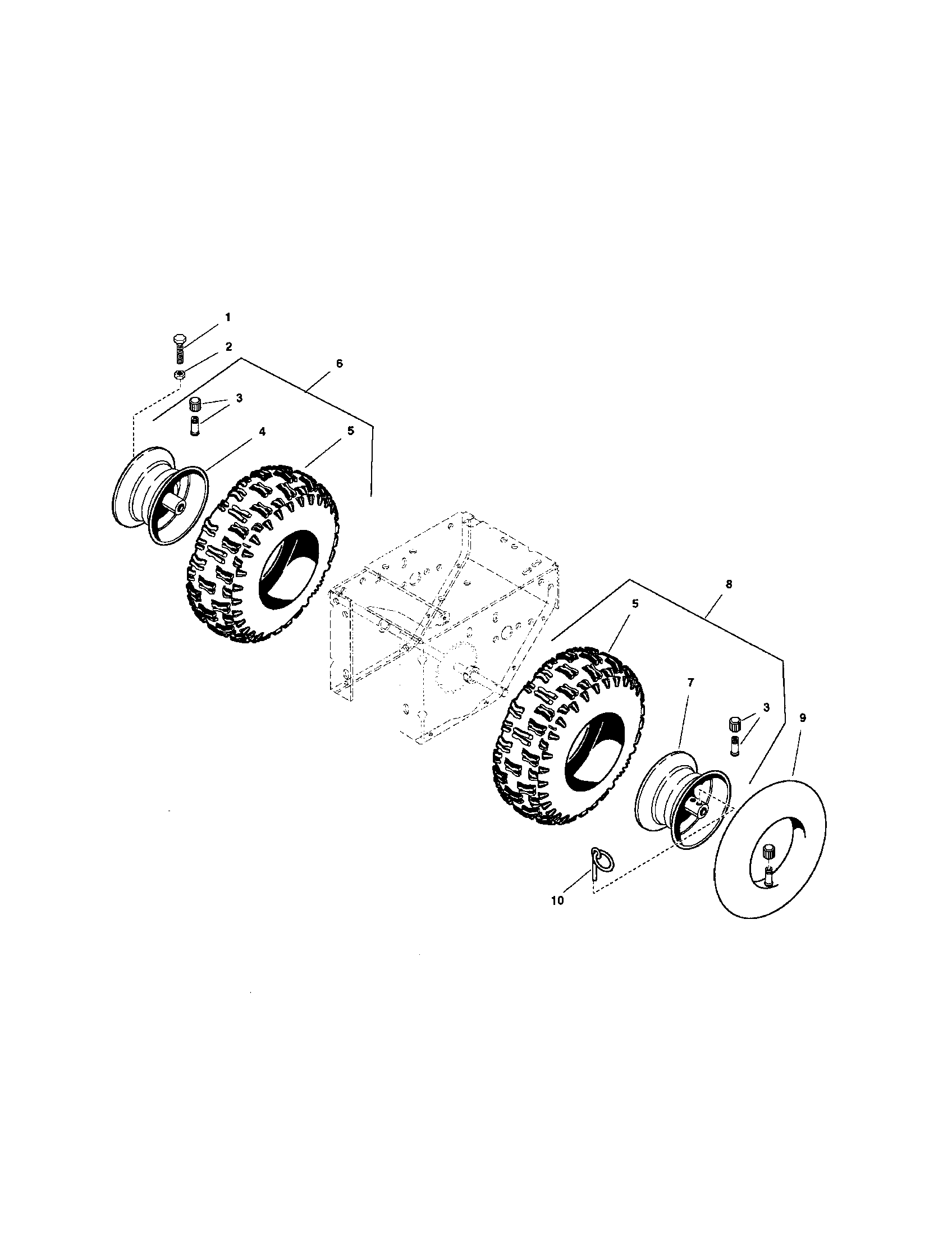

SELECT DIAGRAM
Browse Parts for 1694591 Snowblowers

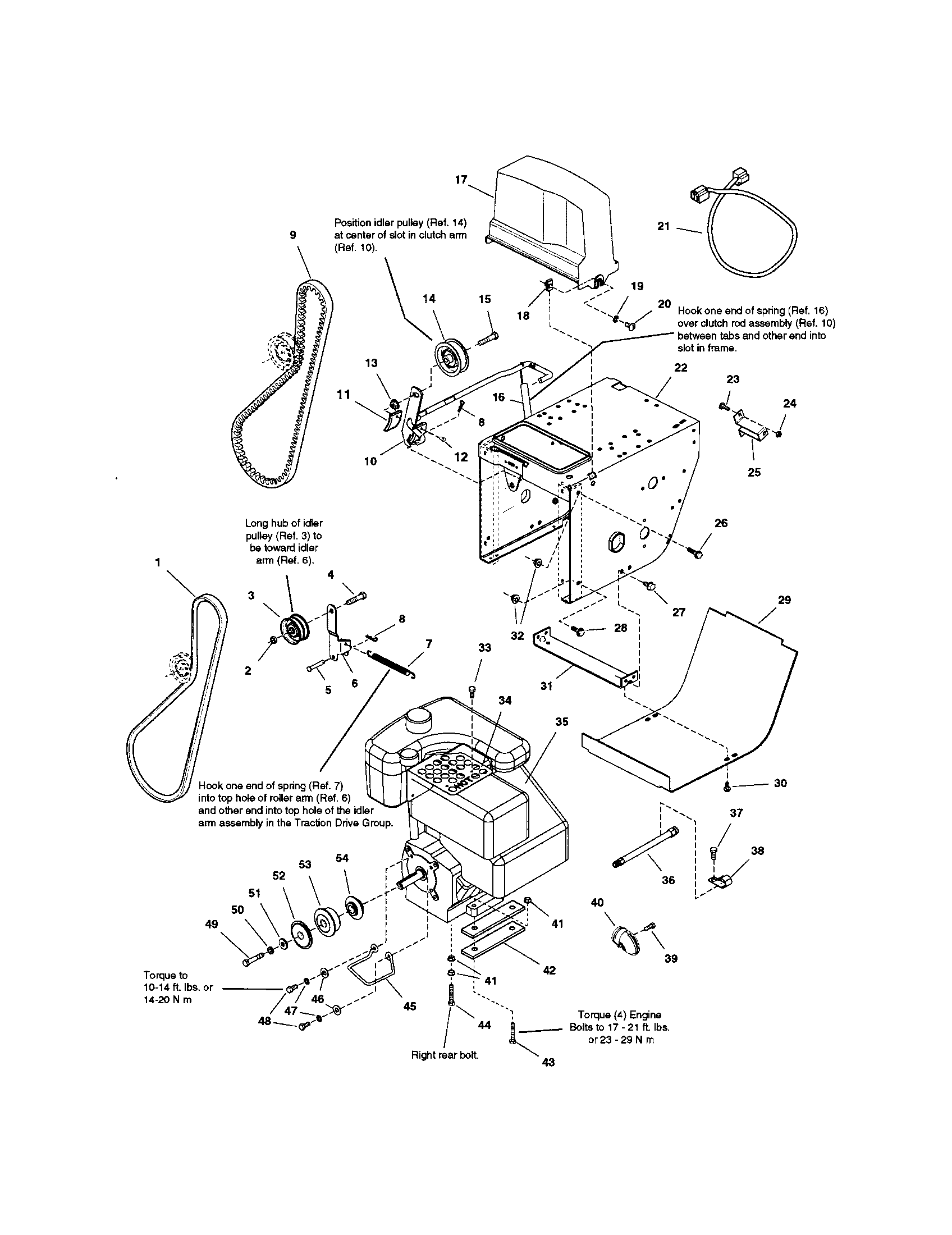

Engine/frame diagram
Snapper Fln 5/16-18
Part #7091601Replaced by #703409
Manufacturer substitutionThis part replaces 7091601. Substitute parts can look different from the original.In Stock$10.66
Qty

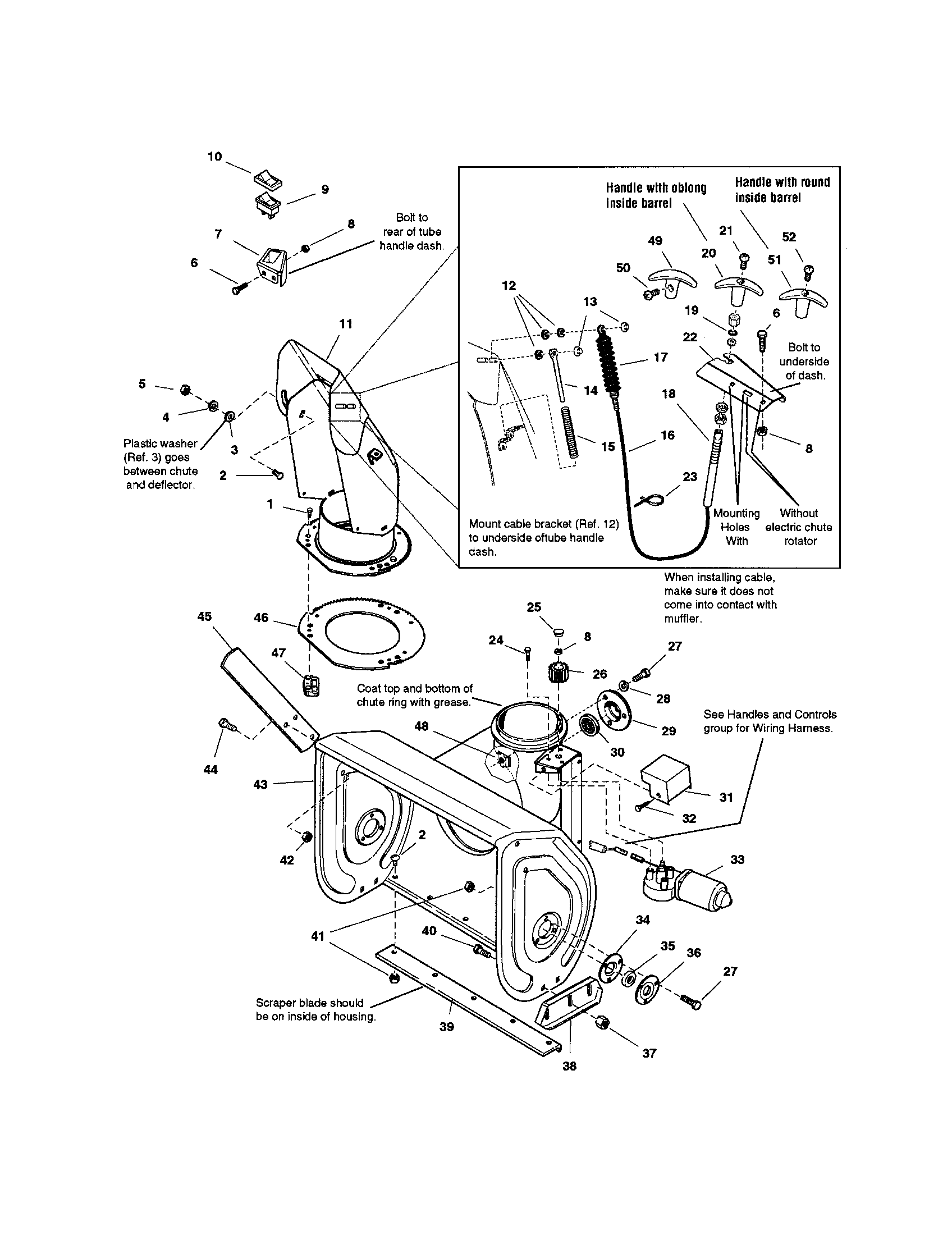

Auger housing/chute-38" diagram
Snapper Washer
Part #2860210Replaced by #2860210SM
Manufacturer substitutionThis part replaces 2860210. Substitute parts can look different from the original.In Stock$8.83QtyAuger housing/chute-24"/28"/32" diagram
Snapper Bolt
Part #1931335Replaced by #703800
Manufacturer substitutionThis part replaces 1931335. Substitute parts can look different from the original.In Stock$29.88QtyEngine/frame diagram
Snapper Washer, Lock, 3
Part #3031008Replaced by #703454
Manufacturer substitutionThis part replaces 3031008. Substitute parts can look different from the original.This item is not returnableIn Stock$6.40QtySnapper Lawn & Garden Equipment Nut
Part #1920397Replaced by #703232

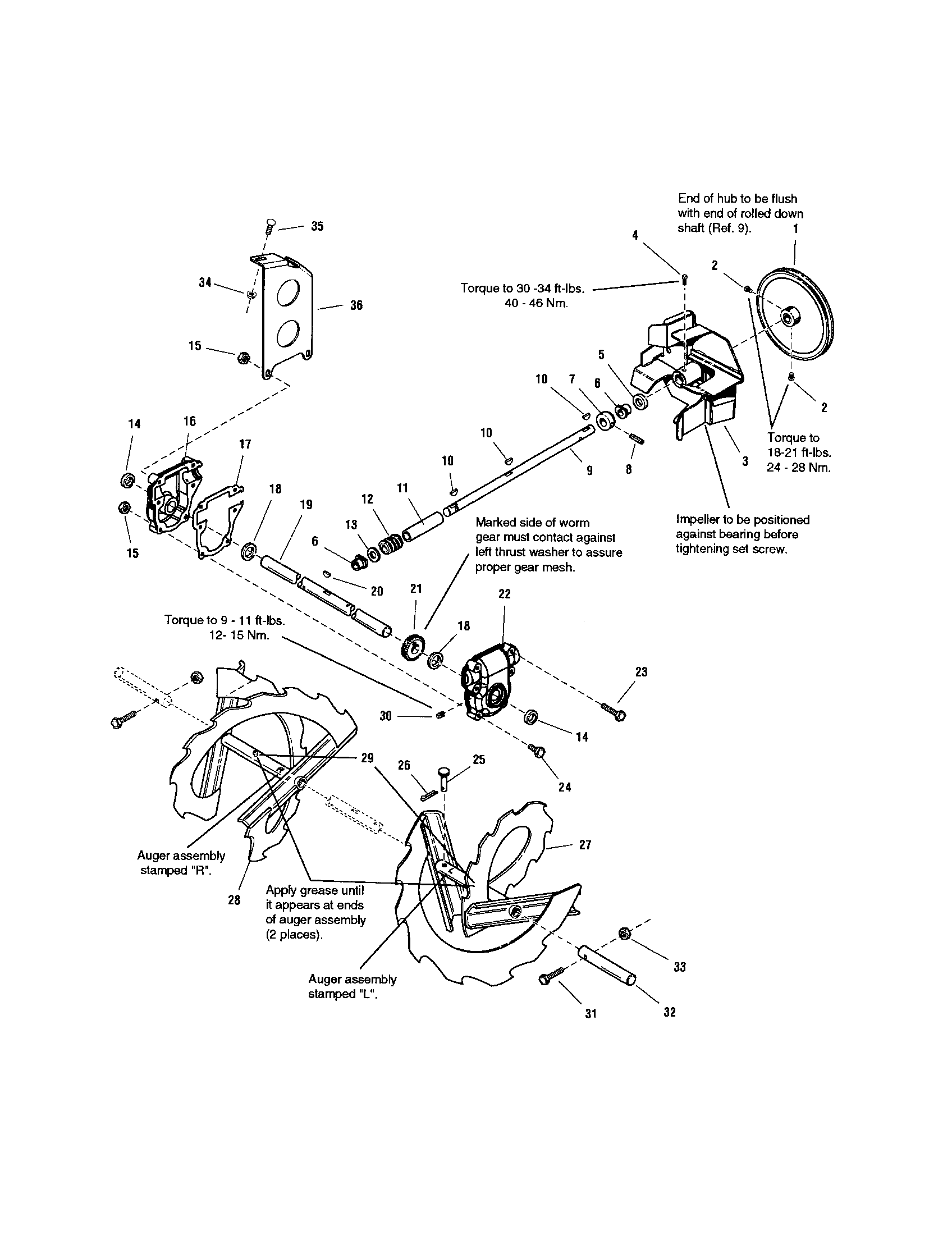

Manufacturer substitutionThis part replaces 1920397. Substitute parts can look different from the original.In Stock$8.51QtyAuger drive diagram
Snapper Washer
Part #2168111Replaced by #2168111SM
Manufacturer substitutionThis part replaces 2168111. Substitute parts can look different from the original.In Stock$13.97QtyEngine/frame diagram
Snapper V-belt
Part #1666655Replaced by #1666655SM

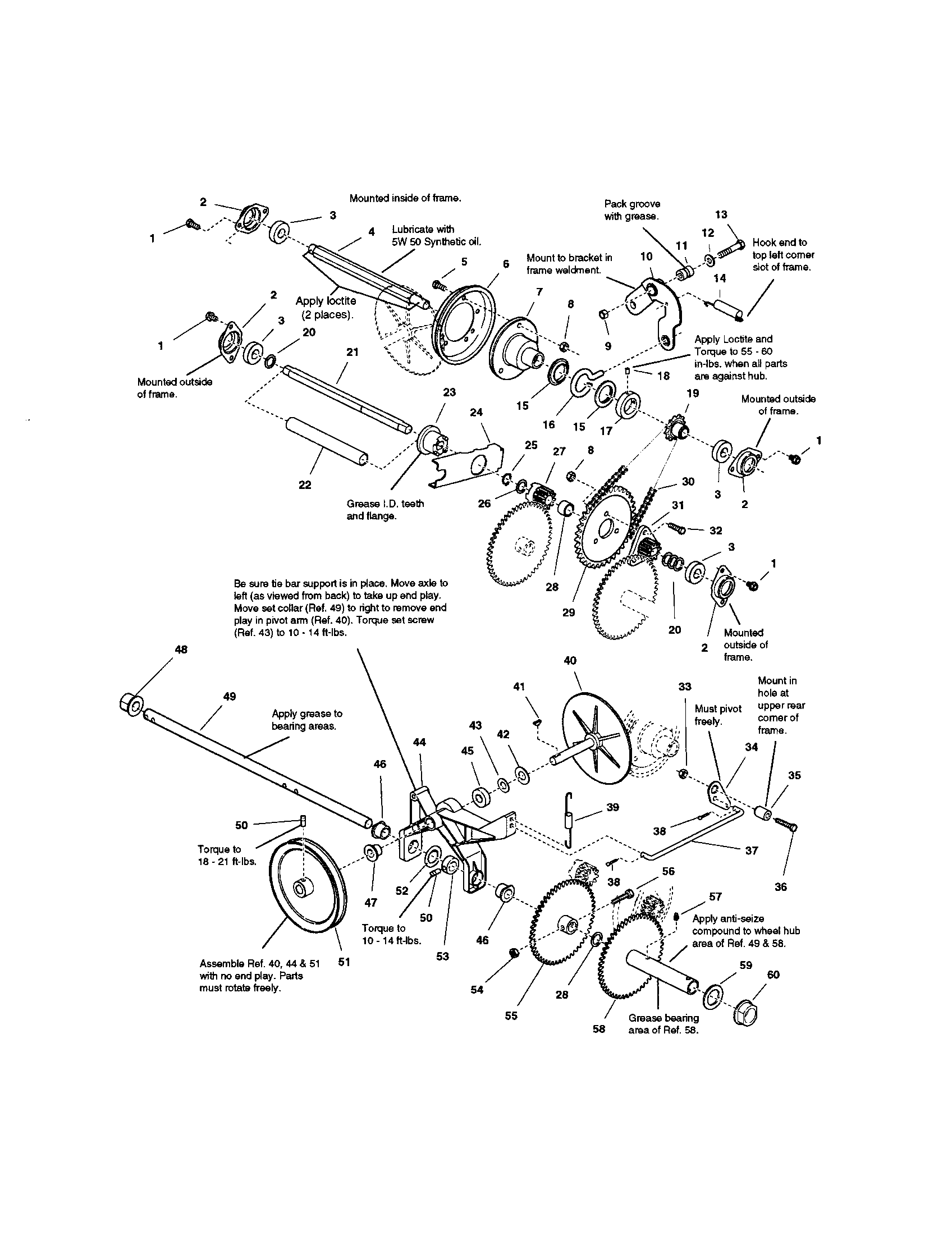

Manufacturer substitutionThis part replaces 1666655. Substitute parts can look different from the original.In Stock$40.49QtyTraction drive diagram
Snapper Pin-loop .37
Part #1666207Replaced by #1666207SM
Manufacturer substitutionThis part replaces 1666207. Substitute parts can look different from the original.In Stock$24.46QtyAuger drive diagram
Snapper Auger Asmy-1
Part #1718787AReplaced by #1734678ASM
Manufacturer substitutionThis part replaces 1718787A. Substitute parts can look different from the original.In Stock$230.96QtyEngine/frame diagram
Snapper Nut
Part #1935255Replaced by #1935255SM
Manufacturer substitutionThis part replaces 1935255. Substitute parts can look different from the original.This item is not returnableIn Stock$6.43Qty
