Amana
Countertop Microwave

Model # 418.002 Official Amana microwave

Here are the diagrams and repair parts for Official Amana 418002 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

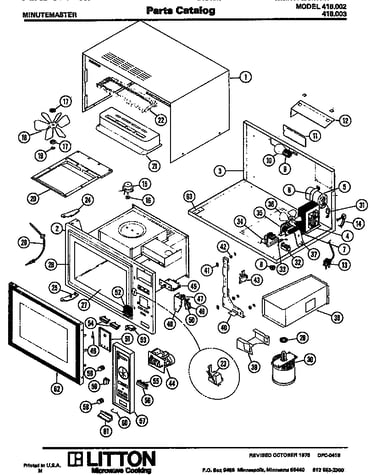

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 114 parts  |
Solid State Controller M22D5
#45A

Microwave parts diagram

Solid state controller

Part #M22D5

The manufacturer no longer makes this part, and there's no substitute part

Bracket, Switch Mtg M2D259
#48

Microwave parts diagram

Bracket, switch mtg

Part #M2D259

The manufacturer no longer makes this part, and there's no substitute part

Air Duct, Bottom M65D33
#39

Microwave parts diagram

Air duct, bottom

Part #M65D33

The manufacturer no longer makes this part, and there's no substitute part

R. F. Gasket M2D152
#16

Microwave parts diagram

R. f. gasket

Part #M2D152

The manufacturer no longer makes this part, and there's no substitute part

Cavity & Faceplate Assembly (includes Choke Filler And Rollers) M77D46
#2A

Microwave parts diagram

Cavity & faceplate assembly (includes choke filler and rollers)

Part #M77D46

The manufacturer no longer makes this part, and there's no substitute part

Screw, Panel Mtg M1D549
#57B

Microwave parts diagram

Screw, panel mtg

Part #M1D549

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer - Capacitor Grounding M1D57
#13D

Microwave parts diagram

Lock washer - capacitor grounding

Part #M1D57

The manufacturer no longer makes this part, and there's no substitute part

R.t.c. Sealant - Shelf Mtg. M13D2
#27B

Microwave parts diagram

R.t.c. sealant - shelf mtg.

Part #M13D2

The manufacturer no longer makes this part, and there's no substitute part

Screw, Baffle Mounting M1D358
Screw, baffle mounting

Part #M1D358

The manufacturer no longer makes this part, and there's no substitute part

Shelf (with R. T. V. Sealant) M50D14
#27A

Microwave parts diagram

Shelf (with r. t. v. sealant)

Part #M50D14

The manufacturer no longer makes this part, and there's no substitute part
