Model # 315268750 Official Craftsman power planer

Here are the diagrams and repair parts for Official Craftsman 315268750 power planer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

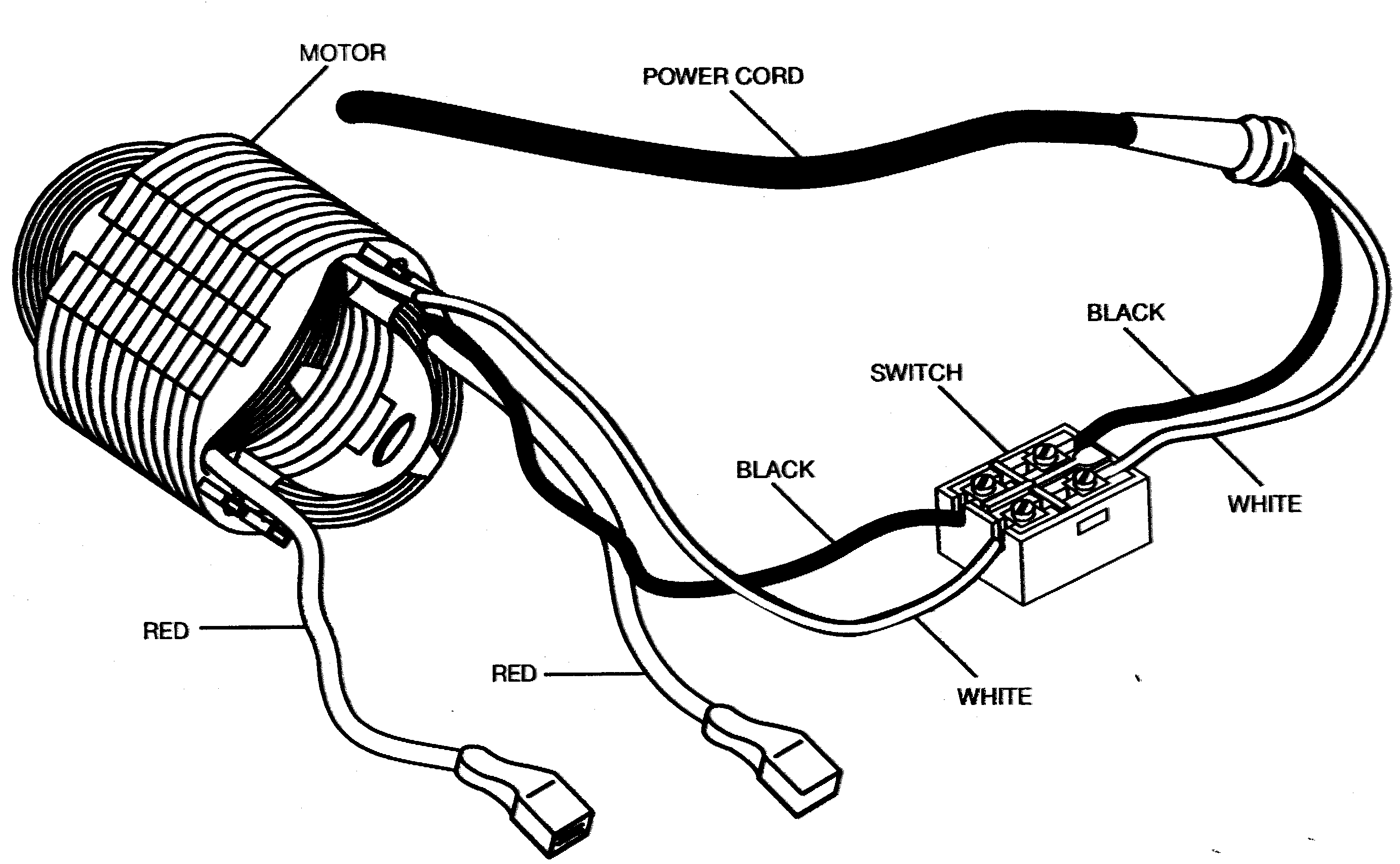

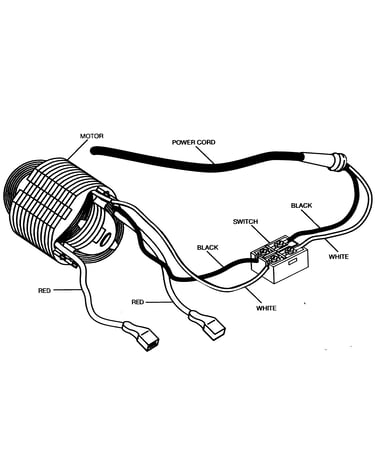

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 52 parts |

#14

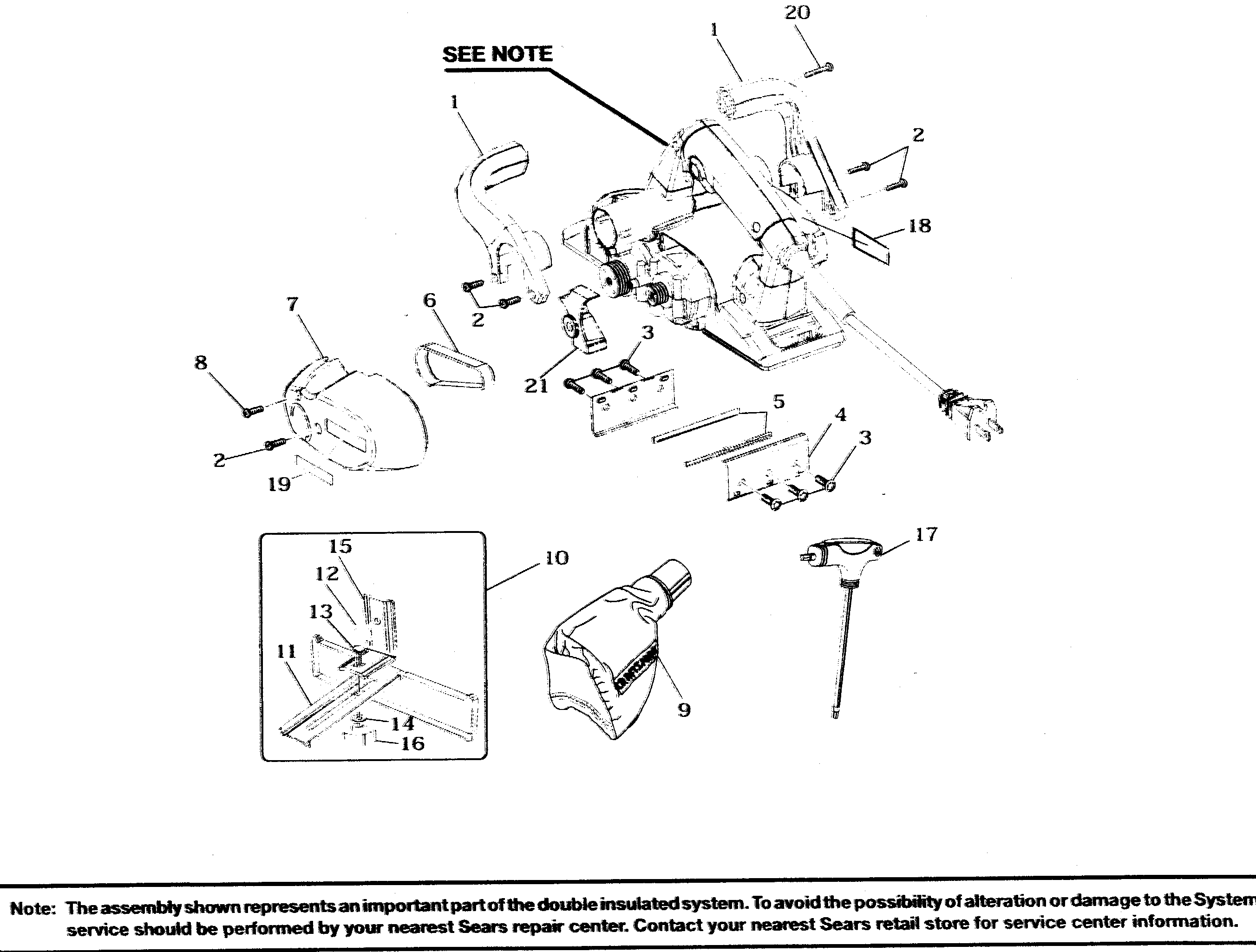

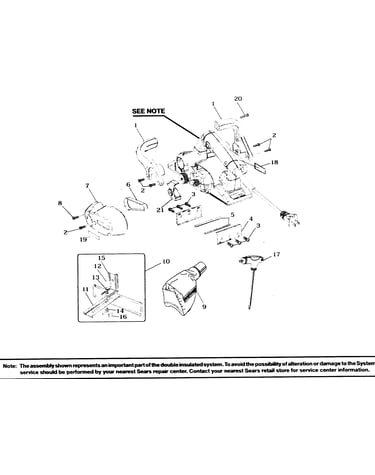

Planer assy diagram

Washer

Part #5228001

The manufacturer no longer makes this part, and there's no substitute part

#10

Planer assy diagram

Edge guide

Part #300869002

The manufacturer no longer makes this part, and there's no substitute part

Planer assy diagram

Handle assembly

Part #301039001

The manufacturer no longer makes this part, and there's no substitute part

#27

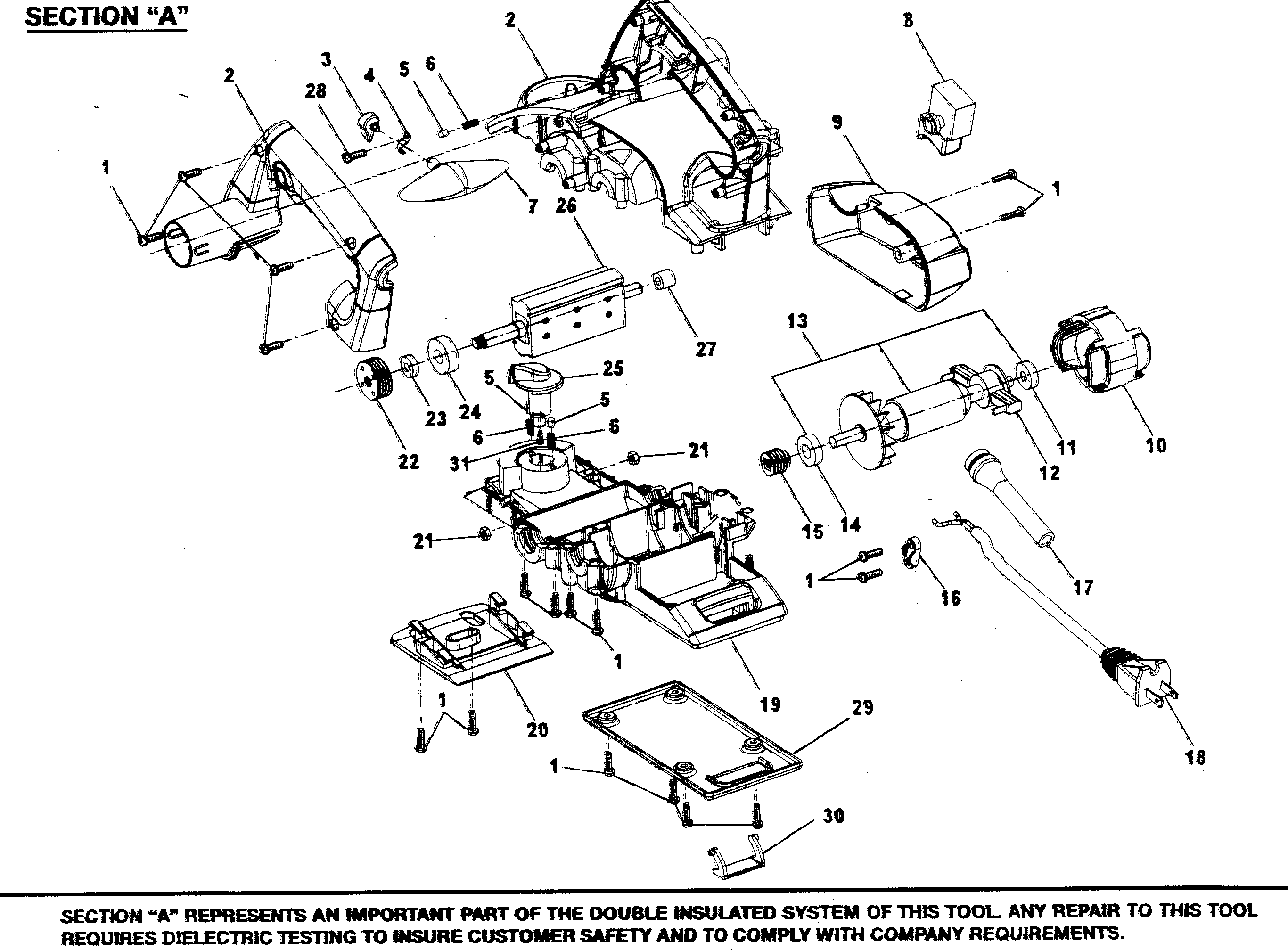

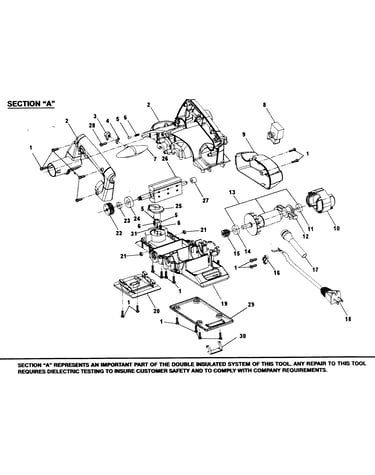

Motor assy diagram

Bearing

Part #680727001

The manufacturer no longer makes this part, and there's no substitute part

#11

Planer assy diagram

Edge guide

Part #690866001

The manufacturer no longer makes this part, and there's no substitute part

#20

Motor assy diagram

Front shoe

Part #640601001

The manufacturer no longer makes this part, and there's no substitute part

#13

Planer assy diagram

Power tool bolt, m6 x 12

Part #660142001

The manufacturer no longer makes this part, and there's no substitute part

Motor assy diagram

Knob

Part #590840001

The manufacturer no longer makes this part, and there's no substitute part

Planer assy diagram

Blade

Part #660861001

The manufacturer no longer makes this part, and there's no substitute part

Planer assy diagram

Bladeclamp

Part #660862002

The manufacturer no longer makes this part, and there's no substitute part
