Model # 217586351 Official Craftsman 15-hp outboard motor

Here are the diagrams and repair parts for Official Craftsman 217586351 15-hp outboard motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

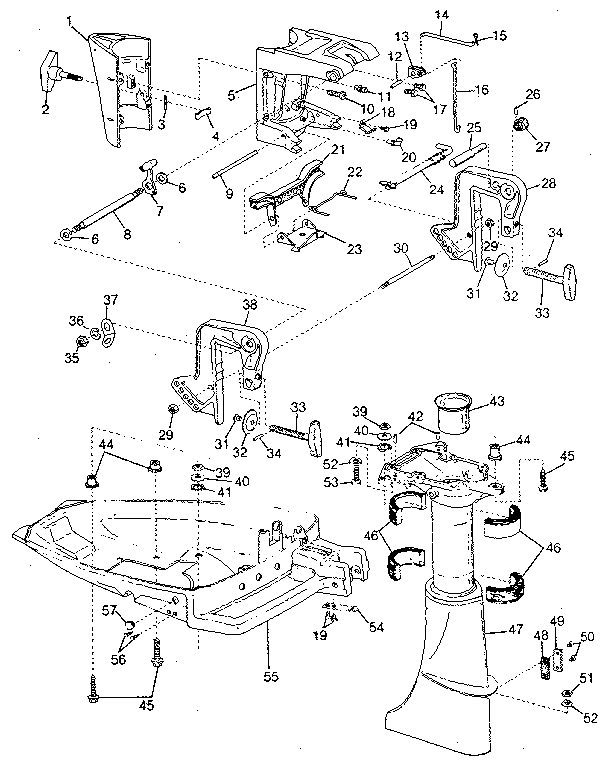

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 316 parts  |
Inlet Needle 631021
#12

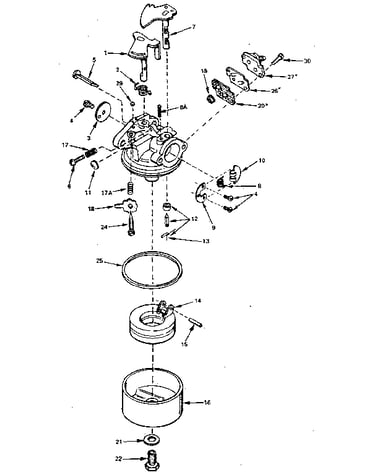

Carburetor assembly diagram

Inlet needle

Part #631021

The manufacturer no longer makes this part, and there's no substitute part

Gasket 631028
#25

Carburetor assembly diagram

Gasket

Part #631028

The manufacturer no longer makes this part, and there's no substitute part

Spring 630735
#5

Carburetor assembly diagram

Spring

Part #630735

The manufacturer no longer makes this part, and there's no substitute part

Clip 631022
#13

Carburetor assembly diagram

Clip

Part #631022

The manufacturer no longer makes this part, and there's no substitute part

Boat Motor Screw 276
#34

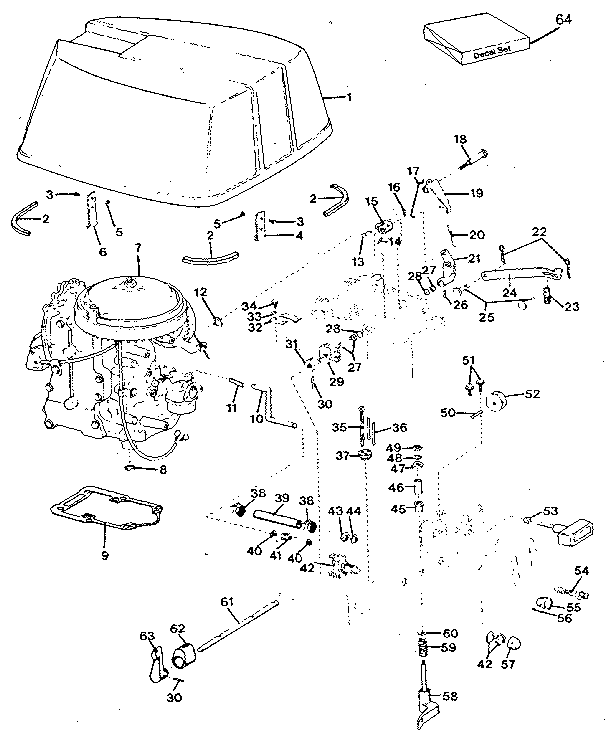

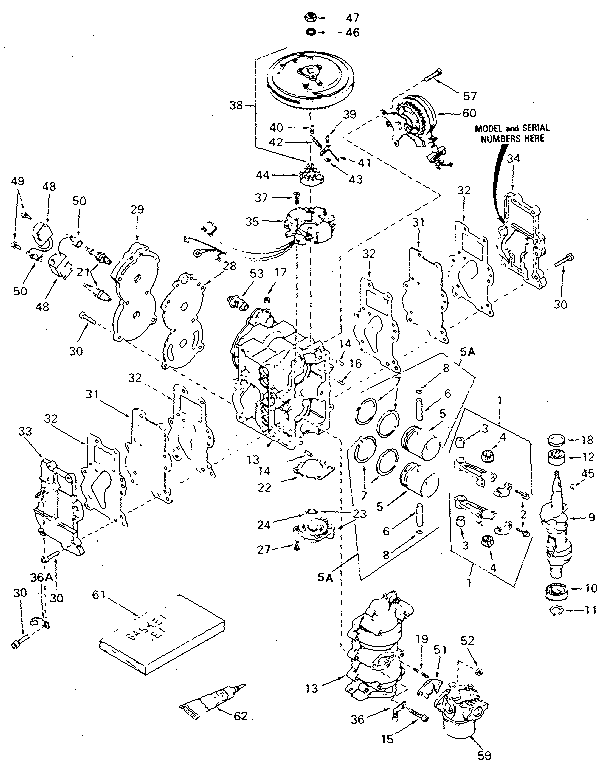

Power head assembly diagram

Boat motor screw

Part #276

The manufacturer no longer makes this part, and there's no substitute part

Screw 699
#19

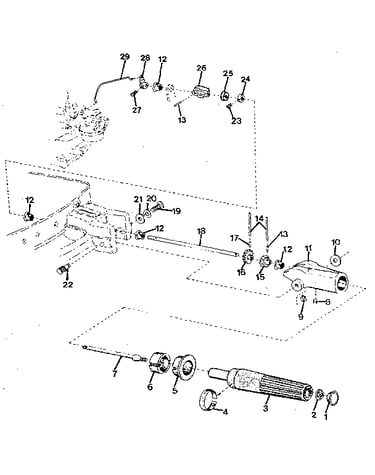

Twist grip assembly diagram

Screw

Part #699

The manufacturer no longer makes this part, and there's no substitute part

Washer 4432
#12

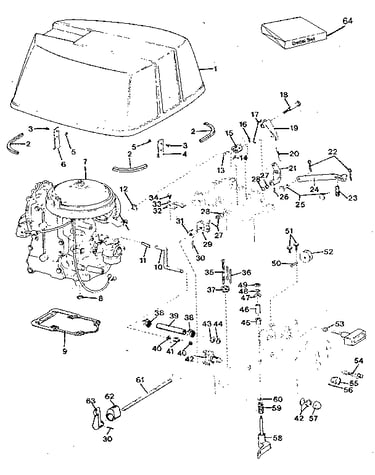

Power head assembly diagram

Washer

Part #4432

The manufacturer no longer makes this part, and there's no substitute part

Bushing 26243
#53

Power head assembly diagram

Bushing

Part #26243

The manufacturer no longer makes this part, and there's no substitute part

Pin (silver) 6415
Pin (silver)

Part #6415

The manufacturer no longer makes this part, and there's no substitute part

Boat Motor Impeller Pin 36468
#19

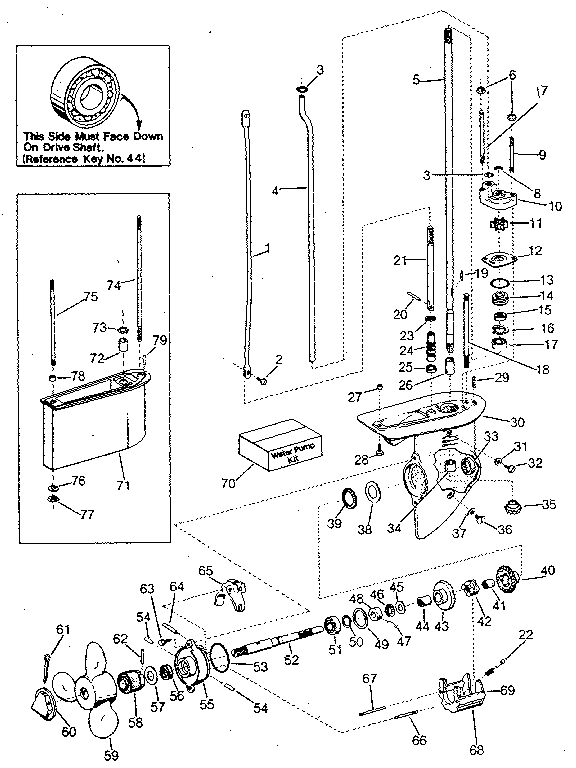

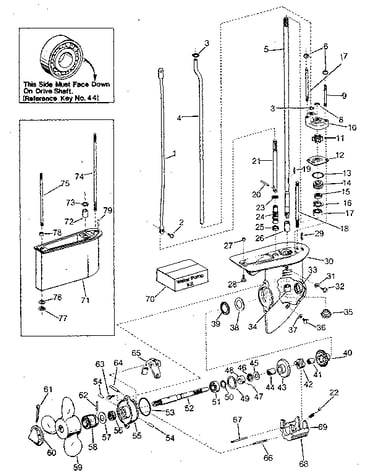

Gear housing assembly diagram

Boat motor impeller pin

Part #36468

The manufacturer no longer makes this part, and there's no substitute part
