Broan
Range Hood

Model # 2200 Official Broan oven hood

Here are the diagrams and repair parts for Official Broan 2200 oven hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 16 parts  |
Spring 99140102
#5

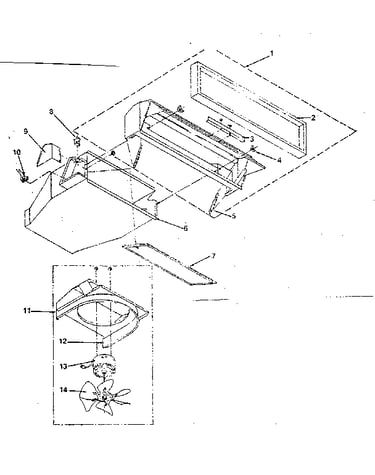

Range hood diagram

Spring

Part #99140102

Replaced by #S99140102

?
Manufacturer substitution
This part replaces 99140102. Substitute parts can look different from the original.
This item is not returnable
$3.67
In Stock
Range Hood Filter 99010032
#7

Range hood diagram

Range hood filter

Part #99010032

Replaced by #S99010032

?
Manufacturer substitution
This part replaces 99010032. Substitute parts can look different from the original.
$15.60
In Stock
Housing 97000751
#12

Range hood diagram

Housing

Part #97000751

The manufacturer no longer makes this part, and there's no substitute part

Cover 98002362
#9

Range hood diagram

Cover

Part #98002362

The manufacturer no longer makes this part, and there's no substitute part

Door 2274
#1A

Range hood diagram

Door

Part #2274

The manufacturer no longer makes this part, and there's no substitute part

Receptacle 97000716
#10

Range hood diagram

Receptacle

Part #97000716

The manufacturer no longer makes this part, and there's no substitute part

Door 2244
#1

Range hood diagram

Door

Part #2244

The manufacturer no longer makes this part, and there's no substitute part

Wing Nut 99260314
#4

Range hood diagram

Wing nut

Part #99260314

The manufacturer no longer makes this part, and there's no substitute part

Blade 97000753
#14

Range hood diagram

Blade

Part #97000753

The manufacturer no longer makes this part, and there's no substitute part

Trim 97000976
#2A

Range hood diagram

Trim

Part #97000976

The manufacturer no longer makes this part, and there's no substitute part
