GE GNE25JYKEFFS refrigerator Parts

On the GE GNE25JYKEFFS bottom-mount refrigerator, the bottom grille (base grille) typically comes off by releasing its retaining tabs or removing a couple of screws (model dependent), then pulling the grille straight out from the front. Use the steps in the owner's manual for the exact fastener locations.

Quick removal steps (most common)

• Unplug the refrigerator or switch off power at the breaker for safety.
• Open both fresh food doors for better access.
• Look along the top edge of the grille for screws; remove them with a Phillips screwdriver if present.
• If there are no screws, press in on the grille near the ends to release the clips.
• Pull the grille straight toward you; avoid twisting so you do not crack the plastic.
• Set the grille aside on a towel to prevent scratches.

Reinstalling the grille

Line the grille up with the mounting slots, then push it straight in until it seats. If your grille uses screws, reinstall them snugly (do not overtighten).

What to check while the grille is off

Removing the grille is often done for cleaning and airflow. While it is off, we recommend:

Check	What you are looking for	Why it helps
Condenser area	Dust, pet hair, lint	Improves cooling and efficiency
Fan noise	Rattling or scraping	Can point to a fan or obstruction
Leveling legs	Legs not touching floor evenly	Helps doors seal and close properly

Why it matters

A properly installed bottom grille helps protect components and supports correct airflow across the condenser area. If the grille is loose or blocked with debris, the refrigerator can run longer and cool less efficiently.

If you need replacement parts for your GE GNE25JYKEFFS, order from the parts list for this model or search by model number on Sears PartsDirect.

Last updated: February 2026

Bottom-mount refrigerators like the GE GNE25JYKEFFS are often a better fit for many kitchens because the fresh-food section sits at eye and waist level, so everyday items are easier to see and reach; the freezer stays in a lower pull-out drawer for bulk storage.

What “better” usually means in real use

A bottom-mount design tends to feel more convenient when you use the refrigerator compartment more than the freezer.

• You bend less for milk, produce, and leftovers (fresh-food is higher).
• Freezer items are stored in drawers, which can make organizing easier.
• Wide shelves and full-width drawers can handle larger platters and meal prep.
• French door styles often reduce how far doors swing into walkways.
• Many models include features like adjustable bins and climate zone drawers (see your GNE25JYKEFFS owner's manual for the exact feature set).

When a bottom-mount is the best choice (and when it is not)

Here is a quick comparison to help you decide based on how your household uses cold storage.

If you mostly...	Bottom-mount is usually better because...	Consider another style if...
Use fresh food daily	Most-used items are at comfortable height	You rarely use the refrigerator section
Store frozen foods in bulk	Drawer freezer can hold large bags and boxes	You want everything frozen at eye level
Meal prep and cook often	Easier access to produce and full-width storage	You prefer a simpler, smaller footprint

What to check before you buy or replace one

Even if the layout is ideal, performance depends on setup and maintenance.

• Measure doorways and the final install space (including clearance for doors and drawers).
• Confirm you have a water supply if you want ice and filtered water.
• Plan for routine filter changes; this model uses the GE refrigerator water filter XWFE.
• Keep doors sealing well; worn gaskets can cause temperature swings and moisture.
• Use the parts list for GNE25JYKEFFS on this page to match exact replacement parts, or search by model on Sears PartsDirect.

Why it matters

Most households open the refrigerator section far more than the freezer. With a bottom-mount, the most frequent task (grabbing fresh food) is the most ergonomic, which can make the refrigerator feel “better” day to day.

Last updated: February 2026

The most common issue we see with GE refrigerators like model GNE25JYKEFFS is a cooling complaint: the fresh food section gets warm, the freezer temperature drifts, or temperatures swing. In many cases, the root cause is restricted airflow or heat not being removed efficiently.

Quick checks that fix many cooling complaints

• Make sure air vents inside the refrigerator and freezer are not blocked by food packages.
• Clean dust and pet hair from the condenser area so the unit can shed heat.
• Confirm the doors close fully and the gaskets seal all the way around.
• Set temperatures back to normal settings after any recent changes.
• Give the refrigerator 24 hours to stabilize after loading a lot of warm groceries.

Common causes and what they look like

Symptom	Likely cause	What to do first
Fridge warm, freezer OK	Airflow issue between compartments	Check vents and listen for fan airflow
Freezer warm too	Heat not being removed	Clean condenser area; verify condenser fan runs
Temps swing up and down	Sensor or control issue	Check for error codes; inspect sensor wiring

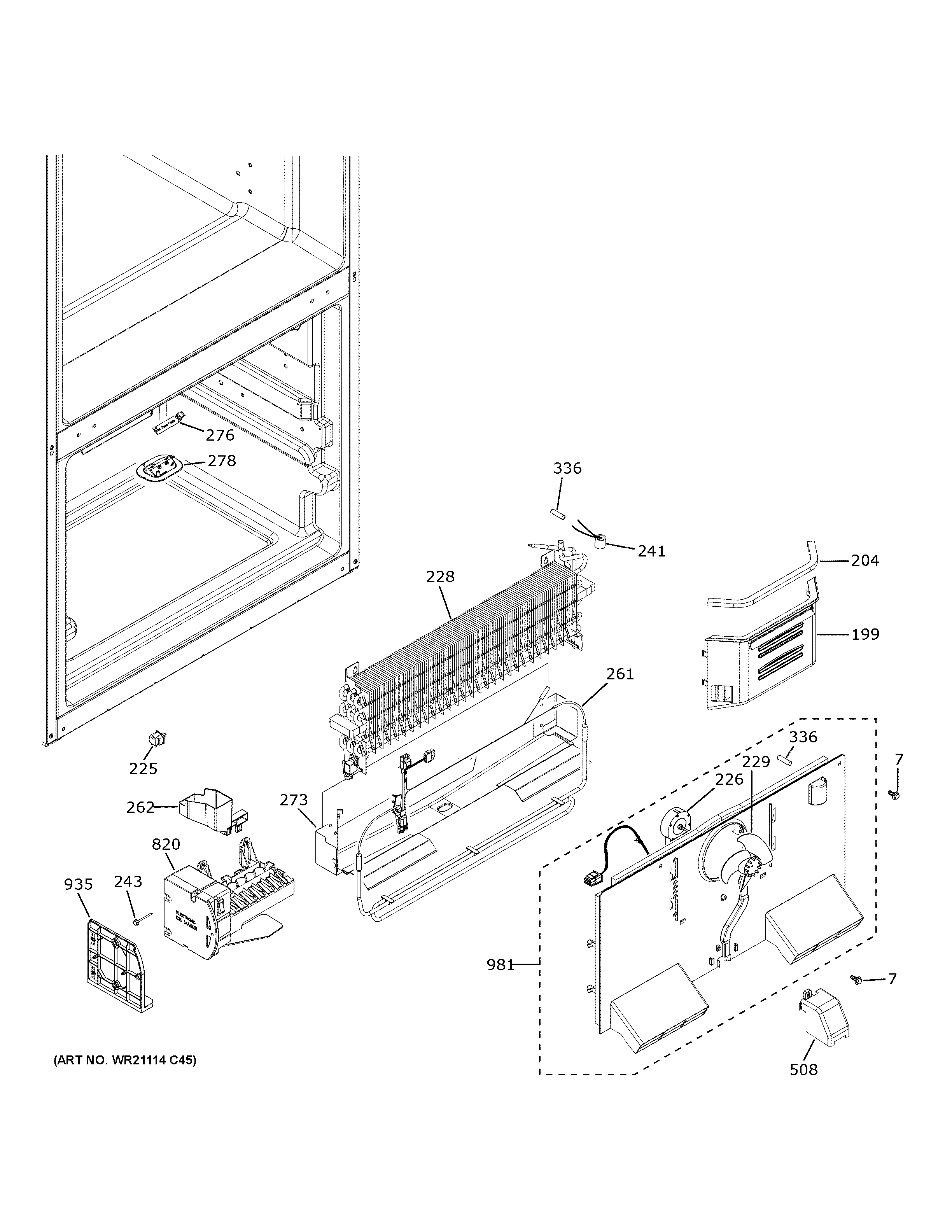

Frost buildup, weak airflow	Defrost problem	Look for heavy frost behind the rear freezer panel

Parts that often relate to cooling problems on this model

If basic airflow and cleaning do not solve it, these model-matched parts are commonly involved in temperature regulation and cooling control:

• GE profile refrigerator temperature sensor WR55X10025 (helps the control board “read” compartment temperature)
• Main control board WR55X46945 (manages compressor, fans, and defrost logic)

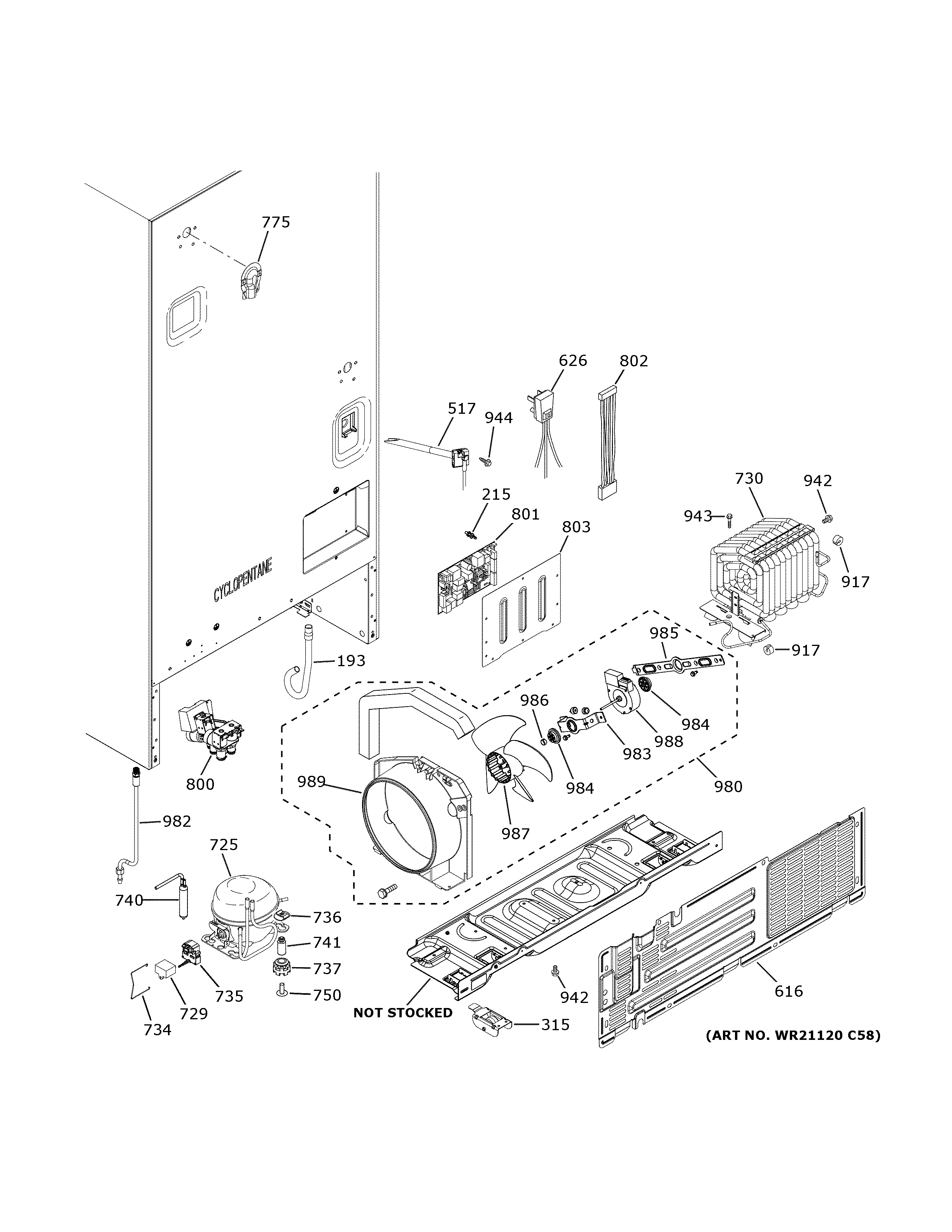

• Refrigerator condenser fan WR60X24484 (moves air across the condenser to remove heat)

For model-specific diagnostics steps, error code meanings, and component locations, use the owner's manual.

Why it matters

A refrigerator that cannot move air properly or cannot remove heat efficiently will run longer, struggle to hold safe food temperatures, and can lead to secondary issues like frost buildup, noisy operation, or ice maker performance problems.

Last updated: February 2026

Bottom-freezer refrigerators like the GE GNE25JYKEFFS keep fresh food at eye level, but the tradeoffs are real: you bend more for frozen items, large packages can be awkward in deep baskets, and drawer-style freezers can be easier to overfill and jam if loaded too high.

Common disadvantages (what owners notice most)

• More bending for freezer use: frequent freezer access means more crouching and lifting from a low drawer.
• Deep-drawer organization challenges: items can stack and get buried, especially in the bottom basket.
• Heavier lifting: large frozen foods (bulk meat, big boxes) can be harder to lift up and out.
• Drawer can stick or jam when overfilled: many bottom baskets are designed to stay below the rim; overfilling can cause sticking.
• More parts involved in airflow and defrost: bottom-freezer designs often rely on ducts, fans, and dampers to move cold air where it is needed.

How the freezer layout can work against you

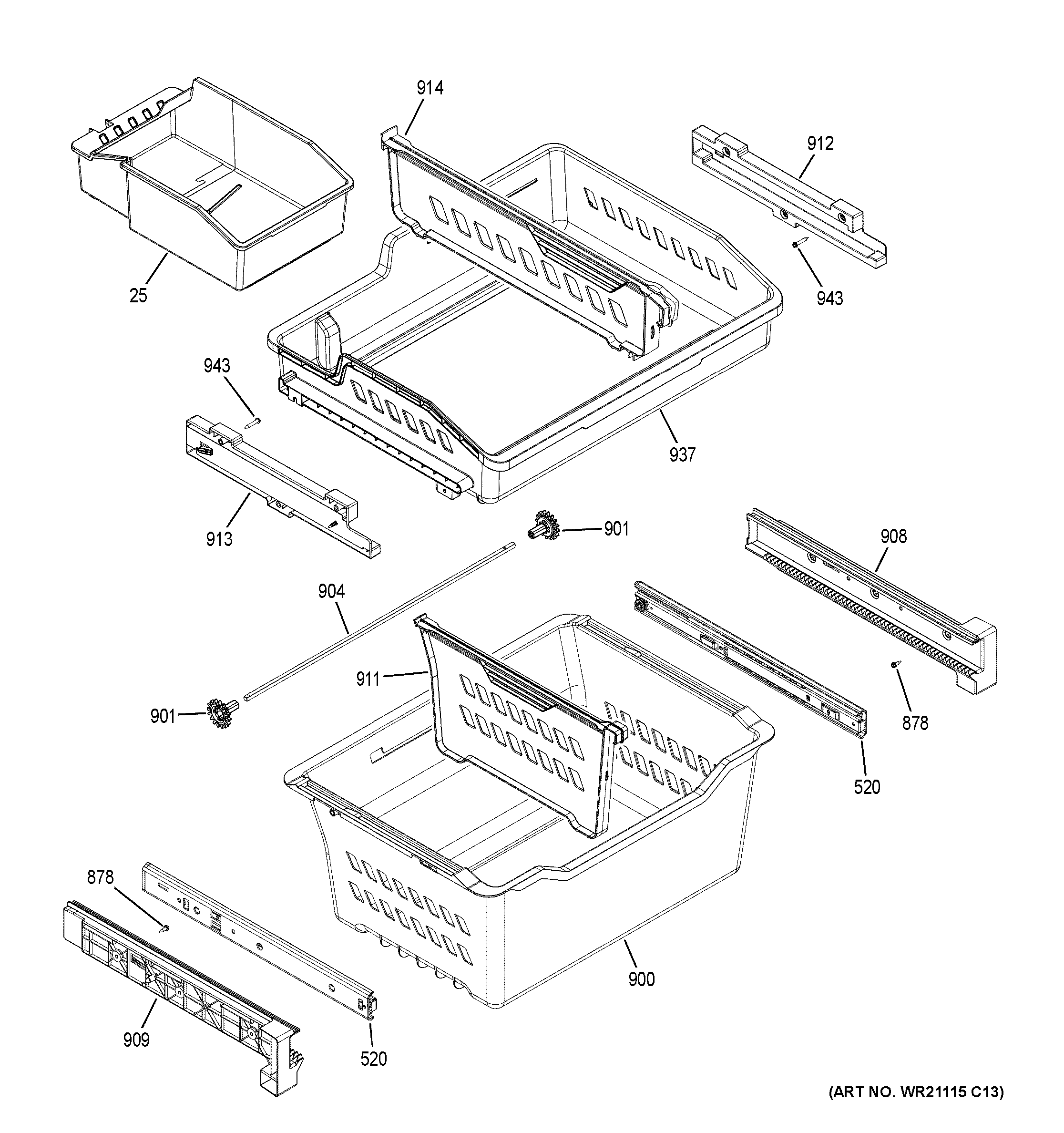

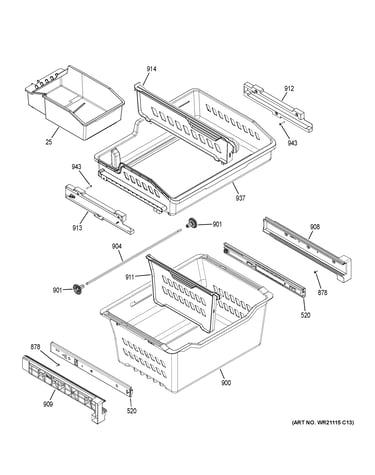

Bottom-freezer models commonly use multiple baskets (top and bottom full-width baskets, sometimes with a divider). That layout is great for capacity, but it can make “grab-and-go” freezer access slower than a top-freezer shelf layout.

Issue	What it looks like day to day	Simple workaround
Items get buried	you forget what is in the bottom basket	use bins or freezer bags by category
Drawer feels hard to open	basket is over the rim or shifted	keep loads below rim; reseat basket on rails
Awkward bulky items	pizza boxes, roasts, party trays	store flat items in the top basket

Why it matters

If your household uses the freezer many times per day, the bending and drawer organization can be the biggest “cost” over time. If you use the refrigerator section more, the eye-level fresh-food access is usually worth it.

Helpful resources and parts

• For model-specific features and basket handling tips, use the owner's manual.
• If cooling balance between compartments becomes an issue, the refrigerator air damper WR60X27396 is one of the parts that helps regulate airflow.
• To find more replacement parts by model number, search on Sears PartsDirect.

Last updated: February 2026

For your GE GNE25JYKEFFS bottom-mount refrigerator, the fastest way to find the right replacement parts is to match the model number (GNE25JYKEFFS) and then select parts from the model-specific parts list; we also use the diagrams and part lists in the owner's manual to confirm fit and function.

Steps we use to find the correct part

• Find the model number on the refrigerator’s rating label and match it exactly to GNE25JYKEFFS.
• Use the model’s parts list and diagrams to identify the exact component name you need (for example: water filter, ice maker, control board).
• Match the part by part ID (not just a description) to avoid look-alike parts.
• Cross-check installation notes and specifications in the owner's manual when the repair involves water, electrical, or control components.
• Order directly from the parts list for this model, or search by model number on Sears PartsDirect if you are shopping multiple appliances.

Common parts customers replace on model GNE25JYKEFFS

These are examples of model-matched parts that are commonly searched for:

What you need	What it affects	Example model-matched part
Water filter	Water taste, flow, ice quality	GE refrigerator water filter XWFE
Ice maker	Ice production	Refrigerator ice maker WR30X39385
Temperature sensing	Cooling accuracy, error symptoms	GE profile refrigerator temperature sensor WR55X10025
Airflow control	Fresh food temperature balance	Refrigerator air damper WR60X27396

Why it matters

GE refrigerators often use multiple similar-looking parts across different model families. Using the exact GNE25JYKEFFS model number and matching the part ID prevents ordering a part that mounts differently, uses a different connector, or is calibrated for another configuration.

Last updated: February 2026
