Model # DCT597GWOK Official Dynasty gas counter unit cooktop

Here are the diagrams and repair parts for Official Dynasty DCT597GWOK gas counter unit cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |

Cleaner 20000008
#46

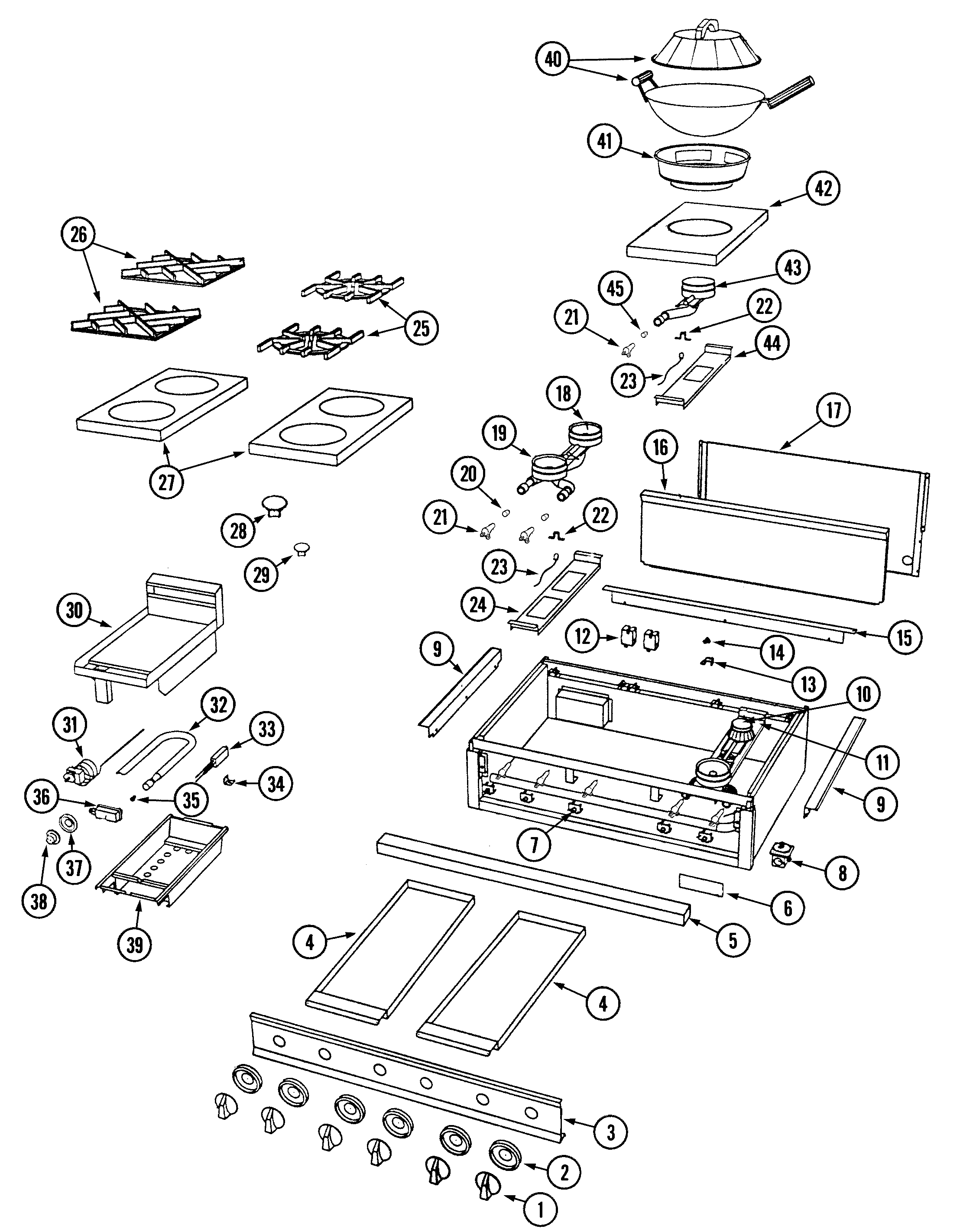

Top assembly/gas controls diagram

Cleaner

Part #20000008

The manufacturer no longer makes this part, and there's no substitute part

Wok Burner 70001387
#43

Top assembly/gas controls diagram

Wok burner

Part #70001387

The manufacturer no longer makes this part, and there's no substitute part

Wok Orifice 70001149
#45A

Top assembly/gas controls diagram

Wok orifice

Part #70001149

The manufacturer no longer makes this part, and there's no substitute part

Bezel, Therm 70001078
#37

Top assembly/gas controls diagram

Bezel, therm

Part #70001078

The manufacturer no longer makes this part, and there's no substitute part

Plate 70001067
#42

Top assembly/gas controls diagram

Plate

Part #70001067

The manufacturer no longer makes this part, and there's no substitute part

Hanger Burner 70001070
#44

Top assembly/gas controls diagram

Hanger burner

Part #70001070

The manufacturer no longer makes this part, and there's no substitute part

Igniter Bracket 70001102
#34

Top assembly/gas controls diagram

Igniter bracket

Part #70001102

The manufacturer no longer makes this part, and there's no substitute part

Range Oven Burner Igniter 70001036
#33

Top assembly/gas controls diagram

Range oven burner igniter

Part #70001036

The manufacturer no longer makes this part, and there's no substitute part

Panel 70001433
#3A

Top assembly/gas controls diagram

Panel

Part #70001433

The manufacturer no longer makes this part, and there's no substitute part

Wok Cover 70001065
#40A

Top assembly/gas controls diagram

Wok cover

Part #70001065

The manufacturer no longer makes this part, and there's no substitute part
