Model # UVW8304SP1SS Official GE range hood

Here are the diagrams and repair parts for Official GE UVW8304SP1SS range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 18 parts  |
Sp Hood Spot Light Cafe WB25X40955
#31

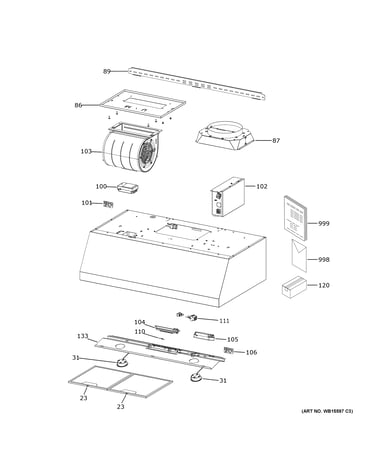

Range hood diagram

Sp hood spot light cafe

Part #WB25X40955

$67.67
In Stock
Damper Assembly 8 Round WB34X41203
#87

Range hood diagram

Damper assembly 8 round

Part #WB34X41203

$182.70
In Stock
Installation Template 30 WB01X41212
#998

Range hood diagram

Installation template 30

Part #WB01X41212

$60.20
In Stock
Sp Hood Bt/ir Module Board WB27X40946
#106

Range hood diagram

Sp hood bt/ir module board

Part #WB27X40946

$190.68
In Stock
Sp Hood 1m Outlet Bracket With Screws WB34X40953
#86

Range hood diagram

Sp hood 1m outlet bracket with screws

Part #WB34X40953

$106.40
In Stock
Wifi Module Housing With Screws WB01X41218
#100

Range hood diagram

Wifi module housing with screws

Part #WB01X41218

$99.40
In Stock
Heat Sensor WB27X41719
#110

Range hood diagram

Heat sensor

Part #WB27X41719

$119.50
In Stock
Sp Installation Bar 30 WB34X41208
#89

Range hood diagram

Sp installation bar 30

Part #WB34X41208

$109.84
In Stock
Wifi/ble Module Harness WB27X41718
#111

Range hood diagram

Wifi/ble module harness

Part #WB27X41718

$105.84
In Stock
Range Hood Grease Filter WB02X24872
#23

Range hood diagram

Range hood grease filter

Part #WB02X24872

$66.06 |
7% OFF Phone Price : $71.06
In Stock
