White-Westinghouse SM230MXW2 24" laundry center - lw31790020 Parts
Here are the diagrams and repair parts for White-Westinghouse SM230MXW2 24" laundry center - lw31790020, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM

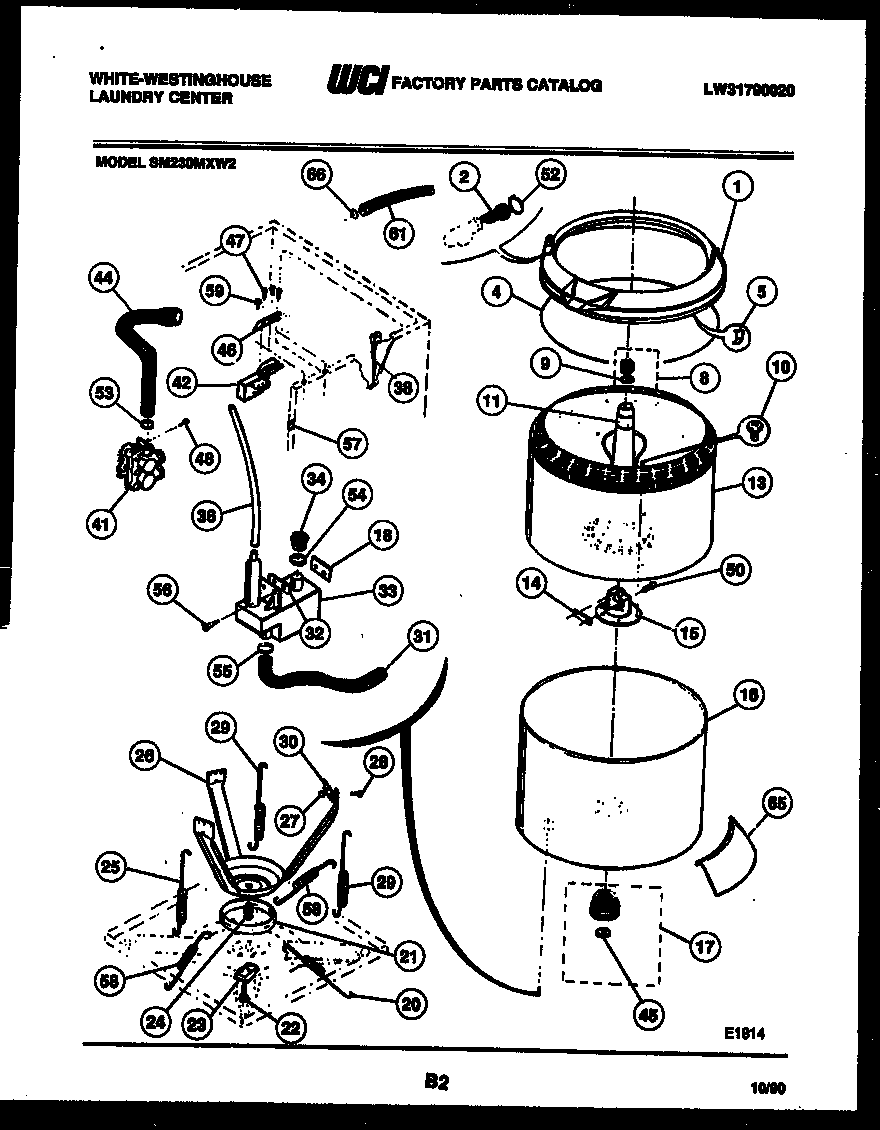

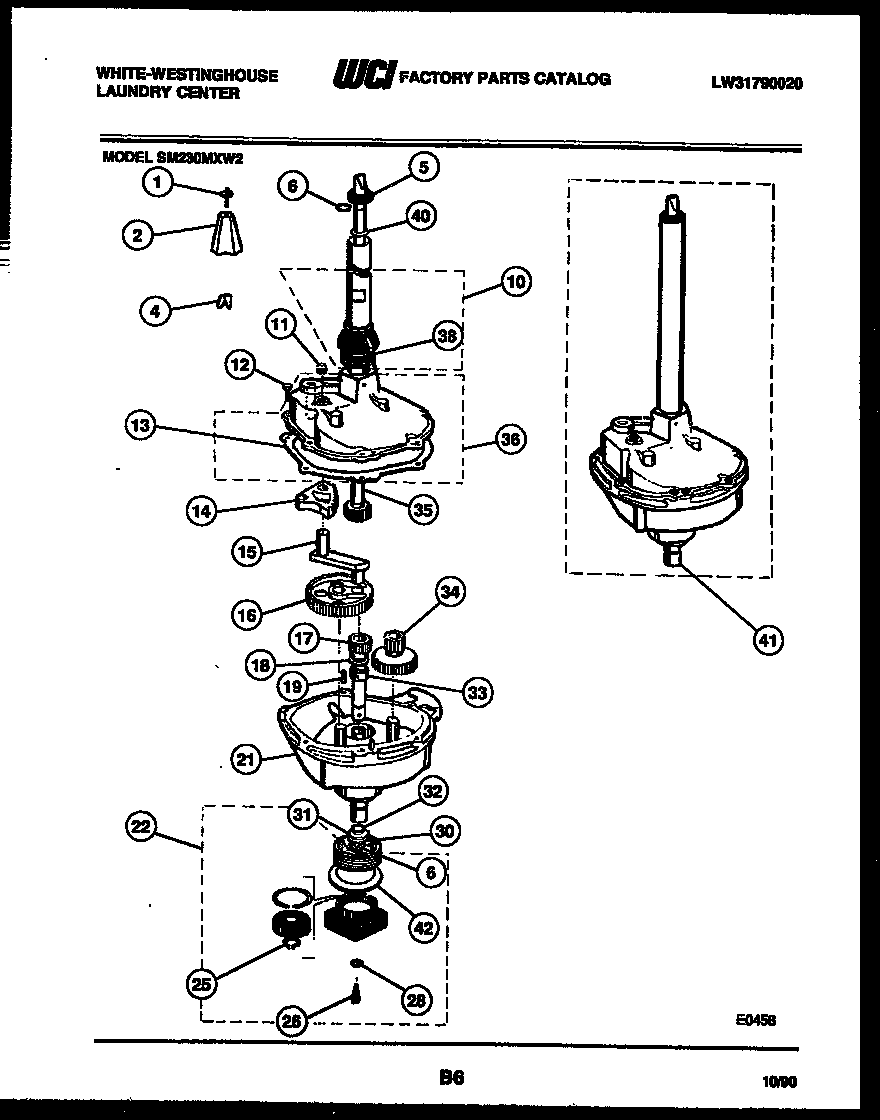

Browse Parts for SM230MXW2 24" Laundry Center - LW31790020

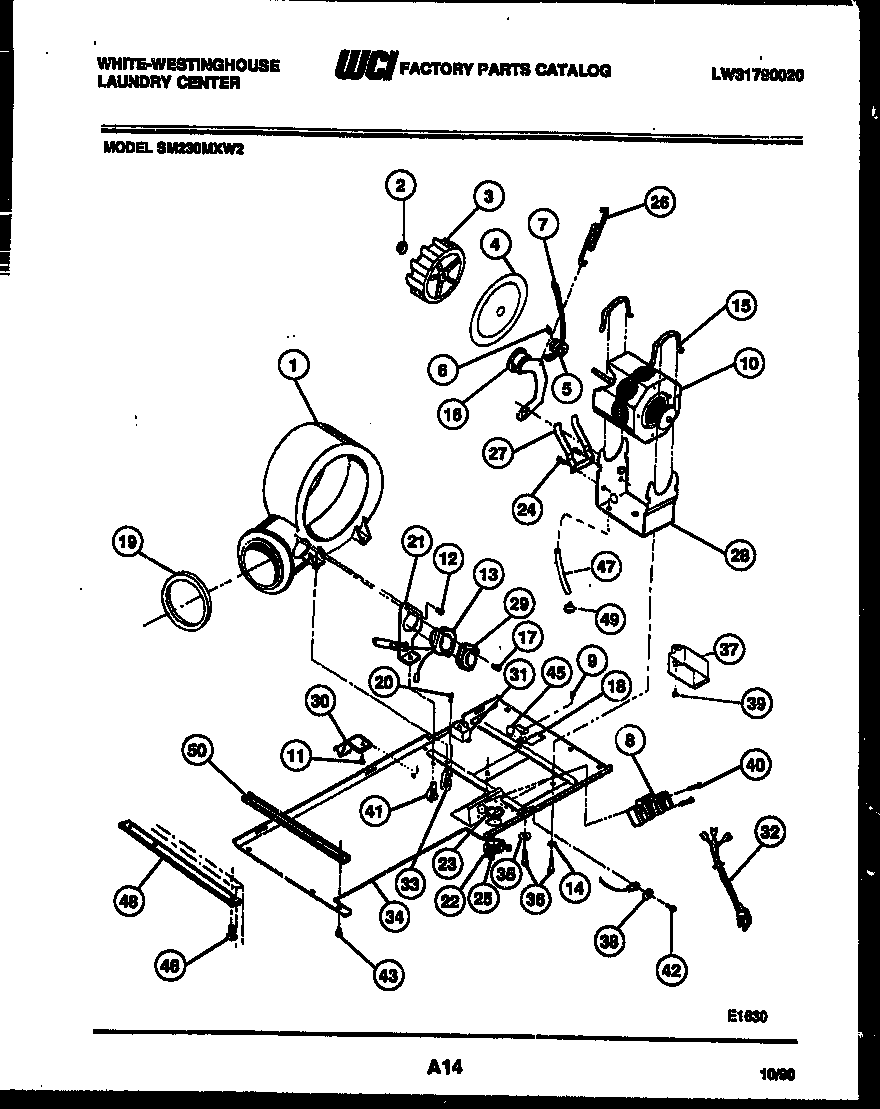

Motor, blower and installation parts diagram
Clip
Part #5303209768Replaced by #5304538466
Manufacturer substitutionThis part replaces 5303209768. Substitute parts can look different from the original.In Stock$26.90
Qty

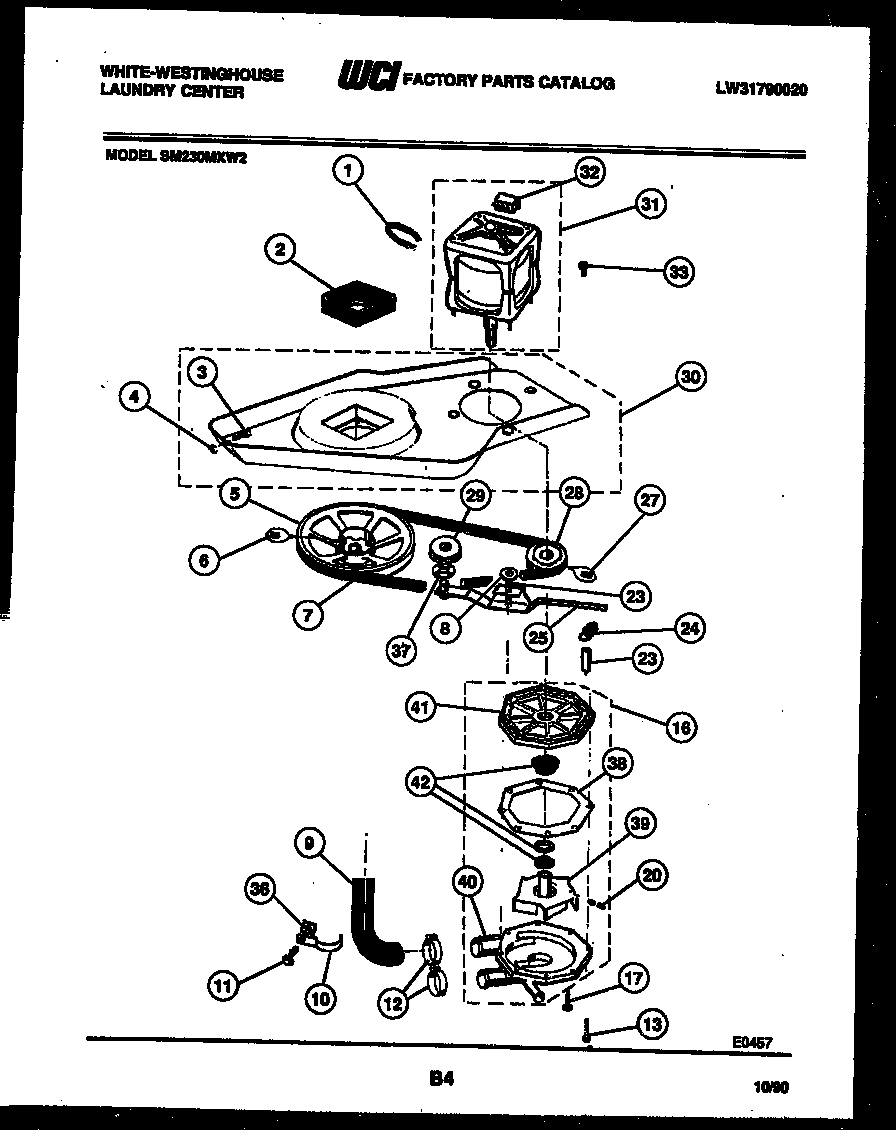

Washer drive system and pump diagram
Washer
Part #3161306Replaced by #5303161306
Manufacturer substitutionThis part replaces 3161306. Substitute parts can look different from the original.In Stock$38.71QtyWasher drive system and pump diagram
Belt
Part #3161152Replaced by #5303280326
Manufacturer substitutionThis part replaces 3161152. Substitute parts can look different from the original.This item is not returnableIn Stock$38.3114% OFF Phone Price : $44.31

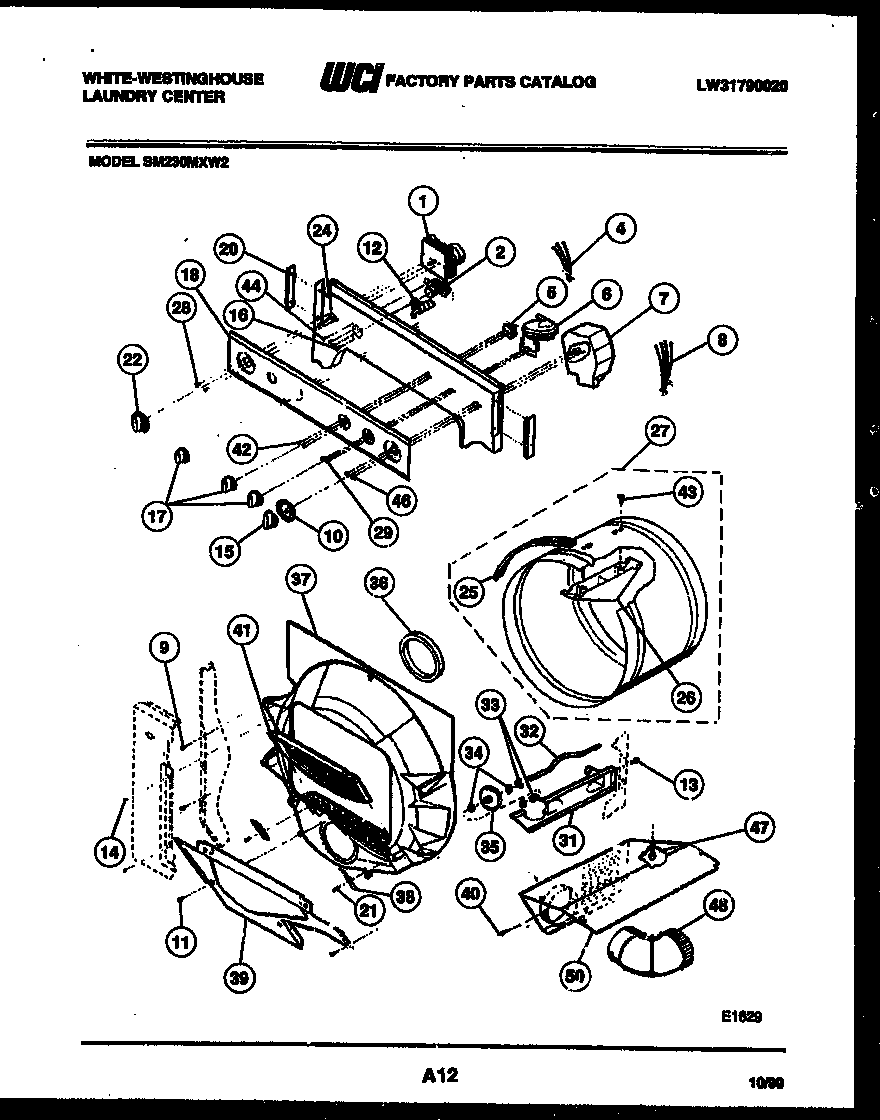

QtyConsole, control and drum parts diagram
Shield
In Stock$118.74QtyScrew
In Stock$27.35QtyConsole, control and drum parts diagram
Knob
In Stock$55.06QtyWasher drive system and pump diagram
Nut

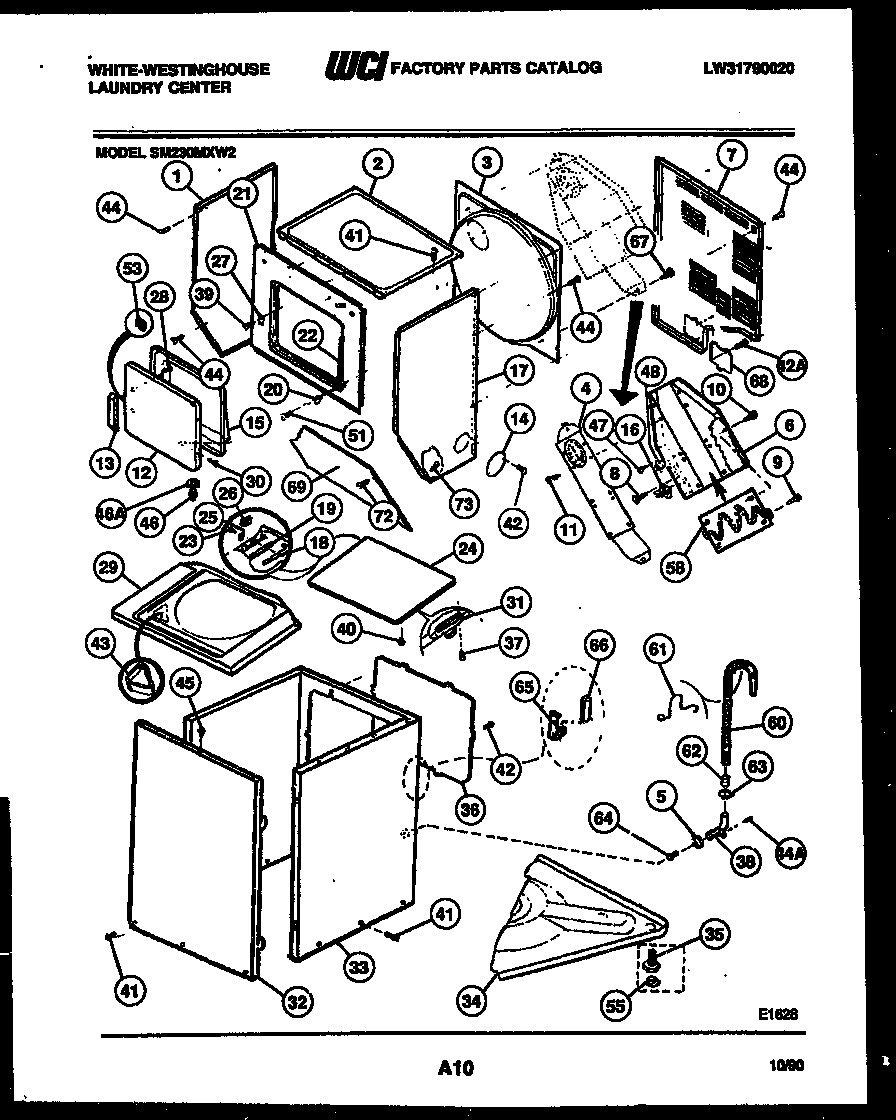

In Stock$25.53QtyCabinet parts and heater diagram
Panel (almond)
In Stock$181.88QtyConsole, control and drum parts diagram
Knob
In Stock$57.56QtyCabinet parts and heater diagram
Lid (white)
In Stock$126.00Qty
