GE
Electric Cooktop

Model # JP960CA1CC Official GE counter unit

Here are the diagrams and repair parts for Official GE JP960CA1CC counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |

Range Halogen Surface Element WB30T10044
#58

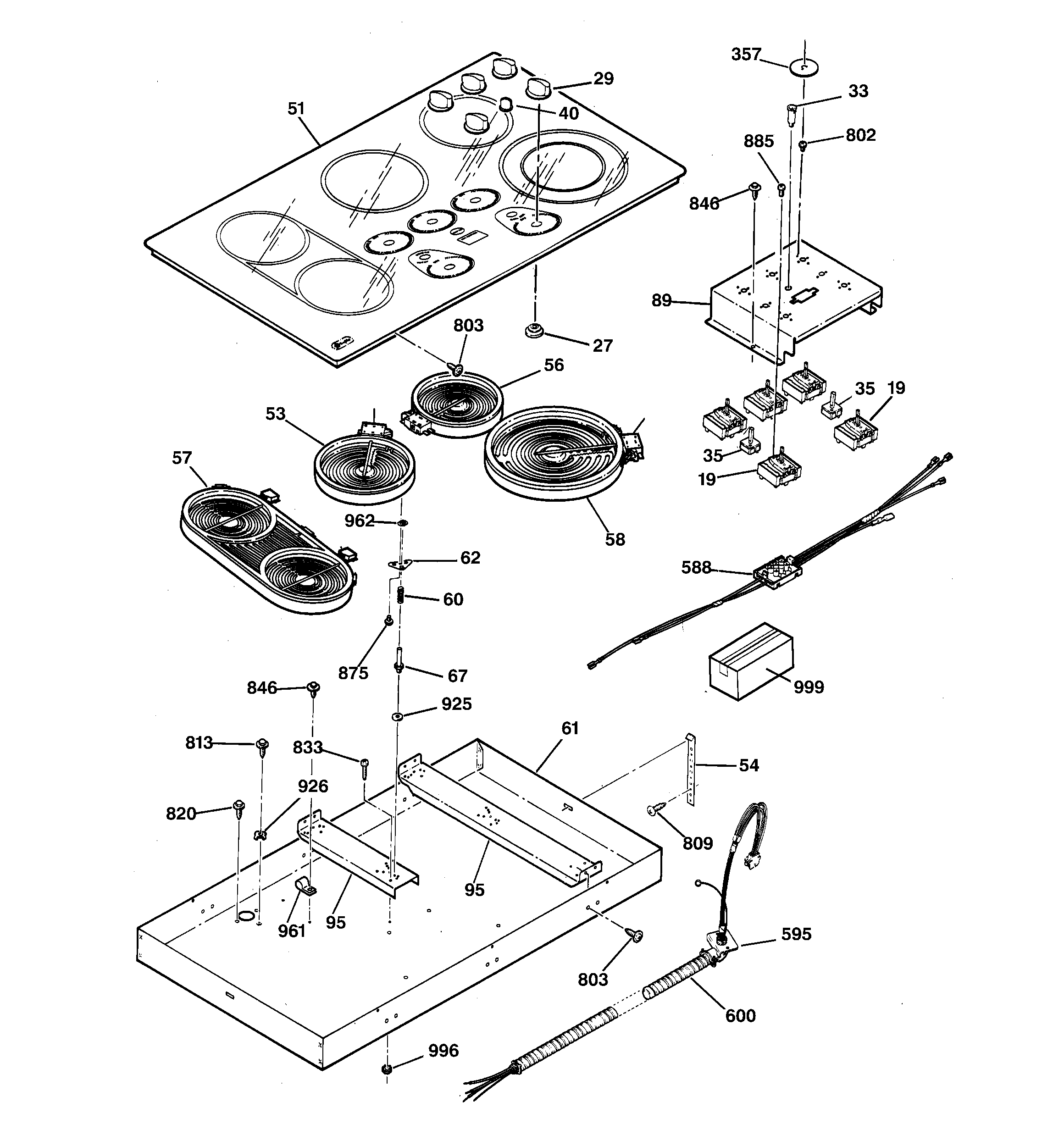

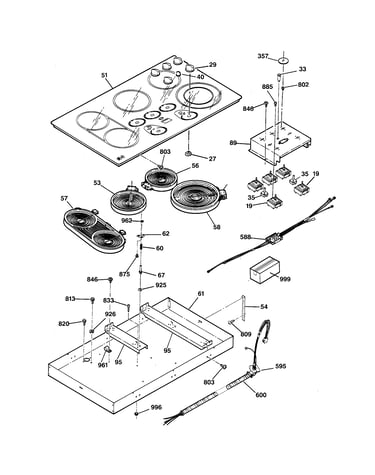

Cooktop diagram

Range halogen surface element

Part #WB30T10044

Replaced by #WB30T10099

?
Manufacturer substitution
This part replaces WB30T10044. Substitute parts can look different from the original.
$108.19
8% OFF Phone Price : $118.19
In Stock
Screw WB01M0001
#NI

Cooktop diagram

Screw

Part #WB01M0001

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces WB01M0001. Substitute parts can look different from the original.
This item is not returnable
$6.09
14% OFF Phone Price : $7.09
In Stock
Range Halogen Surface Element (replaces Wb30k5033, Wb30t10006) WB30T10047
#56

Cooktop diagram

Range halogen surface element (replaces wb30k5033, wb30t10006)

Part #WB30T10047

$128.22
7% OFF Phone Price : $138.22
In Stock
Range Radiant Bridge Surface Element (replaces Wb23k5061, Wb30t10036, Wb30t10057, Wb30t10117) WB30T10046
#57

Cooktop diagram

Range radiant bridge surface element (replaces wb23k5061, wb30t10036, wb30t10057, wb30t10117)

Part #WB30T10046

$313.84
$10.00 OFF Phone Price : $323.84
In Stock
Selector Switch WB24X0449
#35

Cooktop diagram

Selector switch

Part #WB24X0449

Replaced by #WB24X449

?
Manufacturer substitution
This part replaces WB24X0449. Substitute parts can look different from the original.
$76.04
6% OFF Phone Price : $81.04
In Stock
Screw WB01X1137
#809

Cooktop diagram

Screw

Part #WB01X1137

Replaced by #WB1X1137

?
Manufacturer substitution
This part replaces WB01X1137. Substitute parts can look different from the original.
$7.88
11% OFF Phone Price : $8.88
In Stock
Cooktop Indicator Light WB25T10012
#33

Cooktop diagram

Cooktop indicator light

Part #WB25T10012

This item is not returnable
$20.49
20% OFF Phone Price : $25.49
In Stock
Cooktop Element Control Knob WB03T10094
#29

Cooktop diagram

Cooktop element control knob

Part #WB03T10094

This item is not returnable
$25.09
17% OFF Phone Price : $30.09
In Stock
Range Radiant Surface Element, 6-in WB30T10043
#56

Cooktop diagram

Range radiant surface element, 6-in

Part #WB30T10043

$230.10
$10.00 OFF Phone Price : $240.10
In Stock
Conduit Wire WB18K5633
#600

Cooktop diagram

Conduit wire

Part #WB18K5633

Replaced by #WB18T10374

?
Manufacturer substitution
This part replaces WB18K5633. Substitute parts can look different from the original.
In Stock
