Model # 917374621 Official Craftsman 22" power-propelled lawn mower

Here are the diagrams and repair parts for Official Craftsman 917374621 22" power-propelled lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 118 parts  |

Blade 69334
#64

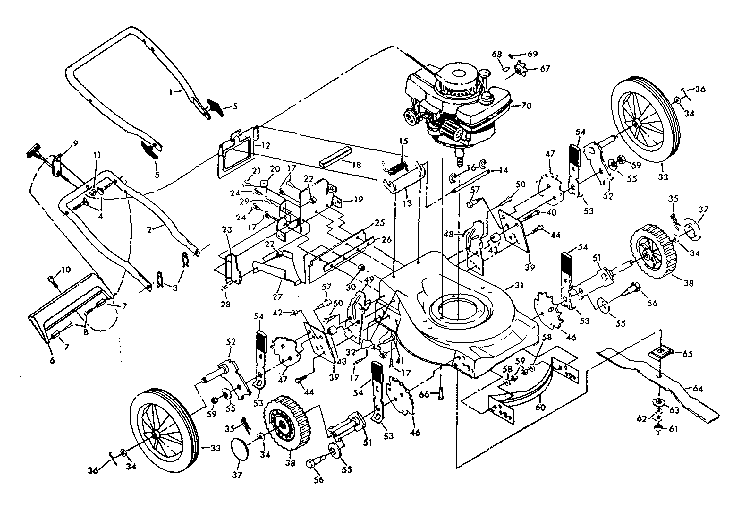

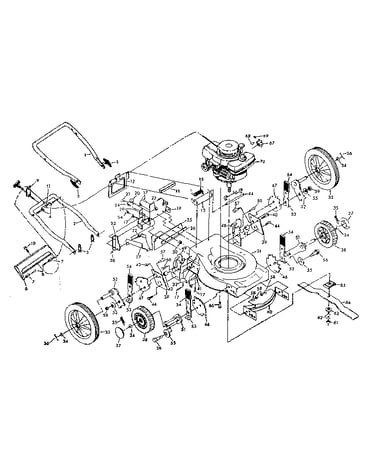

Main frame diagram

Blade

Part #69334

Replaced by #406713

?
Manufacturer substitution
This part replaces 69334. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

In Stock
Wheel And Tire Assembly 78890
#38

Main frame diagram

Wheel and tire assembly

Part #78890

Replaced by #33781

?
Manufacturer substitution
This part replaces 78890. Substitute parts can look different from the original.
$13.19
13% OFF Phone Price : $15.19
In Stock
Decal 85463
#32

Main frame diagram

Decal

Part #85463

Replaced by #539913010

?
Manufacturer substitution
This part replaces 85463. Substitute parts can look different from the original.
This item is not returnable
In Stock
Nut 53490
#11

Main frame diagram

Nut

Part #53490

The manufacturer no longer makes this part, and there's no substitute part

Repair Link Kit STD316659
#39

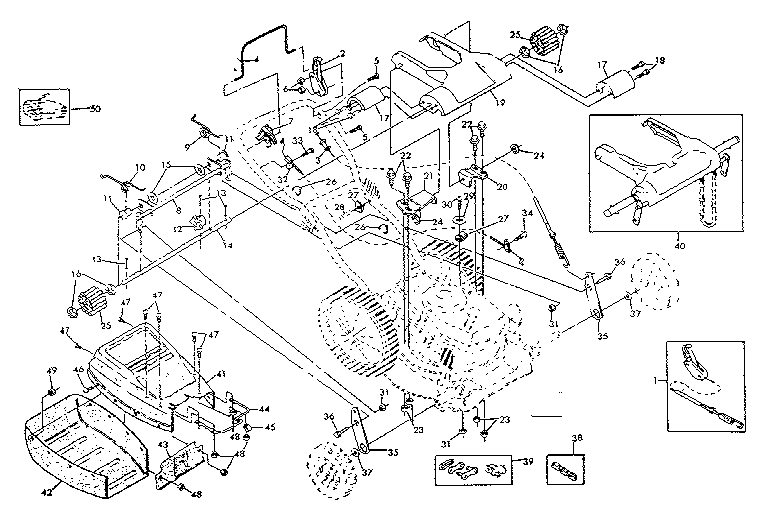

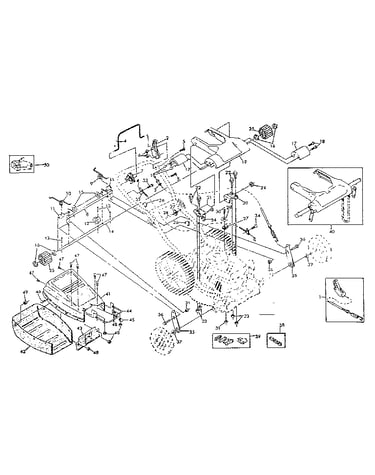

Drive assembly diagram

Repair link kit

Part #STD316659

The manufacturer no longer makes this part, and there's no substitute part

Washer 74232
#37

Drive assembly diagram

Washer

Part #74232

Replaced by #19171912

?
Manufacturer substitution
This part replaces 74232. Substitute parts can look different from the original.
This item is not returnable
$2.96
30% OFF MSRP : $4.20
In Stock
Screw 86314
#18

Drive assembly diagram

Screw

Part #86314

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 69180
Lock nut

Part #69180

The manufacturer no longer makes this part, and there's no substitute part

Washer 52160
#34

Main frame diagram

Washer

Part #52160

Replaced by #532052160

?
Manufacturer substitution
This part replaces 52160. Substitute parts can look different from the original.
This item is not returnable
$3.99
20% OFF Phone Price : $4.99
In Stock
Nut 63601
Nut

Part #63601

The manufacturer no longer makes this part, and there's no substitute part
