Kenmore 183316360 dual 16 electric water heater Parts
Here are the diagrams and repair parts for Kenmore 183316360 dual 16 electric water heater, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
SELECT DIAGRAM
Browse Parts for 183316360 Water Heaters

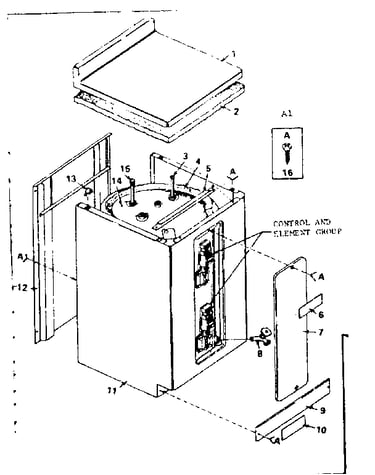

Replacement parts diagram
Drain
Part #017001Replaced by #100108269
Manufacturer substitutionThis part replaces 017001. Substitute parts can look different from the original.In Stock$28.07
Qty
#NI
All parts diagram
Wire Red
In Stock$37.47Qty#NI
All parts diagram
Mag Erad
In Stock$803.77QtyReplacement parts diagram
Insulation
In Stock$31.97Qty#NI
All parts diagram
Wire Black
In Stock$60.76QtyReplacement parts diagram
R & I Plate
In Stock$497.11QtyReplacement parts diagram
Mag Anode
In Stock$31.97QtyReplacement parts diagram
Tank
Part #902000
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Guarantee
Part #F642-28670A
The manufacturer no longer makes this part, and there's no substitute part
Replacement parts diagram
Spring Clip
Part #040004
The manufacturer no longer makes this part, and there's no substitute part
Most common symptoms to help you fix your water heaters
Choose a symptom to see related water heater repairs.
Main causes: faulty pressure relief valve, water is overheating…
Main causes: water supply needs chlorine treatment, anode rod too reactive…
Main causes: thermostats need adjustment, water heater capacity too low, bad heating element, thermostat failure, excess…
Main causes: broken heating element, thermostat failure, excessive tank sediment, tank size too small, burner valve asse…
Main causes: thermostat temperature set too high, thermostats need adjustment, faulty thermostat, shorted heating elemen…
Main causes: loose water pipe fittings, leaky drain valve, bad temperature-pressure relief valve, leaky heating element,…
Main causes: lack of power, no gas supply, thermostat limit switch tripped, bad element, bad thermostat, gas valve failu…
Repair guides for electric water heaters
How to replace a water heater element
If your water heater runs out of hot water quickly and one of the two heating elements has failed, replace the element f…
Repair time and Difficulty
30 minutes or less
How to replace a water heater temperature and pressure (T&P) relief valve
Replace a broken temperature/pressure (T&P) relief valve on an electric water heater using these instructions.…
Repair time and Difficulty
15 minutes or less
How to replace a water heater drain valve
If the drain valve on your electric water heater is leaking water, replace it following these step-by-step instructions.…
Repair time and Difficulty
30 minutes or less
Effective articles & videos to help repair your water heaters
Use the advice and tips in these articles and videos to get the most out of your water heater.
Take our quiz to see how well you treat your appliances. Then, find out what you can do to help them last longer.…
These common questions and answers can help you make the most of your water heater.…
Read about some water heater repairs that you can easily do yourself.…
