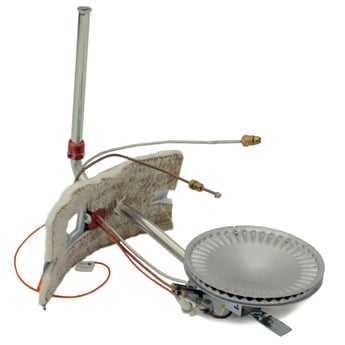

Water Heater Burner Assembly 9003460


Part #9003460

Online Only Price
$85.79 |
6% OFF
Phone Price: $90.79
In Stock
For ZIP codes near Edit
60-day return policy
This part fits

Part Information

This burner assembly (part number 9003460) is for water heaters.

Burner assembly 9003460 heats the water in the water tank. The assembly may include multiple parts; refer to your parts diagram for a complete list of parts included.

The gas supply line connections must be checked for leaks after installing this part.


Livermore, CAReviews 1Votes 0
• 4 years ago
DonJulio• 4 years ago
Easy to Install

After replacing just the pilot and thermocoupler several times, this is the best way to rejuvenate the water heater.

Kaw City, OklahomaReviews 1Votes 0
• 5 years ago
Randa• 5 years ago
Easy to install

It was easy to install. It took only 15 minutes to install

Huntsville, TXReviews 1Votes 1
• 5 years ago
casey122• 5 years ago
Not Great

Ordered this because our pilot light kept going off. It arrived quickly but i noticed the nut for the main gas supply line was threaded the opposite way of the old one. I couldn't use it because of that so i had to take the supply line from the old one to use with the new one. It has been installed for two weeks and has been fine other than the pilot light going out twice. It would have been very easy to install had the thread on the nut been correct.

Minneapolis MNReviews 1Votes 1
• 4 years ago
JenJen• 4 years ago
Bent & Opposite Thread

READ THIS REVIEW The first part received was bent, unusable, and very dusty. Exchanging was easy, but took about 2 additional weeks. This is a major issue when you are waiting to have hot water in your home. I think someone could have noticed that the part was broken before it was sent to me. This was communicated to their customer service.

The second part received had an opposite thread connection! That means that we were unable to attach the part to our machine. My handyman was able to create a work around, and rig up the new part using the old thread. I saw that this comment mentioned in a few other reviews, but didn't realize it wouldn't work with my WH until we were installing it.

Overall, it's a crapshoot. Parts for old machines are a challenge!

williamsburg vaReviews 1Votes 0
• 5 years ago
jimh2• 5 years ago
Did not fit

This part was meant for Lp gas water heaters It was not clear in the description. I ended up returning and paying for return shipping and having to order the correct part.

Response from Sears PartsDirect:
SHSPD Social Care • 5 years ago

HI! Sorry you did not have a good experience with us. I have sent you an email separately requesting additional information, so we can research this for you. Thanks
