CONFIRM THE PART FITS
Part Information

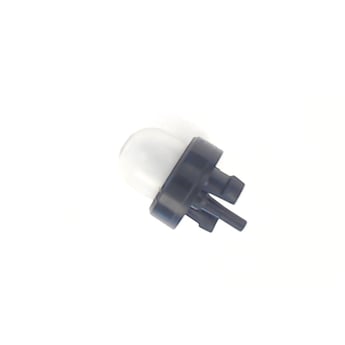

This primer bulb (part number 731-05509) is for line trimmers.
Primer bulb 731-05509 circulates fuel to the carburetor to provide quicker starting.
Wear work gloves to protect your hands and work in a well-ventilated area during this repair.
Frequently Used Together
Top models using the same part
Model Name | Model Number | Diagram Name |
---|---|---|
Model #41ADZ47C799 MTD gas line trimmer | 41ADZ47C799 | Starter/carburetor |
Model #316731930 Craftsman gas line trimmer | 316731930 | Starter/carburetor |
Model #316731970 Craftsman gas line trimmer | 316731970 | Fuel tank/starter housing |
Model #316731971 Craftsman gas line trimmer | 316731971 | Shortblock/fuel tank/clutch |
Model #316731702 Craftsman gas line trimmer | 316731702 | Short block/fuel tank/clutch cover |
Model #316731703 Craftsman gas line trimmer | 316731703 | Fuel tank/shortblock |
Model #41BDZ46C799 MTD gas line trimmer | 41BDZ46C799 | Shortblock/fuel tank/clutch |
Model #41CDZ45C799 MTD gas line trimmer | 41CDZ45C799 | Short block/fuel tank/clutch cover |
Model #316731704 Craftsman gas line trimmer | 316731704 | Fuel tank/clutch |
Model #316731972 Craftsman gas line trimmer | 316731972 | Short block/fuel tank/clutch cover |
Reviews
Replacement part was an exact fit.
Hardest part is getting the fuel lines connected. Fit perfectly.
VirtualEagle98, Kempner, TX
Did you find this review helpful?
- Ease of Installation
- Easy
- Duration of Installation
- 30 minutes - 1 hour
Yes, I would recommend this to a friend
A little challenge.
It was easy to install until I pulled one of the hoses off. That was a pain. But I got it.
Jene1968, Dieterich, Il
Did you find this review helpful?
- Ease of Installation
- Moderate
- Duration of Installation
- 1 - 2 hours
