CONFIRM THE PART FITS

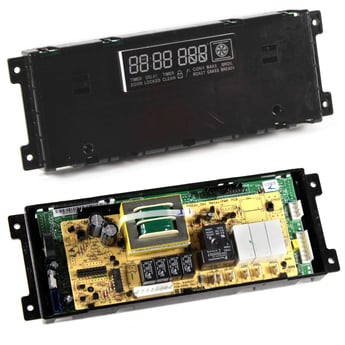

Range Oven Control Board (replaces 903145-9030) 316577016
Part #316577016
Online Only Price
$319.94 |
$10.00 OFF Phone Price : $329.94
Back Order
This item has a wait list. Order now to save your place on the list
This part fits
Part Information
This oven control board (part number 316577016) is for ranges.
Oven control board 316577016 monitors the temperature and controls the oven heat.
Unplug the range or shut off the house circuit breaker for the range before servicing the unit. Wear work gloves to protect your hands.
Frequently Used Together
- $100.20 |9% OFF Phone Price : $110.20
- $23.36 |18% OFF Phone Price : $28.36
- $193.26 |5% OFF Phone Price : $203.26
- $57.40 |8% OFF Phone Price : $62.40
- $45.73
- $177.01 |5% OFF Phone Price : $187.01
- $32.64 |18% OFF MSRP : $40.00
Top models using the same part
| Model Name | Model Number | Diagram Name |
|---|---|---|
| Model #79041012803 Kenmore Elite electric range | 79041012803 | Backguard |
| Model #79041019803 Kenmore Elite electric range | 79041019803 | Backguard |
| Model #79041013801 Kenmore Elite electric range | 79041013801 | Backguard |
| Model #79041013802 Kenmore Elite electric range | 79041013802 | Backguard |
| Model #79041013800 Kenmore Elite electric range | 79041013800 | Backgaurd |
| Model #79041014801 Kenmore Elite electric range | 79041014801 | Backguard |
| Model #79041012802 Kenmore Elite electric range | 79041012802 | Backguard |
| Model #79041019800 Kenmore Elite electric range | 79041019800 | Backguard |
| Model #79041013803 Kenmore Elite electric range | 79041013803 | Backguard |
| Model #79041012800 Kenmore Elite electric range | 79041012800 | Backguard |
Reviews
100% Satisfied
Sears had the best price, it arrived fast, and was exactly what was needed! Problem fixed!
Cy O, Mililani, Hawaii
Did you find this review helpful?
- Ease of Installation
- Very Easy
- Duration of Installation
- 30 minutes - 1 hour
Easy Installation if you know what you do...
After finding the screws that hold the touch panel, everything worked out like a charm. Make a photo of the cabling before you disconnect the board! It will help you.
Still n N, Richmond, VA
Did you find this review helpful?
- Ease of Installation
- Moderate
- Duration of Installation
- 30 minutes - 1 hour
Install control module on a glass top range
Fairly easy once I found the 2 screws on the side of the front panel total of 6 screws to remove and gain access to the control board. The glass top range controls are on the front of the range. None of Sears DIY descriptions show how to access this type of range. Once installed everything worked ok.
BUBBY10, Lancaster, PA
Did you find this review helpful?
- Ease of Installation
- Difficult
- Duration of Installation
- 1 - 2 hours
Easy to install with only a philips screwdriver
Unfortunately this is the third time I have replaced this board in 12 years. Consequently it only takes 15 min start to finish. A #2 Philips screwdriver and a 1/4 inch nut-driver or socket is all you need. Don't forget to turn the power off the stove before starting. Once you take the front panel off if you take a photo of the wire placement you will feel more confident in replacing them. They basically only go in one place.
Maui M, Maui, Hawaii
Did you find this review helpful?
- Ease of Installation
- Very Easy
- Duration of Installation
- Less than 30 minutes
Fairly easy to install.
Alot of connectors. Make good notes or take a picture before disassembly.
Earl1965, Valdosta Ga
Did you find this review helpful?
- Ease of Installation
- Moderate
- Duration of Installation
- 30 minutes - 1 hour
