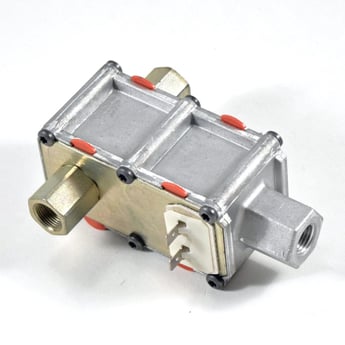

Range Oven Gas Valve 316256700
Part #316256700
Online Only Price
$260.72 |
$10.00 OFF Phone Price : $270.72
In Stock
For ZIP codes near Edit
This part fits
Part Information
This oven gas valve (part number 316256700) is for ranges.
Oven gas valve 316256700 controls gas flow to the bake and broil burners in the oven.
Unplug the range and shut off the gas supply before installing this part. Gas line connections must be properly leak checked after this repair. Wear work gloves to protect your hands.
Frequently Used Together
- $134.99 |7% OFF Phone Price : $144.99
- $108.29 |8% OFF Phone Price : $118.29
- $122.38 |8% OFF Phone Price : $132.38
- $89.39 |5% OFF Phone Price : $94.39
- $62.62
- $32.64 |18% OFF MSRP : $40.00
- $83.19 |6% OFF Phone Price : $88.19
- $45.75 |20% OFF MSRP : $57.00
Top models using the same part
| Model Name | Model Number | Diagram Name |
|---|---|---|
| Model #FGGF304DLW1 Frigidaire gas range | FGGF304DLW1 | Burner |
| Model #79078029300 Kenmore gas range | 79078029300 | Burner |
| Model #FGGF304DLF1 Frigidaire gas range | FGGF304DLF1 | Burner |
| Model #FGGF301DNFA Frigidaire gas range | FGGF301DNFA | Burner |
| Model #FGGF304DLB1 Frigidaire gas range | FGGF304DLB1 | Burner |
| Model #79078042411 Kenmore gas range | 79078042411 | Burner |
| Model #79078042410 Kenmore gas range | 79078042410 | Burner |
| Model #FGGF301DNBB Frigidaire gas range | FGGF301DNBB | Burner |
| Model #79075422411 Kenmore Elite gas range | 79075422411 | Burner |
| Model #FGGF304DPFG Frigidaire gas range | FGGF304DPFG | Burner |
Reviews
Came quickly and works great
Replace the old safety valve the didn't have continuity
Muddman, SC
Did you find this review helpful?
- Ease of Installation
- Easy
- Duration of Installation
- 30 minutes - 1 hour
Yes, I would recommend this to a friend
Fixed a long time gas leak!
This dual oven has this double duty gas valve that controls the gas flow for the top oven. It has two outputs one goes down to the main burner and the other goes up to the the broiler burner which in this case was stuck open a little and allowed a small amount of gas to leak into the top oven all the time. Replacing this gas valve fixed the problem. Easy to replace. 1. Turn off gas and unplug power cord. 2. Remove the back panel. 3. Remove the two output lines with 9/16" wrench. 4. Remove the 1/4" nut from the input end. 5. The valve will now come out. 6. Unscrew the connector from the input. 7. Re-apply yellow pipe thread sealant to connector and re-intall it to new valve. 8. The valve is now ready to go back in. 9. Re-install the 1/4" nut into input end. 10. Re-install the output lines. 11. Turn gas back on and check for leaks. 12. Plug back in, test, check for gas leaks. 13. Re-install back panel. 14. Project is complete!
Dean, Aurora, CO
Did you find this review helpful?
- Ease of Installation
- Very Easy
- Duration of Installation
- 30 minutes - 1 hour
Yes, I would recommend this to a friend
