Craftsman 471461212 high-pressure sprayer Parts
Here are the diagrams and repair parts for Craftsman 471461212 high-pressure sprayer, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for 471461212 High-Pressure Sprayer

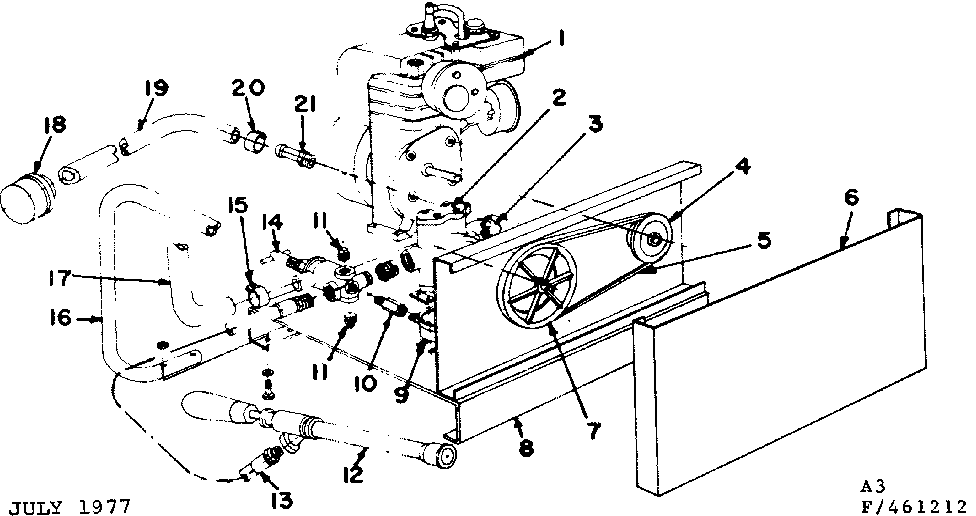

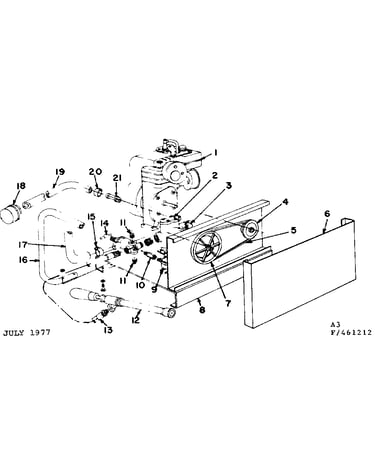

Engine diagram
Hose Fitting
Part #5067017
The manufacturer no longer makes this part, and there's no substitute part

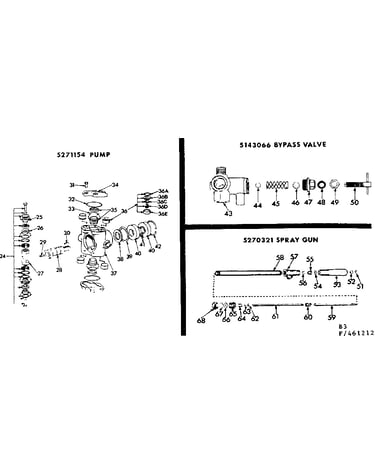

Pump/bypass valve/spray gun diagram
Wood Handle
Part #5078052
The manufacturer no longer makes this part, and there's no substitute part
Engine diagram
Hose
Part #5020165
The manufacturer no longer makes this part, and there's no substitute part
Engine diagram
Fitting
Part #5010039
The manufacturer no longer makes this part, and there's no substitute part
Pump/bypass valve/spray gun diagram
1/2 X 1 1/2 Machine Bolt (standard Hardware Item - Must Be Purchased Locally)
Part #N/P
The manufacturer no longer makes this part, and there's no substitute part
Pump/bypass valve/spray gun diagram
Bearing
Part #STD315255
The manufacturer no longer makes this part, and there's no substitute part
Pump/bypass valve/spray gun diagram
Worm
Part #5166007
The manufacturer no longer makes this part, and there's no substitute part
Pump/bypass valve/spray gun diagram
Wood Handle
Part #5006046
The manufacturer no longer makes this part, and there's no substitute part
Pump/bypass valve/spray gun diagram
Body Cap
Part #5046063
The manufacturer no longer makes this part, and there's no substitute part
Engine diagram
Hose
Part #5009128
The manufacturer no longer makes this part, and there's no substitute part
