Kenmore
Microwave/Hood Combo

Model # 72162774200 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 72162774200 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

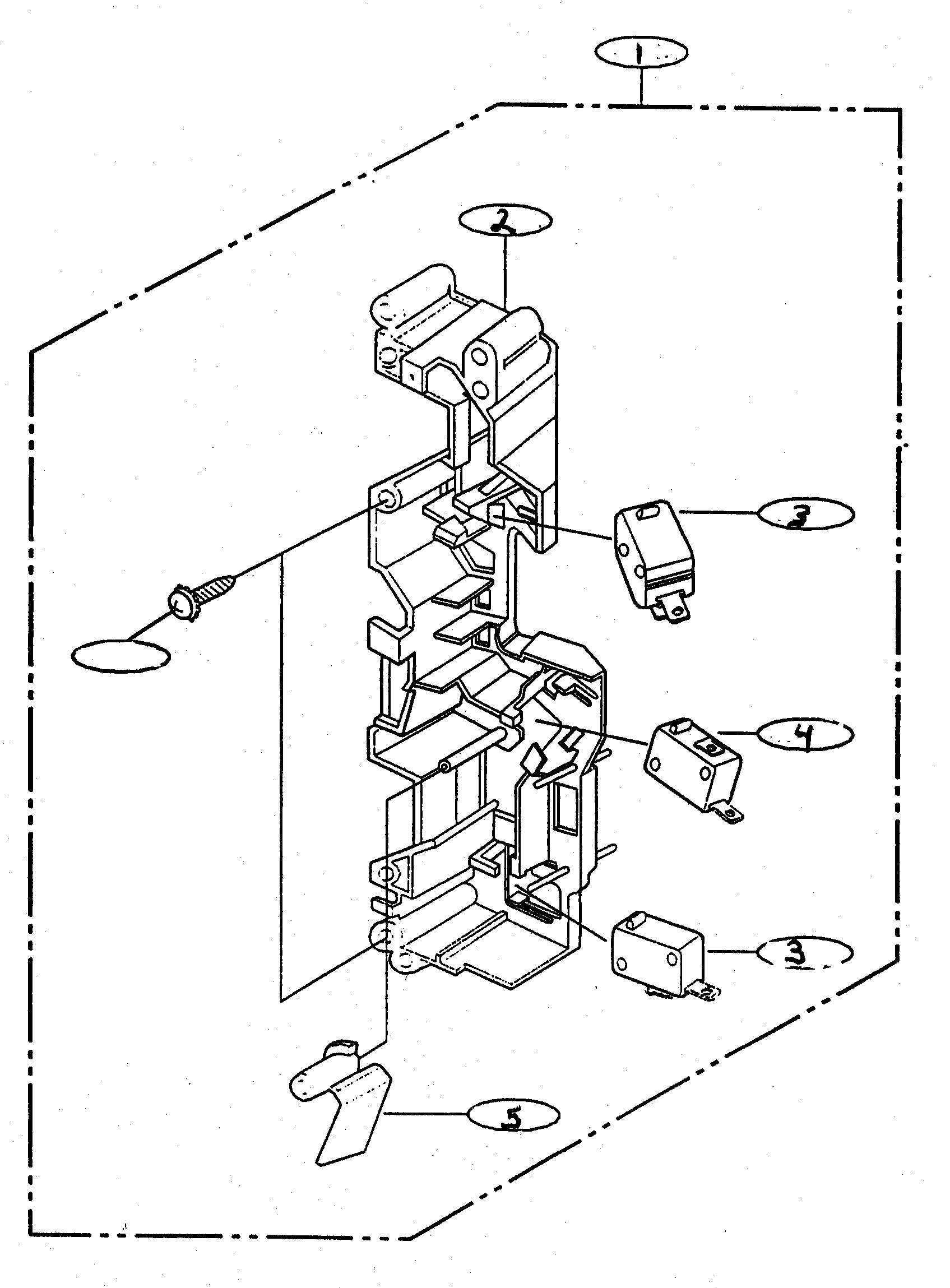

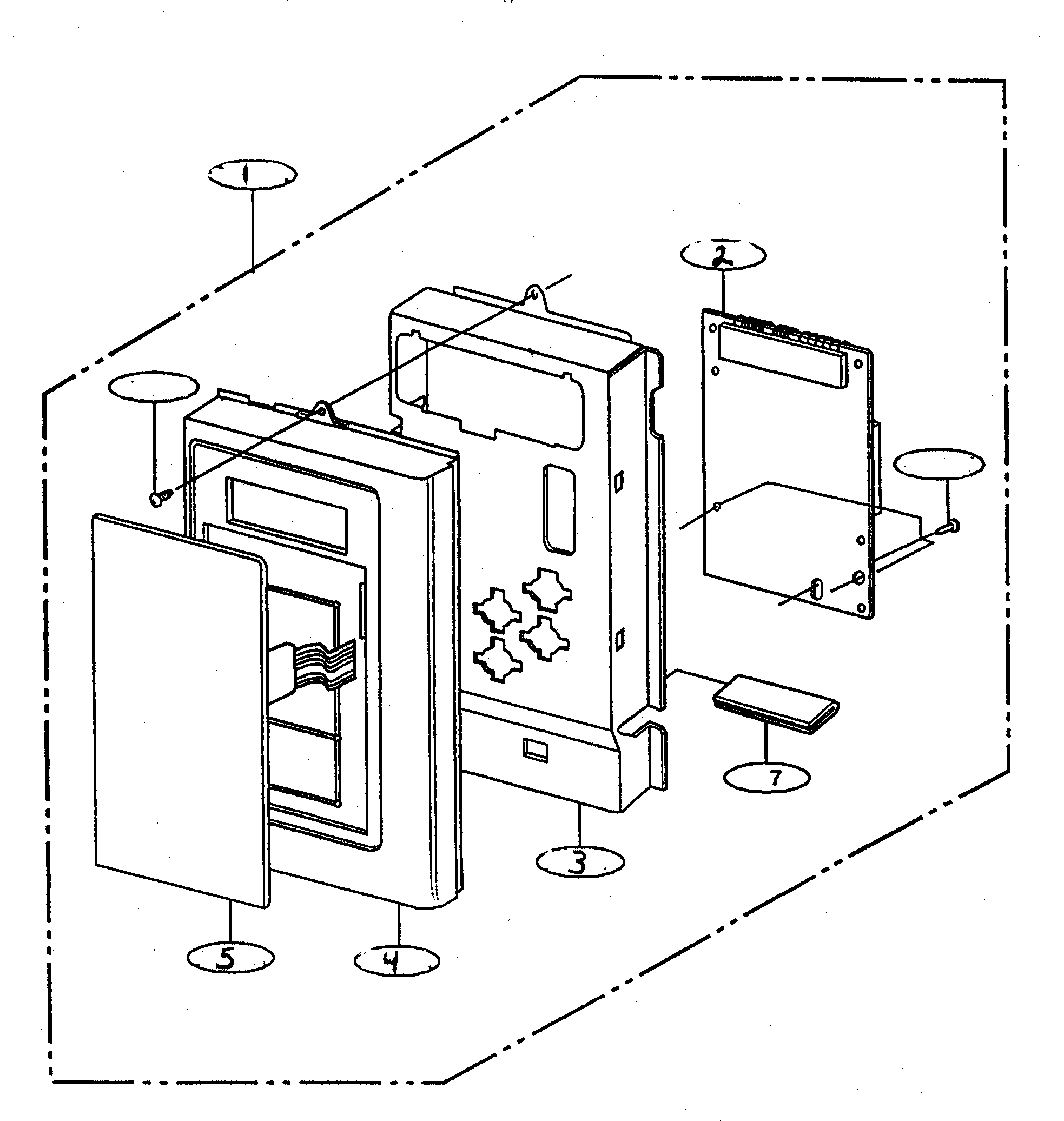

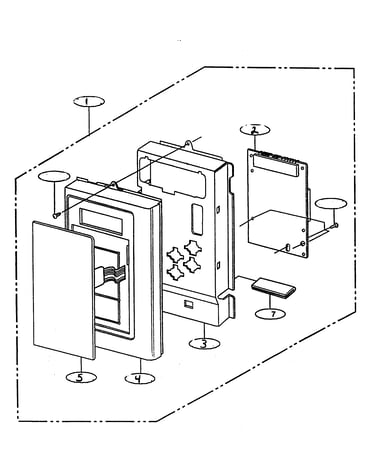

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 75 parts  |
Grease Filter 2B72705B
#13

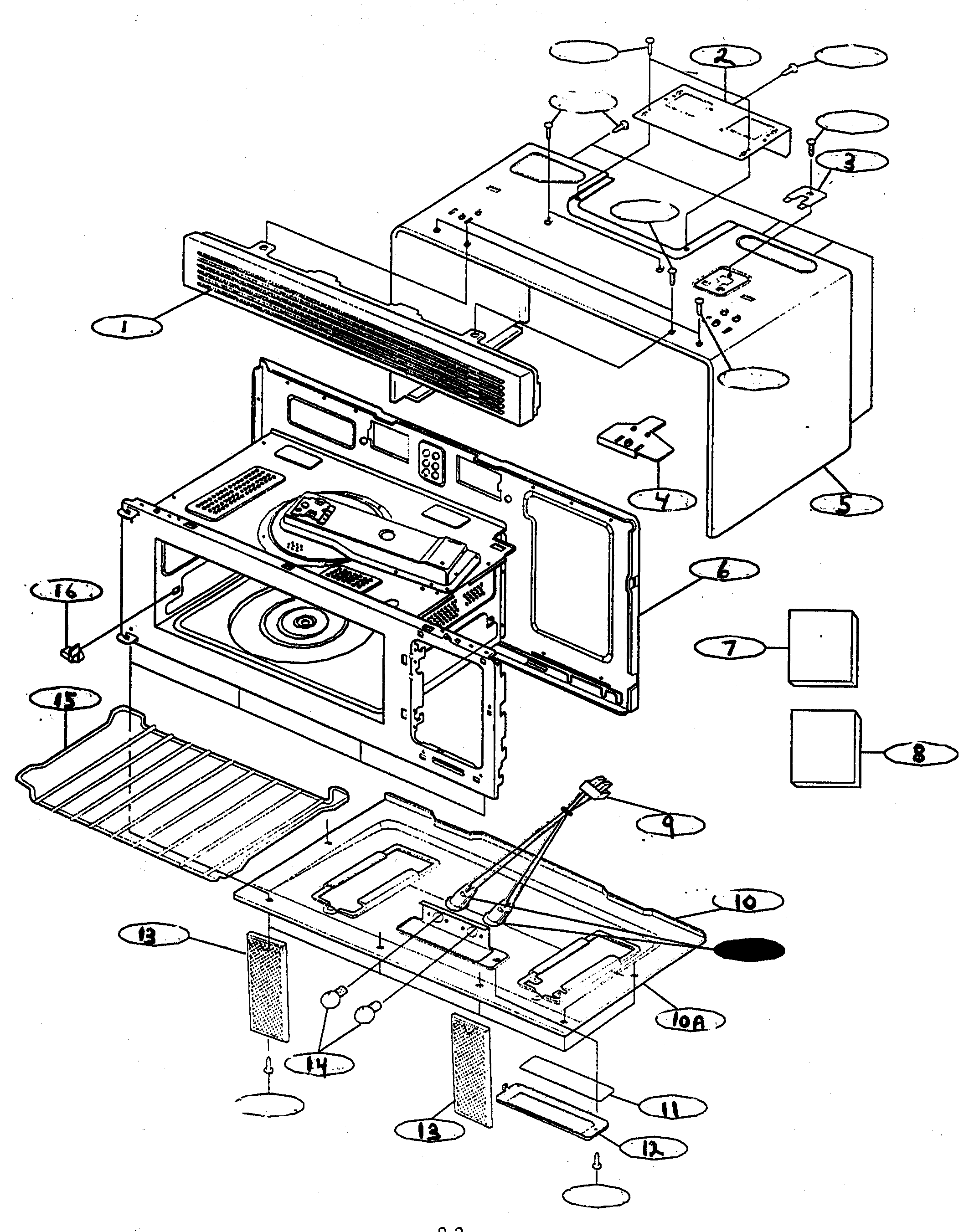

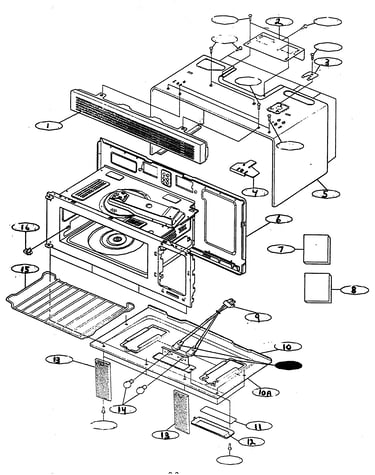

Oven cavity parts diagram

Grease filter

Part #2B72705B

Replaced by #5230W1A012B

?
Manufacturer substitution
This part replaces 2B72705B. Substitute parts can look different from the original.
BEST SELLER
$11.62 |
15% OFF Phone Price : $13.62
In Stock
High-voltage Diode 6021W3B001A
#10

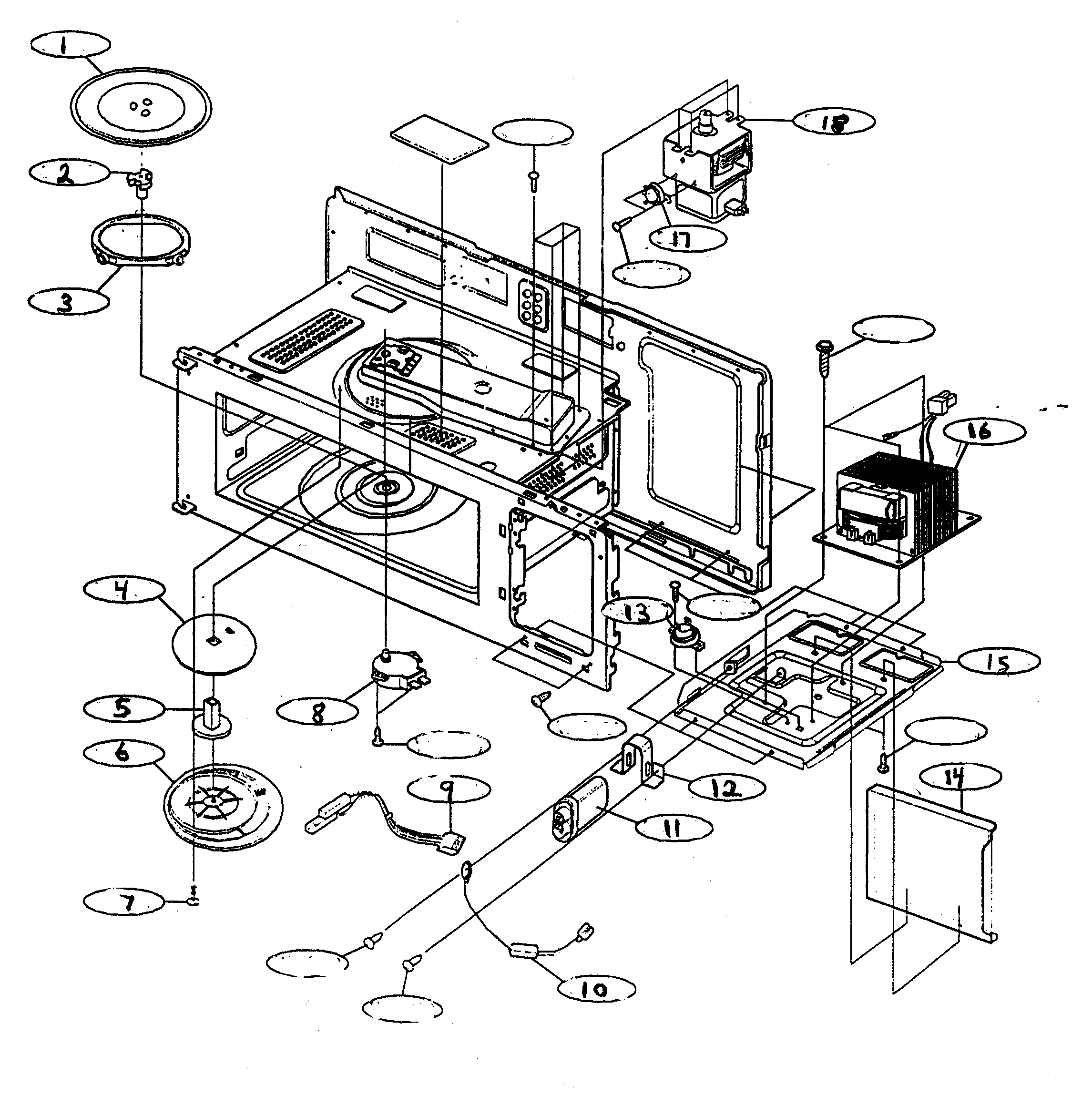

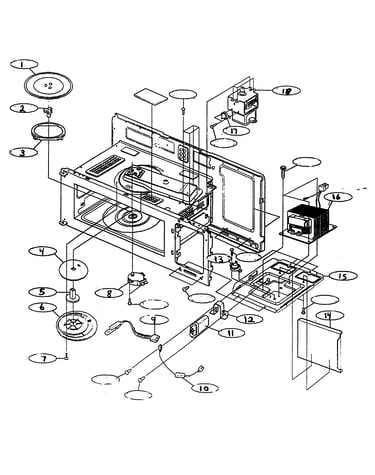

Interior parts 1 diagram

High-voltage diode

Part #6021W3B001A

Replaced by #6021W3B001V

?
Manufacturer substitution
This part replaces 6021W3B001A. Substitute parts can look different from the original.
BEST SELLER
$8.73 |
10% OFF Phone Price : $9.73
In Stock
Microwave High-voltage Capacitor 0CZZW1H002H
#11

Interior parts 1 diagram

Microwave high-voltage capacitor

Part #0CZZW1H002H

Replaced by #0CZZW1H004C

?
Manufacturer substitution
This part replaces 0CZZW1H002H. Substitute parts can look different from the original.
BEST SELLER
$27.47 |
15% OFF Phone Price : $32.47
In Stock
Oven Lamp 6912W3Q001A
#14

Oven cavity parts diagram

Oven lamp

Part #6912W3Q001A

Replaced by #6912W1Z004B

?
Manufacturer substitution
This part replaces 6912W3Q001A. Substitute parts can look different from the original.
BEST SELLER
$9.85 |
9% OFF Phone Price : $10.85
In Stock
Microwave/hood Light Bulb 3B70067F
#2

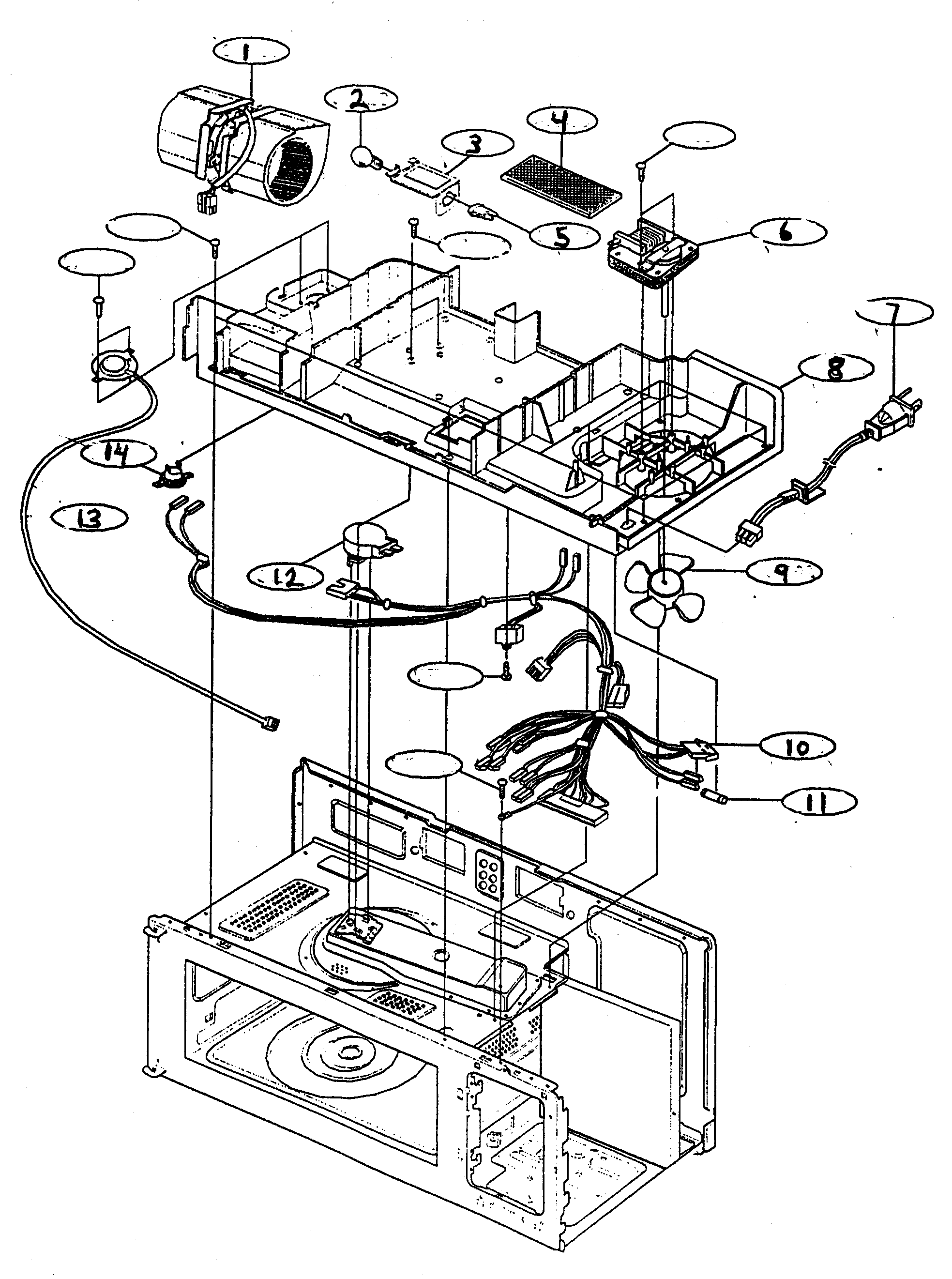

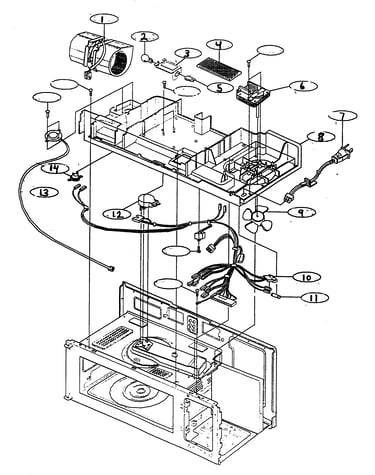

Interior parts 2 diagram

Microwave/hood light bulb

Part #3B70067F

Replaced by #6912W1Z004B

?
Manufacturer substitution
This part replaces 3B70067F. Substitute parts can look different from the original.
BEST SELLER
$9.85 |
9% OFF Phone Price : $10.85
In Stock
Microwave Glass Turntable Tray 1B71961E
#1

Interior parts 1 diagram

Microwave glass turntable tray

Part #1B71961E

Replaced by #1B71961H

?
Manufacturer substitution
This part replaces 1B71961E. Substitute parts can look different from the original.
BEST SELLER
$32.53 |
13% OFF Phone Price : $37.53
In Stock
Microwave Door Latch Hook 4026W2A015A
#7

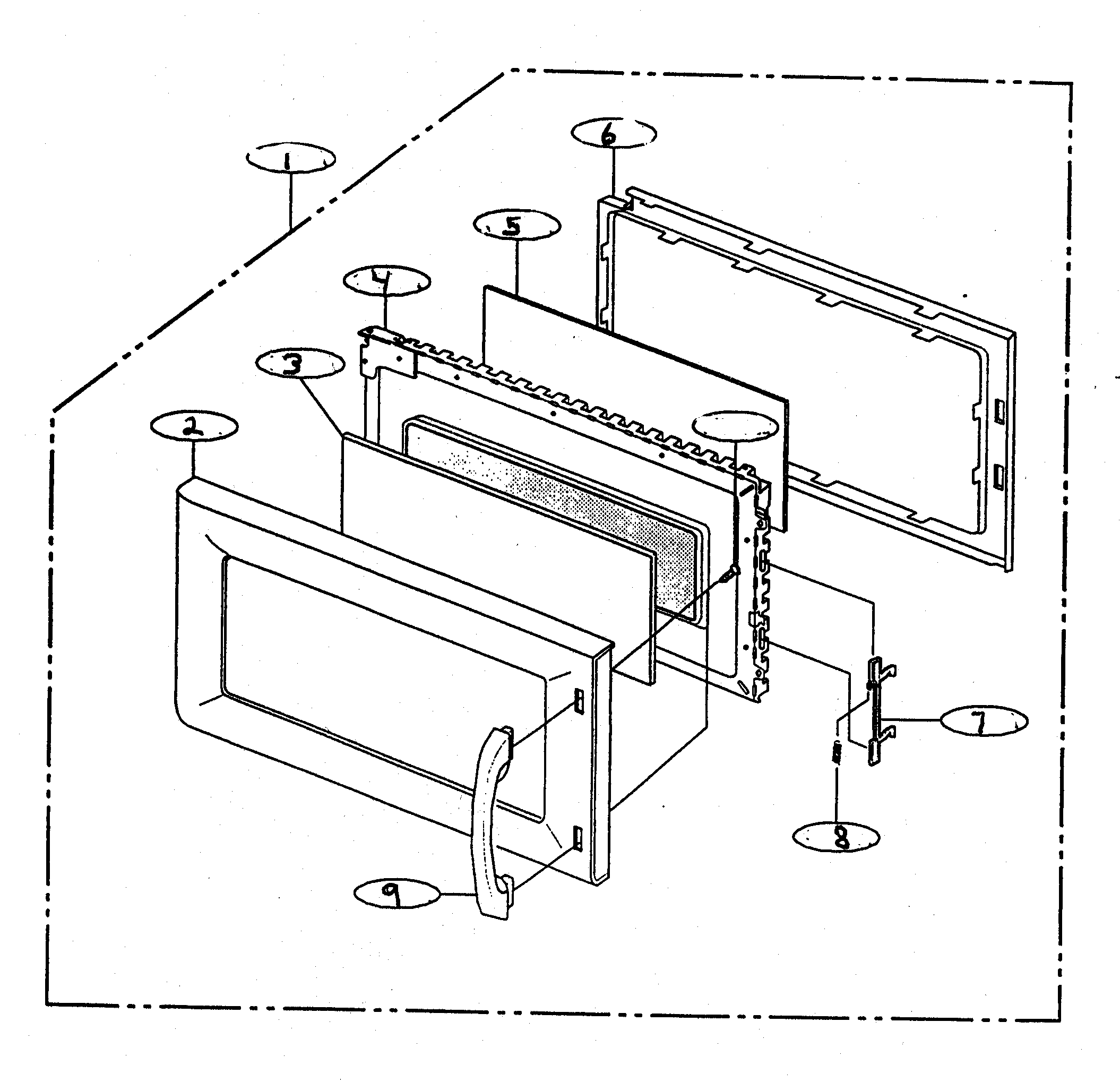

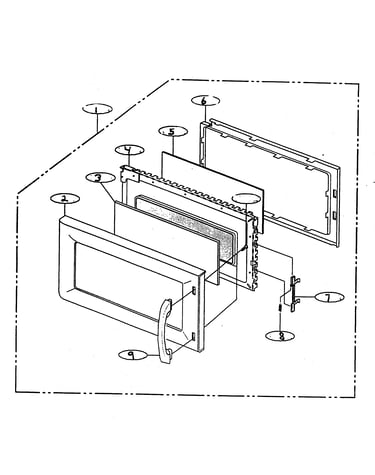

Door parts diagram

Microwave door latch hook

Part #4026W2A015A

Replaced by #4026W2A019C

?
Manufacturer substitution
This part replaces 4026W2A015A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
Damper 3B71432A
#4

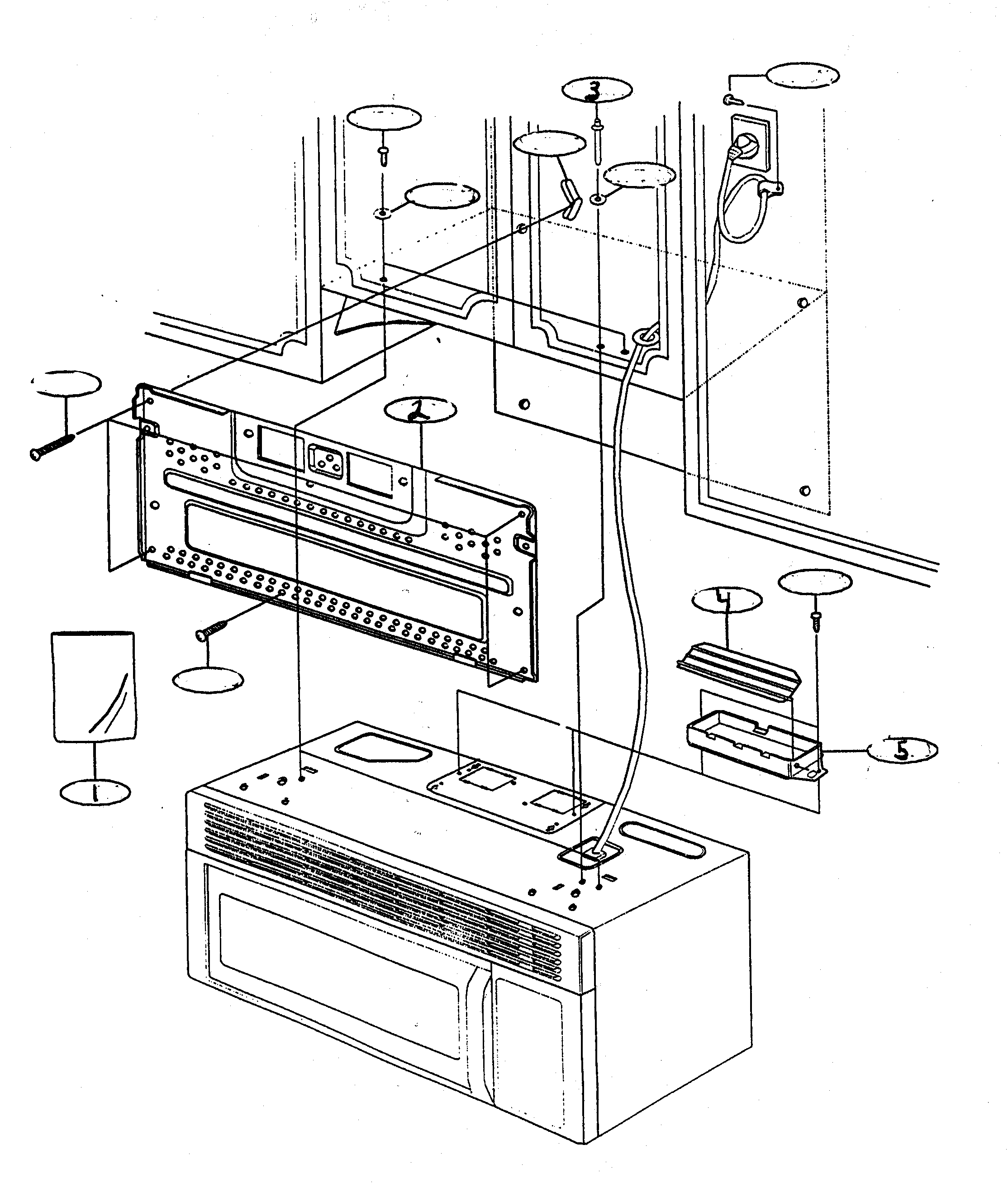

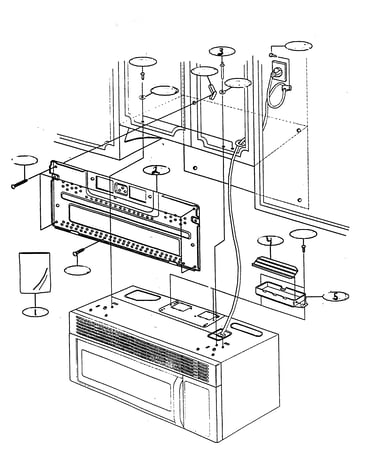

Installation parts diagram

Damper

Part #3B71432A

Replaced by #4900W1A001B

?
Manufacturer substitution
This part replaces 3B71432A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$8.52 |
11% OFF Phone Price : $9.52
In Stock
Shaft 3B72373D
#2

Interior parts 1 diagram

Shaft

Part #3B72373D

Replaced by #4370W1A006B

?
Manufacturer substitution
This part replaces 3B72373D. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.57 |
9% OFF Phone Price : $10.57
In Stock
Microwave Door Latch Spring 4970WRA001G
#8

Door parts diagram

Microwave door latch spring

Part #4970WRA001G

BEST SELLER
This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
