GE JBS07PIY1 electric range Parts
Here are the diagrams and repair parts for GE JBS07PIY1 electric range, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for JBS07PIY1 Ranges

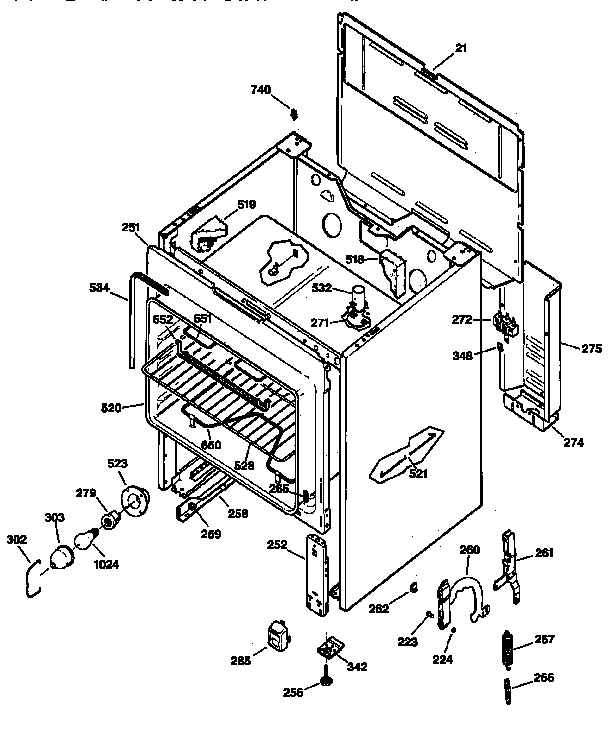

Body parts diagram
Gasket
Part #WB02X8123Replaced by #WB2X1522
Manufacturer substitutionThis part replaces WB02X8123. Substitute parts can look different from the original.In Stock$109.1110% OFF Phone Price : $121.11
Qty

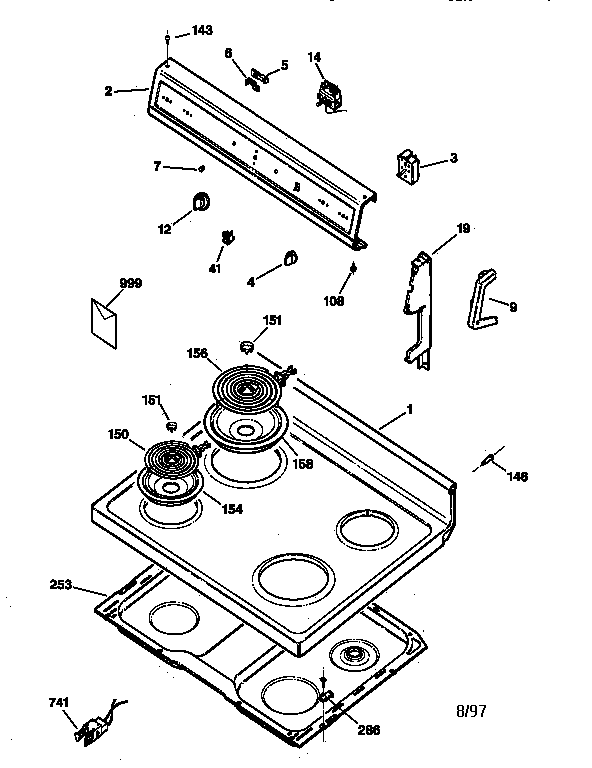

Control panel & cooktop diagram
Range Drip Pan
Part #WB32X5076Replaced by #WB31K10266
Manufacturer substitutionThis part replaces WB32X5076. Substitute parts can look different from the original.This item is not returnableIn Stock$11.3815% OFF Phone Price : $13.38QtyBody parts diagram
Guide
Part #WB39X0051
The manufacturer no longer makes this part, and there's no substitute part
Control panel & cooktop diagram
Control Trim
Part #WB36X10015
The manufacturer no longer makes this part, and there's no substitute part
Control panel & cooktop diagram
Strike Cooktop
Part #WB02X8107
The manufacturer no longer makes this part, and there's no substitute part

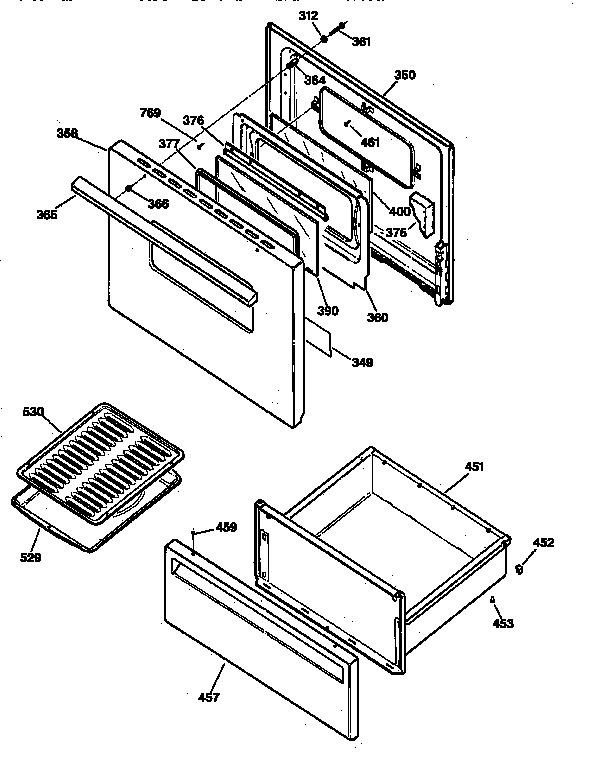

Door & drawer parts diagram
Pnl Dr Asm
Part #WB56X7068
The manufacturer no longer makes this part, and there's no substitute part
Door & drawer parts diagram
Drawer
Part #WB58X5015
The manufacturer no longer makes this part, and there's no substitute part
Control panel & cooktop diagram
Cap End Lh
Part #WB07X7145
The manufacturer no longer makes this part, and there's no substitute part
Body parts diagram
Guide
Part #WB02X6342
The manufacturer no longer makes this part, and there's no substitute part
Control panel & cooktop diagram
Thermostat Knob
Part #WB03X5840
The manufacturer no longer makes this part, and there's no substitute part
