Hotpoint
Gas Cooktop

Model # RGU6501A Official Hotpoint gas cooktop

Here are the diagrams and repair parts for Official Hotpoint RGU6501A gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 37 parts  |
Rd Hd Scr WB1X481
#3

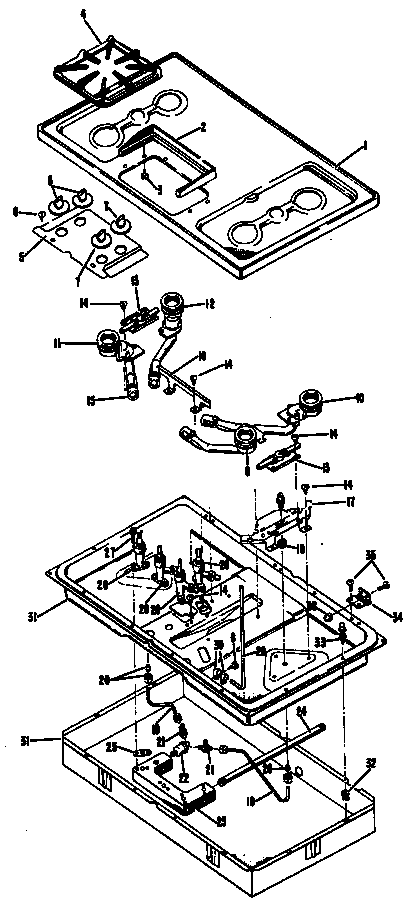

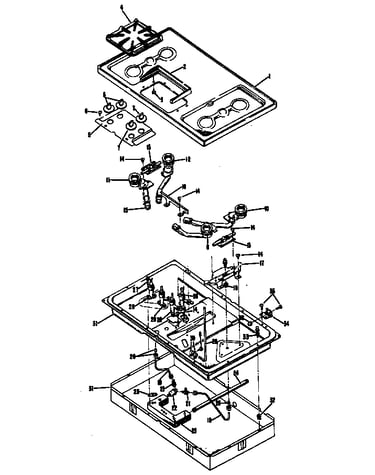

Cooktop diagram

Rd hd scr

Part #WB1X481

Replaced by #WZ2X45D

?
Manufacturer substitution
This part replaces WB1X481. Substitute parts can look different from the original.
$10.74
In Stock
Top Trim WB7X816
#5

Cooktop diagram

Top trim

Part #WB7X816

The manufacturer no longer makes this part, and there's no substitute part

Burner Right Front WB28X24
#9

Cooktop diagram

Burner right front

Part #WB28X24

The manufacturer no longer makes this part, and there's no substitute part

Burner Left Front WB28X25
#11

Cooktop diagram

Burner left front

Part #WB28X25

The manufacturer no longer makes this part, and there's no substitute part

Main Top Support WB2X2696
#29

Cooktop diagram

Main top support

Part #WB2X2696

The manufacturer no longer makes this part, and there's no substitute part

Control Panel Trim WB7X814
#2

Cooktop diagram

Control panel trim

Part #WB7X814

The manufacturer no longer makes this part, and there's no substitute part

Knob R. H. WB3X339
#7

Cooktop diagram

Knob r. h.

Part #WB3X339

The manufacturer no longer makes this part, and there's no substitute part

Screw WB1X482
Screw

Part #WB1X482

The manufacturer no longer makes this part, and there's no substitute part

Bolt Burner Valve WB2X2750
#27

Cooktop diagram

Bolt burner valve

Part #WB2X2750

The manufacturer no longer makes this part, and there's no substitute part

Nut WB1X483
#20

Cooktop diagram

Nut

Part #WB1X483

The manufacturer no longer makes this part, and there's no substitute part
