GE JGSS05BEA5BB gas range

GE JGSS05BEA5BB gas range Parts

Here are the diagrams and repair parts for GE JGSS05BEA5BB gas range, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for JGSS05BEA5BB Ranges

  • Burner Tube for GE JGSS05BEA5BB - Part WB28K10012

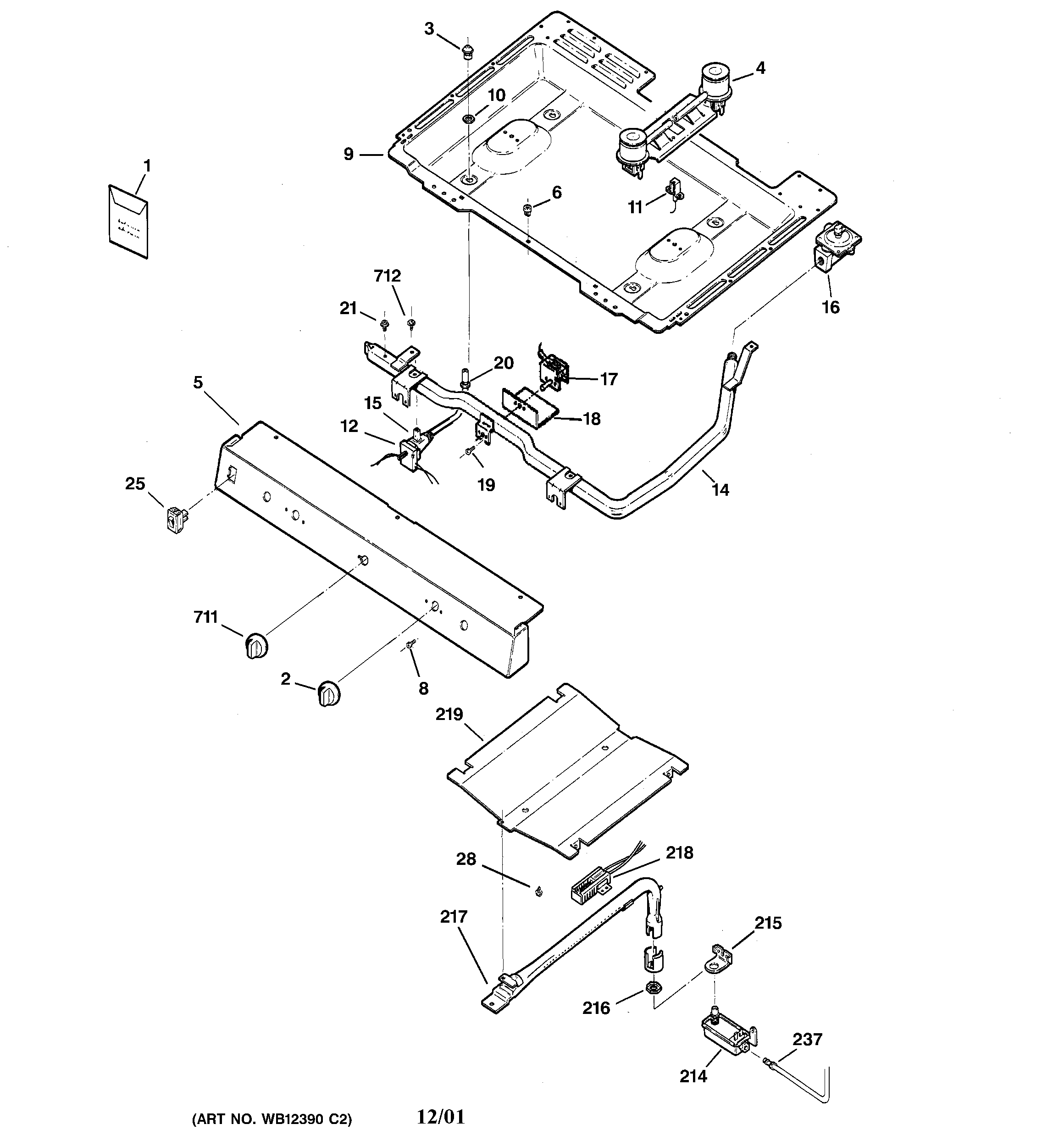

    Gas & burner parts diagram

    Burner Tube

    Part #WB28K10012
    This item is not returnable
    In Stock
    $28.83
    17% OFF Phone Price : $34.83Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Surface Burner Grate for GE JGSS05BEA5BB - Part WB31K10026

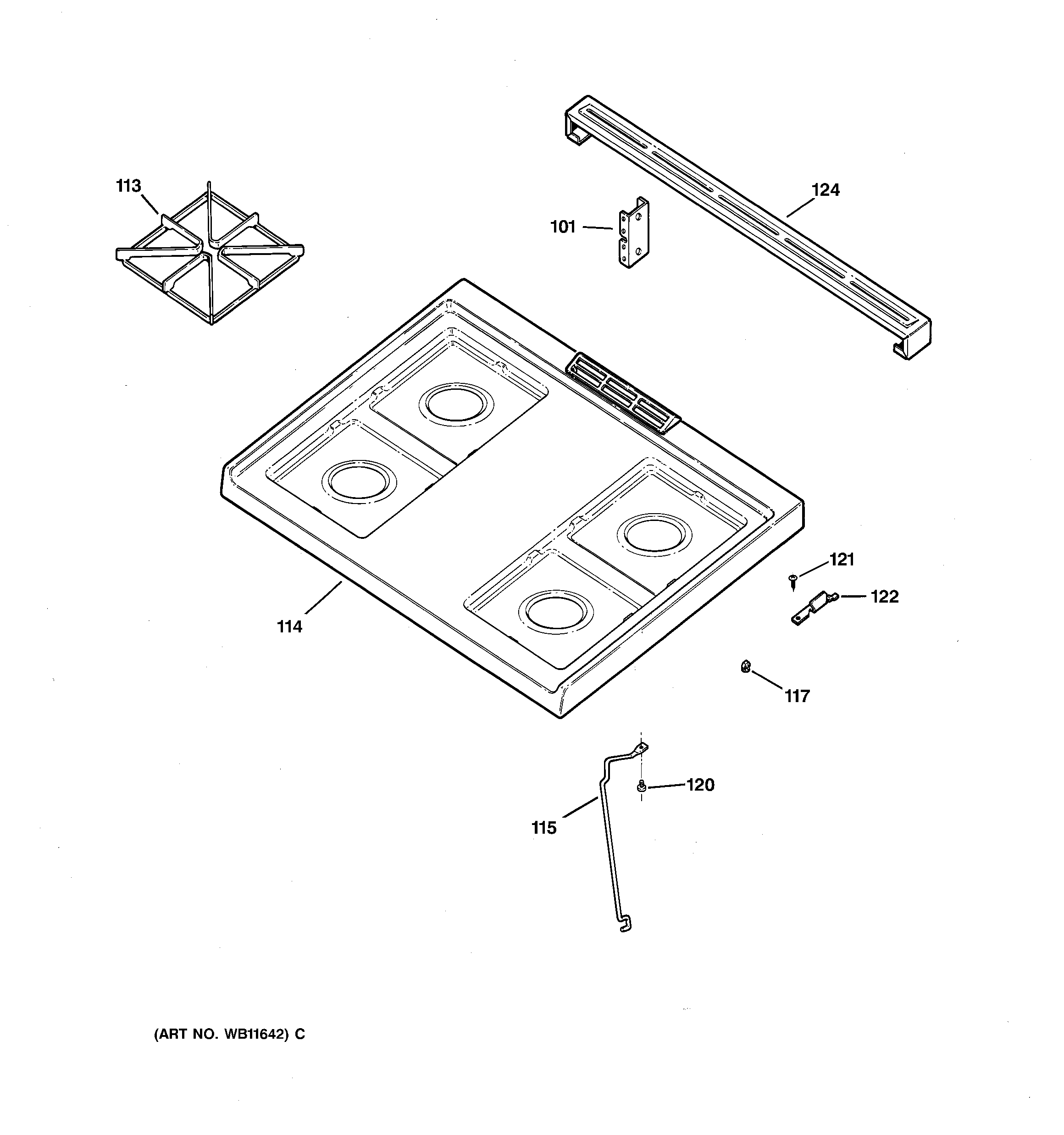

    Cooktop diagram

    Range Surface Burner Grate

    Part #WB31K10026
    In Stock
    $82.14
    27% OFF Was : $113.05Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Surface Burner Orifice for GE JGSS05BEA5BB - Part WB28K10033

    Gas & burner parts diagram

    Range Surface Burner Orifice

    Part #WB28K10033
    This item is not returnable
    In Stock
    $22.33
    21% OFF Phone Price : $28.33Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Surface Burner Tube, Left Rear for GE JGSS05BEA5BB - Part WB28K10011

    Gas & burner parts diagram

    Range Surface Burner Tube, Left Rear

    Part #WB28K10011
    In Stock
    $44.54
    12% OFF Phone Price : $50.54Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Power Cord for GE JGSS05BEA5BB - Part WB18K10036

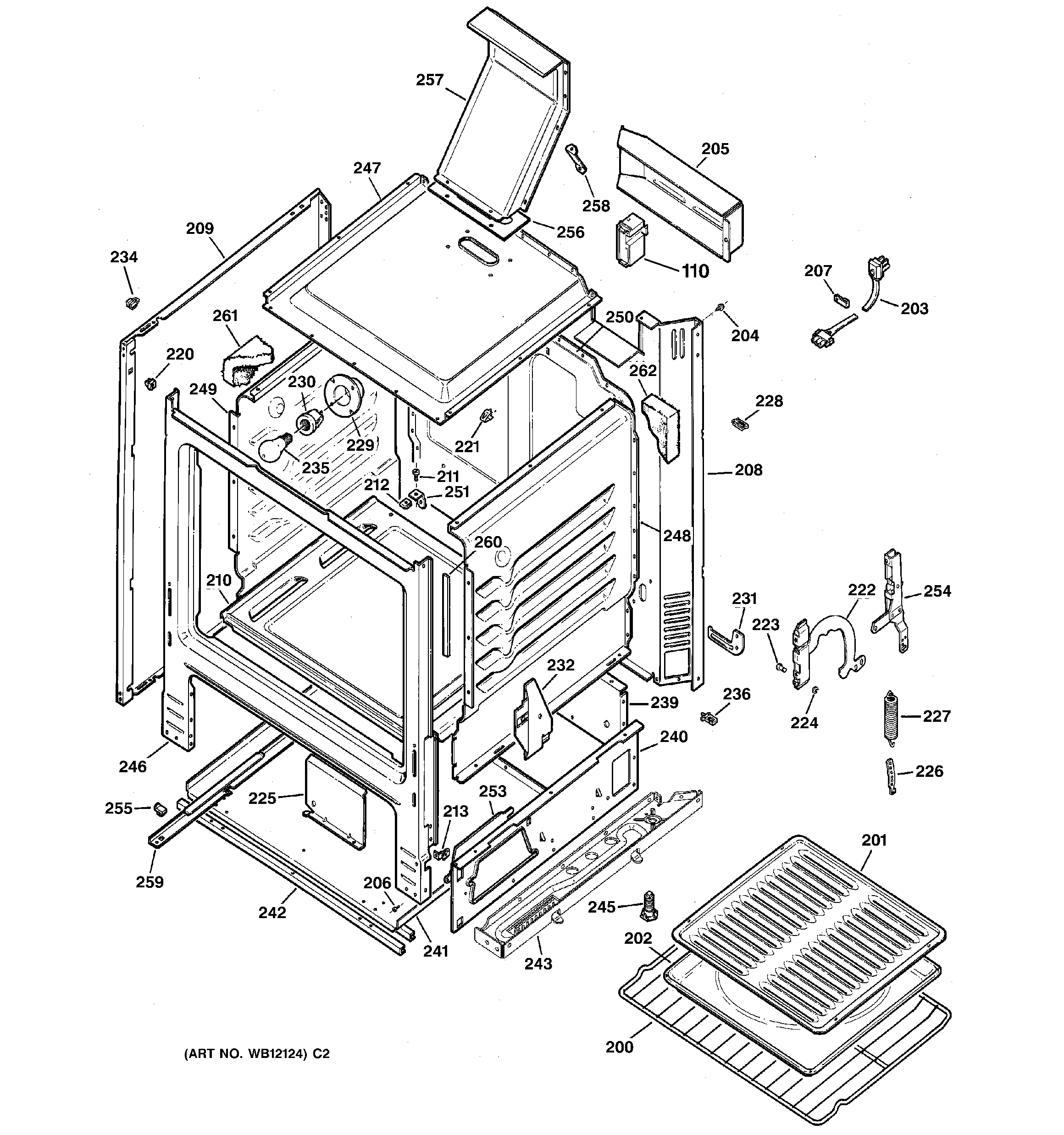

    Body parts diagram

    Line Cord

    Part #WB18K0007

    Replaced by #WB18K10036

    Info Icon
    Manufacturer substitution
    This part replaces WB18K0007. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $25.81
    19% OFF Phone Price : $31.81Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Surface Burner Valve for GE JGSS05BEA5BB - Part WB21K10081

    Gas & burner parts diagram

    Burner Valve

    Part #WB21K10009

    Replaced by #WB21K10081

    Info Icon
    Manufacturer substitution
    This part replaces WB21K10009. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $29.99
    17% OFF Phone Price : $35.99Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Surface Burner Orifice for GE JGSS05BEA5BB - Part WB28K10376

    Gas & burner parts diagram

    Orifice Spud

    Part #WB28K0008

    Replaced by #WB28K10376

    Info Icon
    Manufacturer substitution
    This part replaces WB28K0008. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $8.74
    10% OFF Phone Price : $9.74Info Icon
    Minus Item
    Qty
    Plus Item
  • Hnge Broil R for GE JGSS05BEA5BB - Part WB10K5

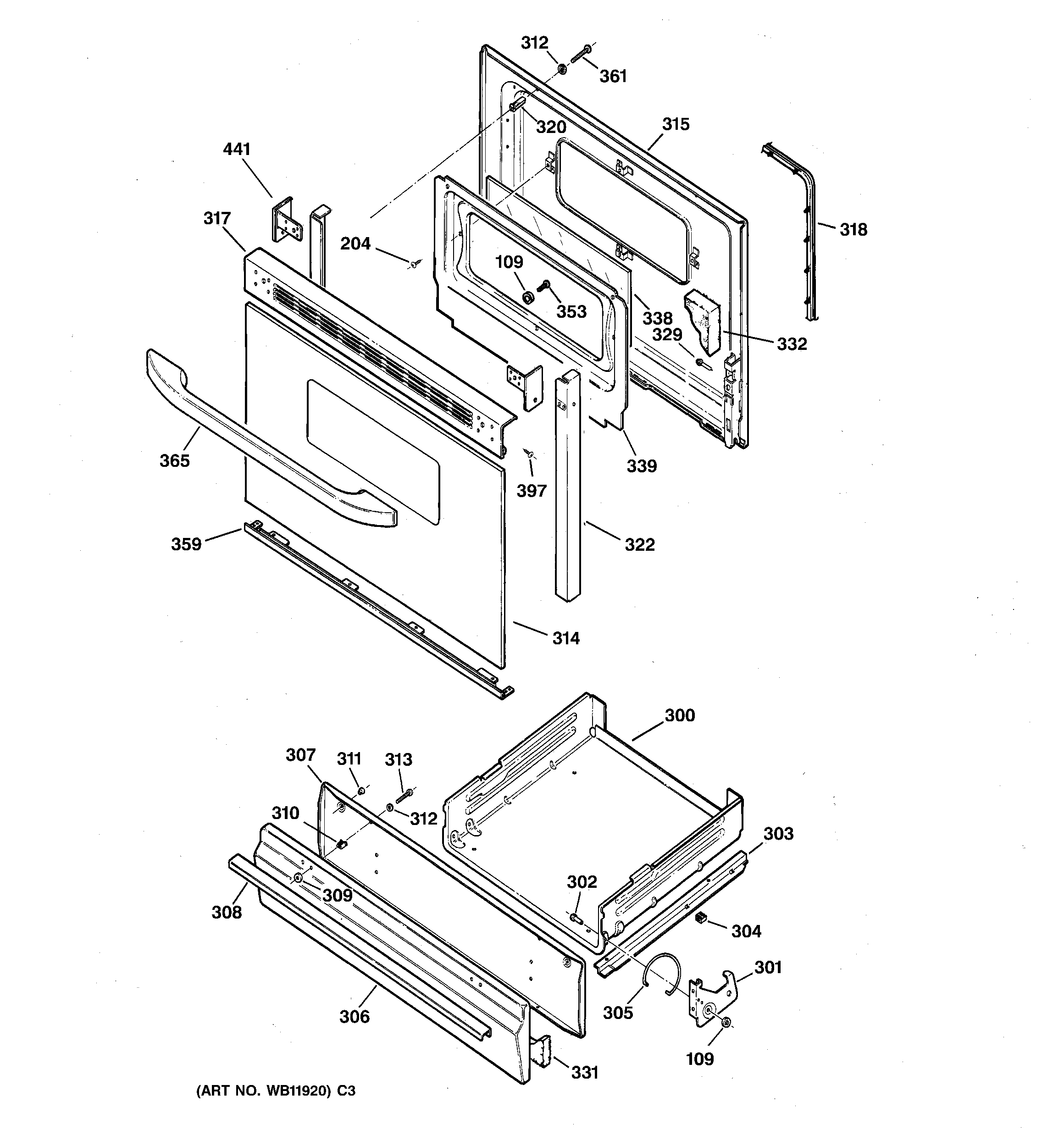

    Door & drawer parts diagram

    Hnge Broil R

    Part #WB10K0005

    Replaced by #WB10K5

    Info Icon
    Manufacturer substitution
    This part replaces WB10K0005. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $37.52
    Minus Item
    Qty
    Plus Item
  • Range Door Bumper for GE JGSS05BEA5BB - Part WB2K15

    Door & drawer parts diagram

    Bumper

    Part #WB02K0015

    Replaced by #WB2K15

    Info Icon
    Manufacturer substitution
    This part replaces WB02K0015. Substitute parts can look different from the original.
    In Stock
    $10.90
    16% OFF Phone Price : $12.90Info Icon
    Minus Item
    Qty
    Plus Item
  • Speed Nut for GE JGSS05BEA5BB - Part WB1K2

    Body parts diagram

    Speed Nut

    Part #WB01K0002

    Replaced by #WB1K2

    Info Icon
    Manufacturer substitution
    This part replaces WB01K0002. Substitute parts can look different from the original.
    In Stock
    $9.01
    10% OFF Phone Price : $10.01Info Icon
    Minus Item
    Qty
    Plus Item
