Model # C1425--- Official Hoover upright vacuum

Here are the diagrams and repair parts for Official Hoover C1425- upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 98 parts  |

Case Switch 37214070
#8

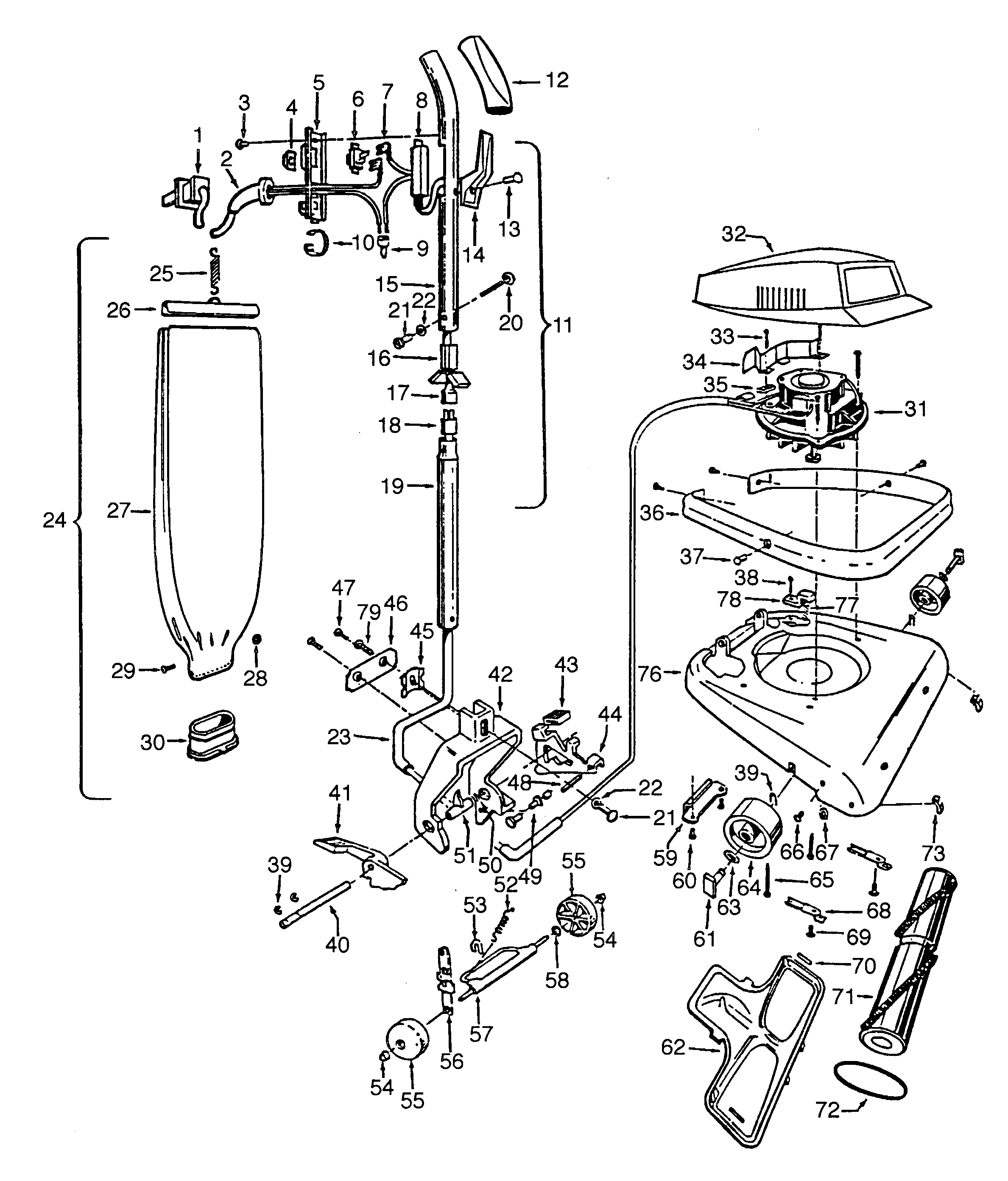

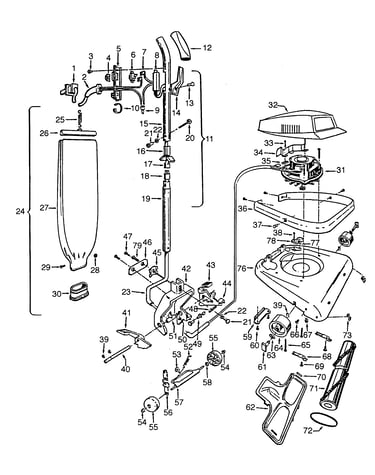

Agitator, handle, mainbody, outerbag diagram

Case switch

Part #37214070

The manufacturer no longer makes this part, and there's no substitute part

Retaining Flange 35434040
#59

Agitator, handle, mainbody, outerbag diagram

Retaining flange

Part #35434040

The manufacturer no longer makes this part, and there's no substitute part

Motor Brush 47318012
#8

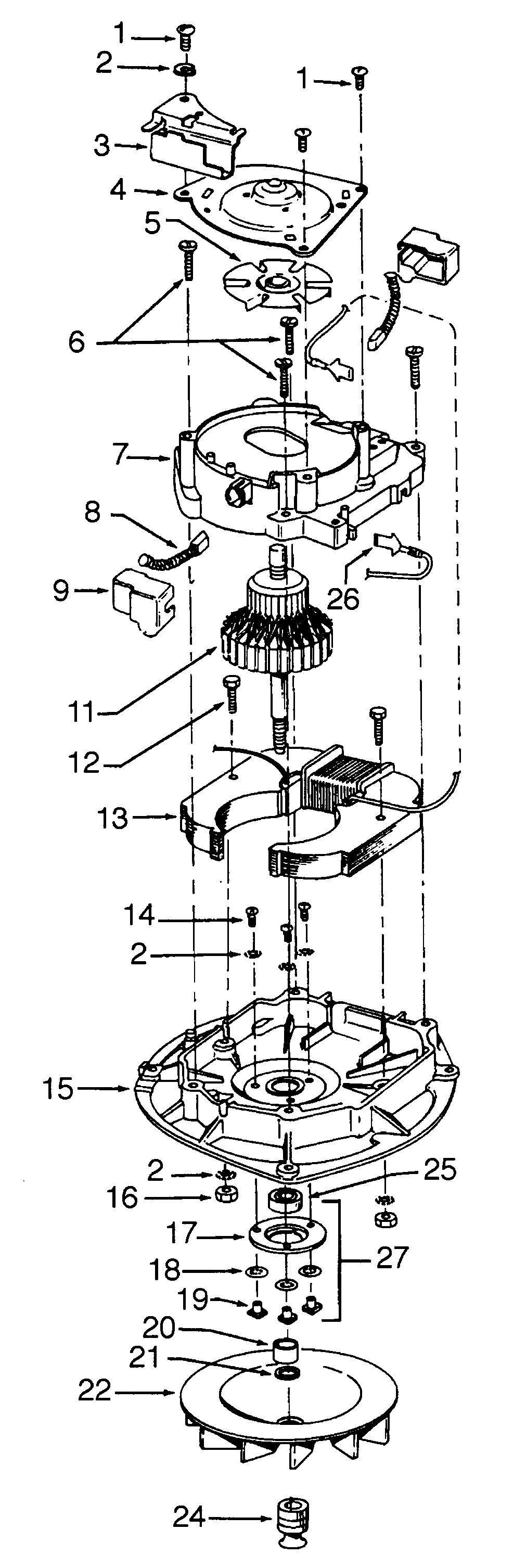

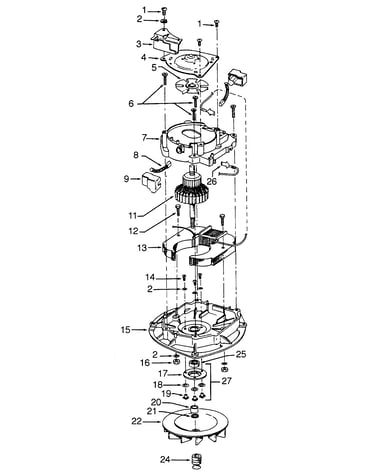

Motor assembly diagram

Motor brush

Part #47318012

The manufacturer no longer makes this part, and there's no substitute part

Handle Plate 35463011
#45

Agitator, handle, mainbody, outerbag diagram

Handle plate

Part #35463011

The manufacturer no longer makes this part, and there's no substitute part

Bottom Plate 37245081
#62

Agitator, handle, mainbody, outerbag diagram

Bottom plate

Part #37245081

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wheel Retainer 32182001
#54

Agitator, handle, mainbody, outerbag diagram

Vacuum wheel retainer

Part #32182001

The manufacturer no longer makes this part, and there's no substitute part

Brush Cap 36315003
#9

Motor assembly diagram

Brush cap

Part #36315003

The manufacturer no longer makes this part, and there's no substitute part

Yoke 34252005
#53

Agitator, handle, mainbody, outerbag diagram

Yoke

Part #34252005

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Brush 48445001
#71F

Agitator, handle, mainbody, outerbag diagram

Vacuum brush

Part #48445001

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Fan 38755011
#22

Motor assembly diagram

Vacuum fan

Part #38755011

The manufacturer no longer makes this part, and there's no substitute part
