Model # BA3018QKA1 Official ICP indoor blower section

Here are the diagrams and repair parts for Official ICP BA3018QKA1 indoor blower section, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 24 parts  |

Motor 1055080
#1C

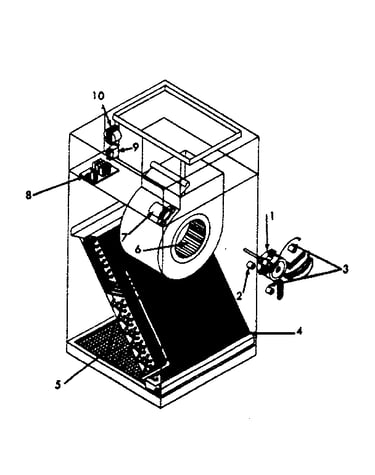

Blower assembly diagram

Motor

Part #1055080

In Stock
Central Air Conditioner Air Handler Blower Motor, 1/5-hp 1055203
#1B

Blower assembly diagram

Central air conditioner air handler blower motor, 1/5-hp

Part #1055203

In Stock
Terminal Board 1055193
#8

Blower assembly diagram

Terminal board

Part #1055193

In Stock
Central Air Conditioner Air Handler Blower Motor 1055139
#1A

Blower assembly diagram

Central air conditioner air handler blower motor

Part #1055139

In Stock
Mount Kit 1050254
#3

Blower assembly diagram

Mount kit

Part #1050254

In Stock
Central Air Conditioner Air Handler Air Filter, 13 X 18 X 1-in 1051928
#5

Blower assembly diagram

Central air conditioner air handler air filter, 13 x 18 x 1-in

Part #1051928

In Stock
Blower Wheel 600585
#6

Blower assembly diagram

Blower wheel

Part #600585

Replaced by #600586

?
Manufacturer substitution
This part replaces 600585. Substitute parts can look different from the original.
$127.13
7% OFF Phone Price : $137.13
In Stock
Transformer 1056899
#10

Blower assembly diagram

Transformer

Part #1056899

Replaced by #90-4031F

?
Manufacturer substitution
This part replaces 1056899. Substitute parts can look different from the original.
In Stock
Grommet 609194
#2

Blower assembly diagram

Grommet

Part #609194

Replaced by #1149537

?
Manufacturer substitution
This part replaces 609194. Substitute parts can look different from the original.
In Stock
Capacitor 602974
#7

Blower assembly diagram

Capacitor

Part #602974

Replaced by #12005

?
Manufacturer substitution
This part replaces 602974. Substitute parts can look different from the original.
$16.12
11% OFF Phone Price : $18.12
In Stock
