Jenn-Air C301-C jenn-air cooking Parts

Here are the diagrams and repair parts for Jenn-Air C301-C jenn-air cooking, as well as links to manuals and error code tables, if available.

Jenn-Air C301-C jenn-air cooking
By Schematic
By Part

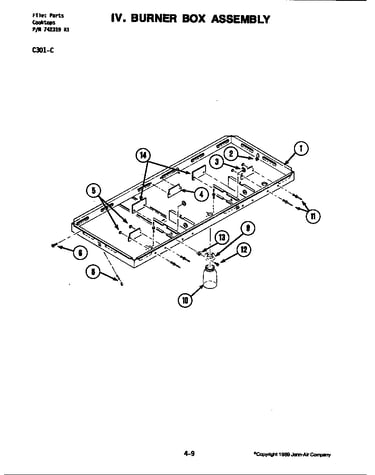

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for C301-C JENN-AIR COOKING

  • Range Surface Burner Knob for Jenn-Air C301-C - Part WPY700854

    Escutcheon assembly (c301-c) diagram

    Switch Knob

    Part #700854

    Replaced by #WPY700854

    Info Icon
    Manufacturer substitution
    This part replaces 700854. Substitute parts can look different from the original.
    In Stock
    $17.58
    10% OFF Phone Price : $19.58Info Icon
    Minus Item
    Qty
    Plus Item
  • Appliance Screw for Jenn-Air C301-C - Part WP59002061

    Screw

    Part #707172

    Replaced by #WP59002061

    Info Icon
    Manufacturer substitution
    This part replaces 707172. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.91
    17% OFF Phone Price : $5.91Info Icon
    Minus Item
    Qty
    Plus Item
  • Motor for Jenn-Air C301-C - Part 707704

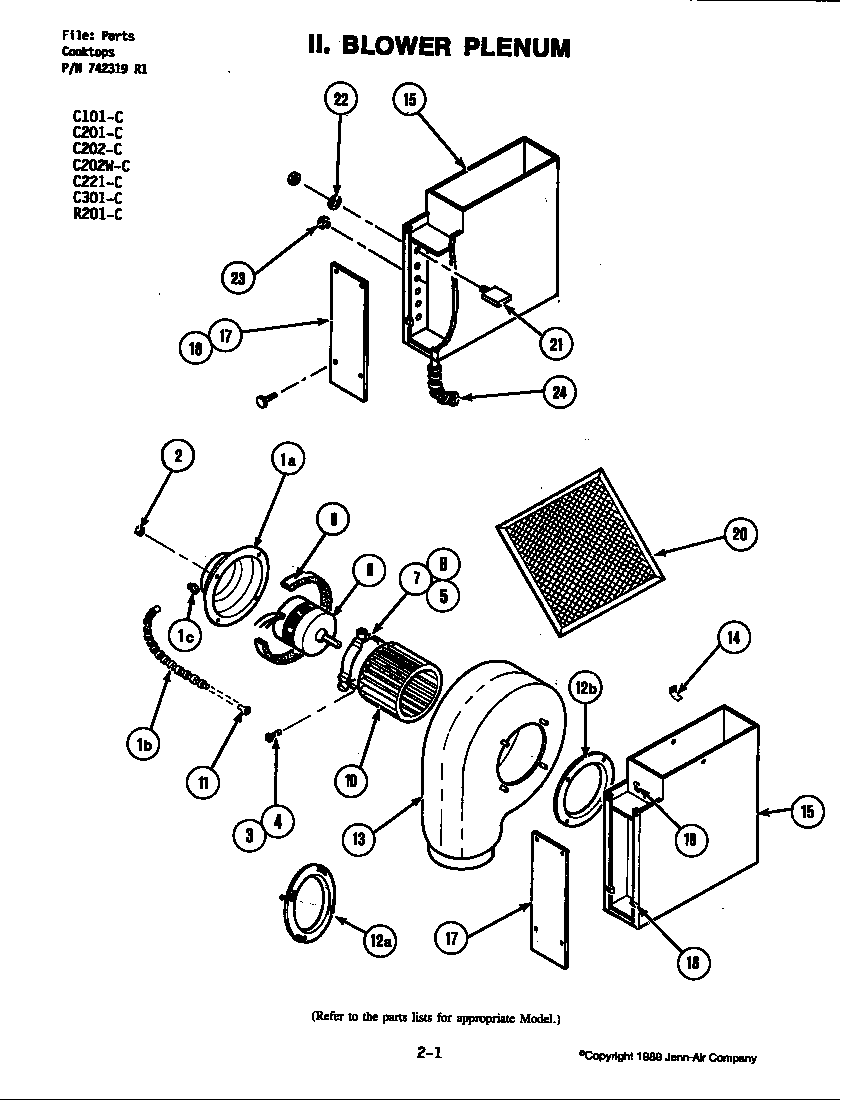

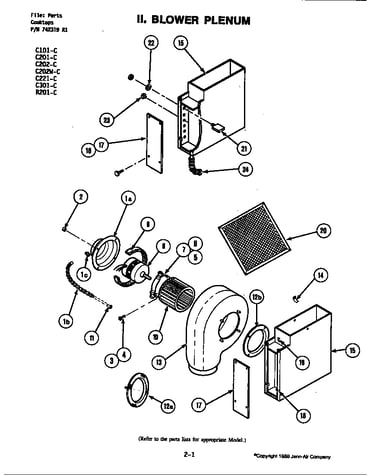

    Blower assembly (c301-c) diagram

    Motor

    Part #707704

    The manufacturer no longer makes this part, and there's no substitute part

  • Receptacle for Jenn-Air C301-C - Part 715120

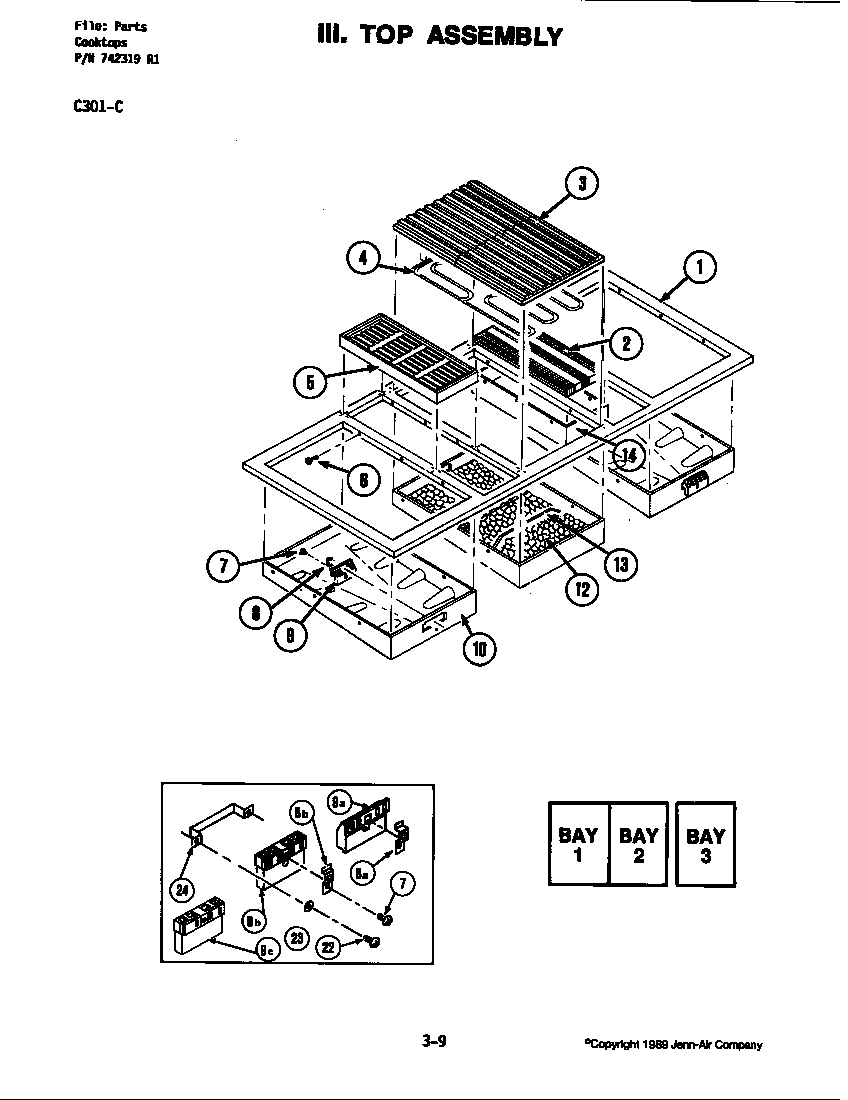

    Top assembly (c301-c) diagram

    Receptacle

    Part #715120
    In Stock
    $19.51
    Minus Item
    Qty
    Plus Item
  • Cooktop Grill Element Receptacle for Jenn-Air C301-C - Part WPY702434

    Top assembly (c301-c) diagram

    Receptacle

    Part #702783

    Replaced by #WPY702434

    Info Icon
    Manufacturer substitution
    This part replaces 702783. Substitute parts can look different from the original.
    In Stock
    $54.92
    10% OFF Phone Price : $60.92Info Icon
    Minus Item
    Qty
    Plus Item
  • Cooktop Grill Element Receptacle for Jenn-Air C301-C - Part WPY702434

    Top assembly (c301-c) diagram

    Receptacle

    Part #702434

    Replaced by #WPY702434

    Info Icon
    Manufacturer substitution
    This part replaces 702434. Substitute parts can look different from the original.
    In Stock
    $54.92
    10% OFF Phone Price : $60.92Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator for Jenn-Air C301-C - Part W11233072

    Top assembly (c301-c) diagram

    Screw

    Part #707347

    Replaced by #W11233072

    Info Icon
    Manufacturer substitution
    This part replaces 707347. Substitute parts can look different from the original.
    In Stock
    $17.63
    Minus Item
    Qty
    Plus Item
  • Cooktop Indicator Light Lens for Jenn-Air C301-C - Part WPY700631

    Escutcheon assembly (c301-c) diagram

    Lens Pilot

    Part #700631

    Replaced by #WPY700631

    Info Icon
    Manufacturer substitution
    This part replaces 700631. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $6.00
    14% OFF Phone Price : $7.00Info Icon
    Minus Item
    Qty
    Plus Item
  • Cooktop Wire Harness for Jenn-Air C301-C - Part WP5708M007-60

    Top assembly (c301-c) diagram

    Wire (yellow)

    Part #712020

    Replaced by #WP5708M007-60

    Info Icon
    Manufacturer substitution
    This part replaces 712020. Substitute parts can look different from the original.
    In Stock
    $86.00
    7% OFF Phone Price : $92.00Info Icon
    Minus Item
    Qty
    Plus Item
  • Wire Kit for Jenn-Air C301-C - Part 712022K

    Top assembly (c301-c) diagram

    Wire Kit

    Part #712034

    Replaced by #712022K

    Info Icon
    Manufacturer substitution
    This part replaces 712034. Substitute parts can look different from the original.
    In Stock
    $228.90
    Minus Item
    Qty
    Plus Item
