Model # PGT136-UWW Official Modern Maid gas cooktop

Here are the diagrams and repair parts for Official Modern Maid PGT136-UWW gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

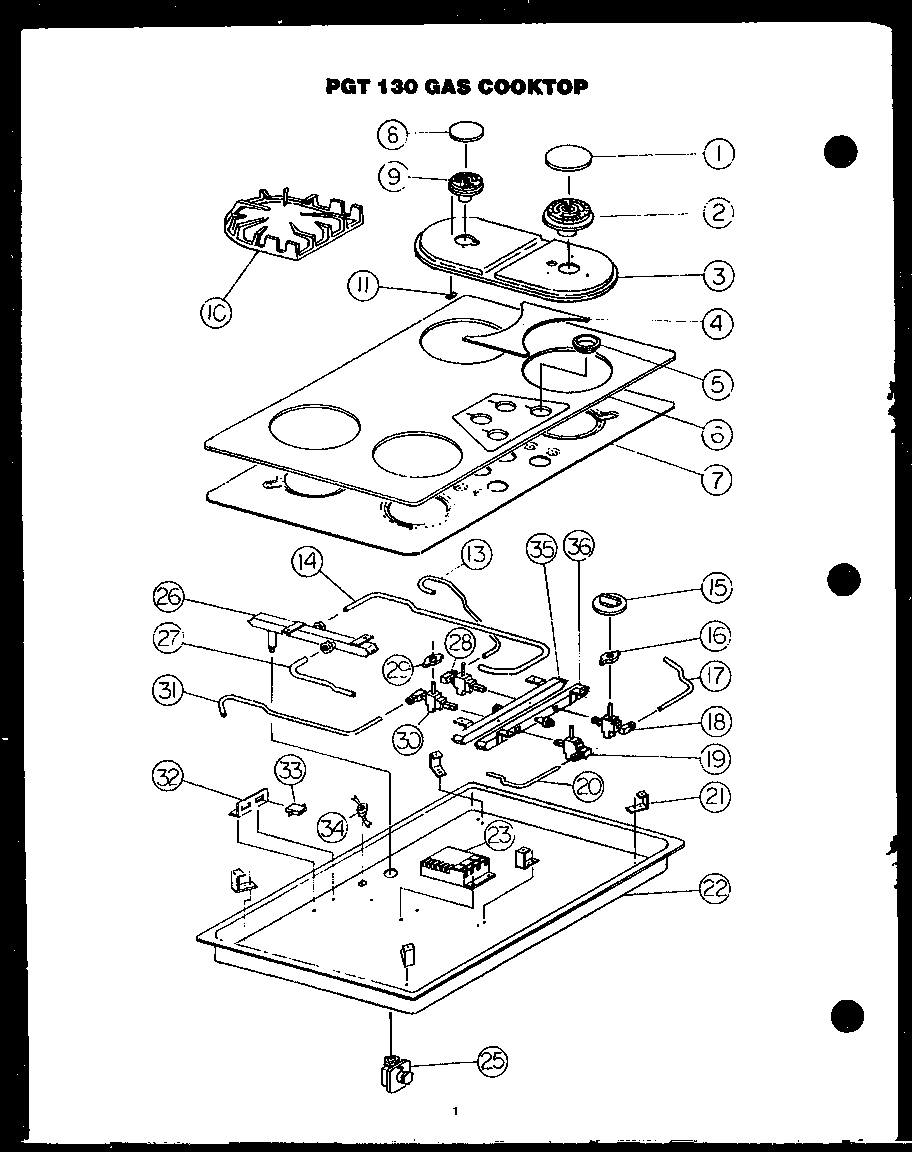

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |

Tubing, Inlet To Rear Manifold 34-303521-02-0
Tubing, inlet to rear manifold

Part #34-303521-02-0

The manufacturer no longer makes this part, and there's no substitute part

Grate 34-303542-08-T
Grate

Part #34-303542-08-T

The manufacturer no longer makes this part, and there's no substitute part

Tubing, Valve To R.f. Burner 34-303596-02-0
#17

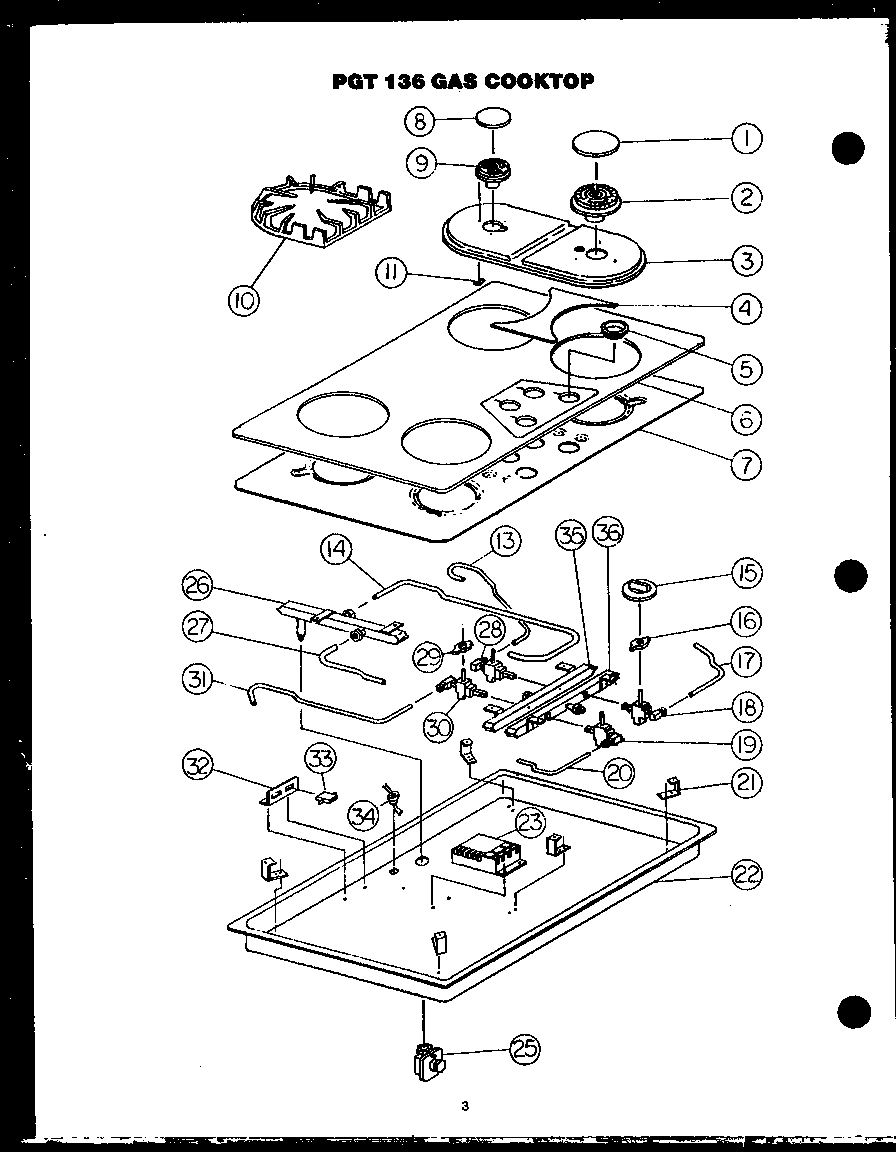

(pgt136-ud) (pgt136-uww) diagram

Tubing, valve to r.f. burner

Part #34-303596-02-0

The manufacturer no longer makes this part, and there's no substitute part

Terminal Housing 32-042107-10-0
Terminal housing

Part #32-042107-10-0

The manufacturer no longer makes this part, and there's no substitute part

Burner Box 67-303590-00-0
#22

(pgt136-ud) (pgt136-uww) diagram

Burner box

Part #67-303590-00-0

The manufacturer no longer makes this part, and there's no substitute part

Drip Guard 04-303432-07-0
Drip guard

Part #04-303432-07-0

The manufacturer no longer makes this part, and there's no substitute part

Valve Knob 07-301085-02-0
Valve knob

Part #07-301085-02-0

The manufacturer no longer makes this part, and there's no substitute part

Insulation, Glass 02-304044-05-0
Insulation, glass

Part #02-304044-05-0

The manufacturer no longer makes this part, and there's no substitute part

Support Plate, Main Top 74-303593-00-0
#7

(pgt136-ud) (pgt136-uww) diagram

Support plate, main top

Part #74-303593-00-0

The manufacturer no longer makes this part, and there's no substitute part

Surface Valve, L.f. 34-303978-07-0
Surface valve, l.f.

Part #34-303978-07-0

The manufacturer no longer makes this part, and there's no substitute part
