Model # DM46H-3B Official Maytag microwave

Here are the diagrams and repair parts for Official Maytag DM46H-3B microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 73 parts  |
Screw 03010144
#30

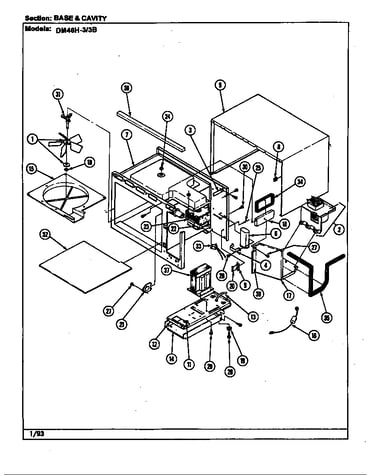

Base & cavity diagram

Screw

Part #03010144

Replaced by #WP8281227

?
Manufacturer substitution
This part replaces 03010144. Substitute parts can look different from the original.
This item is not returnable
$7.99 |
11% OFF Phone Price : $8.99
In Stock
Screw 03020041
#9

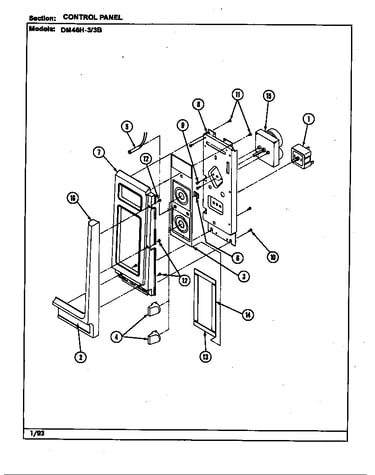

Control panel diagram

Screw

Part #03020041

Replaced by #WPY706189

?
Manufacturer substitution
This part replaces 03020041. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 03020068
#28

Base & cavity diagram

Screw

Part #03020068

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 03020068. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Stirrer Cover 02300045
#15

Base & cavity diagram

Stirrer cover

Part #02300045

The manufacturer no longer makes this part, and there's no substitute part

Buffer Tape 02310129
#3

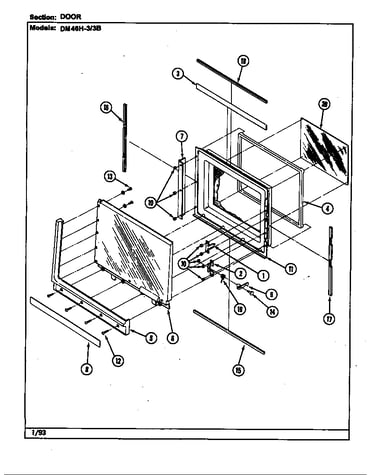

Door diagram

Buffer tape

Part #02310129

The manufacturer no longer makes this part, and there's no substitute part

Defrost Timer 01070041
#1

Control panel diagram

Defrost timer

Part #01070041

The manufacturer no longer makes this part, and there's no substitute part

Cabinet (blk 02140041
#5

Base & cavity diagram

Cabinet (blk

Part #02140041

The manufacturer no longer makes this part, and there's no substitute part

Lever Pin 03070031
#7

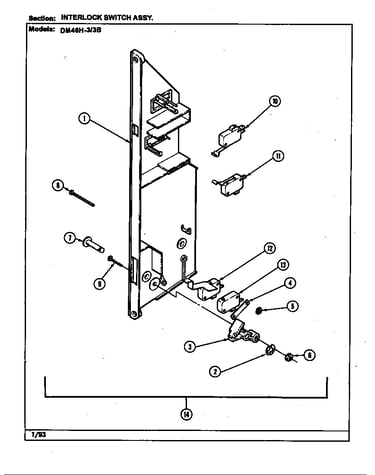

Interlock switch assy. diagram

Lever pin

Part #03070031

The manufacturer no longer makes this part, and there's no substitute part

Clip 03110050
#15A

Base & cavity diagram

Clip

Part #03110050

The manufacturer no longer makes this part, and there's no substitute part

Door Bracket 02030116
#2

Door diagram

Door bracket

Part #02030116

The manufacturer no longer makes this part, and there's no substitute part
