Model # 5KFPCB700AWH0 Official KitchenAid food processor

Here are the diagrams and repair parts for Official KitchenAid 5KFPCB700AWH0 food processor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |
Parts List W10243122
#1A

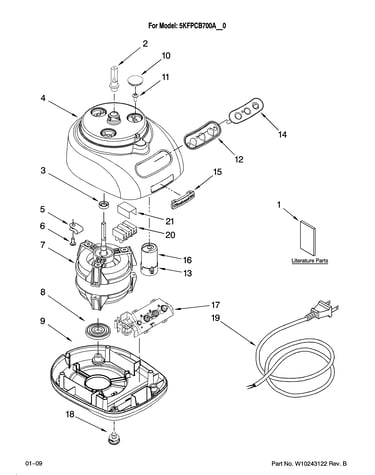

Motor and housing parts diagram

Parts list

Part #W10243122

$9.99
In Stock
Clamp 8211610
#5

Motor and housing parts diagram

Clamp

Part #8211610

Replaced by #2185825

?
Manufacturer substitution
This part replaces 8211610. Substitute parts can look different from the original.
$29.89
In Stock
Extractor 8212025
#NI

Attachment parts diagram

Extractor

Part #8212025

The manufacturer no longer makes this part, and there's no substitute part

Base 8212081
#9

Motor and housing parts diagram

Base

Part #8212081

The manufacturer no longer makes this part, and there's no substitute part

Accessory Box 8212034
#NI

Attachment parts diagram

Accessory box

Part #8212034

The manufacturer no longer makes this part, and there's no substitute part

Cover 8212084
#10

Motor and housing parts diagram

Cover

Part #8212084

The manufacturer no longer makes this part, and there's no substitute part

Housing 8212068
#4

Motor and housing parts diagram

Housing

Part #8212068

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 8212089
#16

Motor and housing parts diagram

Capacitor

Part #8212089

The manufacturer no longer makes this part, and there's no substitute part

Motor 8212079
#7

Motor and housing parts diagram

Motor

Part #8212079

The manufacturer no longer makes this part, and there's no substitute part

Blade W10187050
#1

Attachment parts diagram

Blade

Part #W10187050

The manufacturer no longer makes this part, and there's no substitute part
