Model # AMV2174VAD0 Official Amana microwave

Here are the diagrams and repair parts for Official Amana AMV2174VAD0 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

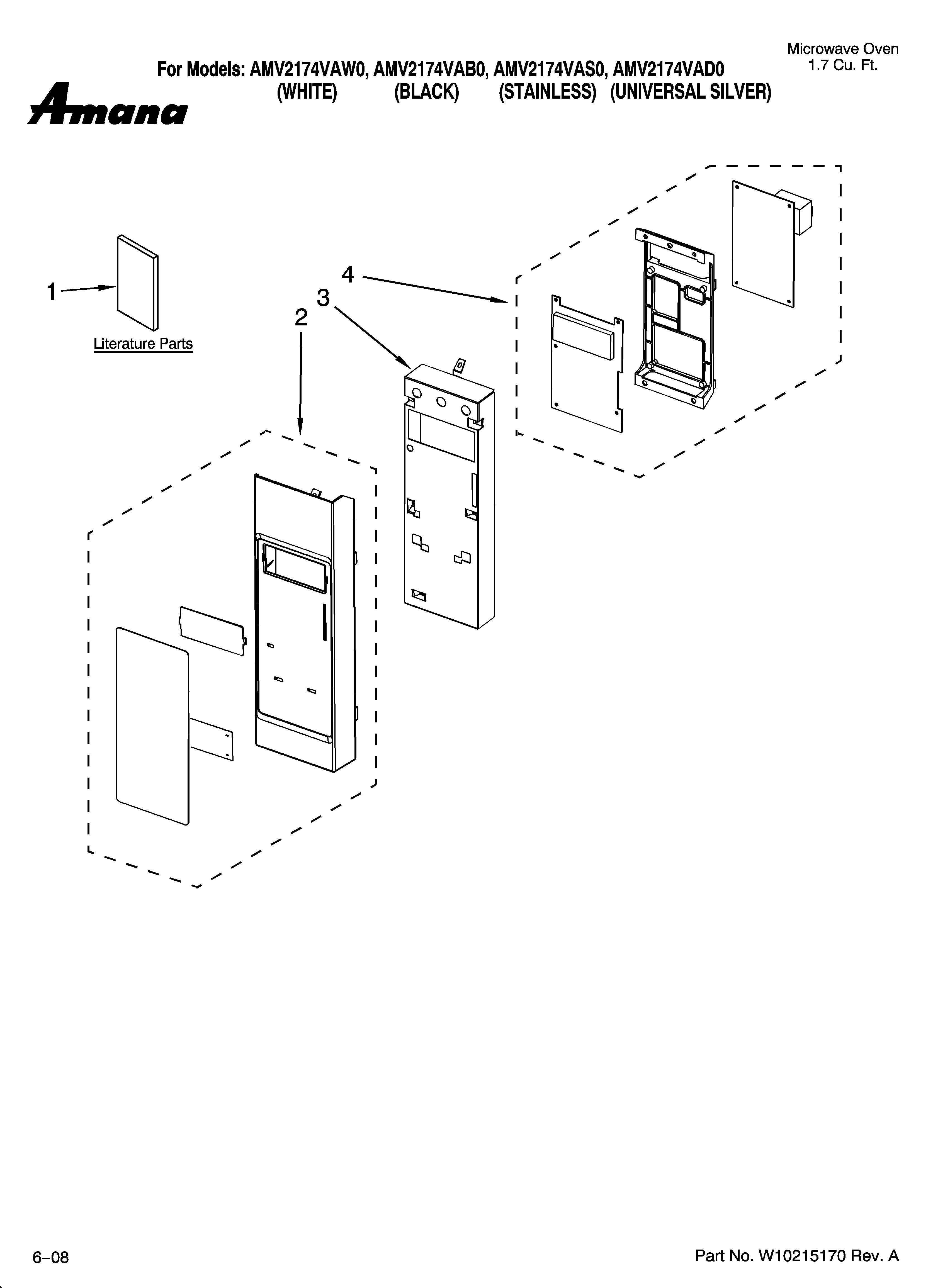

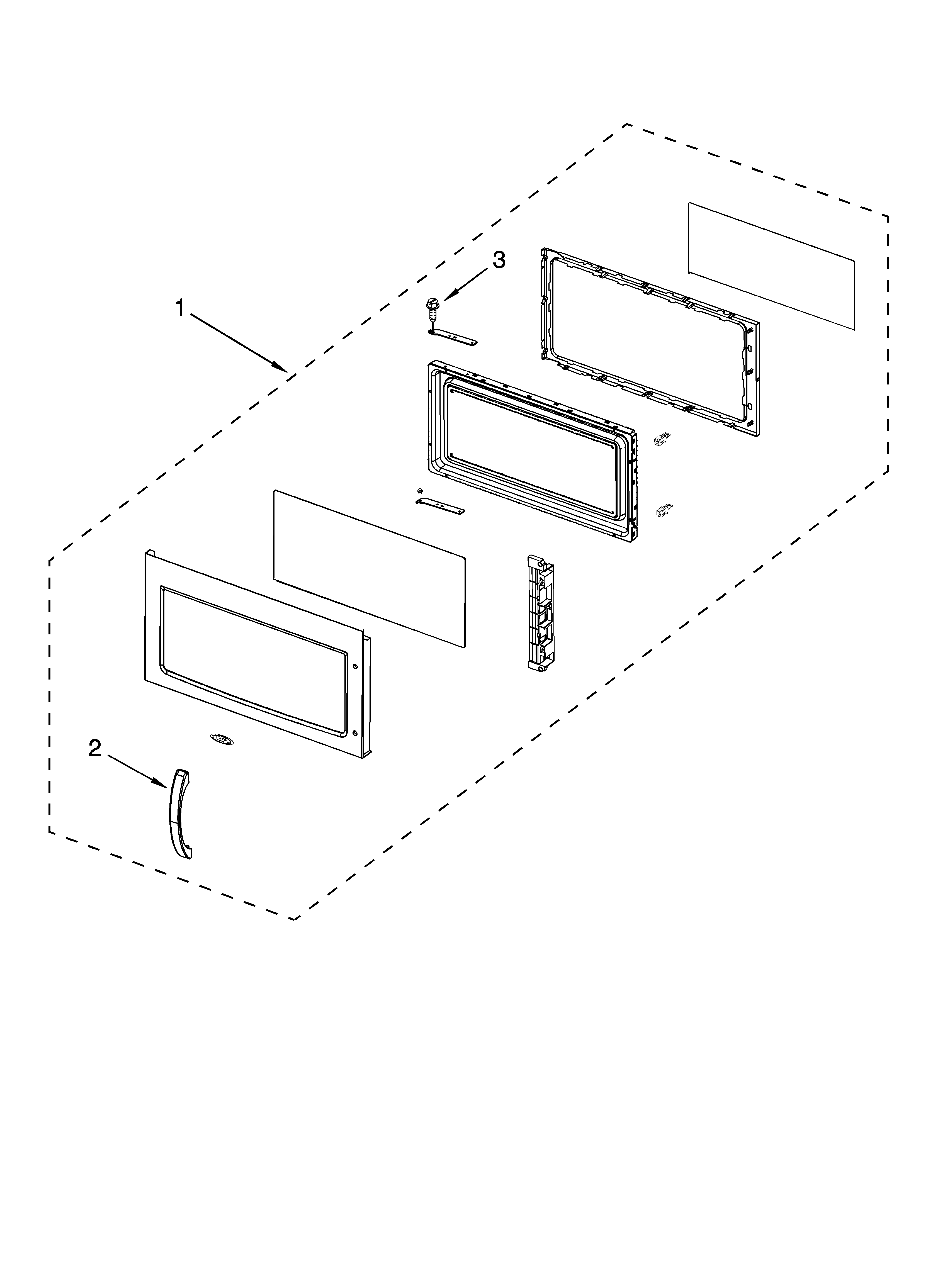

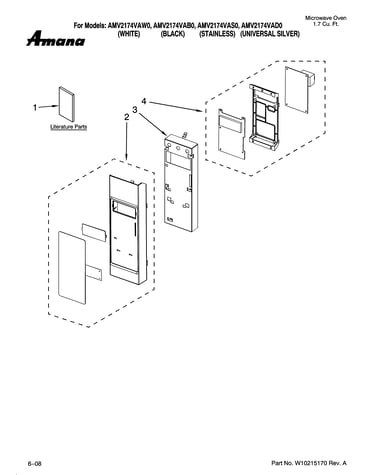

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 99 parts  |
Lamp Assembly 4393681
#3

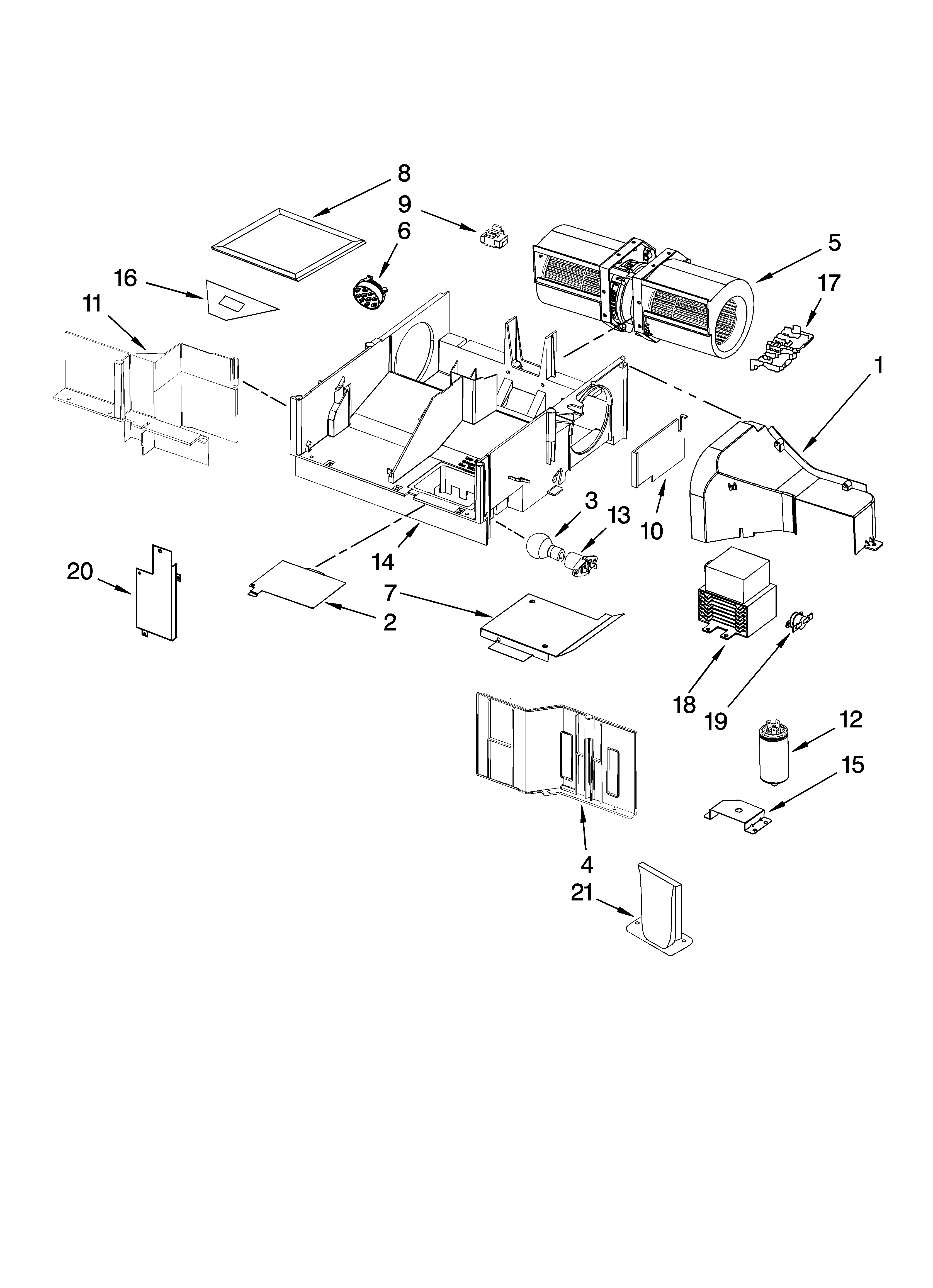

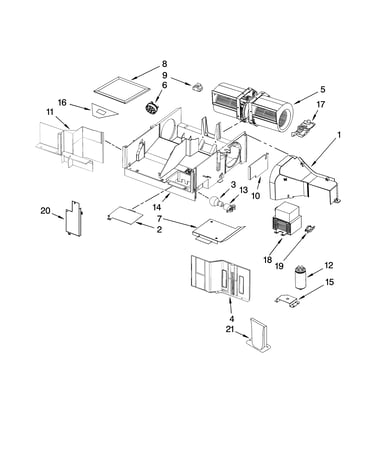

Air flow parts diagram

Lamp assembly

Part #4393681

Replaced by #8206232A

?
Manufacturer substitution
This part replaces 4393681. Substitute parts can look different from the original.
BEST SELLER
$9.30 |
42% OFF MSRP : $16.00
Back Order
Microwave/hood Light Bulb 8206232
#2

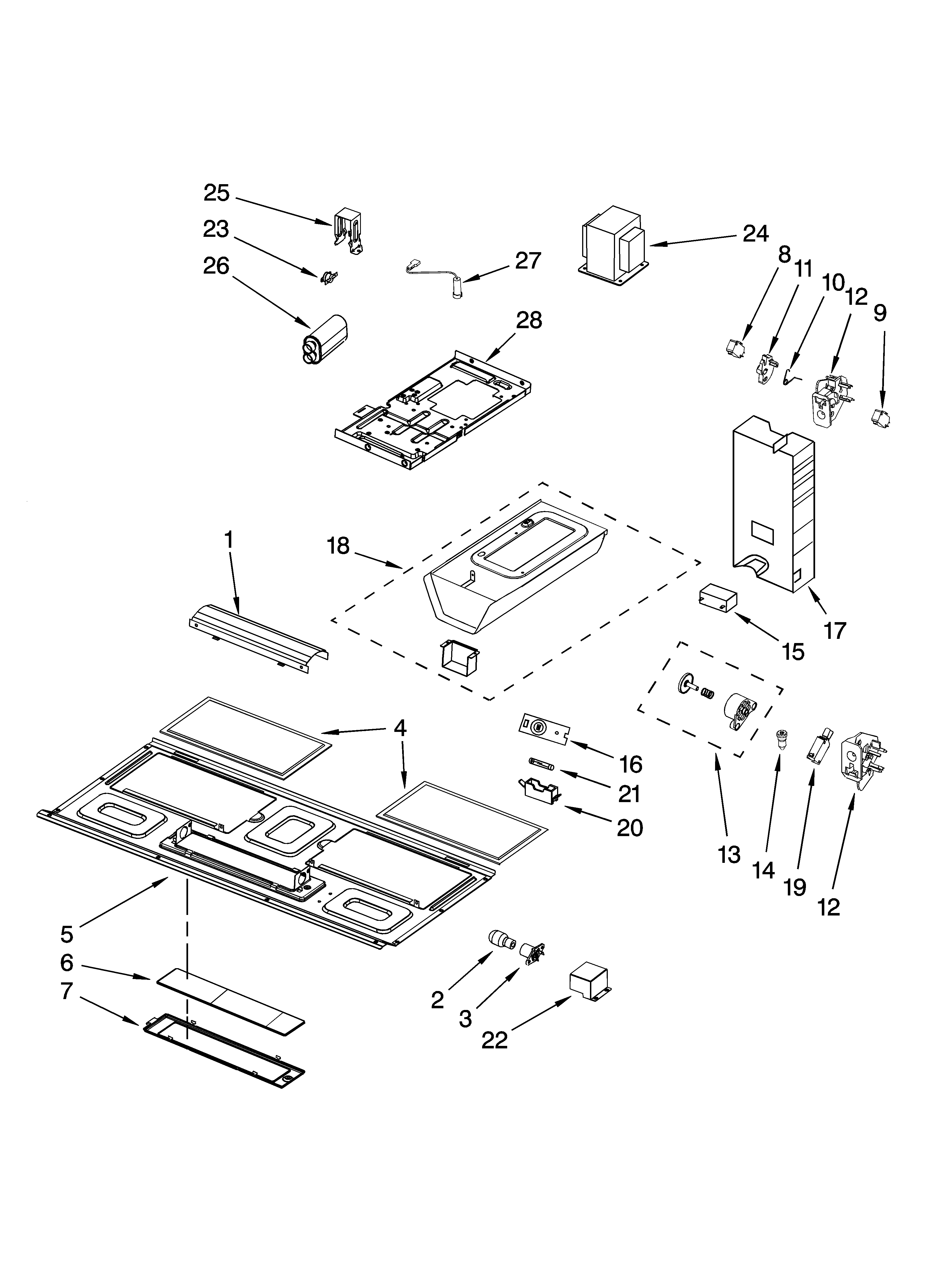

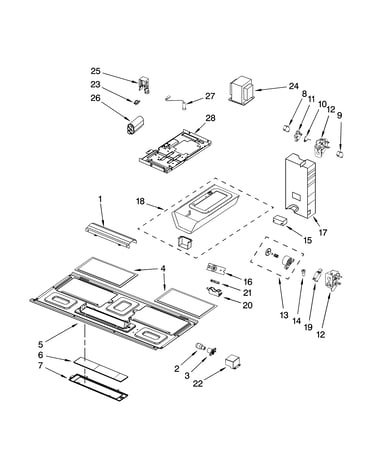

Interior and ventilation parts diagram

Microwave/hood light bulb

Part #8206232

Replaced by #8206232A

?
Manufacturer substitution
This part replaces 8206232. Substitute parts can look different from the original.
BEST SELLER
$9.30 |
42% OFF MSRP : $16.00
Back Order
Interlock W10156813
#12A

Interior and ventilation parts diagram

Interlock

Part #W10156813

Replaced by #WPW10156813

?
Manufacturer substitution
This part replaces W10156813. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.99 |
53% OFF MSRP : $15.00
In Stock
Microwave Door Interlock Support, Upper 8206419
#12

Interior and ventilation parts diagram

Microwave door interlock support, upper

Part #8206419

BEST SELLER
$15.53
In Stock
Magnetron W10210845
#18

Air flow parts diagram

Magnetron

Part #W10210845

The manufacturer no longer makes this part, and there's no substitute part

Microwave Door Interlock Spring W10156812
#10

Interior and ventilation parts diagram

Microwave door interlock spring

Part #W10156812

BEST SELLER
$7.73 |
59% OFF MSRP : $19.00
In Stock
Filter 8206230
#8

Air flow parts diagram

Filter

Part #8206230

Replaced by #8206230A

?
Manufacturer substitution
This part replaces 8206230. Substitute parts can look different from the original.
BEST SELLER
$11.14 |
15% OFF Phone Price : $13.14
In Stock
Microwave/hood Switch 8206352
#19

Interior and ventilation parts diagram

Microwave/hood switch

Part #8206352

Replaced by #W10211974

?
Manufacturer substitution
This part replaces 8206352. Substitute parts can look different from the original.
BEST SELLER
$31.20 |
38% OFF MSRP : $50.00
In Stock
Microwave Turntable Motor W10210848
#7

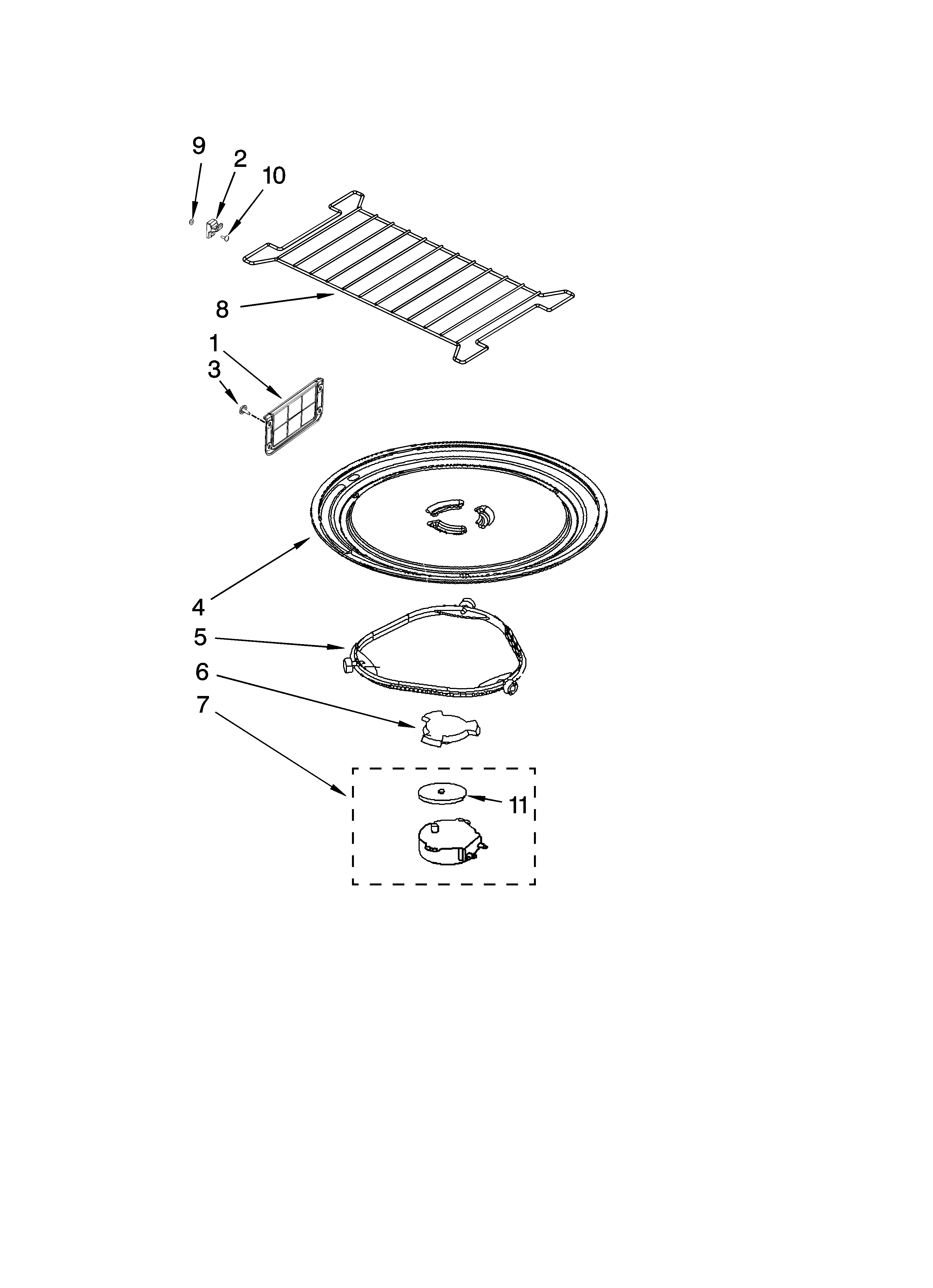

Turntable parts diagram

Microwave turntable motor

Part #W10210848

Replaced by #WPW10466420

?
Manufacturer substitution
This part replaces W10210848. Substitute parts can look different from the original.
$32.16 |
34% OFF MSRP : $49.00
In Stock
Microwave Turntable Tray (replaces 8206226) 4393799
#4

Turntable parts diagram

Microwave turntable tray (replaces 8206226)

Part #4393799

$65.09 |
7% OFF Phone Price : $70.09
In Stock
