Kenmore 2538607511 refrigerator Parts
Here are the diagrams and repair parts for Kenmore 2538607511 refrigerator, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM

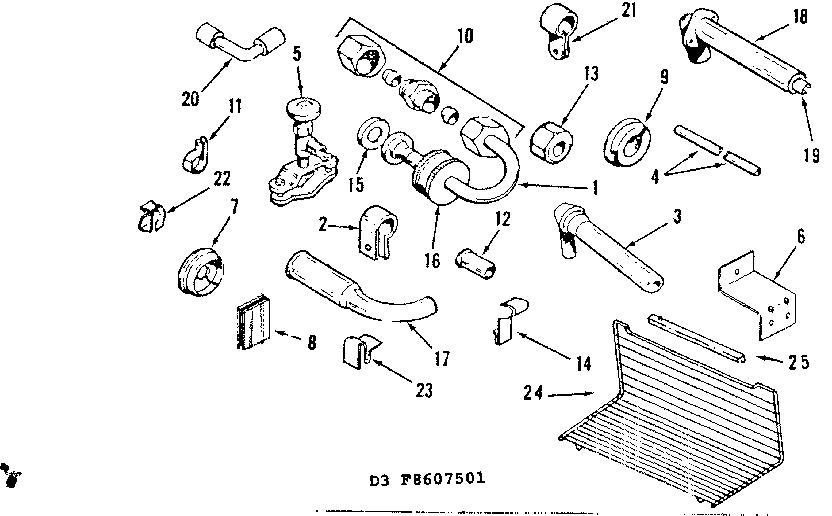

Browse Parts for 2538607511 Refrigerator

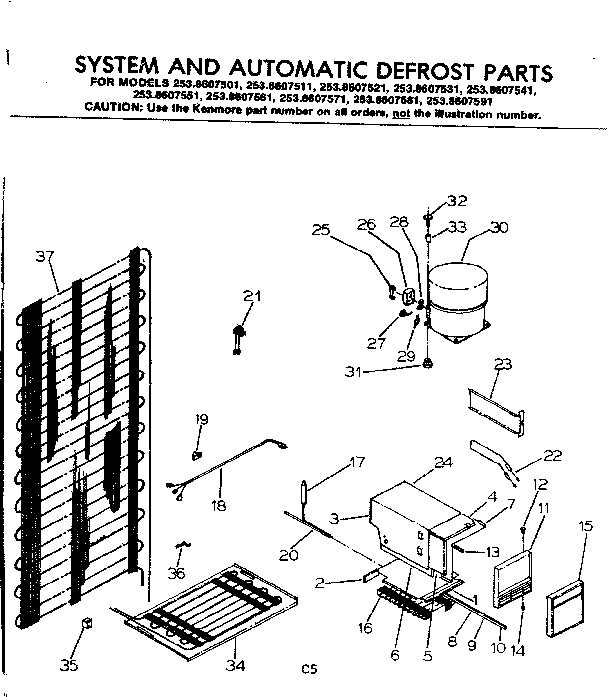

System and automatic defrost diagram
Thermostat
Part #162690-01Replaced by #5303917954
Manufacturer substitutionThis part replaces 162690-01. Substitute parts can look different from the original.In Stock$27.3918% OFF Phone Price : $33.39
Qty

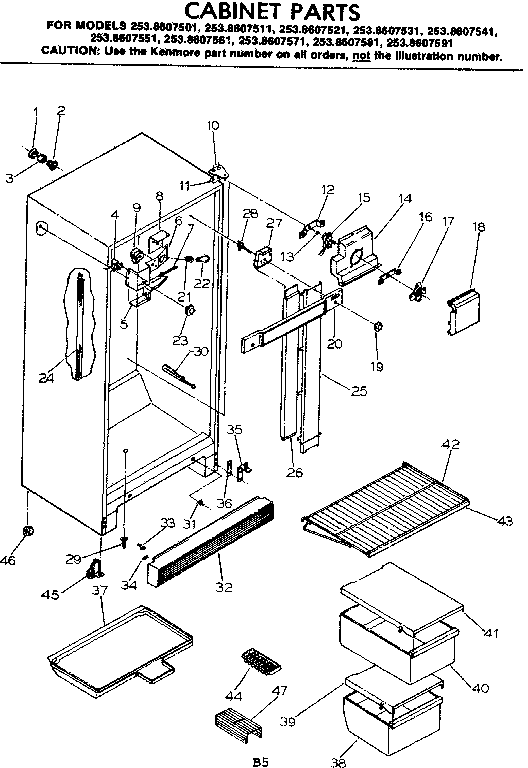

Cabinet parts diagram
Refrigerator Socket
Part #166565Replaced by #218906802
Manufacturer substitutionThis part replaces 166565. Substitute parts can look different from the original.This item is not returnableIn Stock$20.3123% OFF Phone Price : $26.31QtyCabinet parts diagram
Screw
Part #99167Replaced by #241710601
Manufacturer substitutionThis part replaces 99167. Substitute parts can look different from the original.This item is not returnableIn Stock$15.0612% OFF Phone Price : $17.06QtyCabinet parts diagram
Refrigerator Screw
Part #167103Replaced by #241710601
Manufacturer substitutionThis part replaces 167103. Substitute parts can look different from the original.This item is not returnableIn Stock$15.0612% OFF Phone Price : $17.06QtyCabinet parts diagram
Refrigerator Ice Tray
Part #156376-01Replaced by #215667501
Manufacturer substitutionThis part replaces 156376-01. Substitute parts can look different from the original.This item is not returnableIn Stock$5.2016% OFF Phone Price : $6.20Qty#NI
All parts diagram
Refrigerator Button (white)
Part #162977-01Replaced by #240494001
Manufacturer substitutionThis part replaces 162977-01. Substitute parts can look different from the original.This item is not returnableIn Stock$21.5922% OFF Phone Price : $27.59QtyCabinet parts diagram
Refrigerator Screw
Part #166567Replaced by #5304455852
Manufacturer substitutionThis part replaces 166567. Substitute parts can look different from the original.In Stock$41.63QtySystem and automatic defrost diagram
Grommet
Part #126340Replaced by #218513300
Manufacturer substitutionThis part replaces 126340. Substitute parts can look different from the original.In Stock$41.8913% OFF Phone Price : $47.89QtySystem and automatic defrost diagram
Refrigerator Pin
Part #169863Replaced by #5308008765
Manufacturer substitutionThis part replaces 169863. Substitute parts can look different from the original.In Stock$27.48QtyDoor parts diagram
Refrigerator Screw
Part #155660Replaced by #5308011745
Manufacturer substitutionThis part replaces 155660. Substitute parts can look different from the original.In Stock$34.54Qty
