Whirlpool WFE505W0HW5 electric range Parts

On a Whirlpool WFE505W0HW5 electric range, the F5 E1 error code points to a door lock or door lock switch problem (often seen around self-clean). We fix it by canceling the cycle, letting the oven cool, checking the latch for binding, and testing the lock circuit; replace the failed part if needed.

What to do first (safe reset and quick checks)

• Press Cancel/Off and wait for the oven to cool completely.
• If the door is locked, do not force it; allow 30 to 90 minutes for the lock to release as the oven cools.
• Turn off power at the breaker for 1 minute, then restore power.
• Check that nothing is obstructing the door or latch area (crumbs, foil, warped gasket).
• Try a normal Bake cycle to see if the code returns.

Common causes on this model

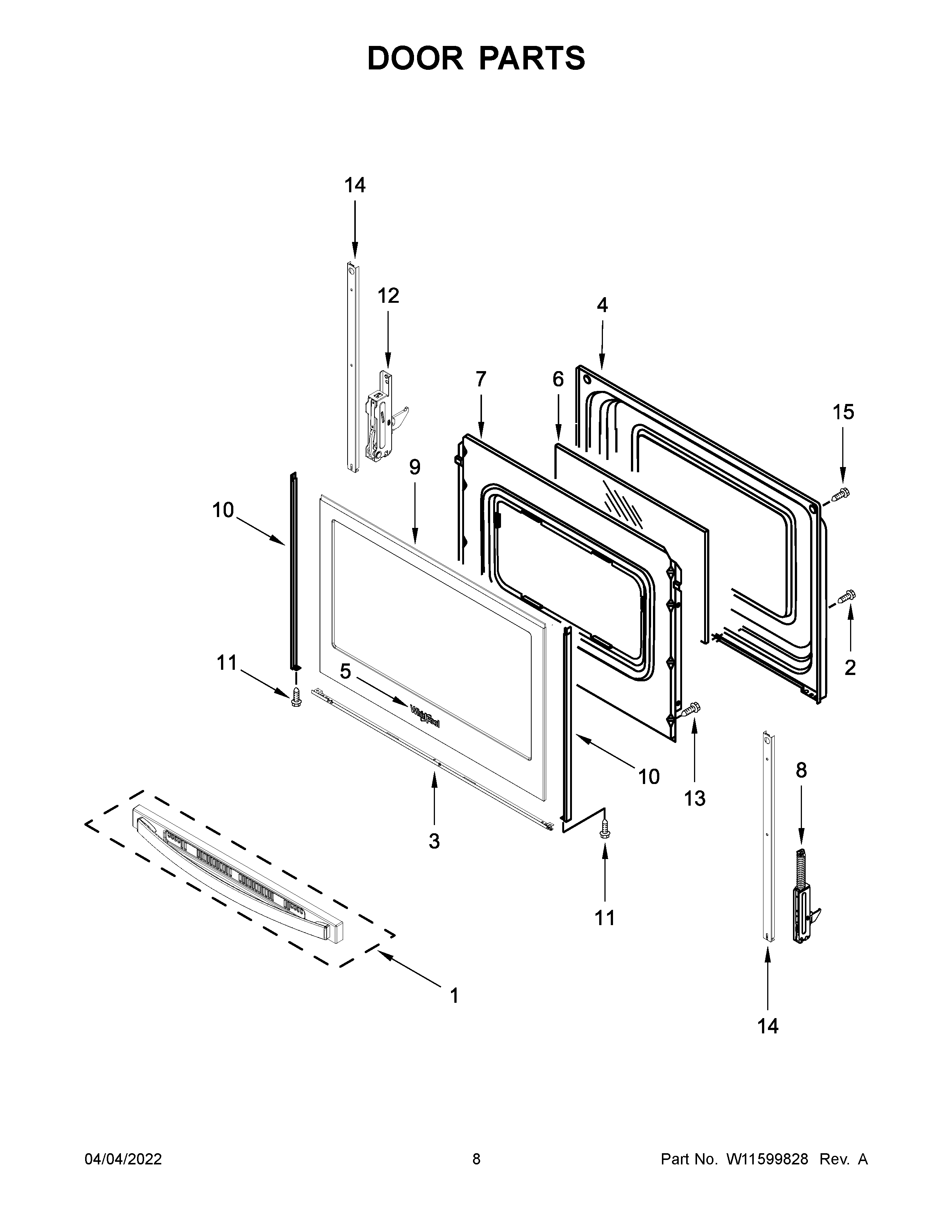

• Door lock mechanism is stuck or the switch is not changing state.
• Wiring connection to the lock circuit is loose.
• Electronic control is misreading the lock status.

Parts that are often involved

If the code returns after cooling and a power reset, the repair usually comes down to diagnosing the lock circuit and the control.

Symptom you see	Most likely area	What we do next
Code appears during/after self-clean	Door lock system	Inspect latch movement and switch operation
Door stays locked when cool	Door lock system	Check for binding, then test lock switches
Random beeping with F5 E1	Control or wiring	Check harness connections; evaluate control

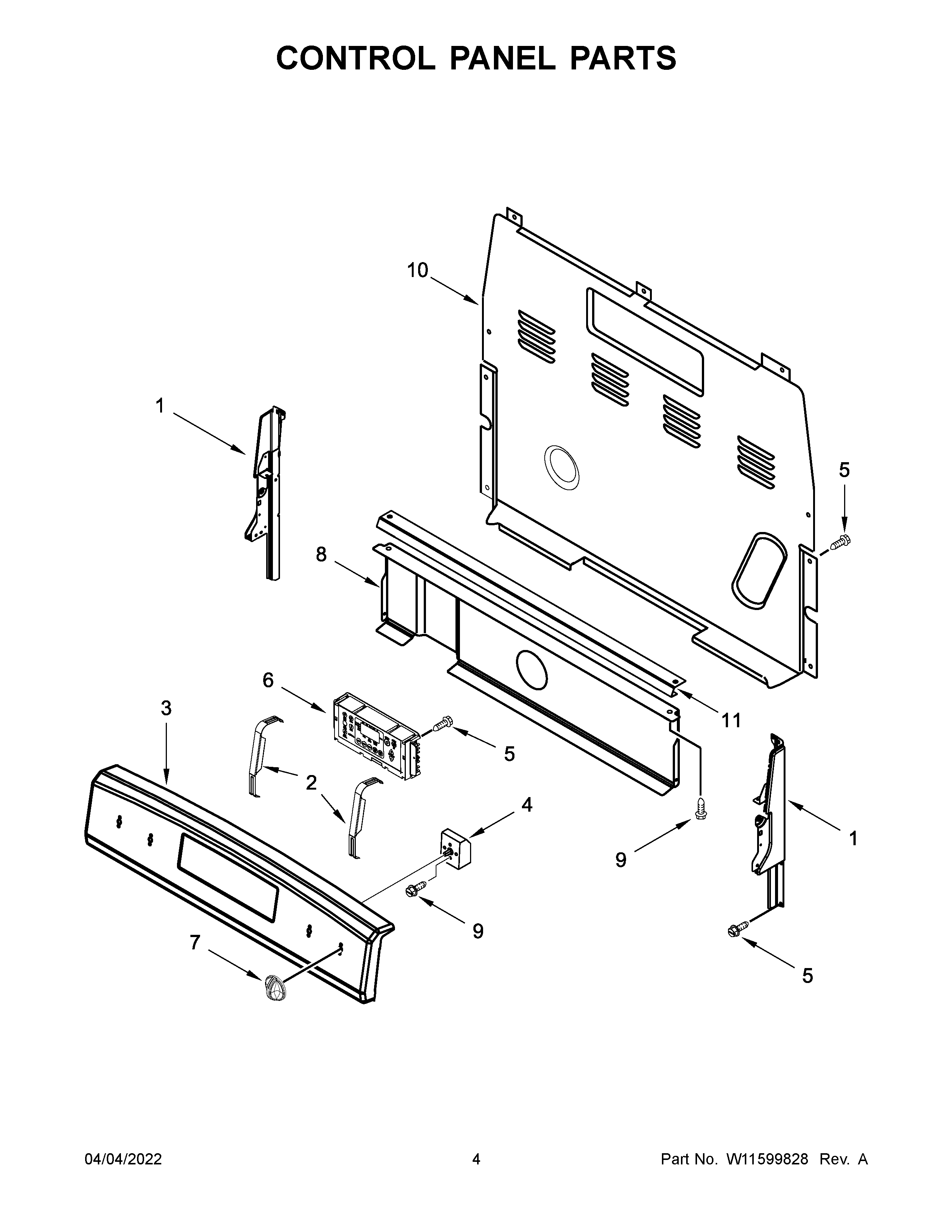

If testing points to a control issue, the model-specific control is control, electronic (lcx) (white) W11546066.

Why it matters

The oven uses the door lock status as a safety input. If the control thinks the door is locked when it is not (or vice versa), it will stop heating and post F5 E1 to prevent unsafe operation.

Helpful DIY references

• Use our code list to match symptoms and next steps: Whirlpool freestanding range error codes.

If you need to order model-correct replacement parts for WFE505W0HW5, use the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

Most error codes on your Whirlpool WFE505W0HW5 electric range clear with a simple reset: press Cancel/Off once, then power-cycle the range at the breaker for 1 to 5 minutes and restore power. If the code returns right away, a failed component is usually causing it.

Fast reset steps (safe and effective)

• Press Cancel/Off to stop the current cycle.
• Turn OFF the range circuit breaker (or remove the fuse) for 1 to 5 minutes.
• Turn the breaker ON and wait for the control to fully reboot.
• Set the clock if needed, then try Bake at 350°F to see if the code returns.
• If the display is blank or the oven will not heat, confirm the breaker is fully seated (some panels use a double-pole breaker).

What it means if the code comes back

When an error code reappears after a power reset, it typically points to a specific system that needs attention.

What you notice	Most common cause	What we recommend
Oven temperature is inaccurate, code returns during preheat	Temperature sensing problem	Check/replace the range oven temperature sensor WPW10181986

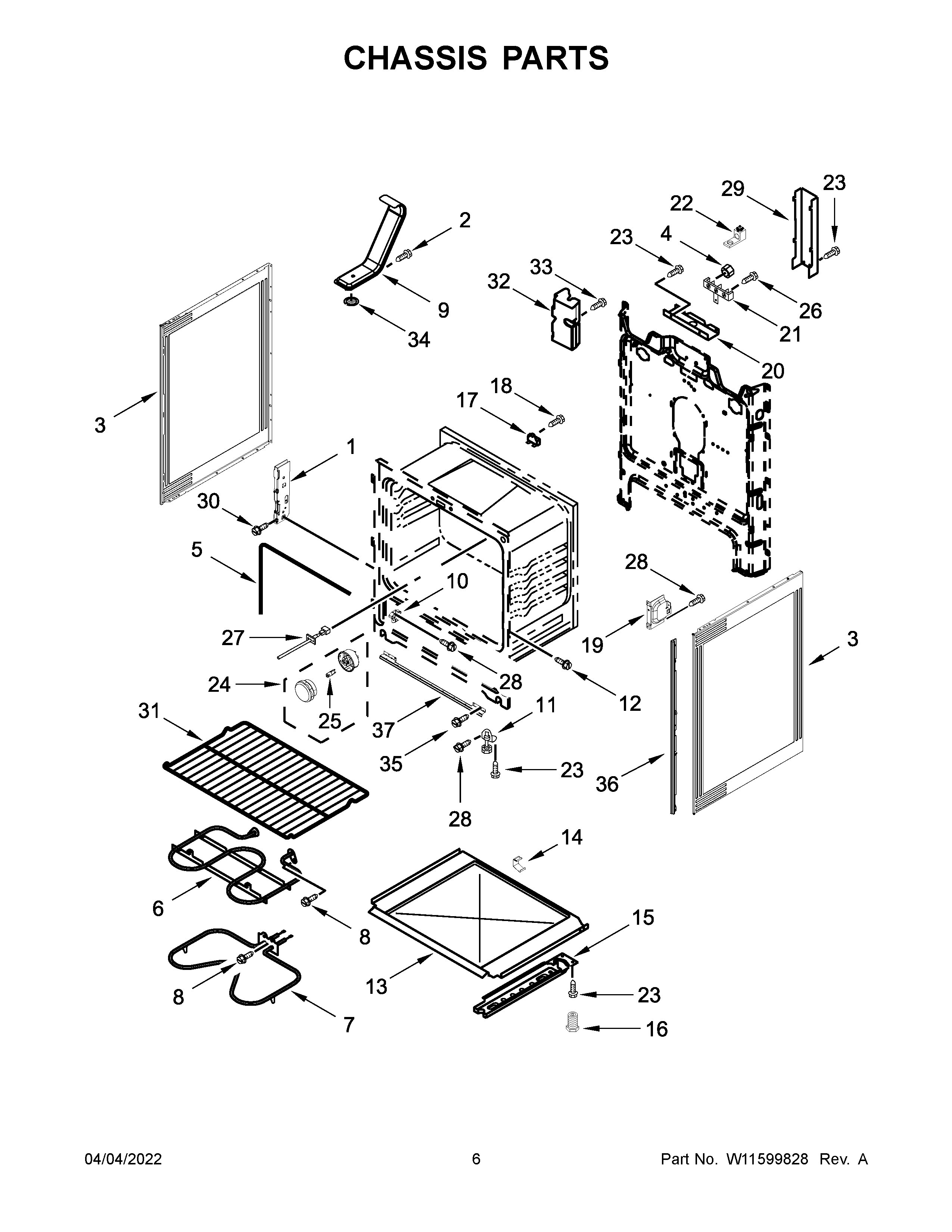

Oven will not heat or heats unevenly, no obvious display issue	Heating circuit problem	Inspect/replace the bake element W11182108 and check wiring connections
Code appears with odd keypad behavior or random beeping	Control or user interface issue	Consider the control, electronic (lcx) (white) W11546066 after verifying power and connections

Why it matters

Resetting clears temporary control glitches, but a repeating error code protects the range from overheating, underheating, or unsafe operation. Addressing the underlying part (sensor, element, or control) helps restore accurate baking and reliable performance.

Helpful DIY references

• Use our Whirlpool error codes guide to match the exact code on your display to the most likely cause and next steps.

Ordering the right part

We list model-matched replacement parts for Whirlpool WFE505W0HW5 on this page; you can also search by model number on Sears PartsDirect if you are comparing options.

Last updated: February 2026

The average lifespan of a Whirlpool electric range like model WFE505W0HW5 is 13 to 15 years with normal household use and basic maintenance. Heavy use, frequent self-clean cycles, and power issues can shorten that timeline.

What affects lifespan most

• Heating load: daily high-heat baking and broiling wear elements faster
• Self-clean frequency: extreme heat can stress wiring, sensors, and door seals
• Power quality: surges and loose connections can damage the electronic control
• Ventilation and spills: boilovers can seep into switches and harnesses
• Leveling and door seal condition: poor sealing forces longer heat cycles

Parts that commonly wear first (and what they do)

If performance drops before 13 to 15 years, these are typical wear items on electric ranges:

Symptom	Likely part area	Example part for WFE505W0HW5
Oven temperature swings, underbakes	Temperature sensing	Range oven temperature sensor WPW10181986
No bake heat or slow preheat	Oven heating	Bake element W11182108
Weak or uneven broil	Broil heating	Range broil element W10856603

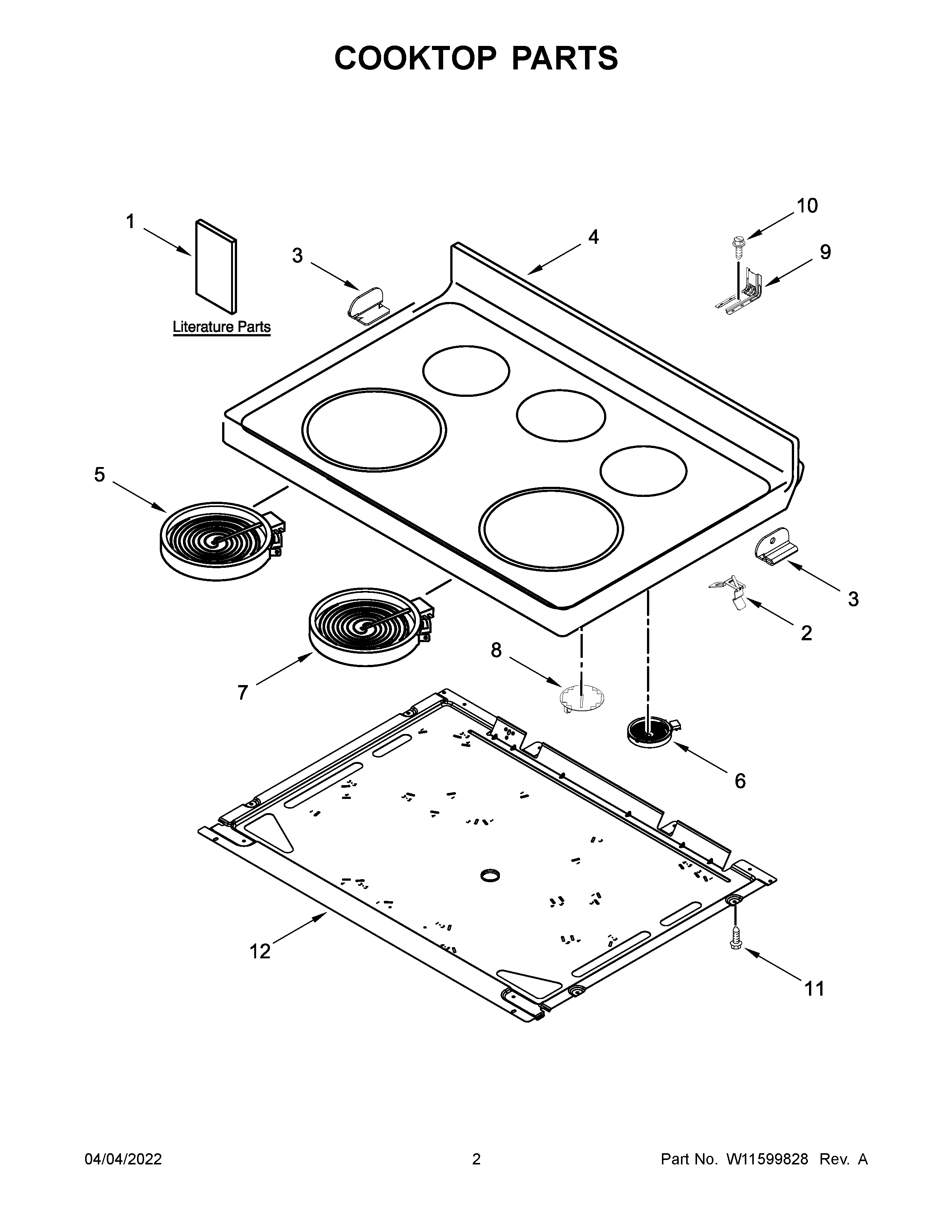

Burner won’t regulate heat	Surface control	Range dual surface element control switch WPW10434452

Why it matters

Knowing the expected service life helps you decide whether to repair or replace. On a 13 to 15 year range, replacing a bake element or temperature sensor is often a practical fix, while repeated control or wiring failures can signal end-of-life.

Tips to help your range reach 15 years

• Wipe up spills quickly, especially around the cooktop controls
• Use self-clean sparingly; try manual cleaning when possible
• Avoid slamming the oven door; it protects hinges and the door seal
• Keep the range level using the leveling legs
• If you suspect a power issue, test the outlet and cord connection before replacing parts

Last updated: March 2026
