GE JCP360BV1BB electric range Parts
Here are the diagrams and repair parts for GE JCP360BV1BB electric range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for JCP360BV1BB Ranges

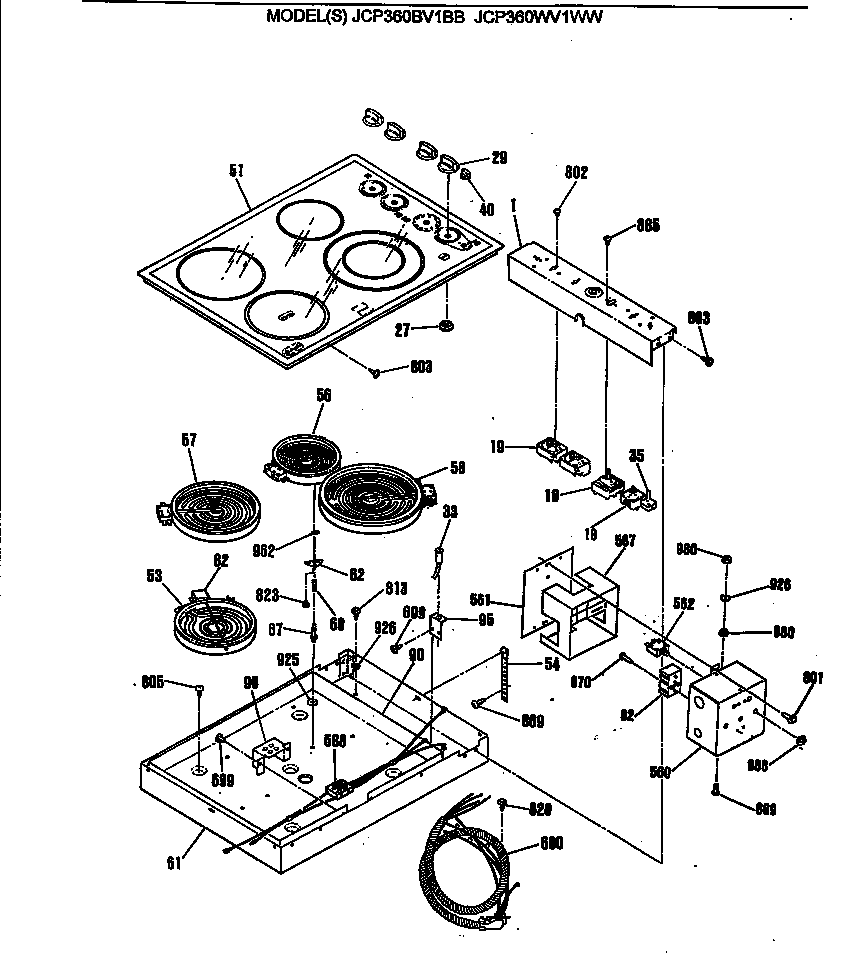

Cooktop diagram
Halogen Element
Part #WB30K5030Replaced by #WB30T10043
Manufacturer substitutionThis part replaces WB30K5030. Substitute parts can look different from the original.In Stock$165.2432% OFF Was : $244.07
Qty
Cooktop diagram
Halogen Element Control
Part #WB23K5053
The manufacturer no longer makes this part, and there's no substitute part
Cooktop diagram
Cooktop Selector Knob (black)
Part #WB3K5227
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Indicator Wr
Part #WB18K5592
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Wire Diagram
Part #31-13316
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Installation Instructions
Part #31-10193
The manufacturer no longer makes this part, and there's no substitute part
Cooktop diagram
Glass Cooktop
Part #WB61K5006
The manufacturer no longer makes this part, and there's no substitute part
Cooktop diagram
Cooktop Element Control Knob
Part #WB3K5228
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Owner's Manual
Part #31-10189
The manufacturer no longer makes this part, and there's no substitute part
Cooktop diagram
Screw
Part #WB1M10
The manufacturer no longer makes this part, and there's no substitute part
