Kenmore
Chest Freezer

Model # 25319821992 Official Kenmore freezer

Here are the diagrams and repair parts for Official Kenmore 25319821992 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |

Filter Drier 216634500
#4

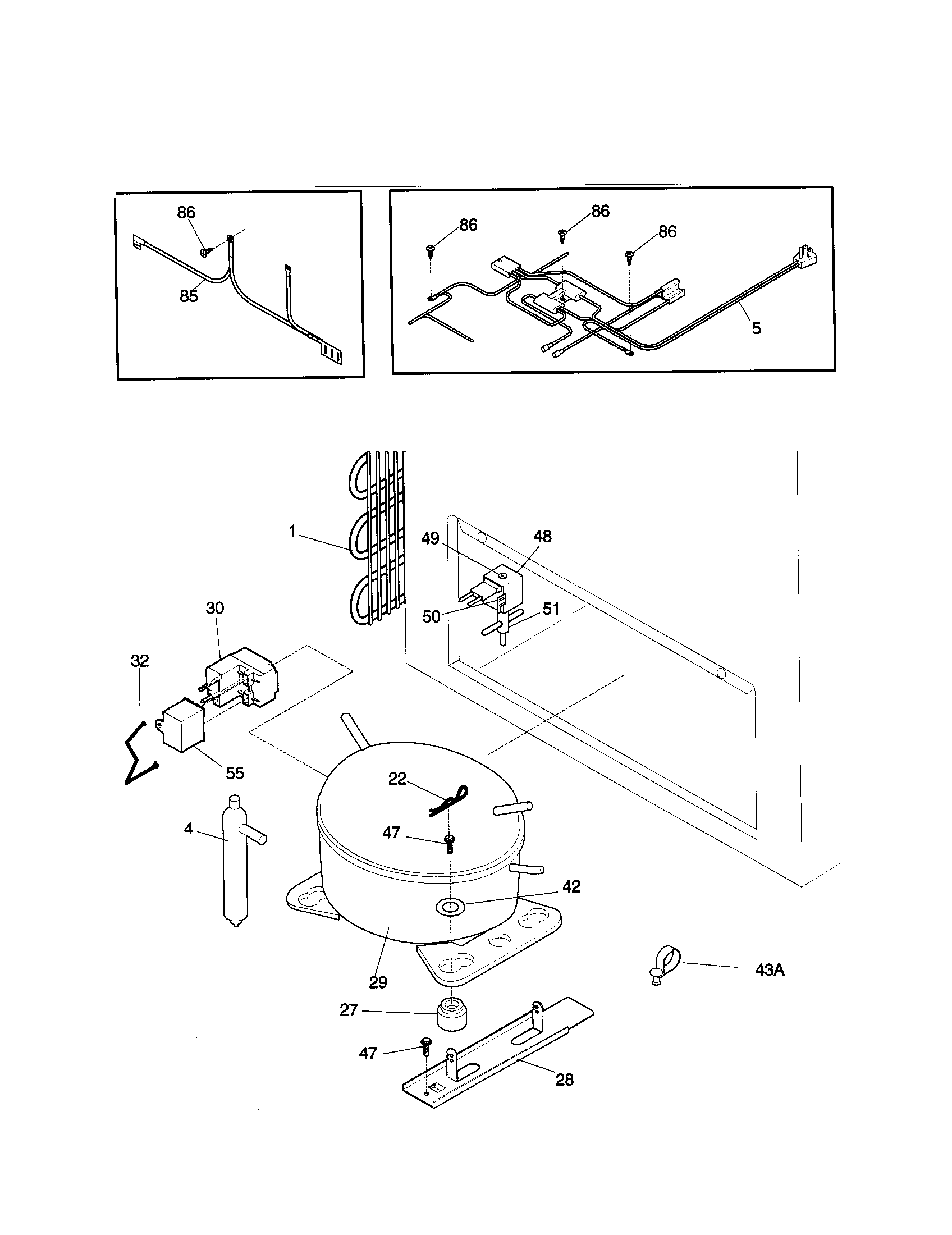

System diagram

Filter drier

Part #216634500

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 216634500. Substitute parts can look different from the original.
BEST SELLER
$12.71
22% OFF MSRP : $16.34
In Stock
Compressor 216470500
#29

System diagram

Compressor

Part #216470500

Replaced by #5304511983

?
Manufacturer substitution
This part replaces 216470500. Substitute parts can look different from the original.
BEST SELLER
$493.71
$10.00 OFF Phone Price : $503.71
In Stock
Freezer Drain Plug (replaces 5306593887) 216502600
#4

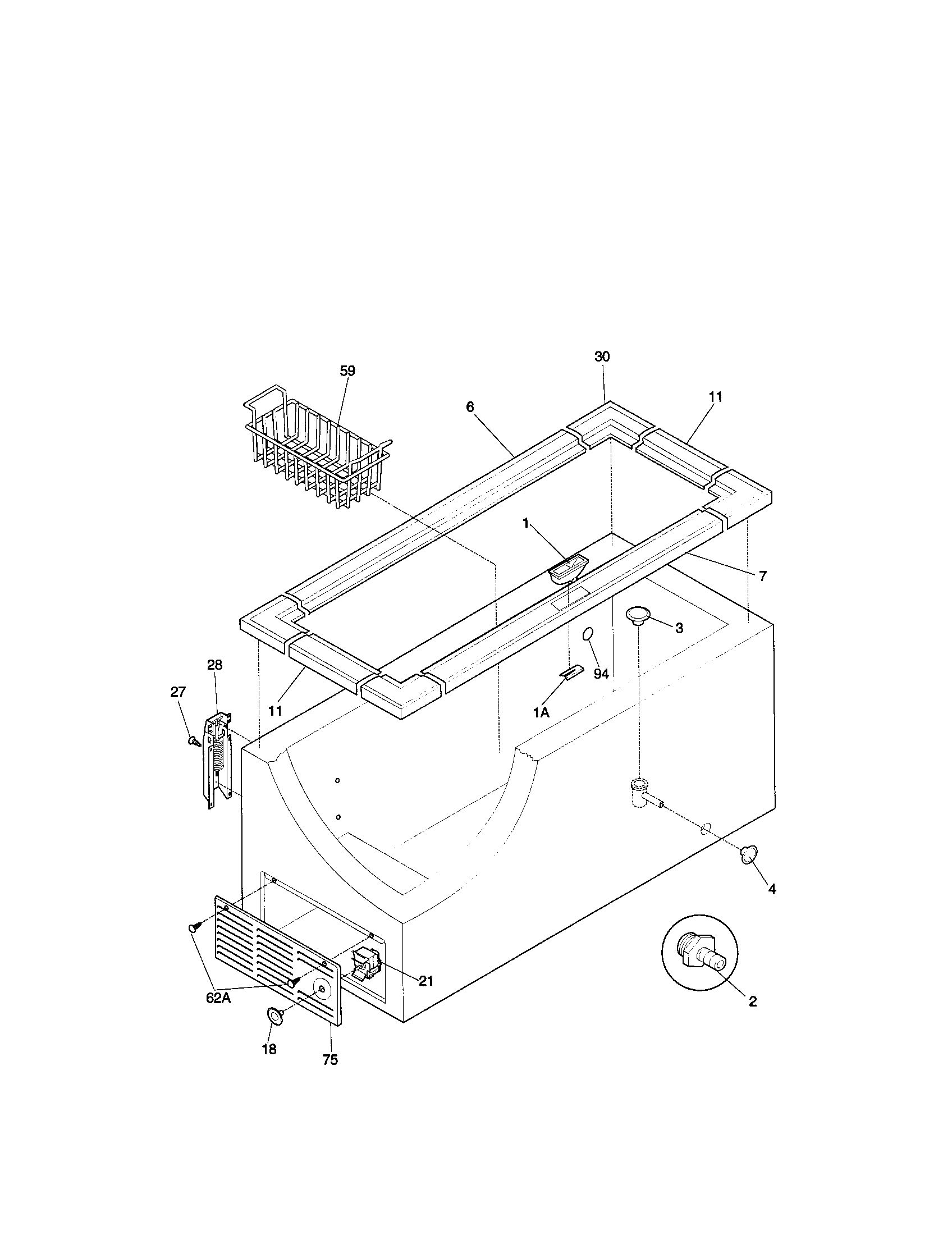

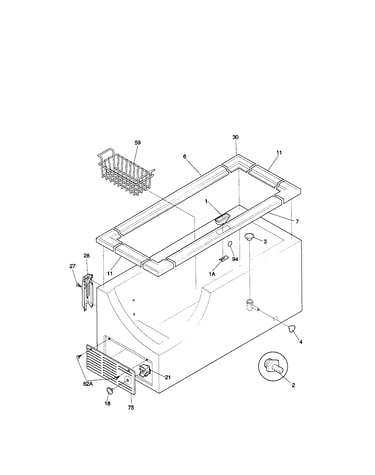

Cabinet diagram

Freezer drain plug (replaces 5306593887)

Part #216502600

BEST SELLER
This item is not returnable
$13.04
13% OFF Phone Price : $15.04
In Stock
Light Plunger 216472300
#14

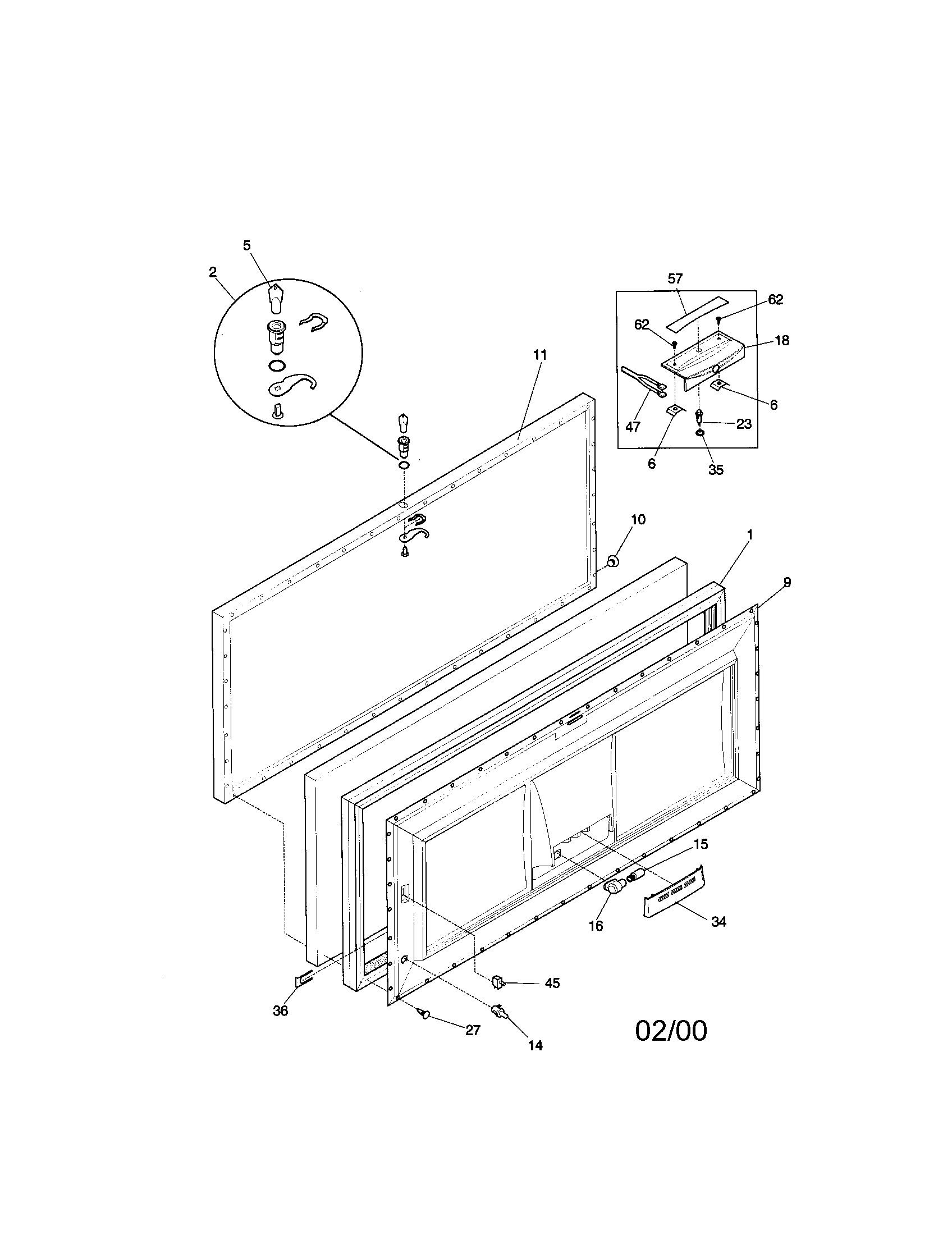

Door diagram

Light plunger

Part #216472300

Replaced by #297243800

?
Manufacturer substitution
This part replaces 216472300. Substitute parts can look different from the original.
BEST SELLER
$19.99
9% OFF Phone Price : $21.99
In Stock
Lamp Bulb 216222700
#15

Door diagram

Lamp bulb

Part #216222700

Replaced by #216846400

?
Manufacturer substitution
This part replaces 216222700. Substitute parts can look different from the original.
$40.15
11% OFF Phone Price : $45.15
In Stock
Freezer Inner Door Panel Rivet 5303212828
#27

Door diagram

Freezer inner door panel rivet

Part #5303212828

$19.49
9% OFF Phone Price : $21.49
In Stock
Freezer Lid Gasket (replaces 216080000, 216080002) 216481301
#1

Door diagram

Freezer lid gasket (replaces 216080000, 216080002)

Part #216481301

$190.36
5% OFF Phone Price : $200.36
In Stock
Hinge Screw 216629600
#27

Cabinet diagram

Hinge screw

Part #216629600

Replaced by #216629601

?
Manufacturer substitution
This part replaces 216629600. Substitute parts can look different from the original.
This item is not returnable
$10.92
15% OFF Phone Price : $12.92
In Stock
Grommet 5308002681
#27

System diagram

Grommet

Part #5308002681

Replaced by #216498900

?
Manufacturer substitution
This part replaces 5308002681. Substitute parts can look different from the original.
This item is not returnable
$13.39
13% OFF Phone Price : $15.39
In Stock
Screw     (i 216036600
#86

System diagram

Screw (i

Part #216036600

Replaced by #216036601

?
Manufacturer substitution
This part replaces 216036600. Substitute parts can look different from the original.
In Stock
